Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Mercedes-Benz
Wheelbase:: 3780+1450mm
Number of tires:: 10pcs
Model code (announced):: Actros3341
Rated payload: 12.67ton
Drive 6X4 (10 wheels)
Horsepower 408
Cargo box type: Dump type

Overview

The Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341) is a Heavy truck featuring 12.67t payload, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Mercedes-BenzOM501LA engine, 408 hp, China IV emissions and Mercedes-Benz transmission.

China IV 408 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): Actros3341
Drive type: 6X4
Wheelbase: 3780+1450mm
engine: Mercedes-BenzOM501LA
transmission: Mercedes-BenzG240-16
Rear Axle Ratio: 5.333
Cab length: 8.22m
Cab width: 2.5m
Cab height: 2.55m
Front track width: 2054mm
rear track: 1804/1804mm
Rated payload: 12.67ton
Origin: Germany
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Mercedes-Benz
Engine Model: Mercedes-BenzOM501LA
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.946L
Emission standard: China IV
Max output power: 300kW
Max hp: 408Horsepower
Max torque: 2000N·m
Max torque speed: 1080rpm
Rated speed: 1592rpm
Engine Type: V6 turbocharged intelligent control diesel engine
Transmission Parameters
Transmission Model: Mercedes-BenzG240-16
Transmission Brand: Mercedes-Benz
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Chassis Specs
rear axle description: HL7500
rear axle allowable load: 16000/16000kg
Axle ratio: 5.333
Tire
Number of tires: 10pcs

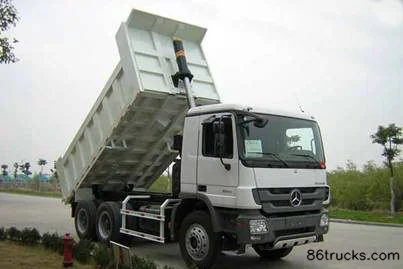

Photos

Exterior1

1 photos

FAQ

What emission standard does Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341)?

Key specs of Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341): Drive: 6x4; Horsepower: 408 hp; Emission: China IV; Fuel: Diesel; Transmission: Mercedes-Benz. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341) suited for?

Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341) differ from other variants in the same series?

Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341) belongs to Mercedes-Benz Actros Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Mercedes-Benz Actros heavy truck 408hp 6X4(10 wheels) dump truck (Model 3341)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
