FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck

Export reference
From $43,972
MSRP ¥31.66M CNY
Horsepower: 320
Emission: China IV
Fuel: Diesel
Engine: Xichai8L
Transmission: Fast Gear
Curb Weight:: 12.745ton
seating capacity: 3Personnel
Rated payload: 18.06ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 18.06t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Xichai8L engine, 320 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5313CCYP2K2L7T4E4A80-1
Type: stake truck
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6DL1-32E4
transmission: Fast Gear9JS135A
Rear Axle Ratio: 4.444
Cab length: 11.995m
Cab width: 2.49m
Cab height: 3.99m
Front track width: 1964mm
rear track: 1847mm
Curb Weight: 12.745ton
Rated payload: 18.06ton
GVWR: 31ton
Max. speed: 93km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Remarks: 11.00R20 16 ply steel tire, 600L aluminum fuel tank, front underrun protection, reinforced front/rear leaf springs, domestic ABS anti-lock braking system, electric tilting, electric windows, air compressor energy-saving boost valve, A/C.
Front/rear suspension: 1.375/2.87m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-32E4
Engine info: Xichai8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China IV
Max output power: 238kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear9JS135A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 457 stamped-welded axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.444
Leaf spring count: 12/12/10
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

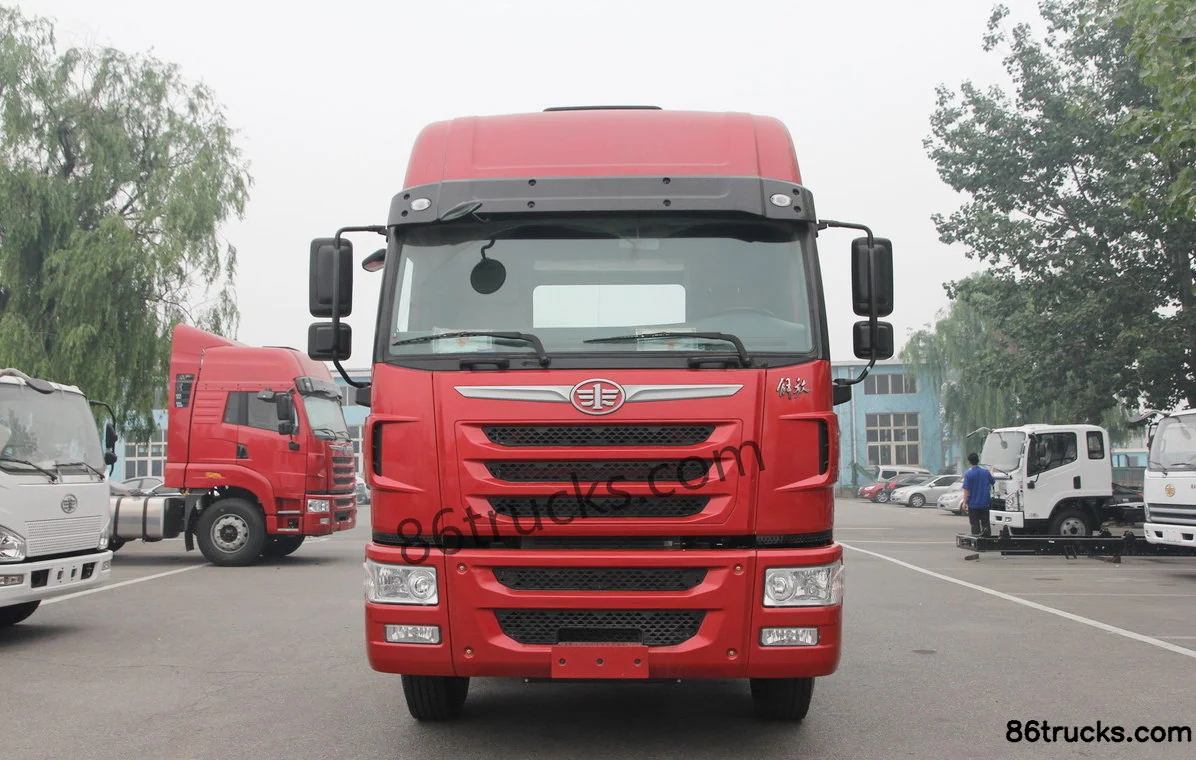

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck, and what does it include?

FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck export reference is about From $43,972; MSRP is ¥31.66M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck?

Key specs of FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck: Drive: 8x4; Horsepower: 320 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai8L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck suited for?

FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck belongs to FAW Jiefang Qingdao Tian V Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Tian V Heavy Truck 320hp 8X4(12 wheels) 9.5m Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
