Dongfeng Liuqi Chenglong H5 270 hp 6X4(10 wheels) Truck-Mounted Crane (Zhuanzhi Brand)
EXW
From $39,333
Export quote
Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane
Main model photos
3 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong H5 270 hp 6X4(10 wheels) Truck-Mounted Crane (Zhuanzhi Brand) | 6x4 / 270hp / China V | From $39,333 | |
| Dongfeng Liuqi Chenglong H7 290 hp 6X4(10 wheels) truck-mounted crane (Zhuanzhi brand) | 6x4 / 290hp / China V | From $71,806 |

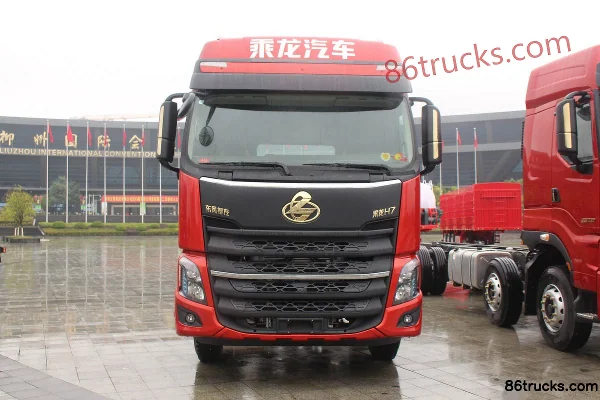

Dongfeng Liuqi Chenglong H7 290 hp 6X4(10 wheels) truck-mounted crane (Zhuanzhi brand)
EXW
From $71,806
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.5×3.85m
Type: Truck with crane
Drive type: 6X4
Wheelbase: 5850+1350mm
Rated mass: 8.12ton
GVWR: 25ton
Front/rear suspension: 1.512/3.288m
Energy Type: Diesel
Body Parameters
Crane model: SQ12SA3,QYS-10III,SQS-10III,URV1004,SPS25000,KS2305,nicoleV1004
Lifting capacity: 6ton
crane self-weight: 4.3ton
Vehicle certification code: YZZ5250JSQLZ
Body Brand: Zhuanzhi brand
Engine parameters
Engine Brand: Dongfeng / Yuchai
Engine Model: DongfengISD270 50 / YuchaiYC6A290-50
Displacement: 6.7 / 7.52L
Emission standard: China V
Max output power: 198 / 213kW
Max hp: 270 / 290Horsepower
Max torque: 970 / 1150N·m
Max torque speed: 1200-1700 / 1200-1800rpm
Rated speed: 2500 / 2300rpm
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongH5 / ChenglongH7
Chassis Model: LZ1250M5DBT
Frame Dimensions: 282 (8+4) double-layer 860 straight framemm
rear axle description: 2*440
Axle ratio: 5.143
Leaf spring count: 11/10
clutch: Φ430
Transmission Parameters
Number of gears: 7Gear
Transmission Model: DachiDC7J120TC
Cab parameters
Cab: H51S
Tire
Tire Size: 11.00R20
Number of tires: 10pcs
FAQ
What kind of truck is Zhuanzhi Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane?
Zhuanzhi Zhuanzhi Dongfeng Liuqi Chassis is an export-oriented truck-mounted crane lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane?
Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane export reference is about $39,333 – $71,806. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane cover?
Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane mainly covers: Drive: 6x4; Horsepower: 270 hp / 290 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane?
For Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane include?
Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Zhuanzhi Dongfeng Liuqi Chassis truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
