Sinotruk Howo MAN H5 270hp 6X4(10 wheels) 8.4m Truck with Crane
EXW
From $72,222
Export quote
Sinotruk H5 near-heavy truck truck-mounted crane
Main model photos
238 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Howo MAN H5 270hp 6X4(10 wheels) 8.4m Truck with Crane | 6x4 / 270hp / China VI | From $72,222 | |
| Sinotruk HOWO MANH5 340hp 8X4(12 wheels) truck-mounted crane | 8x4 / 340hp / China V | From $46,514 | |
| Sinotruk Haoman H5 310hp 8X4(12 wheels) Truck Mounted Crane | 8x4 / 310hp / China V | From $42,639 |
Sinotruk HOWO MANH5 340hp 8X4(12 wheels) truck-mounted crane
EXW
From $46,514
Export quote

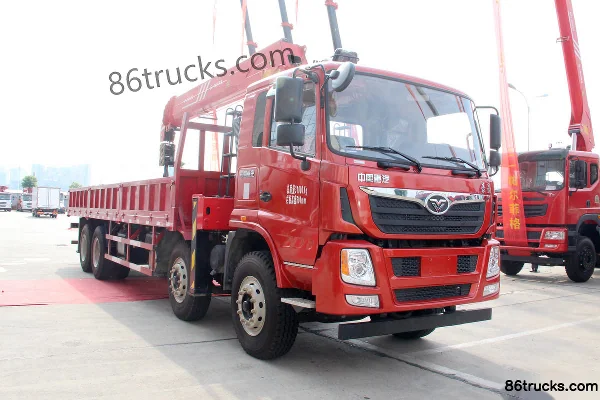

Sinotruk Haoman H5 310hp 8X4(12 wheels) Truck Mounted Crane
EXW
From $42,639
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO MAN H5 340 hp 8X4(12 wheels) Truck Mounted Crane (153 Rear Axle) | 8x4 / 340hp / China V |
Series Specs
Basic Info
Cab dimensions: 11.99×2.545×3.895 / 11.995×2.545×3.9 / 11.995×2.5×3.9m
Type: Truck with crane / Sinotruk
Drive type: 6X4 / 8X4
Wheelbase: 5700+1350 / 2100+4600+1350mm
Rated mass: 7.65 / 10.37ton
Front track width: 2020mm
rear track: 1860/1860mm
GVWR: 25 / 31ton
Front/rear suspension: 1.355/3.495 / 1.32/2.625m
Energy Type: Diesel
Body Parameters
Other special notes: 153 front axle
Crane model: Hai Gong Shan He brand SQS300 / SPS35000BH
Lifting capacity: 14ton
Vehicle certification code: ZZ5258JSQM40FB0 / ZZ5318JSQM60EB0
Body Brand: Sinotruk
Engine parameters
Engine Brand: Sinotruk
Engine Model: YuchaiYCS06270-60 / SinotrukMC07.34-50 / SinotrukMC07.31-50
Displacement: 6.23 / 6.87L
Emission standard: China VI / China V
Max output power: 199 / 248 / 228kW
Max hp: 270 / 340 / 310Horsepower
Max torque: 1250 / 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: HOWO MAN H5
Chassis Model: ZZ1258M40FB0 / ZZ5318JSQM60EB0
Frame Dimensions: 300 / 300mm double-layer partial triple-layer
rear axle description: 153 dual drive/10T / 457 stamped-welded tandem axle / 153 rear axle / 457 stamped-welded tandem rear
Axle ratio: 4.875
Leaf spring count: 11/10 / 10/10/10,11/11/10
Transmission Parameters
Number of gears: 9 / 10Gear
Transmission Model: Fast Gear9JS119 / SinotrukHW13710 / SinotrukHW13710C
Cab parameters
Cab: L2000 single row / D13 Flat roof Full-floating / HOWO MAN H5
fuel tank
Fuel tank capacity: 300L
Tire
Tire Size: 11.00R20 18PR / 10.00R20 / 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
FAQ
What kind of truck is Sinotruk Sinotruk H5 near-heavy truck truck-mounted crane?
Sinotruk Sinotruk H5 near-heavy truck is an export-oriented truck-mounted crane lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk H5 near-heavy truck truck-mounted crane?
Sinotruk H5 near-heavy truck truck-mounted crane export reference is about $42,639 – $72,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk H5 near-heavy truck truck-mounted crane cover?
Sinotruk H5 near-heavy truck truck-mounted crane mainly covers: Drive: 6x4 / 8x4; Horsepower: 270 hp / 310 hp / 340 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk H5 near-heavy truck truck-mounted crane?
For Sinotruk H5 near-heavy truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk H5 near-heavy truck truck-mounted crane include?
Sinotruk H5 near-heavy truck truck-mounted crane currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk H5 near-heavy truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
