JAC Gallop K6L 220 hp 4X2(6 wheels) truck-mounted crane (Dali brand)
EXW
From $23,361
Export quote
Dali JAC Gallop chassis truck-mounted crane
Main model photos
40 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K6L 220 hp 4X2(6 wheels) truck-mounted crane (Dali brand) | 4x2 / 220hp / China V | From $23,361 | |
| JAC Gallop K5L 200hp 4X2(6 wheels) truck-mounted crane (Dali brand) | 4x2 / 200hp / China V | From $27,528 | |
| JAC GallopK5 310 hp 8X4(12 wheels) Truck-mounted Crane (Dali Brand) | 8x4 / 310hp / China V | From $58,194 |
JAC Gallop K5L 200hp 4X2(6 wheels) truck-mounted crane (Dali brand)
EXW
From $27,528
Export quote

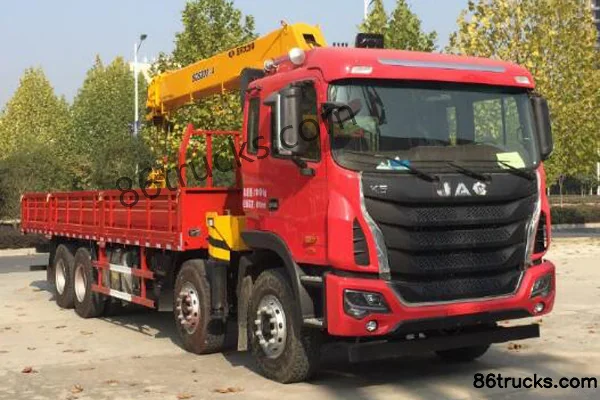

JAC GallopK5 310 hp 8X4(12 wheels) Truck-mounted Crane (Dali Brand)
EXW
From $58,194
Export quote
Series Specs
Basic Info
Cab dimensions: 9×2.55×3.85 / 9×2.55×3.7 / 12×2.55×3.95m
Type: Truck with crane
Drive type: 4X2 / 8X4
Wheelbase: 5700 / 5000 / 2100+4300+1350mm
Rated mass: 6.505 / 7.505 / 11.52ton
GVWR: 18 / 31ton
Front/rear suspension: 1.4/2.9 / 1.4/2.6 / 1.495/2.755m
Energy Type: Diesel
Body Parameters
Other special notes: Electric windows, central door lock, air suspension seat
Crane model: SQS200,SPS15800 / SQ8SA3,QYS-6.3Z
Lifting capacity: 6.3 / 8ton
crane self-weight: 3.2 / 3.6ton
Vehicle certification code: DLQ5181JSQHFCZY5 / DLQ5311JSQXK5
Body Brand: Dali Brand
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai / Weichai
Engine Model: YuchaiYC6JA220-50 / YuchaiYC6JA200-50 / WeichaiWP10.310E53
Displacement: 6.87 / 9.726L
Emission standard: China V
Max output power: 162 / 147 / 228kW
Max hp: 220 / 200 / 310Horsepower
Max torque: 860 / 800 / 1500N·m
Max torque speed: 1200-1800 / 1200-1500rpm
Rated speed: 2300 / 1900rpm
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK6 / GallopK5L / GallopK5
Chassis Model: HFC5181XXYP3K2A47V / HFC5311JSQYP1K4H43V
Frame Dimensions: 280 double-layer framemm
rear axle description: Payload 11500 kg
Axle ratio: 4.875
Leaf spring count: 3/4+3,3/9+7,9/9+7 / 9/9+7 / 3/3/12
Transmission Parameters
Number of gears: 8 / 10Gear
Transmission Model: Fast Gear8JS85TC / Fast Gear8JS75(T)C / Fast Gear10JSD160
Tire
Tire Size: 10.00R20,11R22.5 / 11R22.5 / 11.00R20 16PR,12.00R20 18PR
Number of tires: 6 / 12pcs
FAQ
What kind of truck is Dali Dali JAC Gallop chassis truck-mounted crane?
Dali Dali JAC Gallop chassis is an export-oriented truck-mounted crane lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dali JAC Gallop chassis truck-mounted crane?
Dali JAC Gallop chassis truck-mounted crane export reference is about $23,361 – $58,194. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dali JAC Gallop chassis truck-mounted crane cover?
Dali JAC Gallop chassis truck-mounted crane mainly covers: Drive: 4x2 / 8x4; Horsepower: 200 hp / 220 hp / 310 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dali JAC Gallop chassis truck-mounted crane?
For Dali JAC Gallop chassis truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dali JAC Gallop chassis truck-mounted crane include?
Dali JAC Gallop chassis truck-mounted crane currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dali JAC Gallop chassis truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
