F4.5NS6B280A
EXW
Export quote

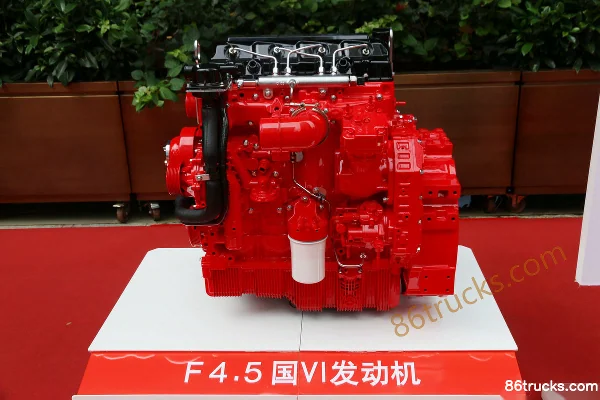

Foton ISF4.5 Series engine
Main model photos
15 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| F4.5NS6B280A | 280hp / China VI | ||
| Foton F4.5NS6B220A 220hp 4.5L China VI Diesel Engine | 220hp / China VI | ||
| Foton F4.5NS6B260 246hp 4.5L China VI Diesel Engine | 260hp / China VI | ||
| Foton F4.5NS6B240A 240hp 4.5L China VI Diesel Engine | 240hp / China VI | ||
| Foton F4.5NS6B200A 200hp 4.5L China VI Diesel Engine | 200hp / China VI |
Foton F4.5NS6B220A 220hp 4.5L China VI Diesel Engine
EXW
Export quote
Foton F4.5NS6B260 246hp 4.5L China VI Diesel Engine
EXW
Export quote
Foton F4.5NS6B240A 240hp 4.5L China VI Diesel Engine
EXW
Export quote
Foton F4.5NS6B200A 200hp 4.5L China VI Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: F4.5N series / ISF4.5 Series
Engine manufacturer: Foton / Foton Engine Co., Ltd., Beijing
Suitable Range: For medium and light trucks and buses / For light trucks, mid-size buses, mid-size city buses
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 195g/kW.h
Engine net weight: 369 / 380 / 335kg
Engine Dimensions: 810×747×806 / 888×818×700mm
Compression ratio: 17.2:1
Bore × Stroke: 107×124mm
Valves per cylinder: 4pcs
firing order: 1-3-4-2
Engine Brand: Foton
Engine Model: F4.5NS6B280A / F4.5NS6B220A / F4.5NS6B260 / F4.5NS6B240A / F4.5NS6B200A / F4.5NS6B210 / F4.5NS6B240 / ISD180 62 / F4.5NS6B190 / F4.5NS6B220 / ISF4.5E6150 / ISF4.5E6180 / ISF4.5E6210 / ISF4.5S5165 / ISF4.5S5210 / ISF4.5S5185 / ISF4.5 / ISF4.5L210
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5 / 4.46L
Emission standard: China VI / China V / China IV
Max output power: 206 / 162 / 181 / 176 / 147 / 155 / 134 / 140 / 110 / 154 / 121 / 136 / 157kW
Max hp: 280 / 220 / 260 / 240 / 200 / 210 / 180 / 190 / 150 / 165 / 185Horsepower
Max torque: 760 / 732 / 700 / 820 / 650 / 850N·m
Max torque speed: 1200-1800 / 1100-1150 / 1100-1800 / 1300-1500 / 1000-1500 / 1000-1700 / 1200-1500 / 1100-1700 / 1200rpm
Rated speed: 2300 / 2500rpm
Engine Type: HPCR+CEGR+DOC+DPF+SCR / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection
FAQ
What kind of truck is Foton Foton ISF4.5 Series engine?
Foton Foton ISF4.5 Series is an export-oriented engine lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Foton ISF4.5 Series engine cover?
Foton ISF4.5 Series engine mainly covers: Horsepower: 200 hp / 220 hp / 240 hp / 260 hp / 280 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton ISF4.5 Series engine?
For Foton ISF4.5 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Foton ISF4.5 Series engine include?
Foton ISF4.5 Series engine currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton ISF4.5 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
