JAC HFC4DA1-2D 120 hp 2.77L China V Diesel Engine
EXW
Export quote
JAC 4DA Series engine
Main model photos
6 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC HFC4DA1-2D 120 hp 2.77L China V Diesel Engine | 120hp / China V | ||
| JAC HFC4DA1-1C 92 hp 2.77L China IV Diesel Engine | 92hp / China IV | ||
| JAC HFC4DA1-1B 106hp 2.55L China III Diesel Engine | 106hp / China III / Euro III | ||
| JAC HFC4DA1-2C 120 hp 2.8L China IV Diesel Engine | 120hp / China IV | ||
| JAC 2.8L CTI 120hp 2.77L China IV Diesel Engine | 120hp / China IV |
JAC HFC4DA1-1C 92 hp 2.77L China IV Diesel Engine
EXW
Export quote
JAC HFC4DA1-1B 106hp 2.55L China III Diesel Engine
EXW
Export quote
JAC HFC4DA1-2C 120 hp 2.8L China IV Diesel Engine
EXW
Export quote

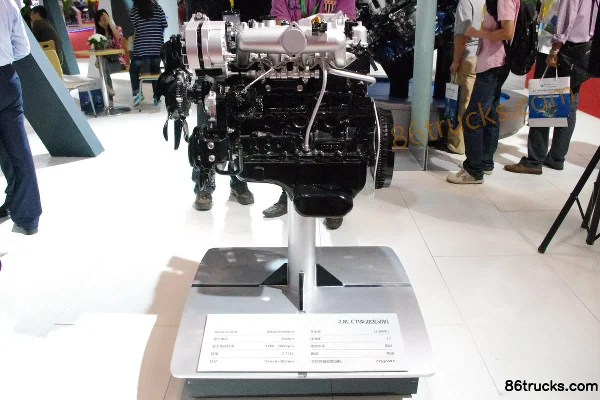

JAC 2.8L CTI 120hp 2.77L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: 4DA series
Engine manufacturer: Anhui JAC Automobile Co., Ltd. / JAC
Suitable Range: Truck engine
Intake type: Turbocharged Air-to-Air Intercooling / Turbocharged / Turbocharged intercooled and high-pressure common rail direct injection / Turbocharged intercooled + EGR
Min. fuel consumption at full load: 208 / 218 / 236g/kW.h
Compression ratio: 18.2 / 17
Bore × Stroke: 93×102mm
Valves per cylinder: 2 / 4pcs
Engine Brand: JAC
Engine Model: HFC4DA1-2D / HFC4DA1-1C / HFC4DA1-1B / HFC4DA1-2C / 2.8L CTI / HFC4DA1-2B2 / HFC4DA1-2B1 / HFC4DA1-1A
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771 / 2.554 / 2.8L
Emission standard: China V / China IV / China III / Euro III
Max output power: 88 / 68 / 78 / 80kW
Max hp: 120 / 92 / 106 / 109Horsepower
Max torque: 285 / 225 / 240 / 250 / 280N·m
Max torque speed: 1800-2200 / 2000 / 1800-2800 / 2000-2200rpm
Rated speed: 3200 / 3600rpm
Engine Type: Electronically controlled strong-cooling EGR / Turbocharged intercooled, inline 4-cylinder / Inline, turbocharged intercooled + EGR / Vertical inline, water-cooled, 4-stroke, turbocharged intercooled with turbo / Inline, turbocharged
FAQ
What kind of truck is JAC JAC 4DA Series engine?
JAC JAC 4DA Series is an export-oriented engine lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC 4DA Series engine cover?
JAC 4DA Series engine mainly covers: Horsepower: 92 hp / 106 hp / 120 hp; Emission: China III / Euro III / China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC 4DA Series engine?
For JAC 4DA Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does JAC 4DA Series engine include?
JAC 4DA Series engine currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC 4DA Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
