Chaochai CY4A22 48 hp 2.16L China III Diesel Engine
EXW
Export quote
Chaochai 4A Series engine
Main model photos
10 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Chaochai CY4A22 48 hp 2.16L China III Diesel Engine | 48hp / China III / Euro III | ||
| Chaochai CY4A82-CE4 110 hp 2.54L China IV Diesel Engine | 110hp / China IV | ||
| Chaochai CY4A75-CE4 100 hp 2.54L China IV Diesel Engine | 100hp / China IV | ||
| Chaochai CY4A67-C3A 90 hp 2.16L China III Diesel Engine | 90hp / China III / Euro III | ||
| Chaochai CY4A65-E3A 88 hp 2.54L China III Diesel Engine | 88hp / China III / Euro III |
Chaochai CY4A82-CE4 110 hp 2.54L China IV Diesel Engine
EXW
Export quote

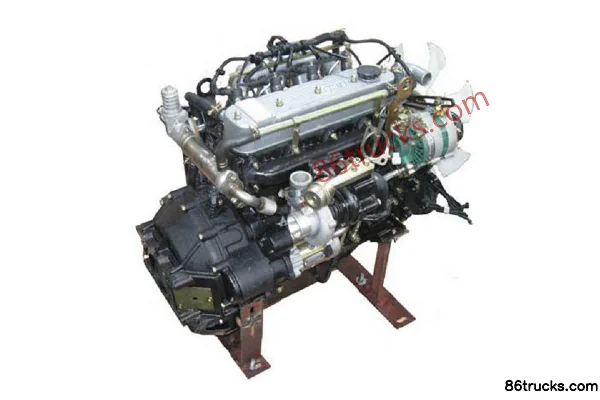

Chaochai CY4A75-CE4 100 hp 2.54L China IV Diesel Engine
EXW
Export quote

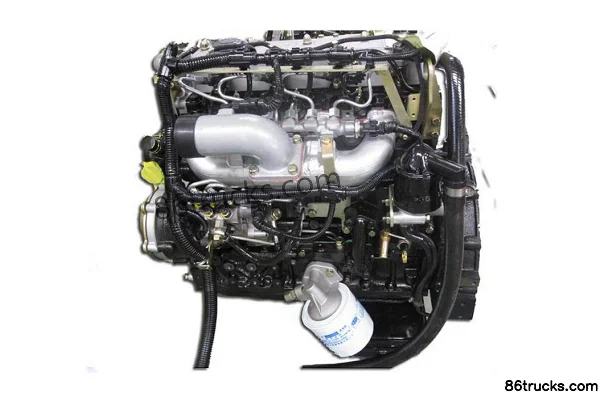

Chaochai CY4A67-C3A 90 hp 2.16L China III Diesel Engine
EXW
Export quote
Chaochai CY4A65-E3A 88 hp 2.54L China III Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: 4A series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: Suitable for 2-3 ton light and medium trucks, 5-6m buses and bus chassis / For 3-5 ton light and medium trucks, 6-7 m buses and bus chassis / For 3-4 ton light and medium trucks, 6-7 m buses and bus chassis / Applicable to 1.5-3 ton light and medium trucks, 5-6 meter buses and bus chassis, etc.
Intake type: Turbocharged, Intercooled, Water-cooled
Min. fuel consumption at full load: ≤235 / ≤210 / ≤206 / ≤205 / 210g/kW.h
Engine net weight: 205kg
Engine Dimensions: 886×606×682 / 889×595×675 / 800×596×661 / 800×595×661mm
Compression ratio: 22:1 / 17.5：1 / 17.5:1 / 17:1
noise at 1m: 117 / 116 / 115 / 114dB
Engine Brand: Chaochai
Engine Model: CY4A22 / CY4A82-CE4 / CY4A75-CE4 / CY4A67-C3A / CY4A65-E3A / CY4A65-CE4 / CY4A60-C3A / CY4A55-E3A / CY4A50-C3A / CY4A60-C3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.156 / 2.544L
Emission standard: China III / Euro III / China IV
Max output power: 35 / 82 / 75 / 67 / 65 / 62 / 55 / 50kW
Max hp: 48 / 110 / 100 / 90 / 88 / 85 / 75 / 70Horsepower
Max torque: 123 / 285 / 250 / 235 / 220 / 190N·m
Max torque speed: 2000-2200 / 1800-2000 / 2000rpm
Rated speed: 3000 / 3200rpm
Engine Type: Vertical inline, water-cooled, 4-stroke, turbocharged intercooled
FAQ
What kind of truck is Chaochai Chaochai 4A Series engine?
Chaochai Chaochai 4A Series is an export-oriented engine lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chaochai 4A Series engine cover?
Chaochai 4A Series engine mainly covers: Horsepower: 48 hp / 88 hp / 90 hp / 100 hp / 110 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chaochai 4A Series engine?
For Chaochai 4A Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Chaochai 4A Series engine include?
Chaochai 4A Series engine currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chaochai 4A Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
