Dachai CA6DH1-24E65 240hp 5.7L China VI diesel engine
EXW
Export quote
Dachai CA6DH1 Series engine

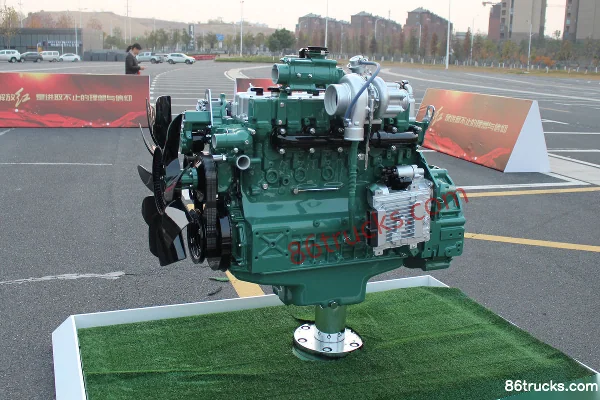

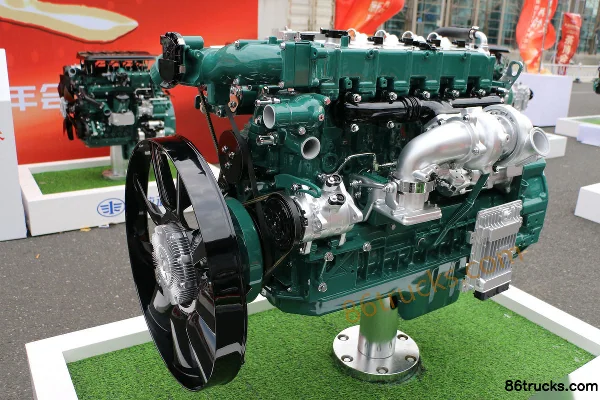

Main model photos
13 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dachai CA6DH1-24E65 240hp 5.7L China VI diesel engine | 240hp / China VI | ||
| Dachai CA6DH1-27E65 270hp 5.7L China VI diesel engine | 270hp / China VI | ||
| Dachai CA6DH1-26E65 260hp 5.7L China VI Diesel Engine | 260hp / China VI | ||
| Dachai CA6DH1-22E61 220 hp 5.7L China VI diesel engine | 220hp / China VI | ||
| Dachai CA6DH1-24E61 240hp 5.7L China VI Diesel Engine | 240hp / China VI |
Dachai CA6DH1-27E65 270hp 5.7L China VI diesel engine
EXW
Export quote
Dachai CA6DH1-26E65 260hp 5.7L China VI Diesel Engine
EXW
Export quote
Dachai CA6DH1-22E61 220 hp 5.7L China VI diesel engine
EXW
Export quote
Dachai CA6DH1-24E61 240hp 5.7L China VI Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: CA6DH1 Series
Engine manufacturer: FAW Group Corporation
Suitable Range: 6×4, 6×2, 4×2 medium-duty truck, 4×2 dump truck, 8-10m bus
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤193g/kW.h
Engine net weight: 570 / 580kg
Engine Dimensions: 1060×750×956 / 1062×750×956mm
noise at 1m: ≤93dB
Bore × Stroke: 98×126mm
Valves per cylinder: 4pcs
Engine Brand: Dachai
Engine Model: CA6DH1-24E65 / CA6DH1-27E65 / CA6DH1-26E65 / CA6DH1-22E61 / CA6DH1-24E61 / CA6DH1-26E61 / CA6DH1-25E51 / CA6DH1-25E5 / CA6DH1-22E51 / CA6DH1-22E6 / CA6DH1-24E6 / CA6DH1-26E6 / CA6DH1-20E5 / CA6DH1-16E5 / CA6DH1-18E5 / CA6DH1-22E5 / CA6DH1-24E5
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China VI / China V
Max output power: 179 / 201 / 194 / 165 / 192 / 182 / 162 / 147 / 118 / 135kW
Max hp: 240 / 270 / 260 / 220 / 250 / 200 / 160 / 180Horsepower
Max torque: 900 / 1000 / 850 / 930 / 650N·m
Max torque speed: 1200-1800 / 1300-1800 / 1300-1700rpm
Rated speed: 2500rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / SCR / 6-cylinder, inline, turbocharged intercooled, electronic common-rail, air-driven SCR / High-pressure common rail
FAQ
What kind of truck is Dachai Dachai CA6DH1 Series engine?
Dachai Dachai CA6DH1 Series is an export-oriented engine lineup with about 17 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dachai CA6DH1 Series engine cover?
Dachai CA6DH1 Series engine mainly covers: Horsepower: 220 hp / 240 hp / 260 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dachai CA6DH1 Series engine?
For Dachai CA6DH1 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Dachai CA6DH1 Series engine include?
Dachai CA6DH1 Series engine currently lists about 17 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dachai CA6DH1 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
