Dongfeng Commercial Vehicle Tianjin 170 hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand)
EXW
Export quote
Jiangte Dongfeng Commercial Vehicle chassis aerial
Main model photos
88 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin 170 hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) | 4x2 / 170hp / China III / Euro III | ||
| Dongfeng 153 Series 160 hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand) | 4x2 / 160hp / China III / Euro III |

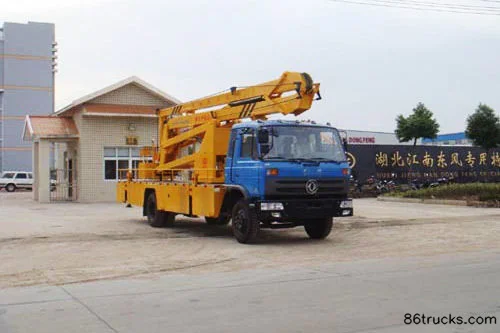

Dongfeng 153 Series 160 hp 4X2(6 wheels) Aerial Work Truck (Jiangte Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.4×2.498×3.79 / 9.42×2.47×3.75m
Type: aerial work truck
Drive type: 4X2
Front/rear track width: Front track: 1880, Rear track: 1800 / Front track: 1900, Rear track: 1800mm
Wheelbase: 4700 / 5100mm
Curb Weight: 10.755 / 11.2ton
GVWR: 10.95 / 12.45ton
Front/rear suspension: 1.43/1.87 / 1.25/3.07m
Body Parameters
max working radius: 24m
Max working height: 10-26m
Swing Angle: 360°
Front/rear overhang: 790/120mm
Vehicle certification code: JDF5110JGKDFL / JDF5111JGKG
Body Brand: Jiangte Brand
Engine parameters
Engine Model: Cummins 170 / Yuchai YC4E160-30
Displacement: 5.9 / 4.26L
Emission standard: China III / Euro III
Max output power: 125 / 118kW
Max hp: 170 / 160Horsepower
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin / Dongfeng153
Chassis Model: DFL1120B / EQ1120GLJ
rear axle description: 10
Leaf spring count: 7/9+6 / 8/10+8
Transmission Parameters
Number of gears: 6Gear
Tire
Tire Size: 9.00R15,10.00-16 / 9.00-20,10.00-20
Number of tires: 6pcs
FAQ
What kind of truck is Jiangte Jiangte Dongfeng Commercial Vehicle chassis aerial work truck?
Jiangte Jiangte Dongfeng Commercial Vehicle chassis is an export-oriented aerial work truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Jiangte Dongfeng Commercial Vehicle chassis aerial cover?
Jiangte Dongfeng Commercial Vehicle chassis aerial mainly covers: Drive: 4x2; Horsepower: 160 hp / 170 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jiangte Dongfeng Commercial Vehicle chassis aerial?
For Jiangte Dongfeng Commercial Vehicle chassis aerial: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is aerial work truck typically used for?
aerial work truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Jiangte Dongfeng Commercial Vehicle chassis aerial include?
Jiangte Dongfeng Commercial Vehicle chassis aerial currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jiangte Dongfeng Commercial Vehicle chassis aerial?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
