Dongfeng 145 Series 180hp 4X2(6 wheels) Aerial Work Truck (Chengliwei Brand)
EXW
Export quote
Chengliwei Dongfeng Commercial Vehicle Chassis
Main model photos
256 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 145 Series 180hp 4X2(6 wheels) Aerial Work Truck (Chengliwei Brand) | 4x2 / 180hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Aerial Work Truck (Chengliwei Brand) | 4x2 / 180hp / China III / Euro III |

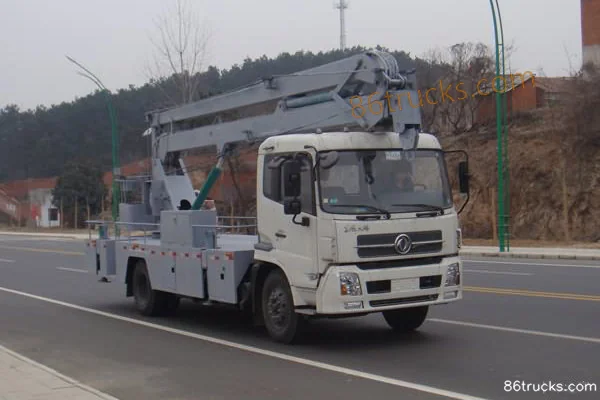

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) Aerial Work Truck (Chengliwei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.2×2.47×3.61 / 10.1×2.5×3.8m
Type: aerial work truck
Drive type: 4X2
Front/rear track width: Front track: 1900mm; Rear track: 1800mm / Front track: 1880, Rear track: 1800
Wheelbase: 4700 / 5000mm
Curb Weight: 9.705 / 10.825ton
GVWR: 9.9 / 11.02ton
Front/rear suspension: 1.25/2.05 / 1.43/2.86m
Energy Type: Diesel
Body Parameters
Max working height: 18-22 / 9-22m
max working radius: 16m
Swing Angle: 360°
Front/rear overhang: 1200/- / 100/710mm
Vehicle certification code: CLW5100JGKZT3 / CLW5110JGKZ3
Body Brand: Chengliwei
Engine parameters
Engine Model: Yuchai YC6J180-30 / Dongfeng ISDe18030
Displacement: 6.5 / 4.5L
Emission standard: China III / Euro III
Max output power: 132kW
Max hp: 180Horsepower
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: 145 series / Dongfeng Tianjin
Chassis Model: EQ1110GLJ3 / DFL1120B
Leaf spring count: 8/11+8 / 7/9+6,8/10+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Dongfeng 6-Speed
Tire
Tire Size: 9.00-20 / 9.00-20 ,9.00R20,10.00-20
Number of tires: 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis aerial work truck?
Chengliwei Chengliwei Dongfeng Commercial Vehicle Chassis is an export-oriented aerial work truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengliwei Dongfeng Commercial Vehicle Chassis cover?
Chengliwei Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Commercial Vehicle Chassis?
For Chengliwei Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is aerial work truck typically used for?
aerial work truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Commercial Vehicle Chassis include?
Chengliwei Dongfeng Commercial Vehicle Chassis currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
