Dongfeng 153 Series 185 hp 4X2(6 wheels) Class A Foam Fire Truck (Jiangte Brand)
EXW
Export quote
Jiangte Dongfeng Commercial Vehicle chassis fire
Main model photos
88 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng 153 Series 185 hp 4X2(6 wheels) Class A Foam Fire Truck (Jiangte Brand) | 4x2 / 185hp / China III / Euro III | ||
| Dongfeng 153 Series 185hp 4X2(6 wheels) Fire Truck (Jiangte Brand) | 4x2 / 185hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Fire Truck (Jiangte Brand) | 4x2 / 180hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Fire Truck (Jiangte Brand) | 4x2 / 180hp / China III / Euro III | ||
| Dongfeng 140 Series 140hp 4X2(6 wheels) Fire Truck (Jiangte Brand) | 4x2 / 140hp / China III / Euro III |

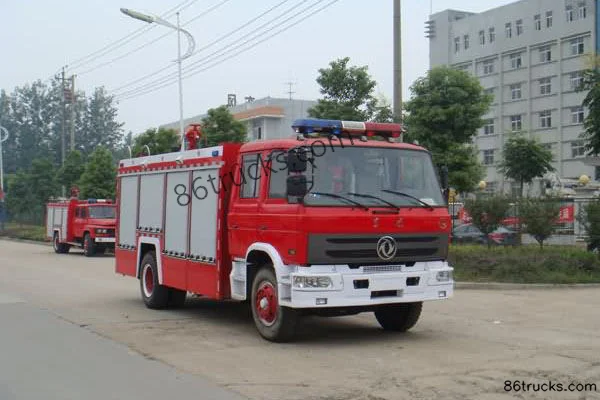

Dongfeng 153 Series 185hp 4X2(6 wheels) Fire Truck (Jiangte Brand)
EXW
Export quote

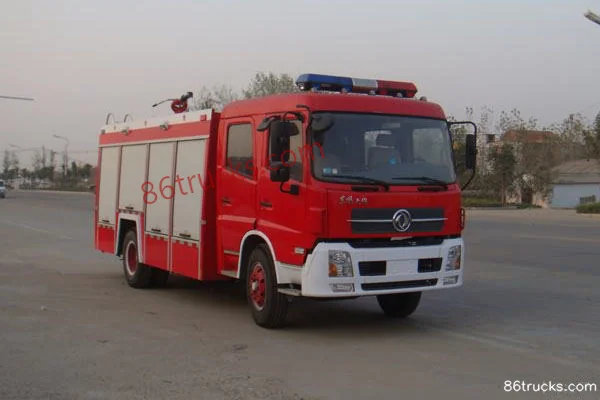

Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Fire Truck (Jiangte Brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 180hp 4X2(6 wheels) Fire Truck (Jiangte Brand)
EXW
Export quote
Dongfeng 140 Series 140hp 4X2(6 wheels) Fire Truck (Jiangte Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.9×2.47×3.39 / 8.12×2.48×3.35 / 7.02×2.4×3.08m
Type: Water Tank Fire Truck / Foam fire truck
Drive type: 4X2
Wheelbase: 4500 / 3950mm
Front/rear track width: 1940/1860 / Front track: 1940, Rear track: 1860 / Front track: 1880mm; Rear track: 1800mm / 1800 / Front track: 1800mm; Rear track: 1800mm
Rated mass: 6.07 / 6 / 3.27ton
GVWR: 14.9 / 15 / 9.32ton
Front/rear suspension: 1.205/2.135 / 1.43/1.86 / 1.065/1.59 / 1.065/1.94m
Energy Type: Diesel
Body Parameters
Tank Medium: water / 0.5 / water/Class B foam
Liquid Capacity: 6.07 / 4.13 / 6 / 3.27 / 1.8ton
Other special notes: Firefighters calculated at 75 kg/person; rear overhang: 60mm. / Foam liquid density 1.13g/mL; firefighter weight calculated at 75kg/person; rear overhang: 60mm / Firefighters calculated at 75 kg/person; rear overhang: 60mm / Firefighters calculated at 75 kg/person; rear overhang: 65mm / This vehicle has a water tank capacity of 1800 kg; tank volume: 1.800 cubic meters; tank dimensions (length×width×height): 1190×1340×1180 (mm); Class B foam tank capacity of 1470 kg; tank volume: 1.301 cubic meters; tank dimensions (length×width×height): 860×1340×1180 (mm); Class B foam density: 1.13 g/mL; firefighters calculated at 75 kg/person; rear overhang: 65 mm.
Tank Size: 3.535×1.38×1.3 / 2.405×1.38×1.3 / 3.76×1.25×1.28 / 2.56×1.25×1.28 / 1.19×1.34×1.18 / 1.19×1.34×0.86m
Tank Volume: 4130 / 6 / 4.05 / 3.27 / 1.8m3
Vehicle certification code: JDF5150GXFSG60E / JDF5150GXFPM60E / JDF5150GXFSG60T / JDF5150GXFPM60T / JDF5090GXFSG33E / JDF5090GXFPM33E
Body Brand: Jiangte Brand
Engine parameters
Engine Model: Dongfeng ISBE18530 / Dongfeng ISD18530 / Dongfeng ISDe18030 / Dongfeng EQ6100-30
Displacement: 5.9 / 5.42L
Emission standard: China III / Euro III
Max output power: 136 / 139 / 132 / 99kW
Max hp: 185 / 180 / 140 / 135Horsepower
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng 153 Series / Dongfeng 153 / Dongfeng Tianjin / Dongfeng 140 / Dongfeng 140 series
Chassis Model: EQ1141KJ / DFL1160B2 / EQ1092F3GJ2
rear axle description: 10
Leaf spring count: 8/10+8 / 7/9+6 / 8/11+8
Transmission Parameters
Number of gears: 5 / 6Gear
Transmission Model: Dongfeng 6-Speed
Tire
Tire Size: 10.00-20，10.00R20 / 10.00R20 / 9.00R16,10.00-20 / 9.00R16 / 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Jiangte Jiangte Dongfeng Commercial Vehicle chassis fire truck?
Jiangte Jiangte Dongfeng Commercial Vehicle chassis is an export-oriented fire truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Jiangte Dongfeng Commercial Vehicle chassis fire cover?
Jiangte Dongfeng Commercial Vehicle chassis fire mainly covers: Drive: 4x2; Horsepower: 140 hp / 180 hp / 185 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Jiangte Dongfeng Commercial Vehicle chassis fire?
For Jiangte Dongfeng Commercial Vehicle chassis fire: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fire truck typically used for?
fire truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Jiangte Dongfeng Commercial Vehicle chassis fire include?
Jiangte Dongfeng Commercial Vehicle chassis fire currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Jiangte Dongfeng Commercial Vehicle chassis fire?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
