Great Wall Wingle 5 2023 Elite 2.4L Gasoline 160hp 4WD Manual Small Double Row Pickup
EXW
From $12,611
Export quote

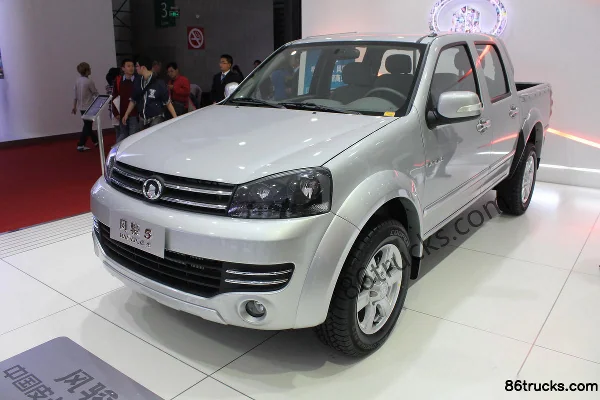

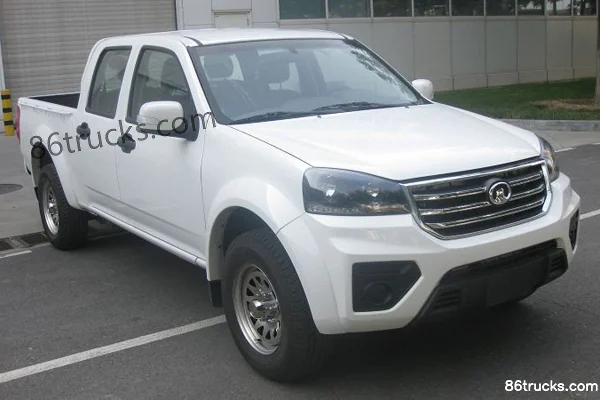

Great Wall Wingle 5 pickup truck
Main model photos
94 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Great Wall Wingle 5 2023 Elite 2.4L Gasoline 160hp 4WD Manual Small Double Row Pickup | 2WD / 160hp / China VI | From $12,611 | |
| Great Wall Wingle 5 2023 Advance 2.4L Gasoline 160hp 4WD Manual Small Double Row Pickup | 2WD / 160hp / China VI | From $11,917 | |
| Great Wall Wingle 5 2023 Elite 2.4L Gasoline 160hp 2WD Manual Small Double Row Pickup | 2WD / 160hp / China VI | From $11,222 | |
| Great Wall Wingle 5 2023 Advance 2.4L Gasoline 160hp 2WD Manual Small Double Row Pickup | 2WD / 160hp / China VI | From $10,528 | |
| Great Wall Wingle 5 2023 Elite 2.4L Gasoline 160hp 2WD Manual Long Box Double Row Pickup | 2WD / 160hp / China VI | From $11,639 |
Great Wall Wingle 5 2023 Advance 2.4L Gasoline 160hp 4WD Manual Small Double Row Pickup
EXW
From $11,917
Export quote
Great Wall Wingle 5 2023 Elite 2.4L Gasoline 160hp 2WD Manual Small Double Row Pickup
EXW
From $11,222
Export quote
Great Wall Wingle 5 2023 Advance 2.4L Gasoline 160hp 2WD Manual Small Double Row Pickup
EXW
From $10,528
Export quote
Great Wall Wingle 5 2023 Elite 2.4L Gasoline 160hp 2WD Manual Long Box Double Row Pickup
EXW
From $11,639
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Great Wall Wingle 5 2017 Classic Edition 2.8T Diesel 2WD Small Double Cab Pickup | 2WD / 98hp / China IV | From $9,833 | |
| Great Wall Wingle 5 2017 Classic Edition 2.8T Diesel 2WD Large Double Cab Pickup | 2WD / 98hp / China IV | From $9,972 | |
| Great Wall Wingle 5 2017 Classic Edition 2.2L Gasoline 2WD Single Cab Pickup | 2WD / 101hp / China IV | From $9,556 | |
| Great Wall Wingle 5 2017 Classic Edition 2.2L Gasoline 2WD Double Cab Pickup | 2WD / 101hp / China IV | From $9,694 | |
| Great Wall Wingle 5 2014 Advanced 2WD 2.8T Diesel Double Cab Pickup | 2WD / 92hp / China IV | From $10,667 |
Great Wall Wingle 5 2017 Classic Edition 2.8T Diesel 2WD Small Double Cab Pickup
EXW
From $9,833
Export quote
Great Wall Wingle 5 2017 Classic Edition 2.8T Diesel 2WD Large Double Cab Pickup
EXW
From $9,972
Export quote
Great Wall Wingle 5 2017 Classic Edition 2.2L Gasoline 2WD Single Cab Pickup
EXW
From $9,556
Export quote
Great Wall Wingle 5 2017 Classic Edition 2.2L Gasoline 2WD Double Cab Pickup
EXW
From $9,694
Export quote
Great Wall Wingle 5 2014 Advanced 2WD 2.8T Diesel Double Cab Pickup
EXW
From $10,667
Export quote
Series Specs
Basic Info
Model code (announced): CC1031PS24G / CC1021PS04G / CC1031PA04H / CC1031PA24G / CC1021PA04G / CC1021PA06E / CC1021PA06D / CC1031PA61G / CC1031PA41G / CC1031PA61F / CC1031PA41F / CC1021PA06B / CC1021PA06A / CC1031PA24A / CC1032PA41B / CC1031PA61A / CC1031PA41A / CC1031PS24A
Drive type: 2WD / 4WD
Wheelbase: 3050 / 3350mm
Front/rear track width: 1515/1525 / 1460/1460mm
Cab length: 5.103 / 5.52 / 5.403 / 5.523 / 5.525 / 5.395 / 5.095m
Cab width: 1.8 / 1.72m
Cab height: 1.73 / 1.683 / 1.675 / 1.8 / 1.74m
Approach/departure angle: 31/23 / 29/20 / 25/19 / 25/20 / 25/17 / 29/23°
Curb Weight: 1.772 / 1.662 / 1.696 / 1.78 / 1.682 / 1.58 / 1.57 / 1.89 / 1.775 / 1.792 / 1.82 / 1.885ton
Rated payload: 0.48ton
GVWR: 2.577 / 2.467 / 2.501 / 2.585 / 2.487 / 2.385 / 2.375 / 2.695 / 2.58 / 2.597 / 2.625 / 2.69ton
Constant-speed fuel consumption per 100 km: 8.9L/100km
Max. speed: 160 / 157 / 155 / 115km/h
Origin: Baoding, Hebei
Remarks: Manual tilt steering wheel, driver/passenger seat front/rear adjustment, front center armrest, 4 speakers, halogen low/high beam headlights, manual anti-glare interior rearview mirror.
Front/rear suspension: 0.808/1.245 / 0.805/1.365 / 0.807/1.366 / 0.807/1.246 / 0.8/1.245m
Version: Elite Type / Jinqu Type / Ganfan Progressive Edition / Ganfan Elite Edition / Ganfan Super Value Edition / Super Value
Energy Type: gasoline / Diesel
Engine parameters
Engine Model: Hangtian Sanling4K22D4M / Great Wall PowerGW4G15K / Great Wall PowerGW4D20M / Great Wall GW4G15K / Shenyang Hangtian Sanling 4K22D4M / Great Wall GW4D20M
Number of cylinders: 4cylinder
Cylinder arrangement: L-Type
Displacement: 2.4 / 1.5 / 2L
Emission standard: China VI
Max output power: 118 / 100 / 102 / 115kW
Max hp: 160 / 136 / 139 / 156Horsepower
Max torque: 218 / 240 / 330 / 230 / 345N·m
Max torque speed: 4000 / 2200-3200 / 1400-2800rpm
Rated speed: 6000 / 5200 / 3600rpm
Transmission Parameters
Number of gears: 5 / 6Gear
shift type: Manual
Transmission Model: 5-speed manual / 6-speed manual
Chassis Specs
Front axle suspension type: Double wishbone torsion bar independent suspension
rear axle suspension type: Leaf spring non-independent suspension
Chassis Structure: Body-on-frame
power steering type: hydraulic power steering
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.38 / 1.82 / 1.68m
Cargo box width: 1.46 / 1.52m
Cargo box height: 0.48 / 0.46m
Wheel brake
Front brake type: Ventilated disc brakes
FAQ
What kind of truck is Great Wall Great Wall Wingle 5 pickup truck?
Great Wall Great Wall Wingle 5 is an export-oriented pickup truck lineup with about 137 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Great Wall Wingle 5 pickup truck?
Great Wall Wingle 5 pickup truck export reference is about $9,278 – $17,194. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Great Wall Wingle 5 pickup truck cover?
Great Wall Wingle 5 pickup truck mainly covers: Drive: 2WD; Horsepower: 92 hp / 98 hp / 101 hp / 160 hp; Emission: China IV / China VI; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Great Wall Wingle 5 pickup truck?
For Great Wall Wingle 5 pickup truck, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is pickup truck typically used for?
For pickup truck, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Great Wall Wingle 5 pickup truck include?
Great Wall Wingle 5 pickup truck currently lists about 137 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Great Wall Wingle 5 pickup truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
