CA6DM3A58E66
EXW
Export quote

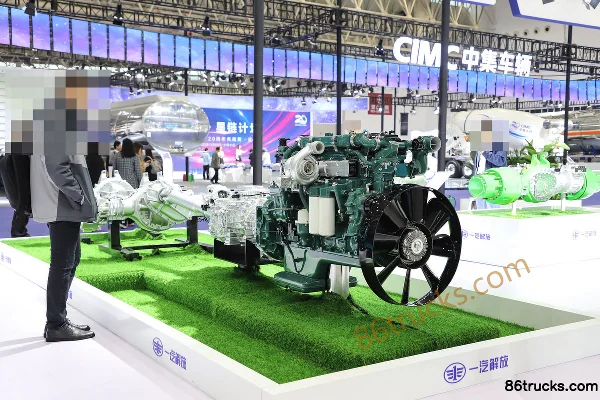

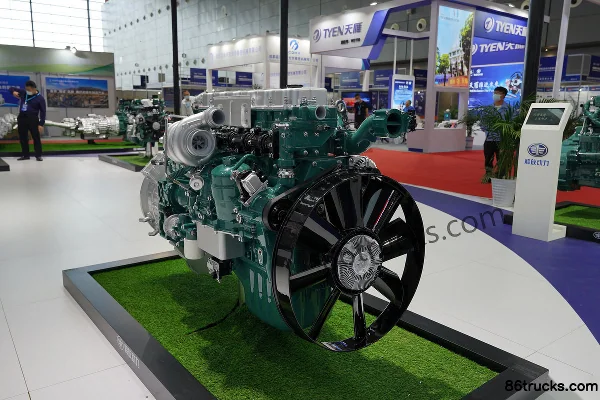

Xichai Aowei 6DM3 Series engine
Main model photos
29 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| CA6DM3A58E66 | 580hp / China VI | ||
| Xichai CA6DM3-48E610 480 hp 12.5L China VI diesel engine | 480hp / China VI | ||
| Xichai CA6DM3-50E610 500 hp 12.5L China VI diesel engine | 500hp / China VI | ||
| Xichai CA6DM3-52E610 520 hp 12.5L China VI Diesel Engine | 520hp / China VI | ||
| Xichai CA6DM3A56E610 560 hp 12.5L China VI Diesel Engine | 560hp / China VI |
Xichai CA6DM3-48E610 480 hp 12.5L China VI diesel engine
EXW
Export quote
Xichai CA6DM3-50E610 500 hp 12.5L China VI diesel engine
EXW
Export quote
Xichai CA6DM3-52E610 520 hp 12.5L China VI Diesel Engine
EXW
Export quote
Xichai CA6DM3A56E610 560 hp 12.5L China VI Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: Aowei 6DM3 Series
Engine manufacturer: FAW Group Co., Ltd. / FAW Group / Xichai / FAW Group Corporation
Suitable Range: On-road vehicles: heavy-duty cargo trucks, tractor trucks, dump trucks, special-purpose trucks; Off-road vehicles: loaders 60+ hp / Heavy-duty tractor trucks, dump trucks
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤178 / 185 / ≤185g/kW.h
Engine net weight: 1050(960) / 956 / 990(iron flywheel housing)/956(aluminum flywheel housing) / 1050kg
Engine Dimensions: 1365x773x1192mm
noise at 1m: <97.5 / ≤96 / ≤98.4dB
Bore × Stroke: 126.5x166mm
Valves per cylinder: 4pcs
Engine Brand: Xichai
Engine Model: CA6DM3A58E66 / CA6DM3-48E610 / CA6DM3-50E610 / CA6DM3-52E610 / CA6DM3A56E610 / CA6DM3-56E610 / CA6DM3A58E610 / CA6DM3-58E610 / CA6DM3-58E66 / CA6DM3A56E68 / CA6DM3A56E67 / CA6DM3-60E610 / CA6DM3-60E66 / CA6DM3-50E67 / CA6DM3-52E67 / CA6DM3-52E68 / CA6DM3-56E67 / CA6DM3-50E61 / CA6DM3-56E66 / CA6DM3-52E66 / CA6DM3-48E66 / CA6DM3-50E66 / CA6DM3-56E61 / CA6DM3-56E68 / CA6DM3-50E68 / CA6DM3-56E6 / CA6DM3-51E6 / CA6DM3-55E52 / CA6DM3-48E6 / CA6DM3-50E6 / CA6DM3-52E6 / CA6DM3-55E6 / CA6DM3-55E51(2) / CA6DM3-52E51 / CA6DM3-48E5 / CA6DM3-46E5 / CA6DM3-42E5 / CA6DM3-50E4 / CA6DM3-50E5
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.52 / 12.5 / 12.56L
Emission standard: China VI / China V / China IV
Max output power: 430 / 415 / 445 / 370 / 386 / 356 / 375 / 404 / 350 / 365 / 379 / 401 / 407 / 385 / 341 / 312kW
Max hp: 580 / 480 / 500 / 520 / 560 / 600 / 510 / 550 / 460 / 420Horsepower
Max torque: 2320 / 2520 / 2770 / 2620 / 2820 / 2600 / 2500 / 2300 / 2100N·m
Max torque speed: 1000-1300 / 1100-1400 / 1100-1300 / 1200-1300 / 1000-1400 / 1000-1250 / 1400rpm
Rated speed: 1800rpm
Engine Type: DOC+DPF+HiSCR / 6-cylinder, inline, turbocharged intercooled / 6-cylinder inline, 4-valve, overhead camshaft, turbocharged intercooled, electronic common-rail / 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
FAQ
What kind of truck is Xichai Xichai Aowei 6DM3 Series engine?
Xichai Xichai Aowei 6DM3 Series is an export-oriented engine lineup with about 39 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Xichai Aowei 6DM3 Series engine cover?
Xichai Aowei 6DM3 Series engine mainly covers: Horsepower: 480 hp / 500 hp / 520 hp / 560 hp / 580 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xichai Aowei 6DM3 Series engine?
For Xichai Aowei 6DM3 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Xichai Aowei 6DM3 Series engine include?
Xichai Aowei 6DM3 Series engine currently lists about 39 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xichai Aowei 6DM3 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
