JMC Kaiyun 109 hp 4X2(6 wheels) explosive material transport truck
EXW
From $17,778
Export quote

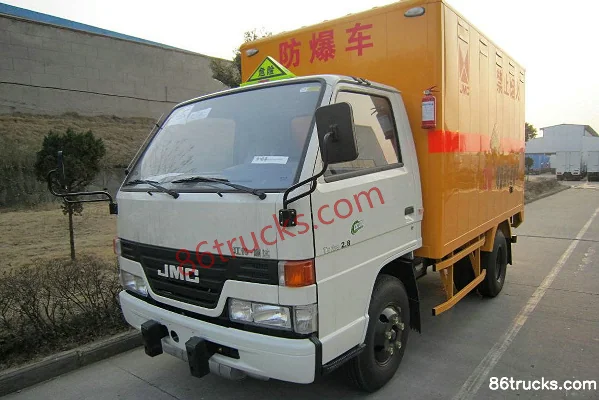

JMC Kaiyun Light Truck Explosives Transport Truck
Main model photos
72 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Kaiyun 109 hp 4X2(6 wheels) explosive material transport truck | 4x2 / 109hp / China IV | From $17,778 | |
| JMC Shunda 109 hp 4X2(6 wheels) explosive material transport truck | 4x2 / 109hp / China IV | From $16,389 | |
| JMC Kaiyun 109 hp 4X2(6 wheels) explosive material transport truck | 4x2 / 109hp / China IV | From $16,778 |
JMC Shunda 109 hp 4X2(6 wheels) explosive material transport truck
EXW
From $16,389
Export quote
JMC Kaiyun 109 hp 4X2(6 wheels) explosive material transport truck
EXW
From $16,778
Export quote
Series Specs
Basic Info
Cab dimensions: 5.975X1.9X2.84 / 4.95X1.92X2.75 / 5.995X1.92X2.75m
Type: Explosives Transport Truck
Drive type: 4X2
Wheelbase: 3360 / 2490mm
Front/rear track width: Front track: 1385 mm; Rear track: 1425 mm
Rated mass: 2.6 / 1.455 / 2.92ton
GVWR: 5.88 / 4.065ton
Max. speed: 80km/h
Front/rear suspension: 1.065/1.57 / 1.115/1.345m
Energy Type: Diesel
Body Parameters
Other special notes: dangerous goods & explosives transport / Applicable to: civil explosives, explosive factories, security companies, public security bureaus, gas companies. / Civil explosives, explosive factories, security companies, public security bureaus, gas companies, etc.
rear guard section size: 100X50mm
Vehicle certification code: SQH5064XQY / JX5045XQYXA2 / JX5064XQYXG2
Body Brand: JMC
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ4
Number of cylinders: 4cylinder
Displacement: 2.771L
Emission standard: China IV
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 260N·m
Max torque speed: 1800-2000rpm
Rated speed: 3800rpm
Cargo box parameters
Cargo box dimensions: 4.16X1.76X1.765 / 3.07X1.81X1.71 / 4.22X1.81X1.71m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Kaiyun / Shunda
Chassis Model: JX1061TG24 / JX1040TA24
rear axle description: 2.5-ton axle, ratio 6.142
Leaf spring count: 7/5+5 / 7/4+5 / 7.00R16LT
Transmission Parameters
Number of gears: 8Gear
Transmission Model: JC528T8
Tire
Tire Size: 7.00R16LT / 7.00R16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is JMC JMC Kaiyun Light Truck Explosives Transport Truck?
JMC JMC Kaiyun Light Truck is an export-oriented Explosives Transport Truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JMC Kaiyun Light Truck Explosives Transport Truck?
JMC Kaiyun Light Truck Explosives Transport Truck export reference is about $16,389 – $17,778. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JMC Kaiyun Light Truck Explosives Transport Truck cover?
JMC Kaiyun Light Truck Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 109 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JMC Kaiyun Light Truck Explosives Transport Truck?
For JMC Kaiyun Light Truck Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JMC Kaiyun Light Truck Explosives Transport Truck include?
JMC Kaiyun Light Truck Explosives Transport Truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JMC Kaiyun Light Truck Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
