JMC Da Dao Pursuer 177 hp 4X4(6 wheels) 2.56m Explosive Transport Truck (Chufei Brand)
EXW
From $19,694
Export quote
Chufei JMC chassis Explosives Transport Truck
Main model photos
48 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Da Dao Pursuer 177 hp 4X4(6 wheels) 2.56m Explosive Transport Truck (Chufei Brand) | 4x4 / 177hp / China VI | From $19,694 | |
| JMC Kaiyun+ 129 hp 4x2(6 wheels) 4.2m Gas Cylinder Transport Truck (Chufei Brand) | 4x2 / 129hp / China VI | From $16,500 | |
| JMC Shunda Small Truck 122 hp 4X2(6 wheels) 4.2m Flammable Gas Box Transport Truck (Chufei Brand) | 4x2 / 122hp / China VI | ||
| JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) | 4x2 / 122hp / China VI |

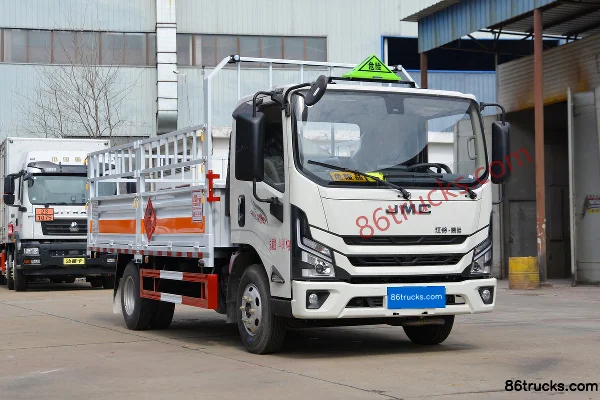

JMC Kaiyun+ 129 hp 4x2(6 wheels) 4.2m Gas Cylinder Transport Truck (Chufei Brand)
EXW
From $16,500
Export quote

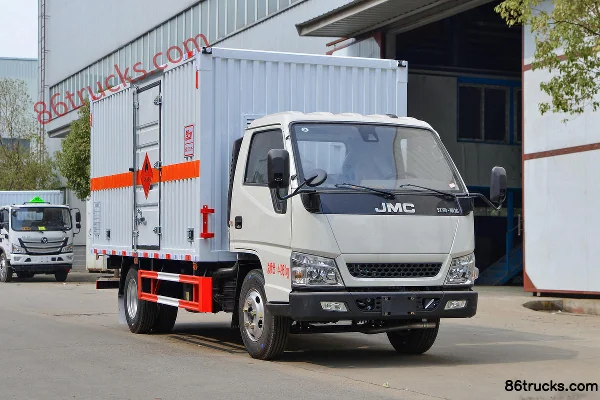

JMC Shunda Small Truck 122 hp 4X2(6 wheels) 4.2m Flammable Gas Box Transport Truck (Chufei Brand)
EXW
Export quote
JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.65×1.95×2.26 / 5.995×2.2×2.62 / 5.995x2.2x3.15m
Type: Explosives Transport Truck / Gas cylinder transport truck / Flammable gas van truck
Drive type: 4X4 / 4x2
Front/rear track width: Front track: 1620mm; Rear track: 1620mm / Front track: 1585mm; Rear track: 1570mm / 1465/1440
Wheelbase: 3270 / 3360mm
Rated mass: 0.82 / 1.73 / 1.2ton
Curb weight: 2.35 / 2.565 / 3.165ton
Front track width: 1620 / 1585 / 1465mm
rear track: 1620 / 1570 / 1440mm
GVWR: 3.3 / 4.49 / 4.495ton
Max. speed: 80km/h
Front/rear suspension: 0.905/1.475 / 1.115/1.52 / 1.075/1.56m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Transport medium: flammable gas / When flammable gas
Vehicle certification code: CLQ5030XQY6JX / CLQ5042TQP6JX / CLQ5041XRQ6JX
Body Brand: Chufei Brand
Engine parameters
Engine Brand: JMC
Engine Model: JX4D23A6L / JX493ZLQ6F / JMCJX493ZLQ6D
Number of cylinders: 4cylinder
Displacement: 2.296 / 2.499L
Emission standard: China VI
Max output power: 130 / 95 / 90kW
Max hp: 177 / 129 / 122Horsepower
Cargo box parameters
Cargo box dimensions: 2.56×1.85×1.25 / 4.2×2.1×0.55 / 4.2x2.1x2.1m
Cargo box type: Van body / stake body
Cargo box length: 2.56 / 4.2m
Cargo box width: 1.85 / 2.1m
Cargo box height: 1.25 / 0.55 / 2.1m
Chassis Specs
Chassis Brand: JMC
Chassis Series: JMC Dadao / Kaiyun+ / Shunda Narrow Body
Chassis Model: JX1037TFA6 / JX1044TGA26 / JX1041TG26
Leaf spring count: -/5 / 3/3+2 / 3/4+3
Transmission Parameters
Number of gears: 6 / 5Gear
shift type: Manual
Transmission Model: 6-speed transmission / 5-speed gearbox
Tire
Tire Size: 195/75R16LT / 7.00R16LT 8PR,7.00R16LT 10PR / 7.00R16LT 10PR
Number of tires: 4 / 6pcs
Control configuration
ABS:
Power steering:
FAQ
What kind of truck is Chufei Chufei JMC chassis Explosives Transport Truck?
Chufei Chufei JMC chassis is an export-oriented Explosives Transport Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chufei JMC chassis Explosives Transport Truck?
Chufei JMC chassis Explosives Transport Truck export reference is about $16,500 – $19,694. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chufei JMC chassis Explosives Transport Truck cover?
Chufei JMC chassis Explosives Transport Truck mainly covers: Drive: 4x2 / 4x4; Horsepower: 122 hp / 129 hp / 177 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chufei JMC chassis Explosives Transport Truck?
For Chufei JMC chassis Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chufei JMC chassis Explosives Transport Truck include?
Chufei JMC chassis Explosives Transport Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chufei JMC chassis Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
