JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 5.995x2.2x3.15m
Type:: Flammable gas van truck
Front/rear track width:: 1465/1440mm
Front track width:: 1465mm
Drive 4x2 (6 wheels)
Horsepower 122
Rated mass: 1.2ton
Emission China VI

Overview

The JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) is a Explosives Transport Truck featuring 4.495t GVW and 4x2 (6 wheels) drive. On the powertrain side, it comes with 122 hp, China VI emissions and Diesel fuel.

China VI 122 Diesel 4x2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995x2.2x3.15m
Type: Flammable gas van truck
Drive type: 4x2
Wheelbase: 3360mm
Front/rear track width: 1465/1440mm
Rated mass: 1.2ton
Curb weight: 3.165ton
Front track width: 1465mm
rear track: 1440mm
GVWR: 4.495ton
Max. speed: 80km/h
Front/rear suspension: 1.075/1.56m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ6D
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.499L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Body Parameters
rear guard section size: 100×50mm
Transport medium: When flammable gas
Vehicle certification code: CLQ5041XRQ6JX
Body Brand: Chufei Brand
Cargo box parameters
Cargo box dimensions: 4.2x2.1x2.1m
Cargo box type: Van body
Cargo box length: 4.2m
Cargo box width: 2.1m
Cargo box height: 2.1m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Narrow Body
Chassis Model: JX1041TG26
Leaf spring count: 3/4+3
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed gearbox
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Exhaust brake:
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Forward Collision Warning (FCW):
Lane Keeping Assist System (B.LKA):

Photos

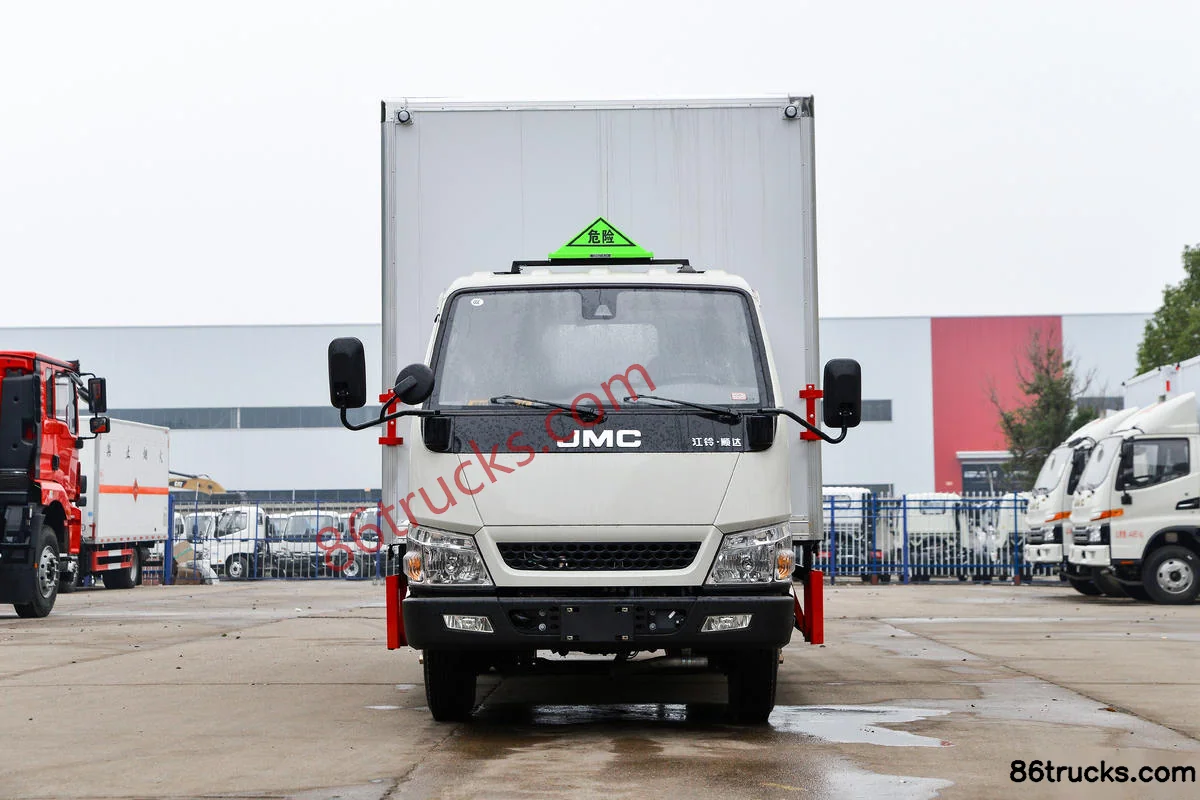

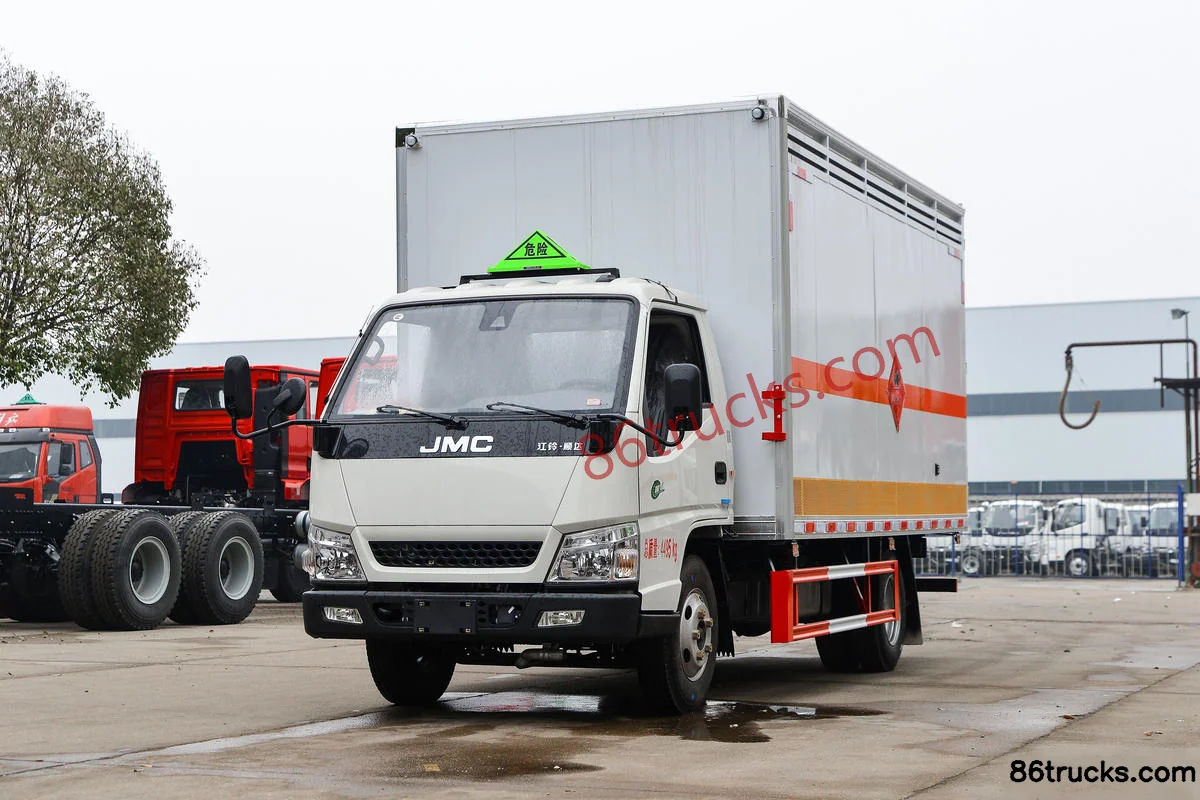

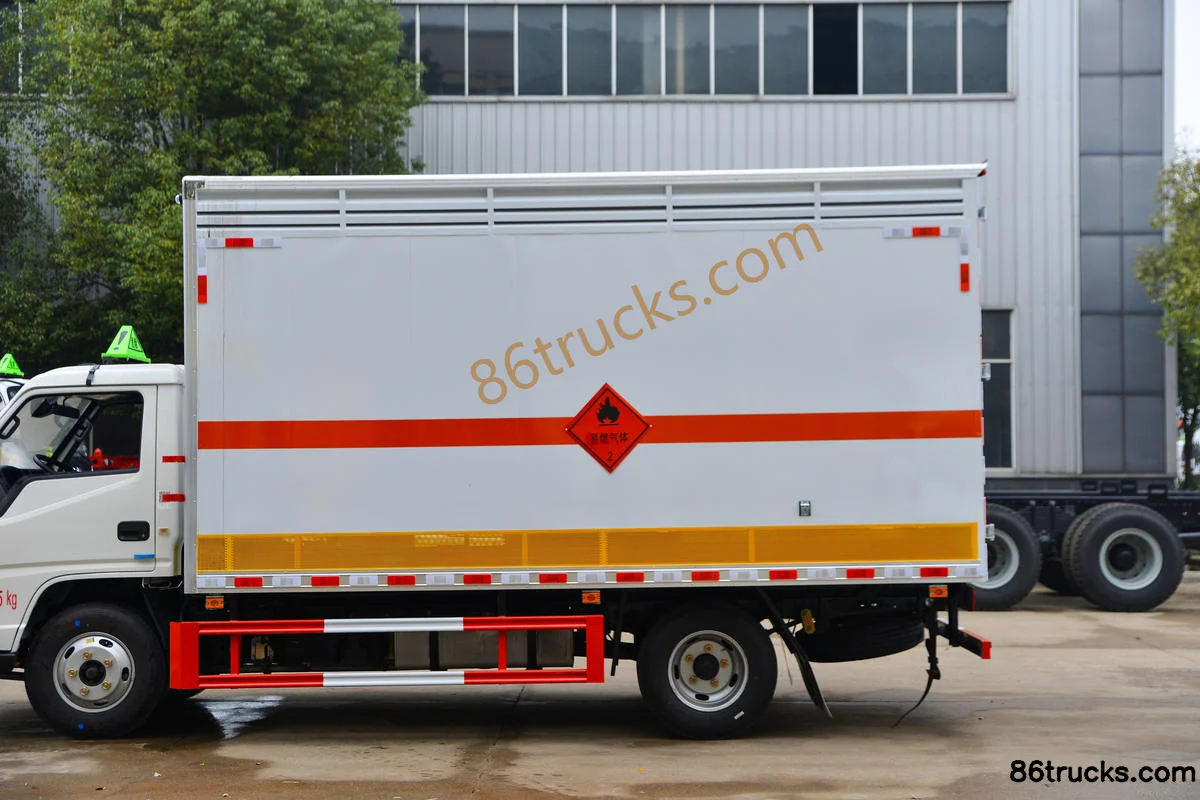

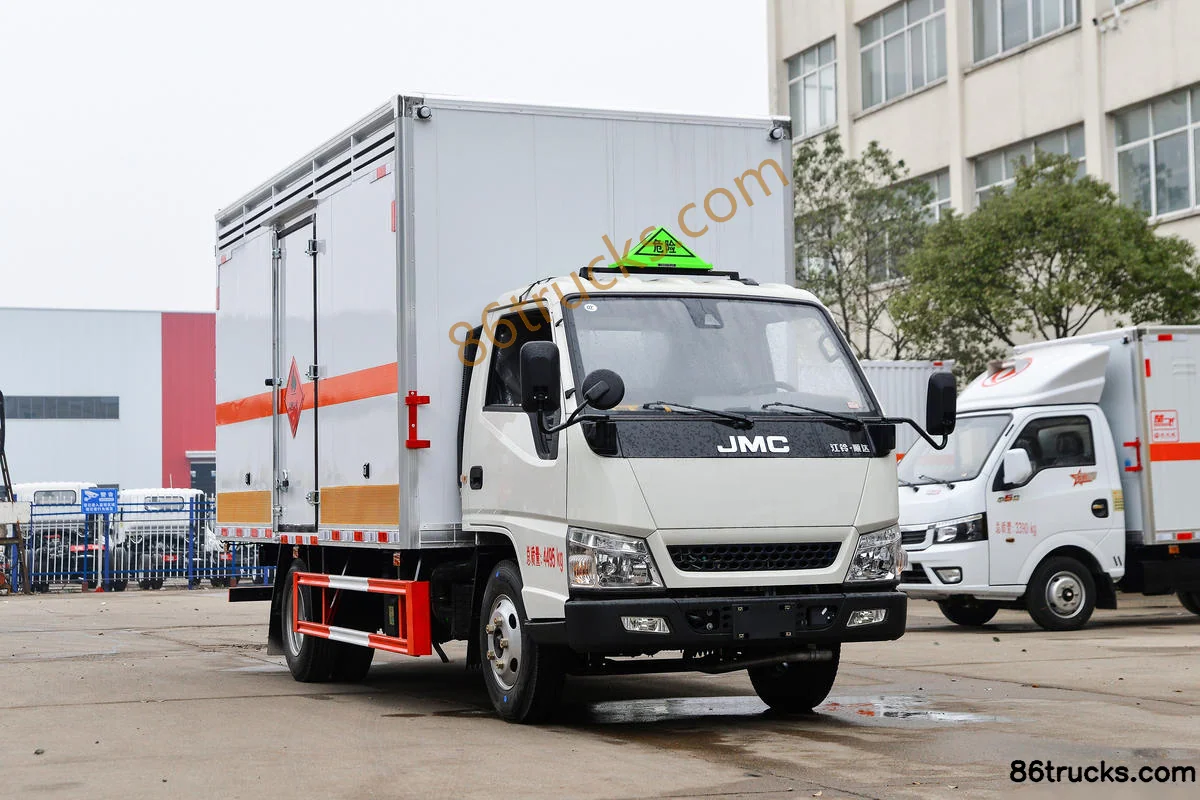

Exterior3

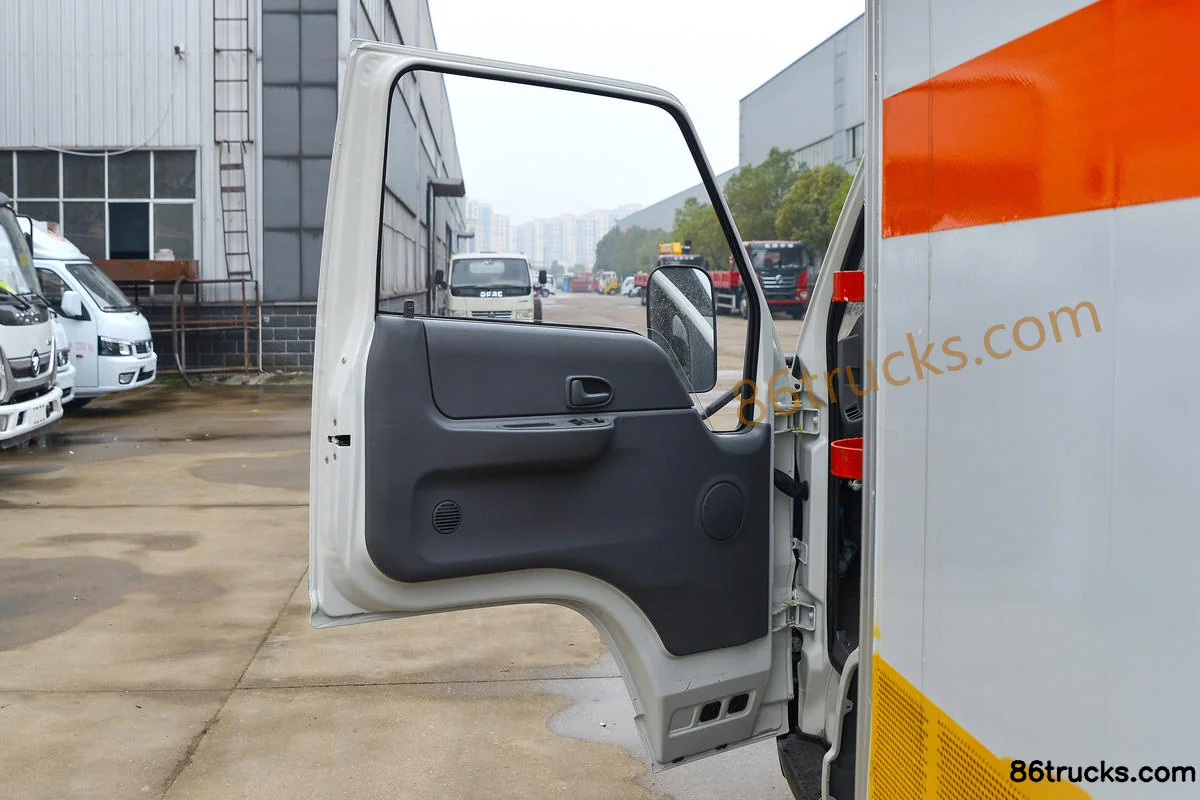

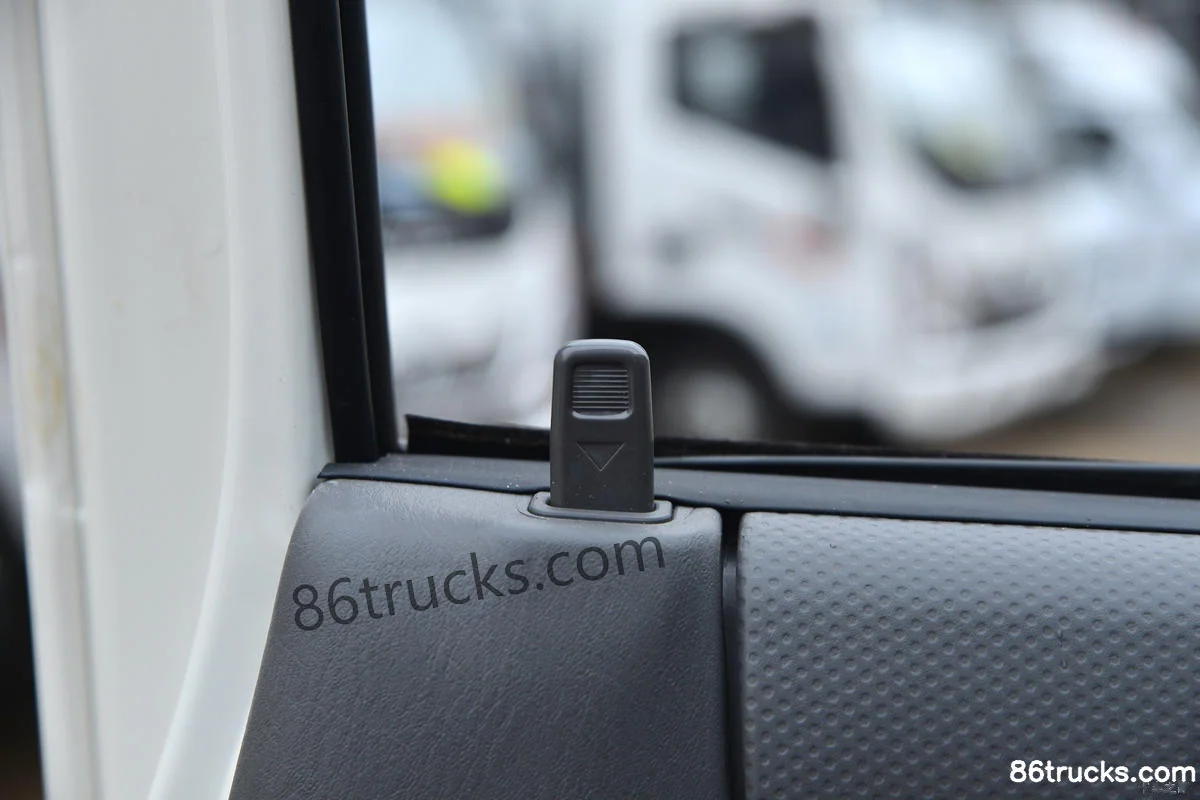

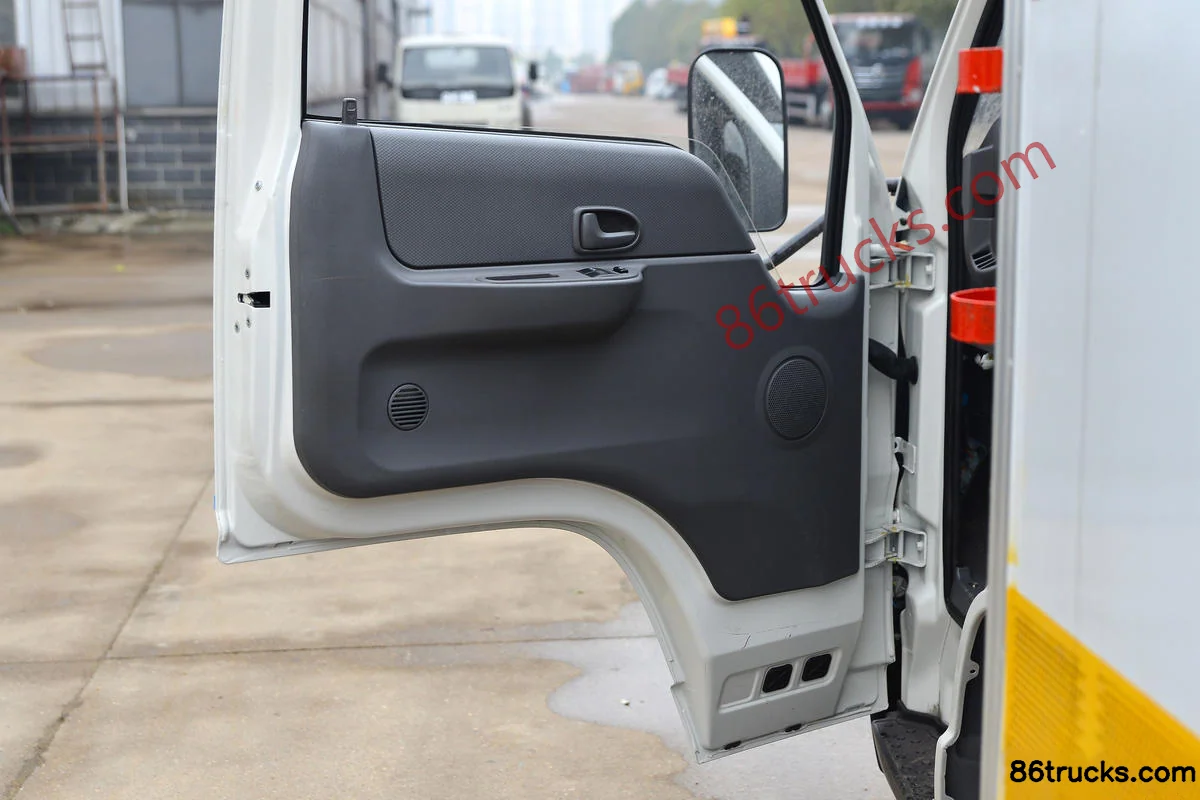

Cab3

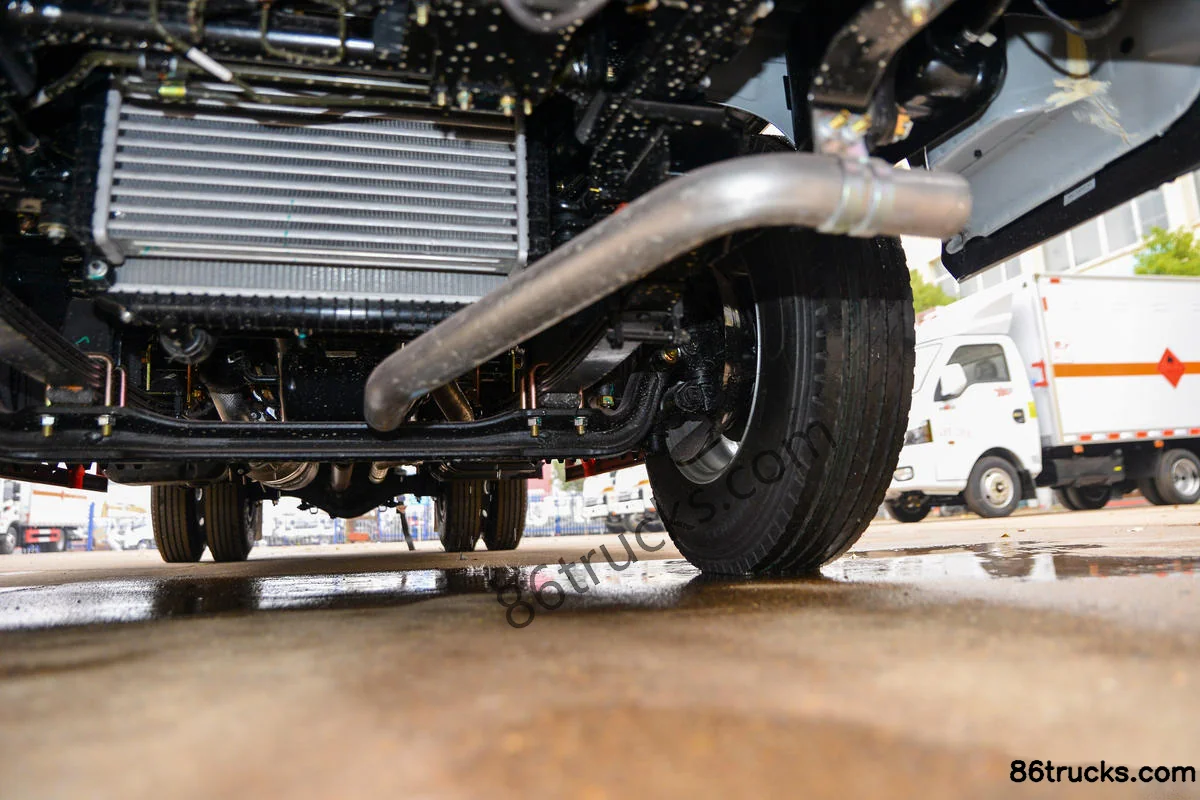

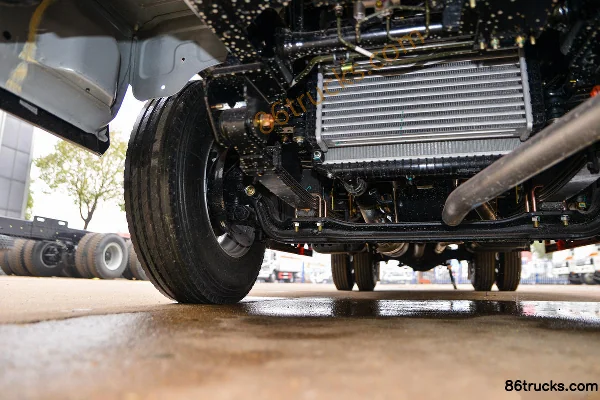

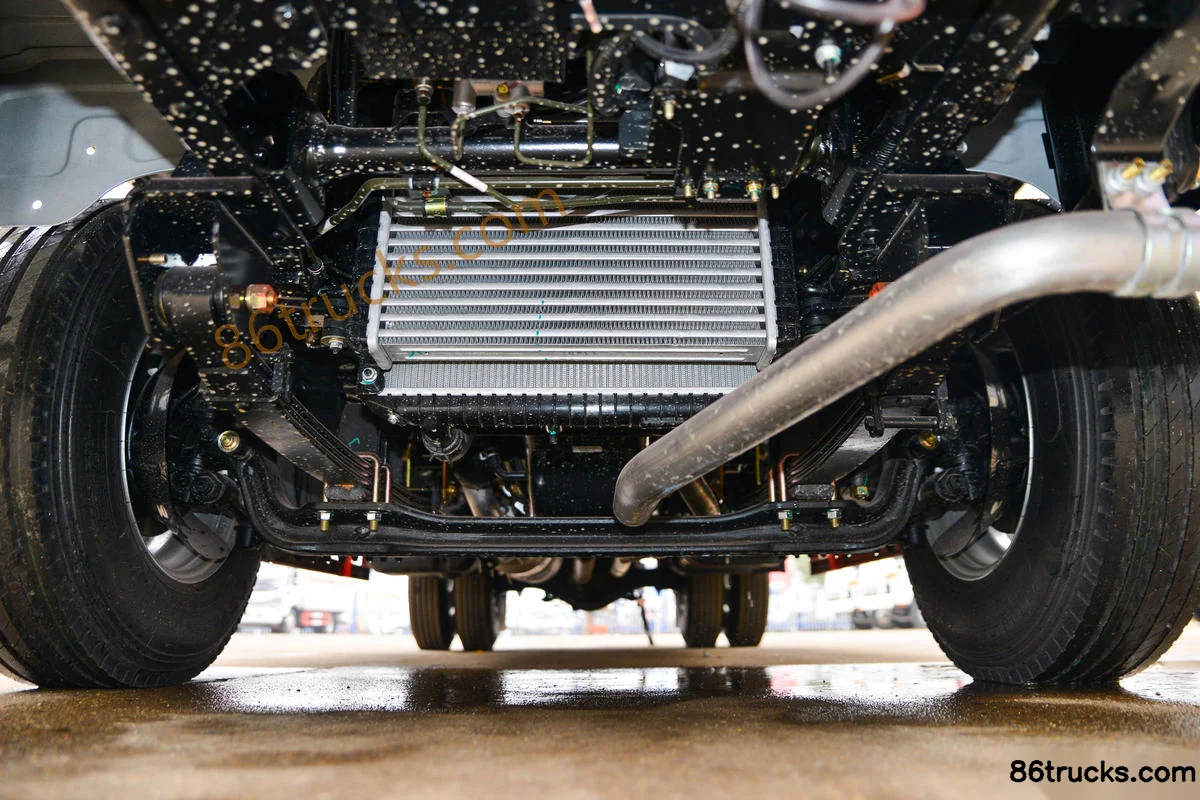

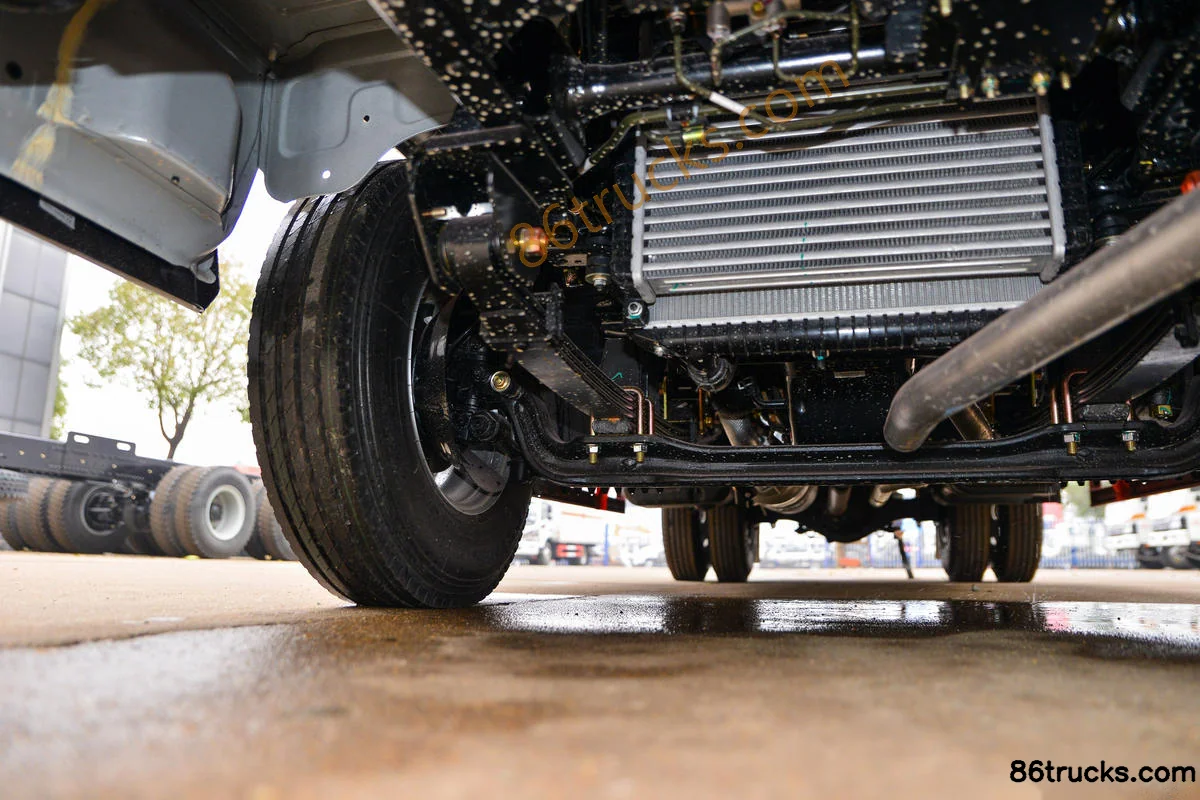

Chassis3

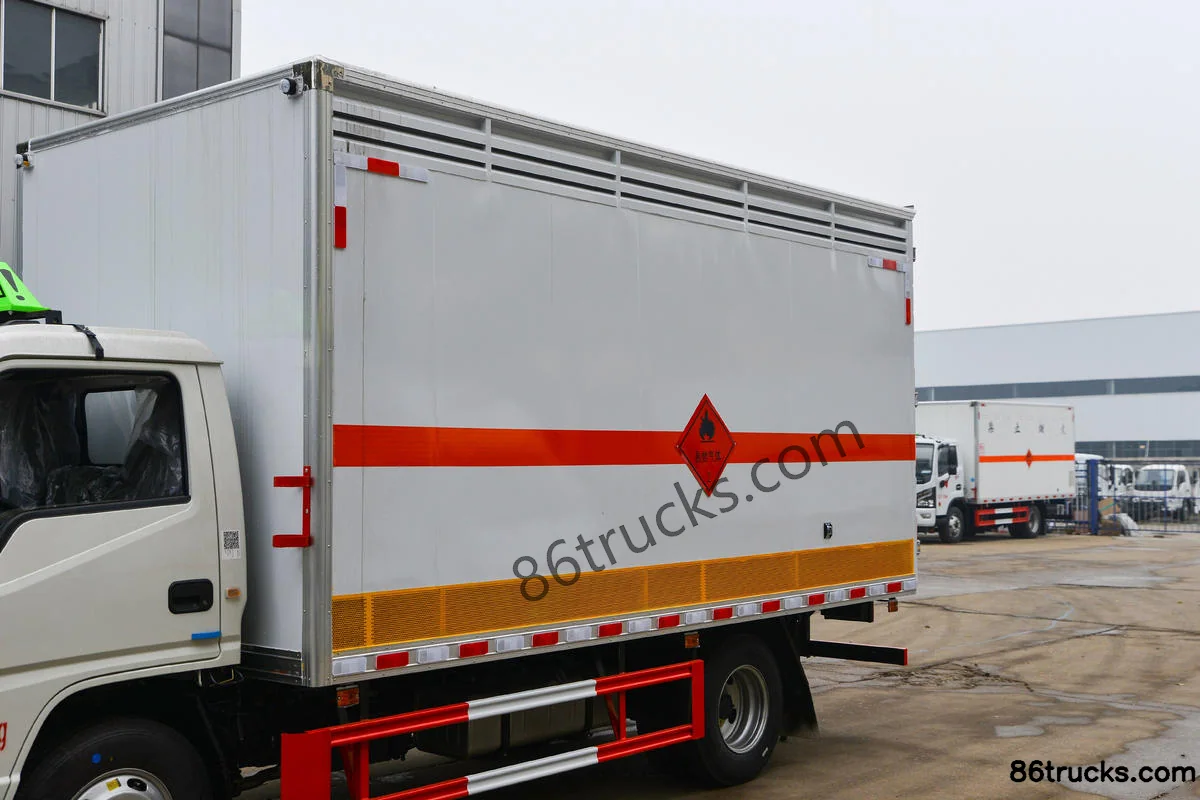

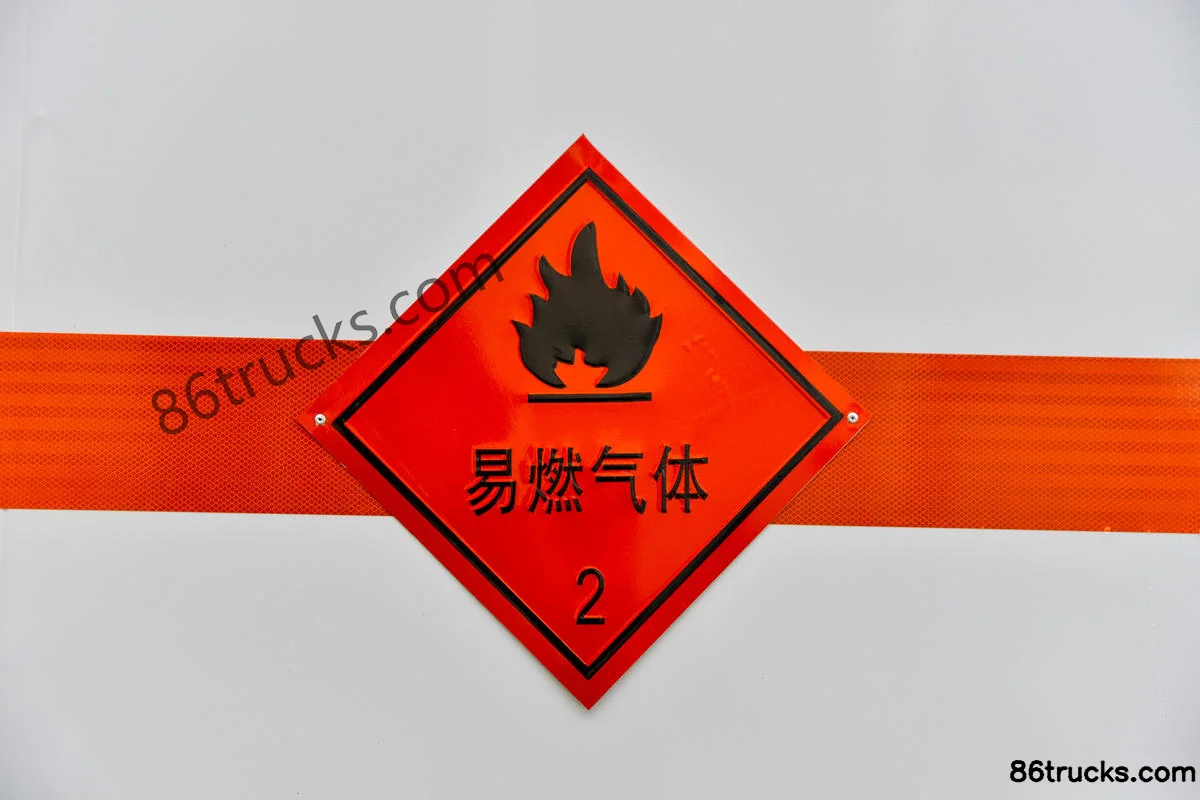

Body3

12 photos

FAQ

What emission standard does JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand)?

Key specs of JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand): Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) suited for?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) differ from other variants in the same series?

JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand) belongs to Chufei JMC chassis (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Narrow Body 122 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chufei Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
