Yangchai YZ4102QF 96 hp 3.86L China II Diesel Engine
EXW
Export quote
Yangchai YZ4102 series engine
Main model photos
3 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yangchai YZ4102QF 96 hp 3.86L China II Diesel Engine | 96hp / China II/Euro II | ||
| Yangchai YZ4102QB 90 hp 3.66L China II Diesel Engine | 90hp / China II/Euro II | ||
| Yangchai YZ4102ZLQ 110 hp 3.43L China II Diesel Engine | 110hp / China II/Euro II |
Yangchai YZ4102QB 90 hp 3.66L China II Diesel Engine
EXW
Export quote

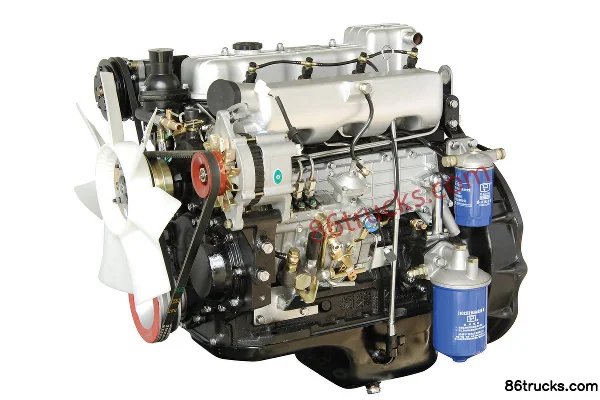

Yangchai YZ4102ZLQ 110 hp 3.43L China II Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: YZ4102 Series
Engine manufacturer: Yangchai
Suitable Range: Widely used in 2-3 ton light-duty trucks, machinery engineering, etc. / Widely used in 2-4 ton cargo trucks, 6-7 meter midibuses, machinery engineering, etc.
Intake type: Intercooled turbocharged
Min. fuel consumption at full load: ≤230 / ≤235 / ≤210g/kW.h
Engine net weight: 330 / 320kg
Engine Dimensions: 814×600×731 / 758.4×600×708 / 810×721×753mm
Compression ratio: 17.5：1
Bore × Stroke: 102x118 / 102x112 / 102x105mm
firing order: 1-3-4-2
Engine Brand: Yangchai
Engine Model: YZ4102QF / YZ4102QB / YZ4102ZLQ
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.857 / 3.661 / 3.432L
Emission standard: China II/Euro II
Max output power: 70.6 / 66 / 81kW
Max hp: 96 / 90 / 110Horsepower
Max torque: 245 / 225 / 310N·m
Max torque speed: 2200 / 1800rpm
Rated speed: 3200 / 2900rpm
Engine Type: Inline, water-cooled, four-stroke / Inline, water-cooled, 4-stroke, turbocharged with intercooler
FAQ
What kind of truck is Yangchai Yangchai YZ4102 series engine?
Yangchai Yangchai YZ4102 series is an export-oriented engine lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Yangchai YZ4102 series engine cover?
Yangchai YZ4102 series engine mainly covers: Horsepower: 90 hp / 96 hp / 110 hp; Emission: China II/Euro II; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yangchai YZ4102 series engine?
For Yangchai YZ4102 series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Yangchai YZ4102 series engine include?
Yangchai YZ4102 series engine currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yangchai YZ4102 series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
