Weichai WP4.1NQ190E50 190 hp 4.1L China V diesel engine
EXW
Export quote
Weichai WP4.1N Series engine
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Weichai WP4.1NQ190E50 190 hp 4.1L China V diesel engine | 190hp / China V | ||
| Weichai WP4.1NQ170E50 170 hp 4.1L China V diesel engine | 170hp / China V | ||
| Weichai WP4.1NQ170E61 170 hp 4.1L China VI Diesel Engine | 170hp / China VI | ||
| Weichai WP4.1NQ190E61 190hp 4.1L China VI Diesel Engine | 190hp / China VI |
Weichai WP4.1NQ170E50 170 hp 4.1L China V diesel engine
EXW
Export quote

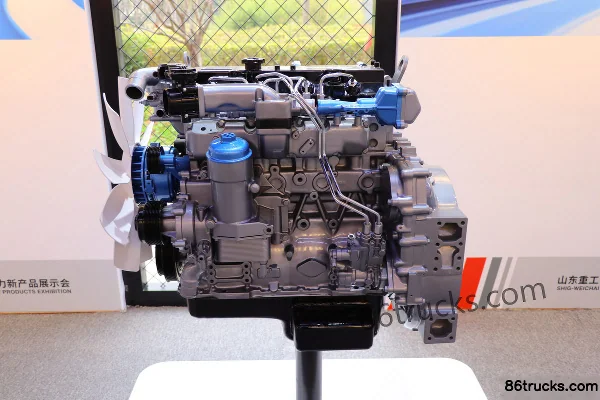

Weichai WP4.1NQ170E61 170 hp 4.1L China VI Diesel Engine
EXW
Export quote

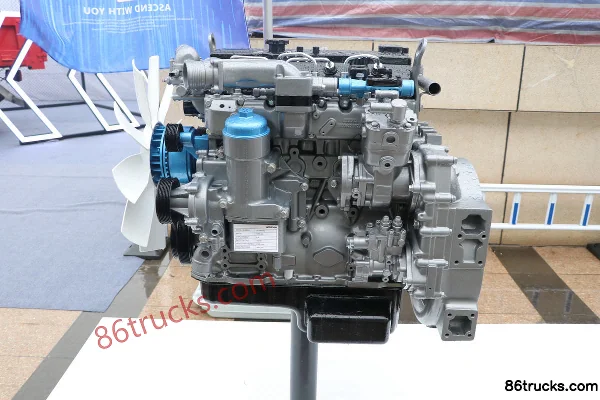

Weichai WP4.1NQ190E61 190hp 4.1L China VI Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: WP4.1N Series
Engine manufacturer: Weichai
Suitable Range: light truck, light dump truck, medium truck, light bus, school bus
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 193 / 191g/kW.h
Engine net weight: 390kg
Compression ratio: 18:1
Bore × Stroke: 105×118mm
Valves per cylinder: 4pcs
Engine Brand: Weichai
Engine Model: WP4.1NQ190E50 / WP4.1NQ170E50 / WP4.1NQ170E61 / WP4.1NQ190E61
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.088 / 4.1L
Emission standard: China V / China VI
Max output power: 140 / 125kW
Max hp: 190 / 170Horsepower
Max torque: 680 / 600N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: Common Rail+SCR / High-pressure common rail, EGR+DOC+DPF+SCR
FAQ
What kind of truck is Weichai Weichai WP4.1N Series engine?
Weichai Weichai WP4.1N Series is an export-oriented engine lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Weichai WP4.1N Series engine cover?
Weichai WP4.1N Series engine mainly covers: Horsepower: 170 hp / 190 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Weichai WP4.1N Series engine?
For Weichai WP4.1N Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Weichai WP4.1N Series engine include?
Weichai WP4.1N Series engine currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Weichai WP4.1N Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
