Voith VR115E Hydraulic Retarder
EXW
Export quote
Voith oil retarder hydraulic retarder
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Voith VR115E Hydraulic Retarder | — | ||
| Voith VR123 Hydraulic Retarder | — | ||
| Voith VR133-2 Hydraulic Retarder | — | ||
| Voith VR120E Hydraulic Retarder | — | ||
| Voith VR115CT Hydraulic Retarder | — |
Voith VR123 Hydraulic Retarder
EXW
Export quote
Voith VR133-2 Hydraulic Retarder
EXW
Export quote
Voith VR120E Hydraulic Retarder
EXW
Export quote

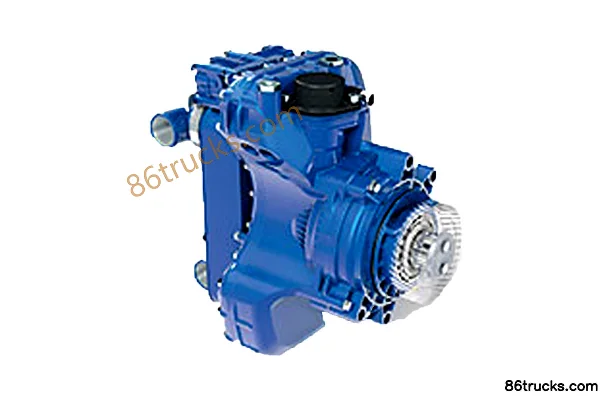

Voith VR115CT Hydraulic Retarder
EXW
Export quote
Series Specs
Basic Info
brand: Voith
retarder model: VR115E / VR123+ / VR133-2 / VR120E / VR115CT / VR3250 / VR115HV / VR115CN
Max. input speed: 2400 / 3600 / 2800 / 2478 / 2500 / 2480rpm
Rated voltage: 24V
Max braking torque: 3400 / 2000 / 4000 / 2450 / 3500 / 3250 / 3200N·m
Working medium: Oil
Oil/water fill capacity: 6.7 / 6.4 / 6 / 4 / 6.8 / 5.4 / 5.6 / 5.9L
retarder net weight: 59.5 / 85 / 66 / 52 / 56 / 62 / 70kg
Mounting position type: multi-stage manual control, optional foot pedal control / 5-level manual control, optional foot pedal control / 6-speed manual control / Multifunction joystick control
Features and Benefits: Integrated design with Mercedes-Benz transmission, compact structure; reduces service brake usage by up to 90%, keeping service brakes consistently cool for effective emergency braking; maximum operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwired connections, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS / Improves vehicle safety; reduces service brake usage by up to 90%, keeping service brakes cool for effective emergency braking; extends tire and brake life, reduces maintenance hours, and lowers operating costs; retarder surface max temp ≤150°C, no fire risk; effectively increases average vehicle speed, especially in mountainous areas; max operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwiring, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS / High vehicle safety; reduces service brake usage by up to 90%, keeping service brakes consistently cool for effective emergency braking; extends tire and brake life, reduces vehicle maintenance hours, lowers operating costs; retarder surface max temperature ≤150°C, no fire risk; effectively increases average vehicle speed, especially in mountainous areas; max operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwired connections, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS; max braking torque up to 4000Nm. / Retarder surface max temp ≤150°C, no fire hazard; effectively increases average vehicle speed, especially in mountainous areas; max operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwired connections, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS / Retarder surface max temp ≤150°C, no fire hazard; compact structure, lightweight; unique rotor disengagement technology minimizes idling power loss; modular design for easier maintenance; does not affect PTO installation or use; max operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwired connections, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS / Improves vehicle safety; matched with Volvo transmission, compact structure; provides extremely high braking torque throughout vehicle operation; reduces service brake usage by up to 90%, keeping service brakes cool for effective emergency braking; extends tire and brake life, reduces maintenance hours, and lowers operating costs; retarder surface max temp ≤150°C, no fire risk; effectively increases average vehicle speed, especially in mountainous areas; max operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwiring, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS / Matches Mercedes-Benz transmission, compact structure; reduces service brake usage by up to 90%, keeping service brakes cool, effectively handling emergency braking; extends tire and brake life, reduces vehicle maintenance time, lowers operating costs; retarder surface max temperature ≤150°C, no fire risk; effectively increases average vehicle speed, especially in mountainous areas; max operating current only 1A with no electronic interference; compatible with almost all electronic control systems and communicates via CAN with vehicle components to reduce hardwired connections, including vehicle speed signal, throttle signal, fault codes, ABS, AMT, and EBS; independent retarder oil supply system, stainless steel heat exchanger. / High safety, reduces service brake usage by up to 90%, reduces fuel consumption, reduces shift frequency, reduces drivetrain wear.
FAQ
What kind of truck is Voith Voith oil retarder hydraulic retarder?
Voith Voith oil retarder is an export-oriented hydraulic retarder lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is hydraulic retarder typically used for?
For hydraulic retarder, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Voith oil retarder hydraulic retarder include?
Voith oil retarder hydraulic retarder currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Voith oil retarder hydraulic retarder?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
