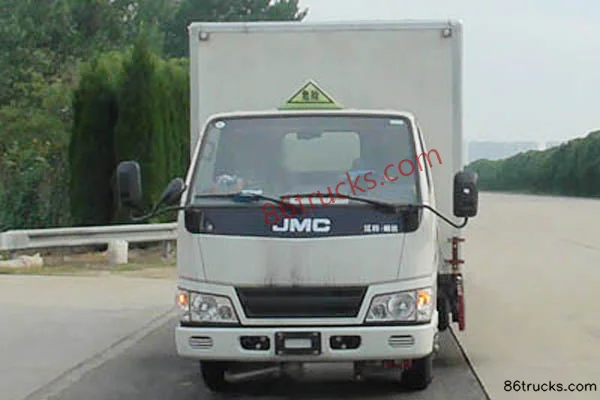

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Gas Cylinder Transport Truck (Chengliwei Brand)
EXW
From $15,694
Export quote
Chengliwei JMC chassis Explosives Transport Truck
Main model photos
95 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Gas Cylinder Transport Truck (Chengliwei Brand) | 4x2 / 116hp / China V | From $15,694 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chengliwei Brand) | 4x2 / 116hp / China V | From $15,694 | |
| JMC Shunda narrow body 116 hp 4X2(6 wheels) 4.2m explosive material transport truck (Chengliwei brand) | 4x2 / 116hp / China V | From $15,694 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Flammable Liquid Van Truck (Chengliwei Brand) | 4x2 / 116hp / China V | From $15,694 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chengliwei Brand) | 4x2 / 116hp / China V | From $15,694 |
JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chengliwei Brand)
EXW
From $15,694
Export quote
JMC Shunda narrow body 116 hp 4X2(6 wheels) 4.2m explosive material transport truck (Chengliwei brand)
EXW
From $15,694
Export quote
JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Flammable Liquid Van Truck (Chengliwei Brand)
EXW
From $15,694
Export quote
JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.2m Flammable Gas Van Truck (Chengliwei Brand)
EXW
From $15,694
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×1.98×2.5 / 5.995×2×2.8m
Type: Gas cylinder transport truck / Flammable gas van truck / Explosives Transport Truck
Drive type: 4X2
Wheelbase: 3360mm
Front/rear track width: Front: 1385mm; Rear: 1425 / Front track: 1385mm; Rear track: 1425
Rated mass: 2.8 / 1.465 / 1.495 / 2.65ton
GVWR: 5.88 / 4.495ton
Max. speed: 80km/h
Front/rear suspension: 1.065/1.57m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50 / 100×60 / 110×50mm
Transport medium: Flammable gases (Class 2.1) in individually packaged containers (bottles): liquefied petroleum gas, compressed methane or compressed natural gas with high methane content, acetylene, ethane, butane, propylene, butylene, dimethyl ether, compressed oxygen; for transporting non-flammable, non-toxic gases (Class 2.2) in individually packaged containers (bottles): carbon dioxide, compressed oxygen (nitrogen, air, helium, argon, neon) / Flammable gases in individually packaged containers: liquefied petroleum gas, compressed natural gas, acetylene, ethane, propane, butane, isobutane, butylene, methane, propylene, cyclobutane, propadiene, methyl ethyl ether, lighters or lighter refills (containing flammable gas), hydrogen / Black powder, compressed black powder, electric (non-electric) detonators, blasting explosives, detonating cord, igniting fuse. Fireworks and firecrackers / Black powder, explosive, electric detonator, blasting explosive, fireworks, etc.
Vehicle certification code: CLW5061TQPJ5 / CLW5043XRQJ5 / CLW5043XQYJ5 / CLW5061XRYJ5 / CLW5061XRQJ5 / CLW5061XQYJ5
Body Brand: Chengliwei
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ5
Number of cylinders: 4cylinder
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 4.2×1.85×0.6 / 4.2×1.85×1.73m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Narrow Body
Chassis Model: JX1061TG25 / JX1041TG25
rear axle description: Ratio 6.142
Leaf spring count: 7/5+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Jiangchi JC528
Tire
Tire Size: 7.00R16LT 10PR / 7.00R16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei JMC chassis Explosives Transport Truck?
Chengliwei Chengliwei JMC chassis is an export-oriented Explosives Transport Truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei JMC chassis Explosives Transport Truck?
Chengliwei JMC chassis Explosives Transport Truck export reference is about From $15,694. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei JMC chassis Explosives Transport Truck cover?
Chengliwei JMC chassis Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei JMC chassis Explosives Transport Truck?
For Chengliwei JMC chassis Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei JMC chassis Explosives Transport Truck include?
Chengliwei JMC chassis Explosives Transport Truck currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei JMC chassis Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
