Foton BJ486ZLEQ4 160 hp 2L China IV Gasoline Engine
EXW
Export quote
Foton BJ486 Gasoline Series engine
Main model photos
7 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton BJ486ZLEQ4 160 hp 2L China IV Gasoline Engine | 160hp / China IV | ||
| Foton BJ486EQV4 129 hp 2L China IV Gasoline Engine | 129hp / China IV | ||
| Foton BJ486EQV 103 hp 2.24L China III Gasoline Engine | 103hp / China III / Euro III | ||
| Foton BJ486EQV 122 hp 2L China IV Gasoline Engine | 122hp / China IV |

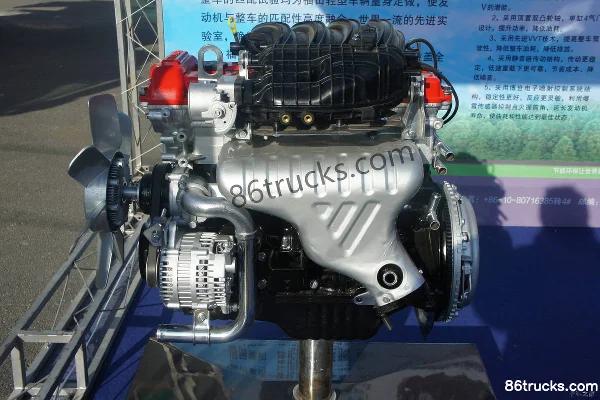

Foton BJ486EQV4 129 hp 2L China IV Gasoline Engine
EXW
Export quote
Foton BJ486EQV 103 hp 2.24L China III Gasoline Engine
EXW
Export quote

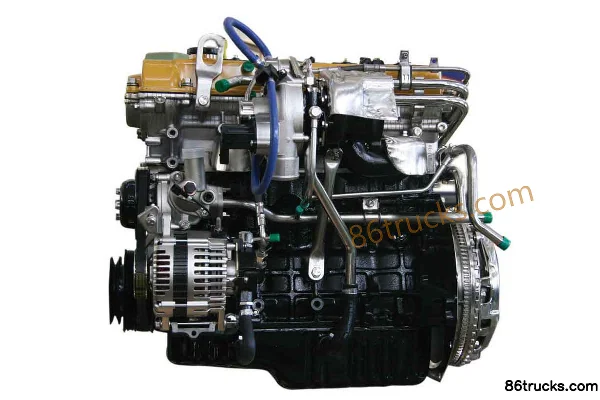

Foton BJ486EQV 122 hp 2L China IV Gasoline Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: BJ486 Gasoline Series
Engine manufacturer: Foton Co., Ltd., Beijing / Foton
Suitable Range: Light Bus, Large Pickup, SUV, MPV / For light buses, pickups, light trucks under 3.5 tons, SUVs, MPVs / ideal power for light truck, pickup, SUV, MPV
Intake type: Turbocharged Air-to-Air Intercooling / Naturally aspirated
Min. fuel consumption at full load: 265 / 260 / 275g/kW.h
Engine net weight: 169 / 165 / 145kg
Engine Dimensions: 683X720X648mm
Compression ratio: 8.8:1 / 17.2：1 / 8.8：1 / 10:1
Bore × Stroke: 86x86 / 86x91mm
Valves per cylinder: 4pcs
firing order: 1-3-4-2
Engine Brand: Foton
Engine Model: BJ486ZLEQ4 / BJ486EQV4 / BJ486EQV
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.998 / 2.237L
Emission standard: China IV / China III / Euro III
Max output power: 118 / 95 / 76 / 90kW
Max hp: 160 / 129 / 103 / 122Horsepower
Max torque: 250 / 186 / 193N·m
Max torque speed: 2000-3000 / 3200-4500 / 2000-2600 / 3200rpm
Rated speed: 5000 / 4300-4600rpm
Engine Type: 16-valve, VVT technology / Inline 4-cylinder, dual overhead camshaft, intake VVT / DOHC, 4 valves per cylinder, intake with variable valve timing
FAQ
What kind of truck is Foton Foton BJ486 Gasoline Series engine?
Foton Foton BJ486 Gasoline Series is an export-oriented engine lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Foton BJ486 Gasoline Series engine cover?
Foton BJ486 Gasoline Series engine mainly covers: Horsepower: 103 hp / 122 hp / 129 hp / 160 hp; Emission: China III / Euro III / China IV; Fuel: gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton BJ486 Gasoline Series engine?
For Foton BJ486 Gasoline Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Foton BJ486 Gasoline Series engine include?
Foton BJ486 Gasoline Series engine currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton BJ486 Gasoline Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
