Yuchai YC4D130-50 130 hp 4.2L China V Diesel Engine
EXW
Export quote
Yuchai YC4D Series engine
Main model photos
10 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yuchai YC4D130-50 130 hp 4.2L China V Diesel Engine | 130hp / China V | ||
| Yuchai YC4D140-50 140hp 4.2L China V Diesel Engine | 140hp / China V | ||
| Yuchai YC4D150-50 150hp 4.2L China V Diesel Engine | 150hp / China V | ||
| Yuchai YC4D22-50 170 hp 4.2L China V Diesel Engine | 170hp / China V | ||
| Yuchai YC4D20-50 150 hp 4.2L China V Diesel Engine | 150hp / China V |
Yuchai YC4D140-50 140hp 4.2L China V Diesel Engine
EXW
Export quote
Yuchai YC4D150-50 150hp 4.2L China V Diesel Engine
EXW
Export quote
Yuchai YC4D22-50 170 hp 4.2L China V Diesel Engine
EXW
Export quote

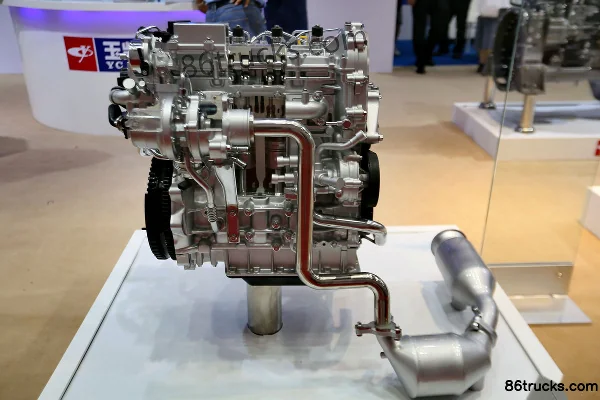

Yuchai YC4D20-50 150 hp 4.2L China V Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: YC4D series
Engine manufacturer: Guangxi Yuchai Machinery Co., Ltd. / Yuchai
Suitable Range: Medium dump truck, concrete mixer truck / Light-duty truck & work truck, GVW under 12T / Light-duty medium truck / light truck
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 205 / ≤198g/kW.h
Engine net weight: 420 / 380kg
Compression ratio: 17:1
noise at 1m: ≤97 / 99dB
Bore × Stroke: 108x115 / 110x112mm
Valves per cylinder: 2pcs
Engine Brand: Yuchai
Engine Model: YC4D130-50 / YC4D140-50 / YC4D150-50 / YC4D22-50 / YC4D20-50 / YC4D120-41 / YC4D130-41 / YC4D140-41 / YC4D120-45 / YC4D130-45 / YC4D140-45 / YC4D130-33 / YC4110ZQ / YuchaiYC4D120-33 / YC4D120-30 / YC4D140-30 / YC4D130-30 / YC4D140-33 / YC4D130-20 / YC4D120-20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.214 / 2.17 / 1.999 / 4.257 / 4.212L
Emission standard: China V / China IV / China III / Euro III / China II/Euro II
Max output power: 96 / 103 / 110 / 125 / 90 / 100kW
Max hp: 130 / 140 / 150 / 170 / 120 / 136Horsepower
Max torque: 420 / 450 / 500 / 360 / 330 / 380 / 392 / 350N·m
Max torque speed: 1400-1800 / 1800 / 1600-1900 / 1700-2000rpm
Rated speed: 2800 / 4000rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Inline 4-cylinder, water-cooled, 4-stroke, 4-valve, turbocharged intercooled, variable geometry turbocharger / Electronic unit pump SCR / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection, unit pump SCR / Electronic unit pump EGR + POC + DOC / Vertical, inline, water-cooled, four-stroke, direct injection / Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection
FAQ
What kind of truck is Yuchai Yuchai YC4D Series engine?
Yuchai Yuchai YC4D Series is an export-oriented engine lineup with about 20 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Yuchai YC4D Series engine cover?
Yuchai YC4D Series engine mainly covers: Horsepower: 130 hp / 140 hp / 150 hp / 170 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yuchai YC4D Series engine?
For Yuchai YC4D Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Yuchai YC4D Series engine include?
Yuchai YC4D Series engine currently lists about 20 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yuchai YC4D Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
