JAC Gallop K3 190 hp 4X2(6 wheels) Fuel Tanker Truck
EXW
Export quote
JAC Gallop K3 Heavy Truck fuel tanker truck
Main model photos
903 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K3 190 hp 4X2(6 wheels) Fuel Tanker Truck | 4x2 / 190hp / China II/Euro II | ||
| JAC Gallop K3 240 hp 6X2(8 wheels) Fuel Tanker Truck | 6x2 / 240hp / China III / Euro III |

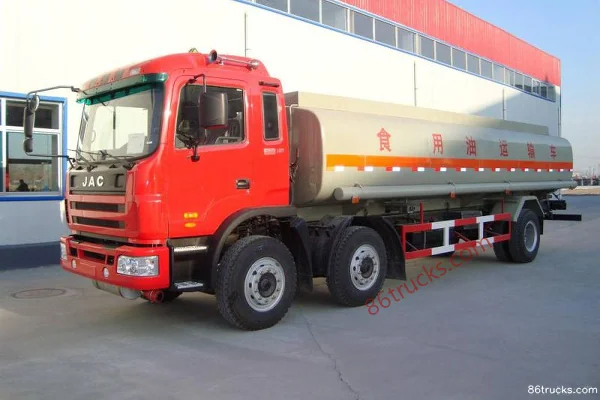

JAC Gallop K3 240 hp 6X2(8 wheels) Fuel Tanker Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.93×2.47×3 / 11.28×2.495×3.35m
Drive type: 4X2 / 6X2
Truck Type: Fuel tanker truck
Wheelbase: 5000 / 1700+5000mm
Vehicle origin: Hefei, Anhui
Front track width: 1900 / 2000/2000mm
rear track: 1800 / 1830mm
Curb Weight: 8.34 / 11.715ton
Rated payload: 7.415 / 12.99ton
Max. speed: 98km/h
Front/rear suspension: 1.533/2.397 / 1.53/3.05m
Energy Type: Diesel
Body Parameters
Tank Size: 5.5×2.05×1.05 / 8.2×2.28×1.38m
Tank Volume: 9.5 / 20.4m3
Transport medium: Diesel / gasoline
Medium Density: 0.84 / 0.7ton/cubic meter
Vehicle certification code: HFC5160GYYK / HFC5250GYYKR1T
Body Brand: JAC Gallop
Others: This vehicle is only equipped with CA6DF2D-19 engine. / Optional front grille;
Engine parameters
Engine Brand: Yuchai / Xichai
Engine Model: YC6J190-20 / CA6DF3-24E3
Number of cylinders: 6cylinder
Displacement: 6.494 / 6.7L
Emission standard: China II/Euro II / China III / Euro III
Max output power: 140 / 177kW
Max hp: 190 / 240Horsepower
Max torque: 630 / 935N·m
Max torque speed: 1400-1700 / 1400rpm
Rated speed: 2500 / 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection / 4-stroke, inline, water-cooled, turbocharged with intercooling
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK3
Chassis Model: HFC1160KR1 / HFC1255K4R1T
Leaf spring count: 10/9+7 / 9/9/9+7
Tire
Tire Size: 9.00-20,10.00-20 / 10.00-20,10.00R20,11.00-20,11.00R20
Number of tires: 6 / 8pcs
FAQ
What kind of truck is JAC Gallop JAC Gallop K3 Heavy Truck fuel tanker truck?
JAC Gallop JAC Gallop K3 Heavy Truck is an export-oriented fuel tanker truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC Gallop K3 Heavy Truck fuel tanker truck cover?
JAC Gallop K3 Heavy Truck fuel tanker truck mainly covers: Drive: 4x2 / 6x2; Horsepower: 190 hp / 240 hp; Emission: China II/Euro II / China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K3 Heavy Truck fuel tanker truck?
For JAC Gallop K3 Heavy Truck fuel tanker truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JAC Gallop K3 Heavy Truck fuel tanker truck include?
JAC Gallop K3 Heavy Truck fuel tanker truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K3 Heavy Truck fuel tanker truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
