JAC DHE155 180 hp 2.5L China VI Diesel Engine
EXW
Export quote
JAC 4-Cylinder Engine Series
Main model photos
12 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC DHE155 180 hp 2.5L China VI Diesel Engine | 180hp / China VI | ||
| JAC MF4.8H 165 hp 4.8L China IV Diesel Engine | 165hp / China IV | ||
| JAC MF3.2H 160 hp 3.2L China IV Diesel Engine | 160hp / China IV | ||
| JAC JD4102Q2 90 hp 3.76L China II Diesel Engine | 90hp / China II/Euro II | ||
| JAC JD4105Q1 102 hp 4.1L China II Diesel Engine | 102hp / China II/Euro II |

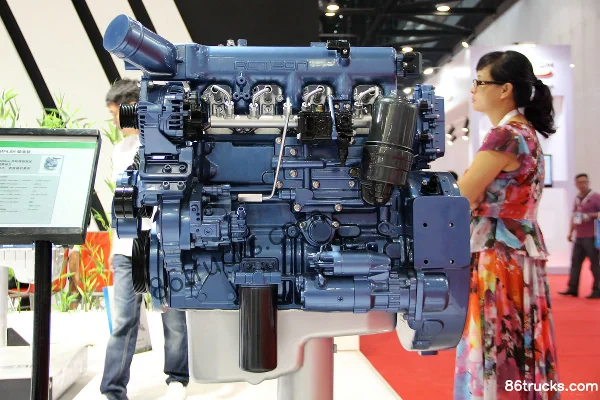

JAC MF4.8H 165 hp 4.8L China IV Diesel Engine
EXW
Export quote

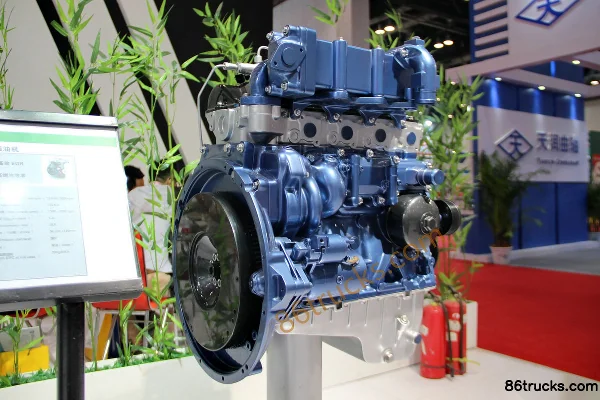

JAC MF3.2H 160 hp 3.2L China IV Diesel Engine
EXW
Export quote
JAC JD4102Q2 90 hp 3.76L China II Diesel Engine
EXW
Export quote
JAC JD4105Q1 102 hp 4.1L China II Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: 4-cylinder engine / 4-cylinder engine series
Engine manufacturer: JAC / Anhui JAC Automobile Co., Ltd.
Suitable Range: Light Truck Series / Low-speed cargo truck
Min. fuel consumption at full load: 198 / 200 / 238 / 236g/kW.h
Engine net weight: 320 / 330kg
Engine Dimensions: 895x625x730 / 814x600x731 / 805x540x612mm
Compression ratio: 16.8:1
Bore × Stroke: 105X137 / 96x110 / 102x115 / 105x118 / 102x118 / 102x105 / 100x105 / 95x105mm
Valves per cylinder: 4pcs
Engine Brand: JAC
Engine Model: JACDHE155 / MF4.8H / MF3.2H / JD4102Q2 / JD4105Q1 / JD4102Q1 / 4J34Q / JD4100Q / JD495Q
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.5 / 4.8 / 3.2 / 3.759 / 4.087 / 3.857 / 3.432 / 3.29 / 2.977L
Emission standard: China VI / China IV / China II/Euro II
Max output power: 132 / 121 / 118 / 66.2 / 75 / 70.6 / 56 / 60 / 52kW
Max hp: 180 / 165 / 160 / 90 / 102 / 96 / 76 / 82 / 70Horsepower
Max torque: 510 / 600 / 450 / 236 / 250 / 199 / 200 / 173N·m
Max torque speed: 1200-1600 / 1500-2200 / 2100 / 2240rpm
Rated speed: 220 / 3000 / 3200rpm
Engine Type: Inline 4-cylinder, 16-valve, single overhead camshaft, high-pressure common rail, high-efficiency EGR / Inline, water-cooled, 4-stroke, direct injection
FAQ
What kind of truck is JAC JAC 4-Cylinder Engine Series engine?
JAC JAC 4-Cylinder Engine Series is an export-oriented engine lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC 4-Cylinder Engine Series cover?
JAC 4-Cylinder Engine Series mainly covers: Horsepower: 90 hp / 102 hp / 160 hp / 165 hp / 180 hp; Emission: China II/Euro II / China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC 4-Cylinder Engine Series?
For JAC 4-Cylinder Engine Series, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does JAC 4-Cylinder Engine Series include?
JAC 4-Cylinder Engine Series currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC 4-Cylinder Engine Series?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
