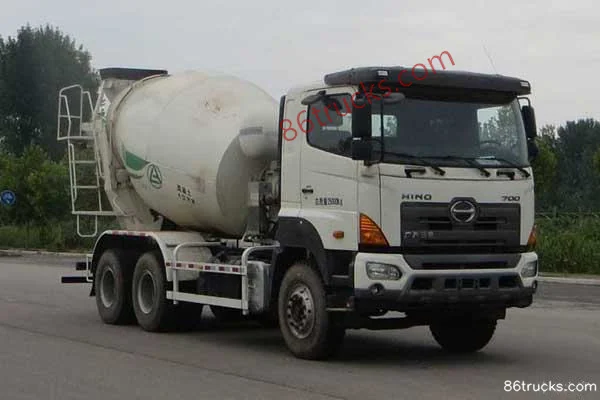

Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 25ton
Wheelbase:: 4020+1410mm
Tire Size:: 12.00R20 16PR
Cab dimensions:: 9.95×2.5×3.99m
Truck Type:: Concrete mixer truck
Rated payload: 9.47ton
Drive 6X4 (10 wheels)
Horsepower 350
Emission China V

Overview

The CIMC Lingyu Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand) is a concrete mixer truck featuring 9.47t payload, 25ton GVW, 6X4 (10 wheels) drive and 9.95×2.5×3.99m cab. On the powertrain side, it comes with 350 hp, China V emissions and Diesel fuel.

China V 350 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.95×2.5×3.99m
Drive type: 6X4
Truck Type: Concrete mixer truck
Wheelbase: 4020+1410mm
Vehicle origin: Luoyang, Henan
Front/rear track width: Front track: 2050mm; Rear track: 1855/1855
Curb Weight: 25ton
Rated payload: 9.47ton
Max. speed: 80km/h
Front/rear suspension: 1.46/3.06m
Engine parameters
Injection System: Common Rail (China V)
Engine Model: Shanghai HinoP11C-WC
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.52L
Emission standard: China V
Max output power: 259kW
Max hp: 350Horsepower
Engine Type: Inline
Body Parameters
Mixing drum capacity: 4m³
Vehicle certification code: CLY5250GJBYCE5B
Body Brand: Lingyu
Chassis Specs
Chassis Series: GAC HINO700 Series
Chassis Model: YC2250FS2PN5
Axle ratio: 4.875
Leaf spring count: 11/13
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast GearRT-11509C
Tire
Tire Size: 12.00R20 16PR
Number of tires: 10pcs

Photos

Exterior1

1 photos

FAQ

What emission standard does Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand)?

Key specs of Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand): Drive: 6x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand) suited for?

Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand) differ from other variants in the same series?

Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand) belongs to CIMC Lingyu GAC HINO Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Guangqi HINO 700 Series 350 hp 6X4(10 wheels) 4 Cubic Meter Concrete Mixer Truck (Lingyu Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
