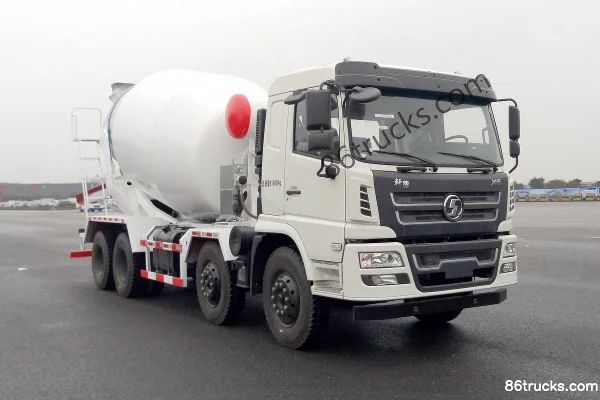

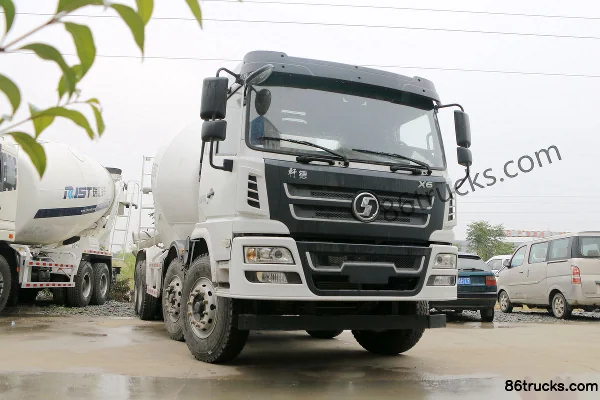

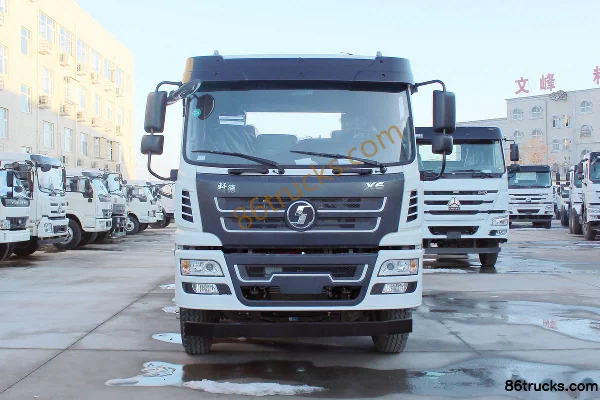

SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck
EXW
From $42,375
Export quote
SHACMAN Commercial Vehicle SHACMAN Xuande X6
Main model photos
385 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Commercial Vehicle Xuande X6 350 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck | 8x4 / 350hp / China V | From $42,375 | |
| SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck | 8x4 / 340hp / China V | From $42,653 | |
| SHACMAN Commercial Vehicle Xuande X6 300 hp 6X4(10 wheels) 5.8 m³ concrete mixer truck | 6x4 / 300hp / China V | From $34,347 | |
| SHACMAN Commercial Vehicle Xuande X6 270 hp 6X4(10 wheels) 5.8 m³ concrete mixer truck (Yuchai) | 6x4 / 270hp / China V | From $33,167 | |
| SHACMAN Commercial Vehicle Xuande X6 270 hp 6X4(10 wheels) 5.8 m³ concrete mixer truck | 6x4 / 270hp / China V | From $33,653 |
SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck
EXW
From $42,653
Export quote
SHACMAN Commercial Vehicle Xuande X6 300 hp 6X4(10 wheels) 5.8 m³ concrete mixer truck
EXW
From $34,347
Export quote
SHACMAN Commercial Vehicle Xuande X6 270 hp 6X4(10 wheels) 5.8 m³ concrete mixer truck (Yuchai)
EXW
From $33,167
Export quote
SHACMAN Commercial Vehicle Xuande X6 270 hp 6X4(10 wheels) 5.8 m³ concrete mixer truck
EXW
From $33,653
Export quote
Series Specs
Basic Info
Cab dimensions: 10.1×2.5×3.95 / 8.9×2.5×3.95 / 8.7×2.5×3.95m
Drive type: 8X4 / 6X4
Truck Type: Concrete mixer truck
Front/rear track width: Front track: 1940/1940mm; Rear track: 1860/1860 / Front: 1970mm; Rear: 1750/1750 / Front: 1970/1970mm; Rear: 1775/1775
Wheelbase: 1800+3200+1300 / 3800+1300 / 3600+1300mm
Vehicle origin: Xi'an, Shaanxi
Curb Weight: 14.5 / 11.5ton
Rated payload: 16.305 / 12.805ton
Max. speed: 85km/h
Front/rear suspension: 1.45/2.35 / 1.45/2.3m
Body Parameters
Mixing drum capacity: 7.4 / 5.8m³
Vehicle certification code: SX5310GJBGP5326 / SX5250GJBGP5344
Body Brand: SHACMAN Commercial Vehicle
Others: Cab: Four-point mechanical suspension, comfort air-suspension seat, A/C, Tianxingjian Zhiya BD vehicle terminal; cab color: Pearl White (two-tone); Brakes: domestic 4-channel ABS; with FARIZON throttle control assembly, aluminum air tanks; overspeed alarm (60 km/h); ECU reads vehicle code; brake test connector; right-turn voice alert; central locking, sun visor, with spare tire. / Standard: Cab: TJG201(N/2220) semi-floating structure, comfort air-suspension seat, A/C, Tianxingjian Zhiya Edition BD telematics terminal. Cab color: Pearl White. Brakes: domestic 4-channel ABS. With FARIZON throttle control system. Optional: Cab: four-point mechanical suspension, sun visor, central door lock, multimedia display (without reverse camera), under-radiator guard.
Engine parameters
Injection System: Common Rail (China V)
Engine Model: YuchaiYC6L350-50 / WeichaiWP7.340E53 / WeichaiWP7.300E51 / YuchaiYC6A270-50 / WeichaiWP7.270E51 / YuchaiYC6A300-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424 / 7.47 / 7.52L
Emission standard: China V
Max output power: 257 / 250 / 220 / 199 / 221kW
Max hp: 350 / 340 / 300 / 270Horsepower
Rated speed: 2200 / 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Electronic high-pressure common rail + SCR / Inline 6-cylinder, electronic high-pressure common rail, SCR / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Chassis Specs
Chassis Series: Xuande X6
Chassis Model: SX1310GP5 / SX1250GP5
Front axle description: 153B+153B / 153B
Frame Dimensions: (940-861)x300/8+6 through double / 861x280/8+6 double-layer / 861x280/8+4 double-layer / 861x280/8+6mm
rear axle description: STR13T+STR13T / 153B+153B
Axle ratio: 5.73 / 5.571
Leaf spring count: 9/9/10 / 9/10 / 9/9/10,10/10/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140B / Fast Gear10JSD120B
Cab parameters
Cab: X6 mid-high roof/2220 / TJG201
Tire
Tire Size: 11.00R20 / 10.00R20/18PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is SHACMAN Commercial Vehicle SHACMAN Xuande X6 Heavy-Duty Truck concrete mixer truck?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 Heavy-Duty Truck is an export-oriented concrete mixer truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Commercial Vehicle SHACMAN Xuande X6?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 export reference is about $33,167 – $42,653. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Commercial Vehicle SHACMAN Xuande X6 cover?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 mainly covers: Drive: 6x4 / 8x4; Horsepower: 270 hp / 300 hp / 340 hp / 350 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Commercial Vehicle SHACMAN Xuande X6?
For SHACMAN Commercial Vehicle SHACMAN Xuande X6: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does SHACMAN Commercial Vehicle SHACMAN Xuande X6 include?
SHACMAN Commercial Vehicle SHACMAN Xuande X6 currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Commercial Vehicle SHACMAN Xuande X6?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
