SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck

Export reference
From $42,653
MSRP ¥30.71M CNY
Fuel: Diesel
Curb Weight:: 14.5ton
Wheelbase:: 1800+3200+1300mm
Tire Size:: 11.00R20
Cab dimensions:: 10.1×2.5×3.95m
Truck Type:: Concrete mixer truck
Rated payload: 16.305ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck is a concrete mixer truck featuring 16.305t payload, 14.5ton GVW, 8X4 (12 wheels) drive and X6 mid-high roof/2220 cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.1×2.5×3.95m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Xi'an, Shaanxi
Wheelbase: 1800+3200+1300mm
Front/rear track width: Front track: 1940/1940mm; Rear track: 1860/1860
Curb Weight: 14.5ton
Rated payload: 16.305ton
Max. speed: 85km/h
Front/rear suspension: 1.45/2.35m
Body Parameters
Mixing drum capacity: 7.4m³
Vehicle certification code: SX5310GJBGP5326
Body Brand: SHACMAN Commercial Vehicle
Others: Cab: Four-point mechanical suspension, comfort air-suspension seat, A/C, Tianxingjian Zhiya BD vehicle terminal; cab color: Pearl White (two-tone); Brakes: domestic 4-channel ABS; with FARIZON throttle control assembly, aluminum air tanks; overspeed alarm (60 km/h); ECU reads vehicle code; brake test connector; right-turn voice alert; central locking, sun visor, with spare tire.
Engine parameters
Engine Model: WeichaiWP7.340E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Electronic high-pressure common rail + SCR
Chassis Specs
Chassis Series: Xuande X6
Chassis Model: SX1310GP5
Front axle description: 153B+153B
Frame Dimensions: (940-861)x300/8+6 through doublemm
rear axle description: STR13T+STR13T
Axle ratio: 5.73
Leaf spring count: 9/9/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140B
Cab parameters
Cab: X6 mid-high roof/2220
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

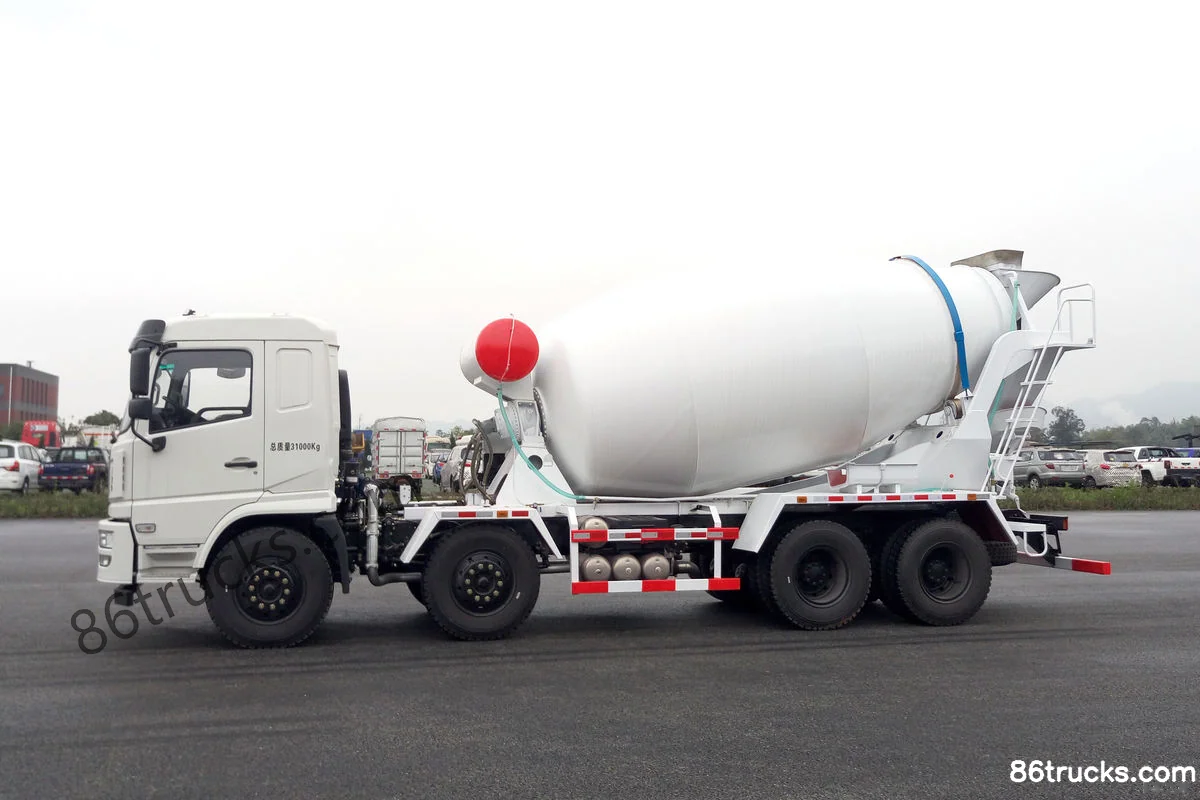

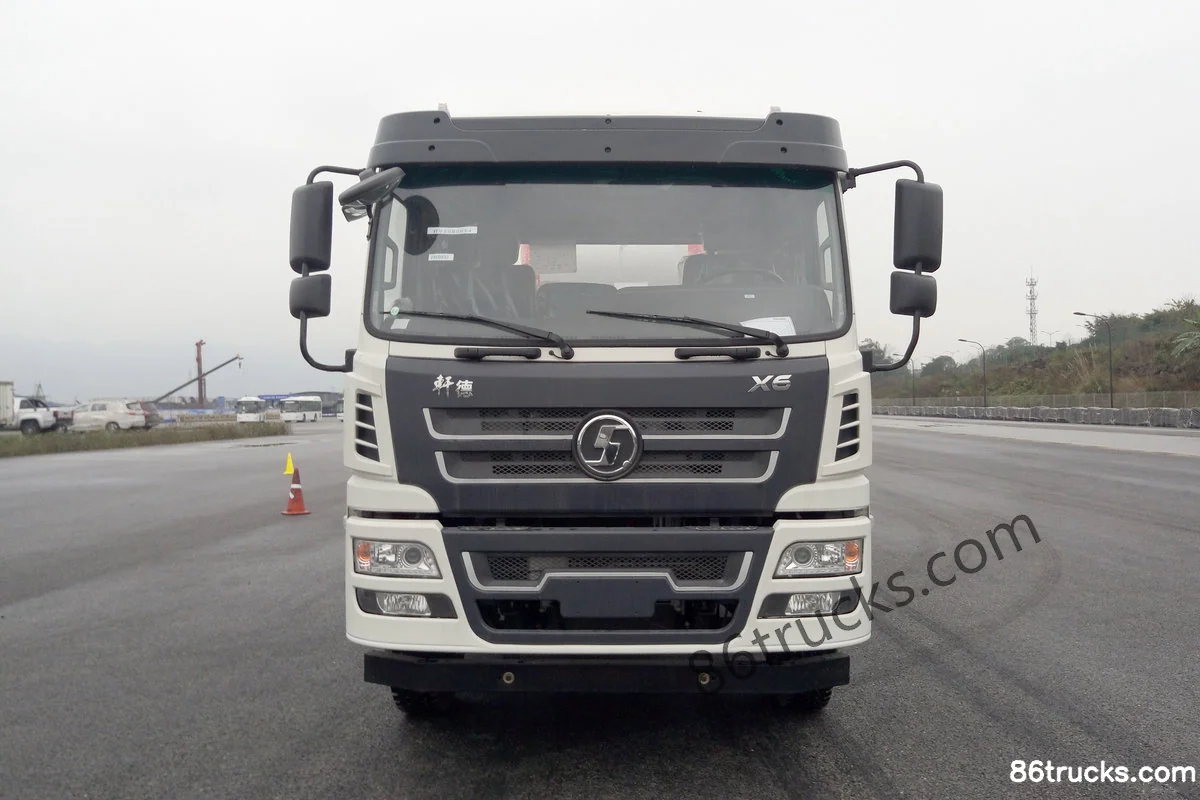

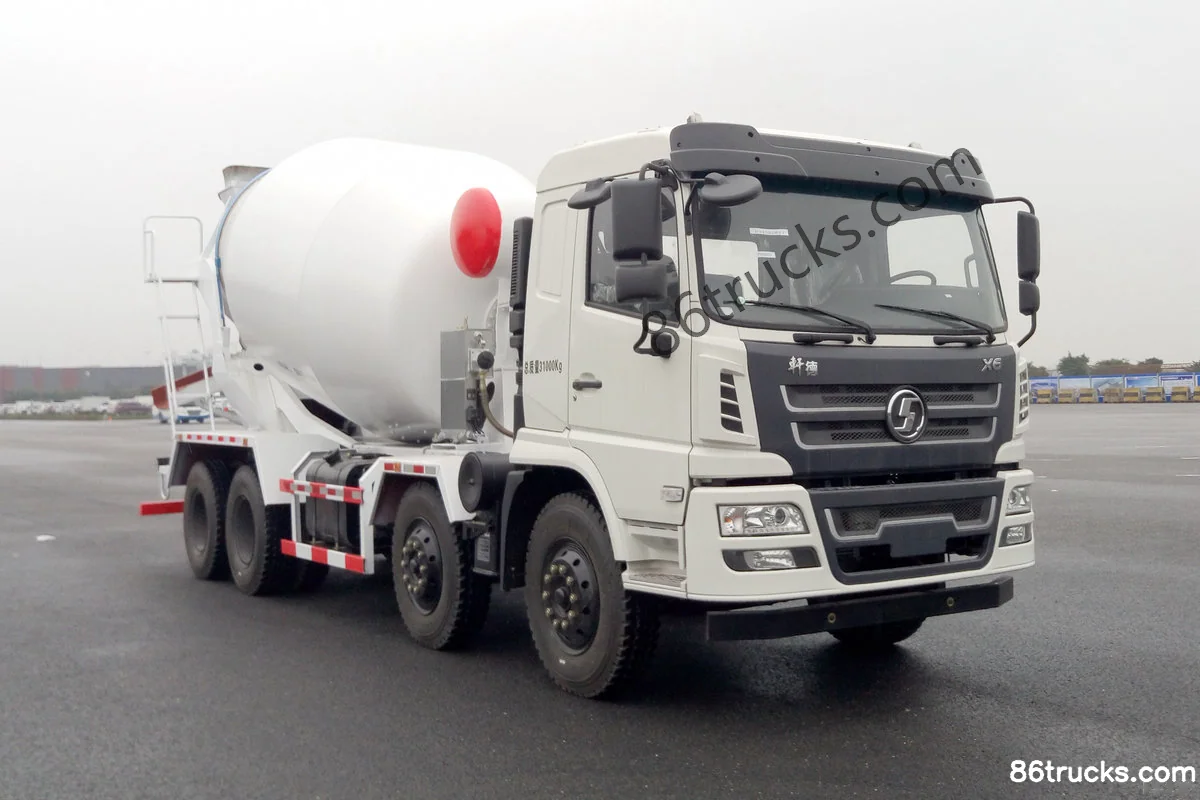

Photos

Exterior3

3 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck export reference is about From $42,653; MSRP is ¥30.71M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck suited for?

SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 340 hp 8X4(12 wheels) 7.4 m³ concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
