Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh

Export reference
MSRP N/A
Rated payload:: 9.67ton
Wheelbase:: 1850+3200+1350mm
Cargo box length:: 5.6m
Model code (announced):: HN3311B36C7BEV
Cab length:: 9.62m
GVWR:: 31ton
Drive 8X4 (12 wheels)
CLTC range: 282km
Motor 1 Brand: Tebest
Curb Weight: 21.2ton

Overview

The Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh is a Heavy truck featuring 282km battery/range, Tebest motor, 8X4 (12 wheels) drive and 9.67t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HN3311B36C7BEV
Drive type: 8X4
Wheelbase: 1850+3200+1350mm
Cab length: 9.62m
Cab width: 2.55m
Cab height: 3.45m
CLTC range: 282km
Curb Weight: 21.2ton
Rated payload: 9.67ton
GVWR: 31ton
Max. speed: 85km/h
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ400XSTPG06
Motor Type: Permanent magnet synchronous motor
total rated power: 260kW
Peak power: 360kW
total rated torque: 1600N·m
total peak torque: 2800N·m
Battery/Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 281.92kWh
fast charge time:
Transmission Parameters
Number of gears: 9Gear
shift type: AMT manual/auto
Transmission Model: 9-Speed AMT
Cargo box parameters
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: Dual 16T grade
rear axle allowable load: 18000 (tandem axle group)kg

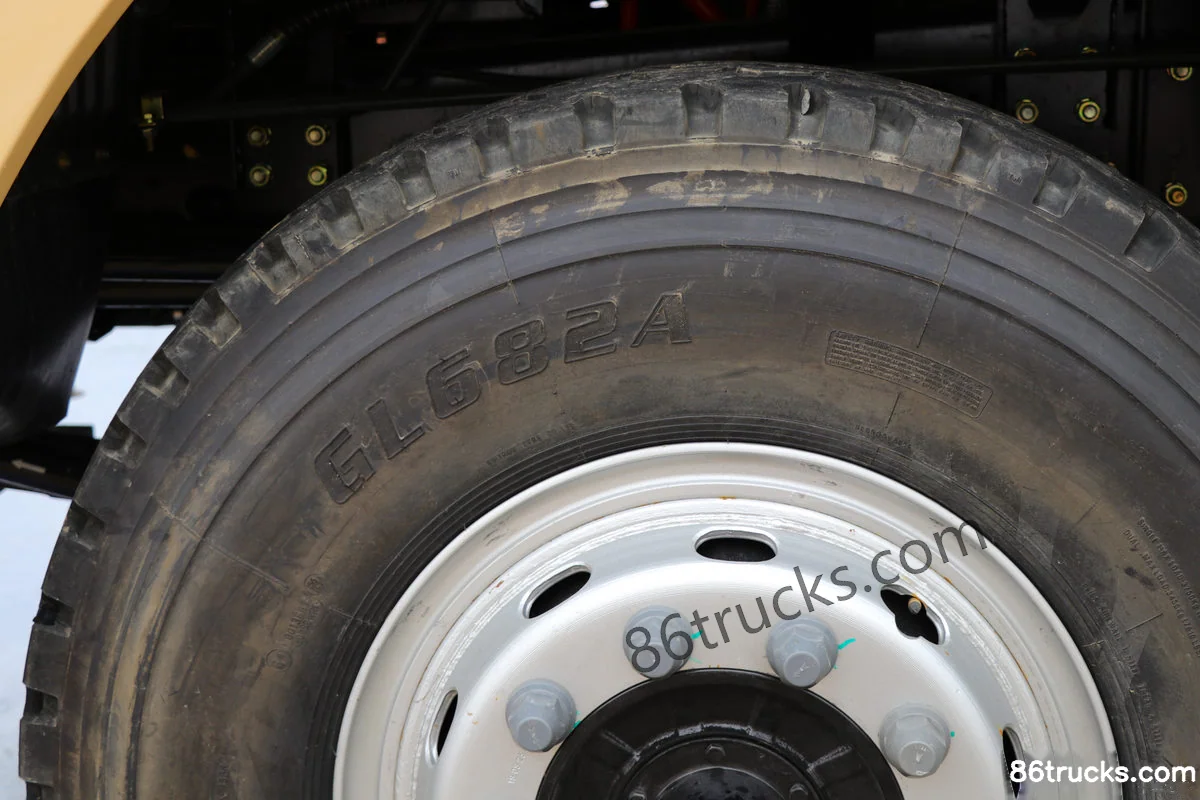

Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

Exterior3

Cab3

Body3

9 photos

FAQ

What are the key specs of Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh?

Key specs of Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh suited for?

Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh differ from other variants in the same series?

Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh belongs to Hualing M5 Heavy Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 31T 8X4(12 wheels) Battery Swap 5.6m Electric Dump Truck 281.92kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
