JAC Gallop K5W Heavy Truck 8X4(12 wheels) 5.6m Single Row Battery Swap Electric Dump Truck 281.92kWh
EXW
Export quote

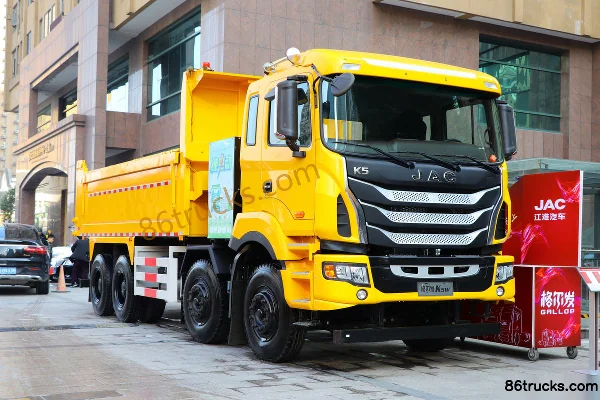

JAC Gallop K5 Heavy Truck electric dump truck
Main model photos
805 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5W Heavy Truck 8X4(12 wheels) 5.6m Single Row Battery Swap Electric Dump Truck 281.92kWh | 8x4 | ||
| JAC Gallop K5W Heavy Truck 8X4(12 wheels) 5.6m Semi-enclosed Plug-in Hybrid Dump Truck 50.465kWh | 8x4 / 350hp / China VI | ||
| JAC Gallop K5W heavy truck 8X4(12 wheels) 5.6m crew cab pure electric dump truck 422kWh | 8x4 |
Series Specs
Basic Info
Model code (announced): HFC3311P1SEV / HFC3311P1PHEV / HFC3311P1H41EV
Drive type: 8X4
Wheelbase: 1800+3050+1350 / 1800+2550+1350mm
Cab length: 9.525 / 8.995m
Cab width: 2.55 / 2.5m
Cab height: 3.55 / 3.35m
CLTC range: 180 / 327km
Curb Weight: 18.1 / 16 / 17ton
Rated payload: 12.77 / 14.87ton
GVWR: 31ton
Max. speed: 89 / 85km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Energy Type: Electric / Hybrid
electric motor
Motor 1 Brand: Lv Kong / Weichai
Motor 1 Model: TZ460XS-LKM2401 / TZ410XS-LKM2001
Motor Type: Permanent magnet synchronous motor
total rated power: 270 / 240kW
Peak power: 405 / 200 / 360kW
total peak torque: 2400 / 2000N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 281.92 / 50.456 / 422kWh
Energy Density: 160.26
Battery Model: L228C01
Engine parameters
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Transmission Parameters
Number of gears: 4Gear
shift type: AT automatic
Transmission Model: J4S240
Cargo box parameters
Cargo box volume: 11.8m³
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5 / 0.9m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
FAQ
What kind of truck is JAC Gallop JAC Gallop K5 Heavy Truck electric dump truck?
JAC Gallop JAC Gallop K5 Heavy Truck is an export-oriented electric dump truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC Gallop K5 Heavy Truck electric dump truck cover?
JAC Gallop K5 Heavy Truck electric dump truck mainly covers: Drive: 8x4; Horsepower: 350 hp; Emission: China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K5 Heavy Truck electric dump truck?
For JAC Gallop K5 Heavy Truck electric dump truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC Gallop K5 Heavy Truck electric dump truck include?
JAC Gallop K5 Heavy Truck electric dump truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K5 Heavy Truck electric dump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
