JAC Gallop K5W heavy truck 8X4(12 wheels) 5.6m crew cab pure electric dump truck 422kWh

Export reference
MSRP N/A
Wheelbase:: 1800+3050+1350mm
Cargo box volume:: 11.8m³
Model code (announced):: HFC3311P1H41EV
Cab length:: 9.525m
GVWR:: 31ton
Origin:: Hefei, Anhui
Drive 8X4 (12 wheels)
CLTC range: 327km
Motor 1 Brand: Lv Kong
Curb Weight: 17ton

Overview

The JAC Gallop K5W heavy truck 8X4(12 wheels) 5.6m crew cab pure electric dump truck 422kWh is a Heavy truck featuring 327km battery/range, Lv Kong motor, 8X4 (12 wheels) drive and 5.6m cargo length.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3311P1H41EV
Drive type: 8X4
Wheelbase: 1800+3050+1350mm
Cab length: 9.525m
Cab width: 2.5m
Cab height: 3.35m
CLTC range: 327km
Curb Weight: 17ton
GVWR: 31ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ410XS-LKM2001
Motor Type: Permanent magnet synchronous motor
total rated power: 240kW
Peak power: 360kW
total peak torque: 2000N·m
Battery/Charging
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 422kWh
Transmission Parameters
Number of gears: 4Gear
shift type: AT automatic
Transmission Model: J4S240
Cargo box parameters
Cargo box volume: 11.8m³
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 0.9m
Chassis Specs
rear axle description: Dual-stage reduction
Tire
Number of tires: 12pcs

Photos

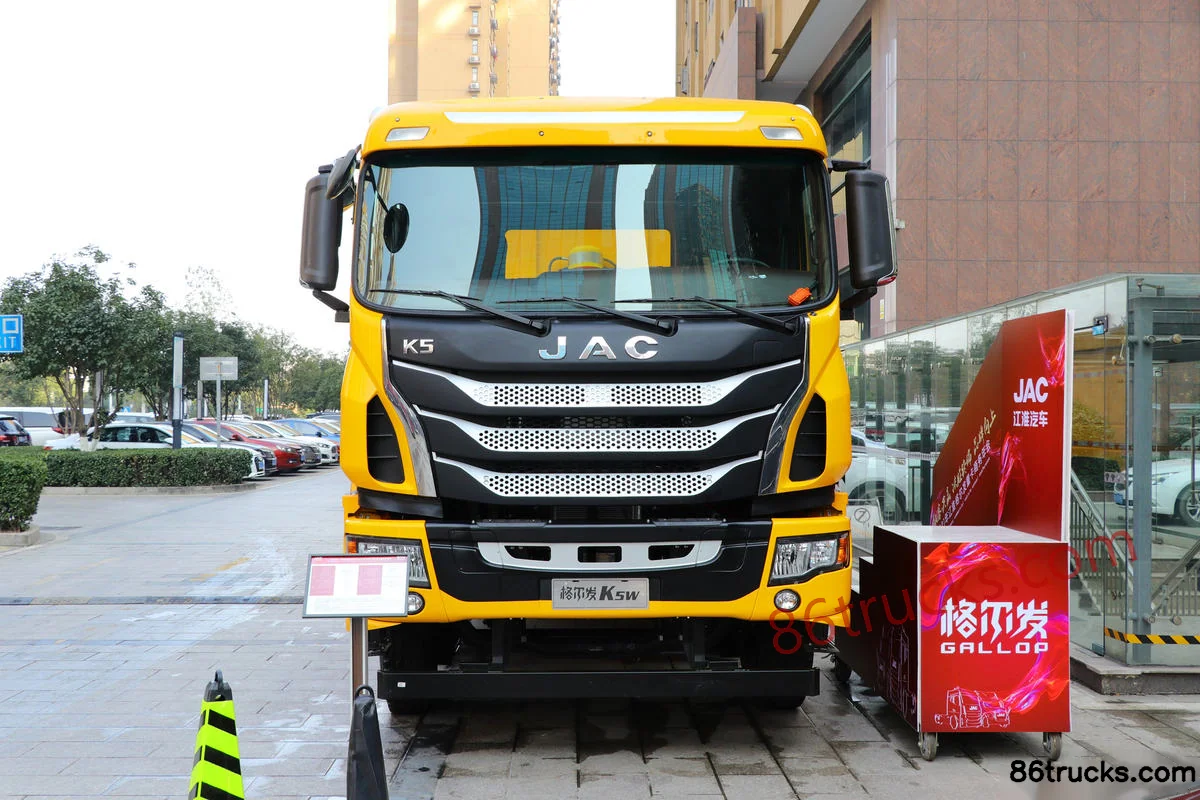

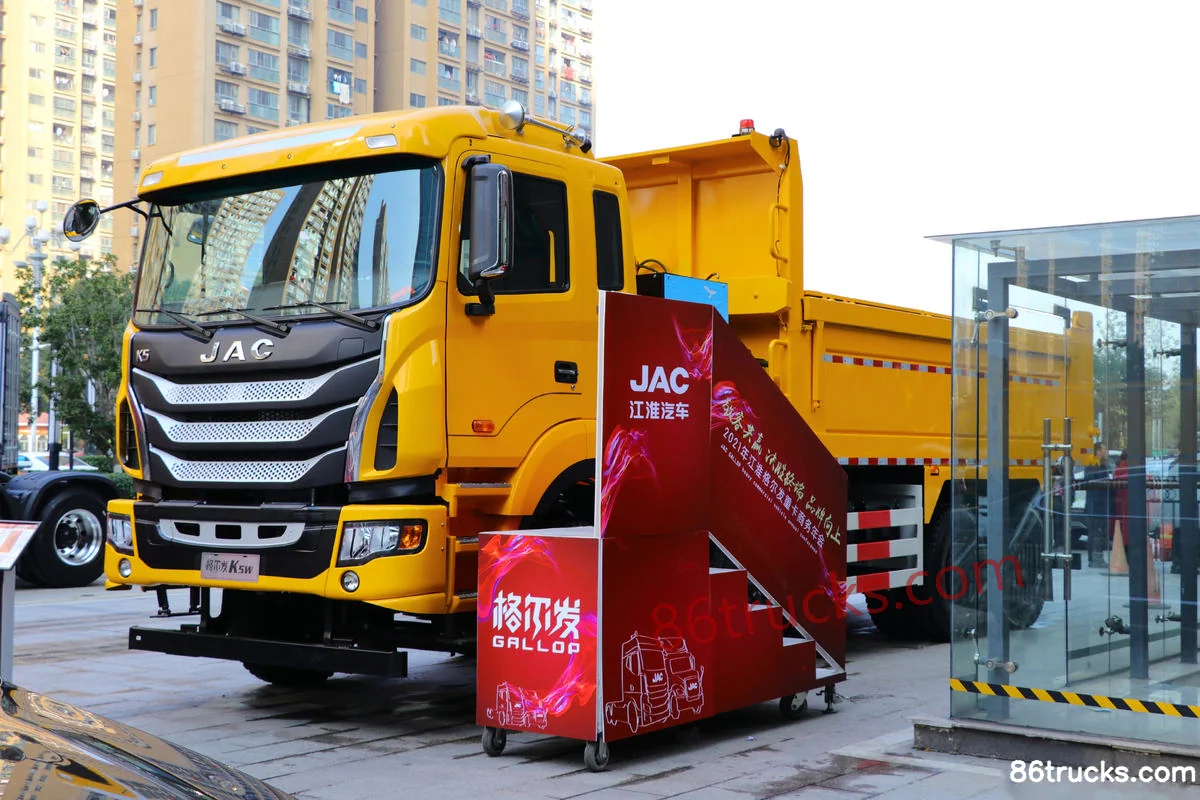

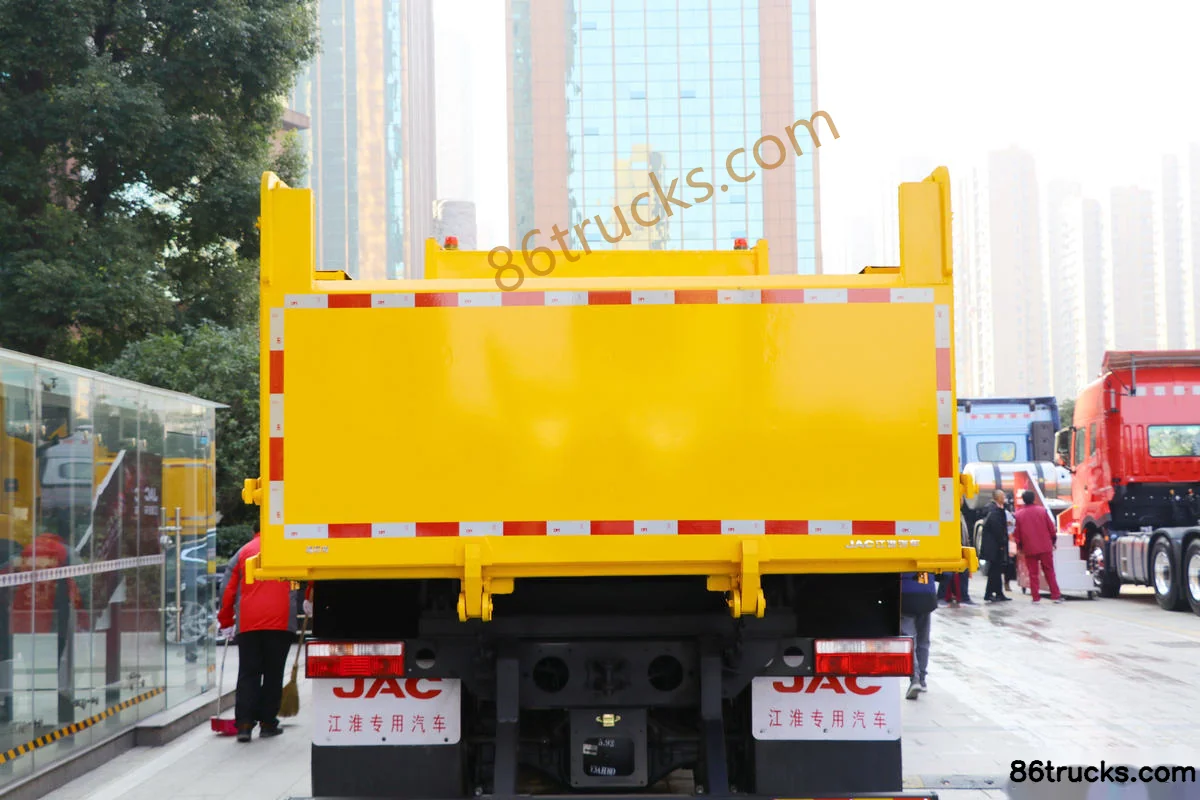

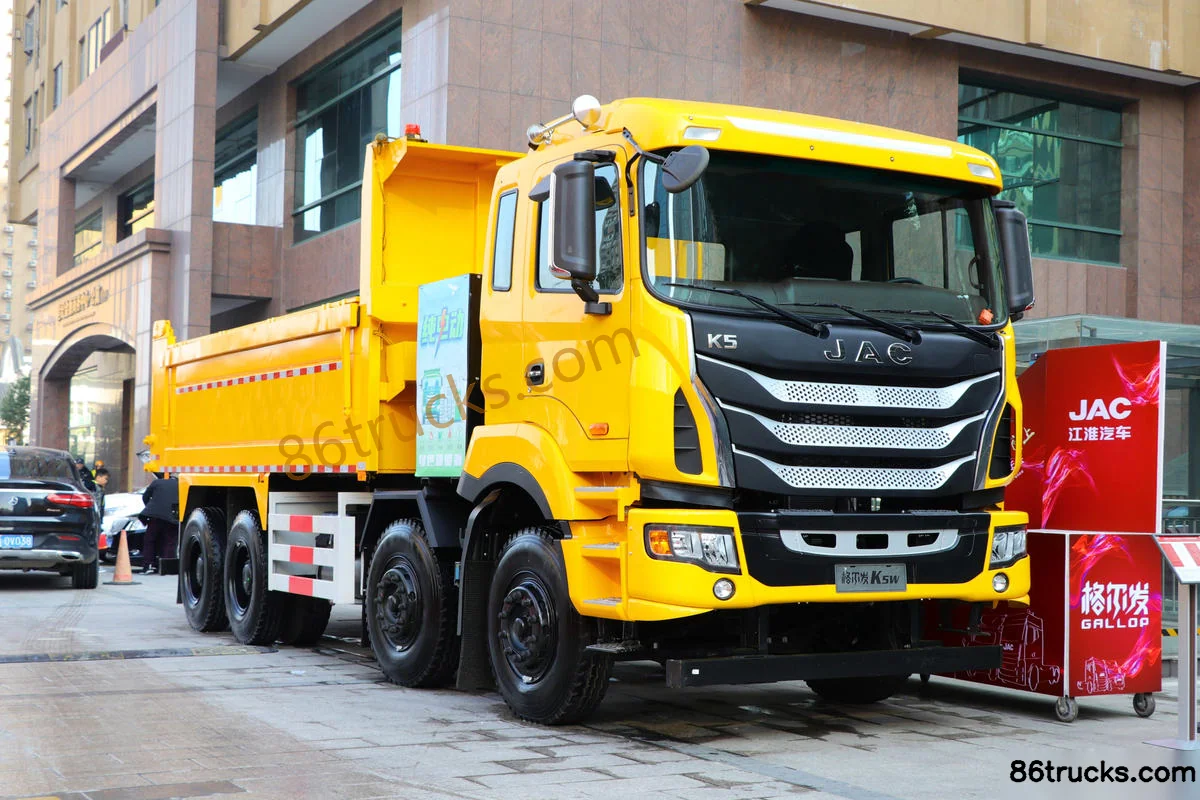

Exterior3

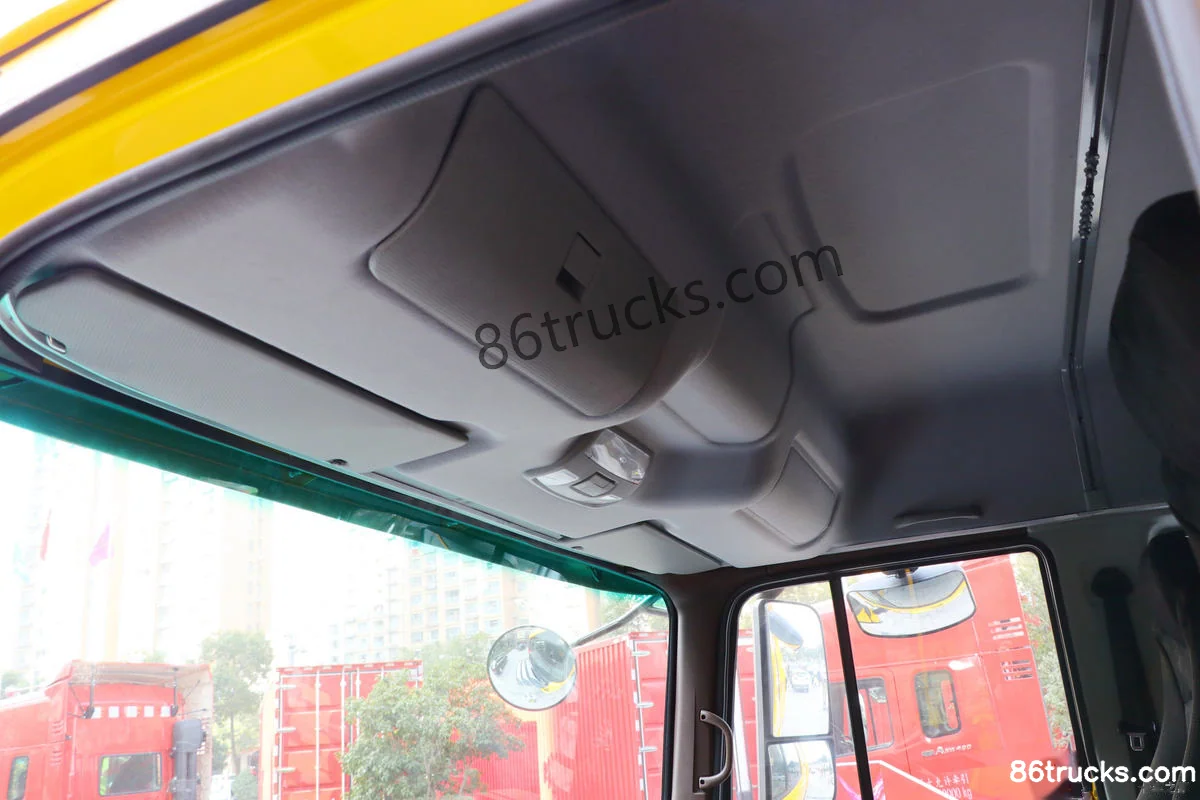

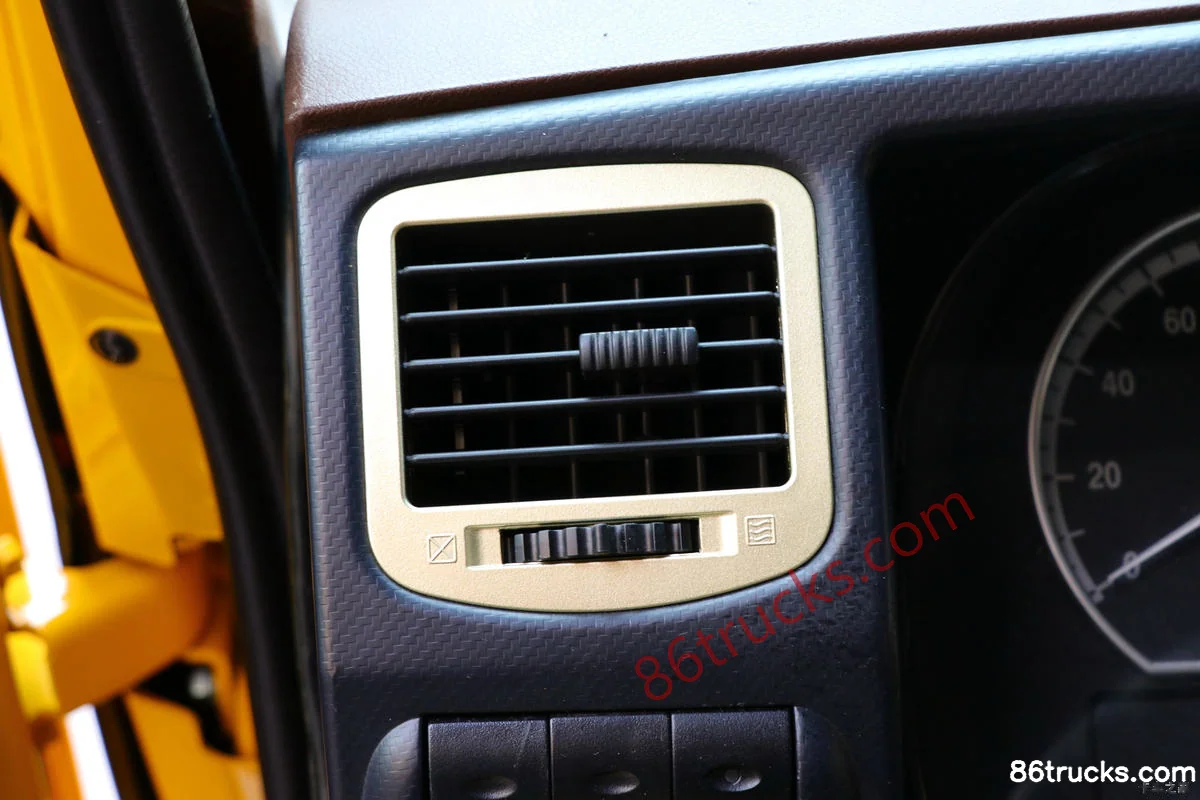

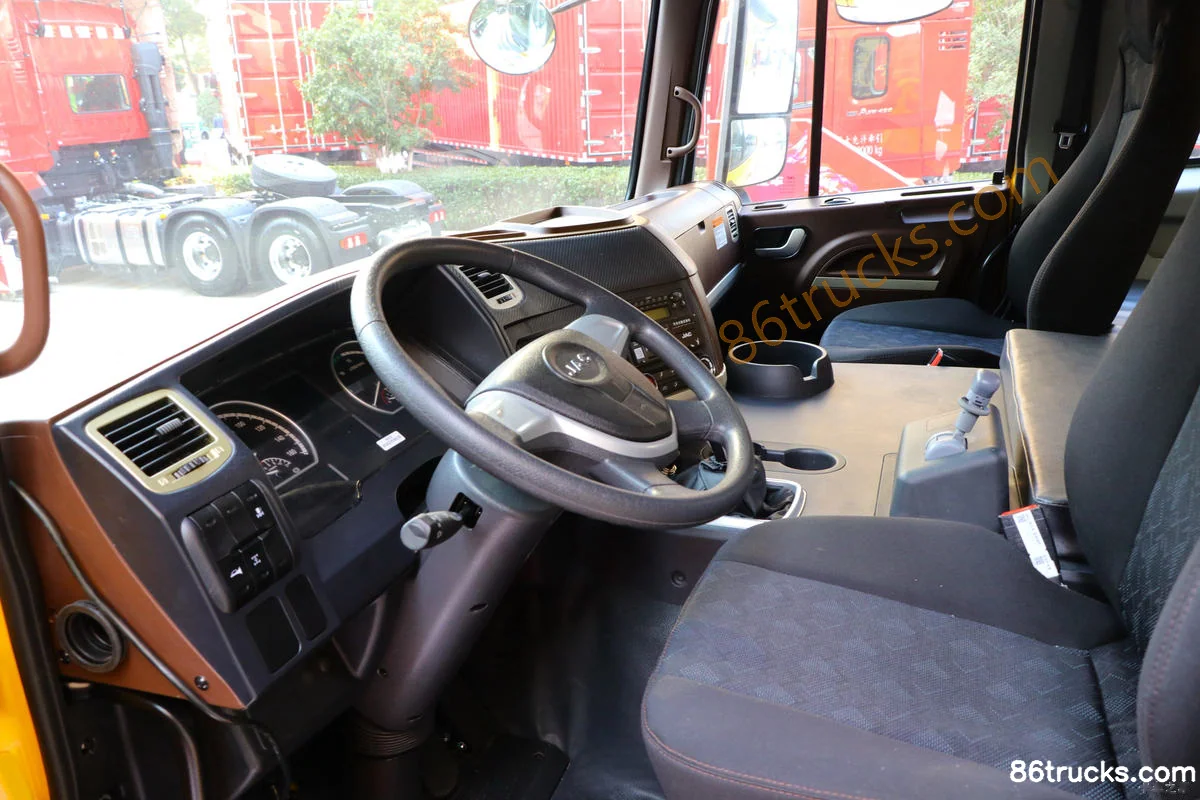

Cab3

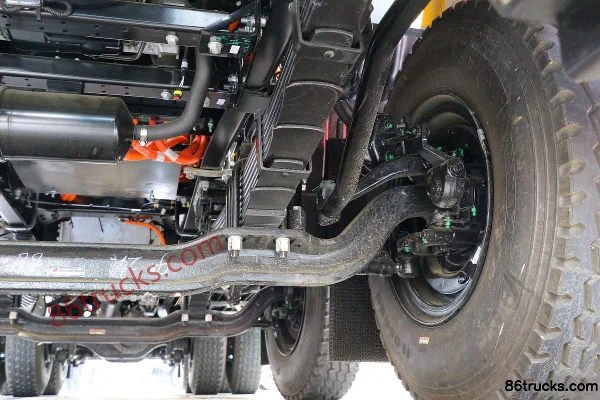

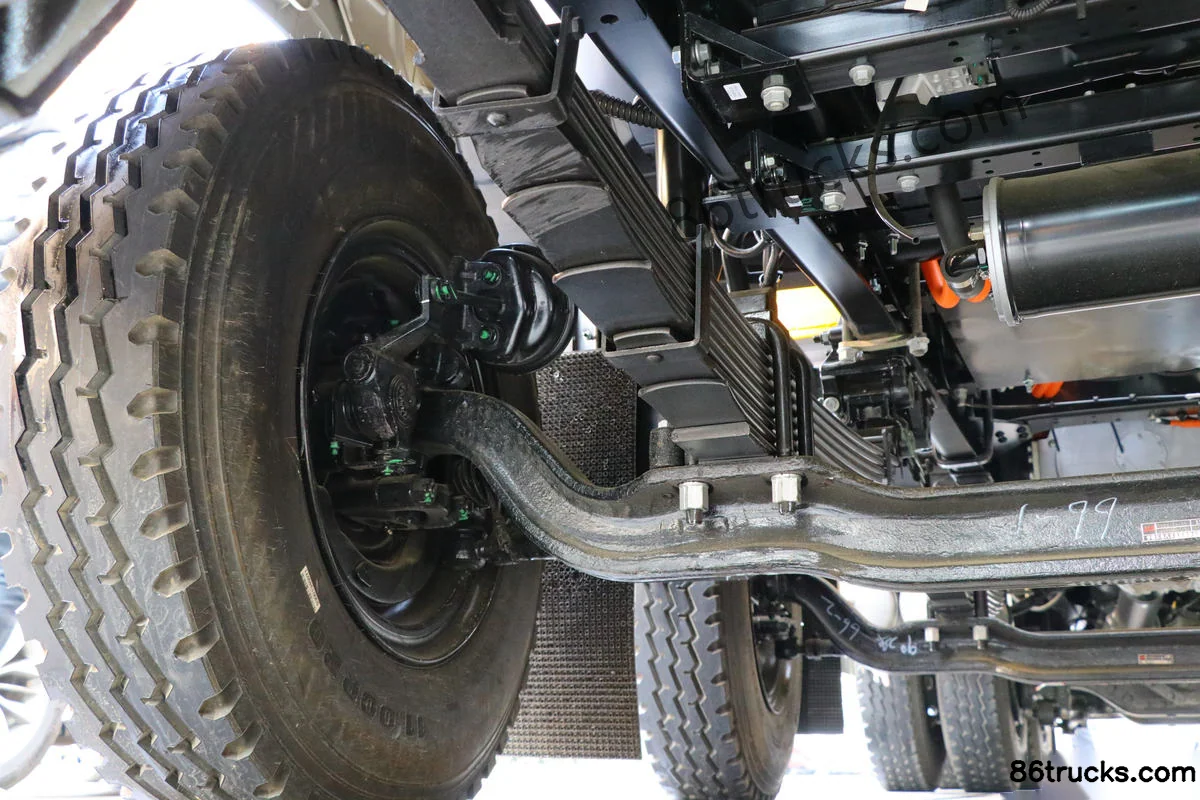

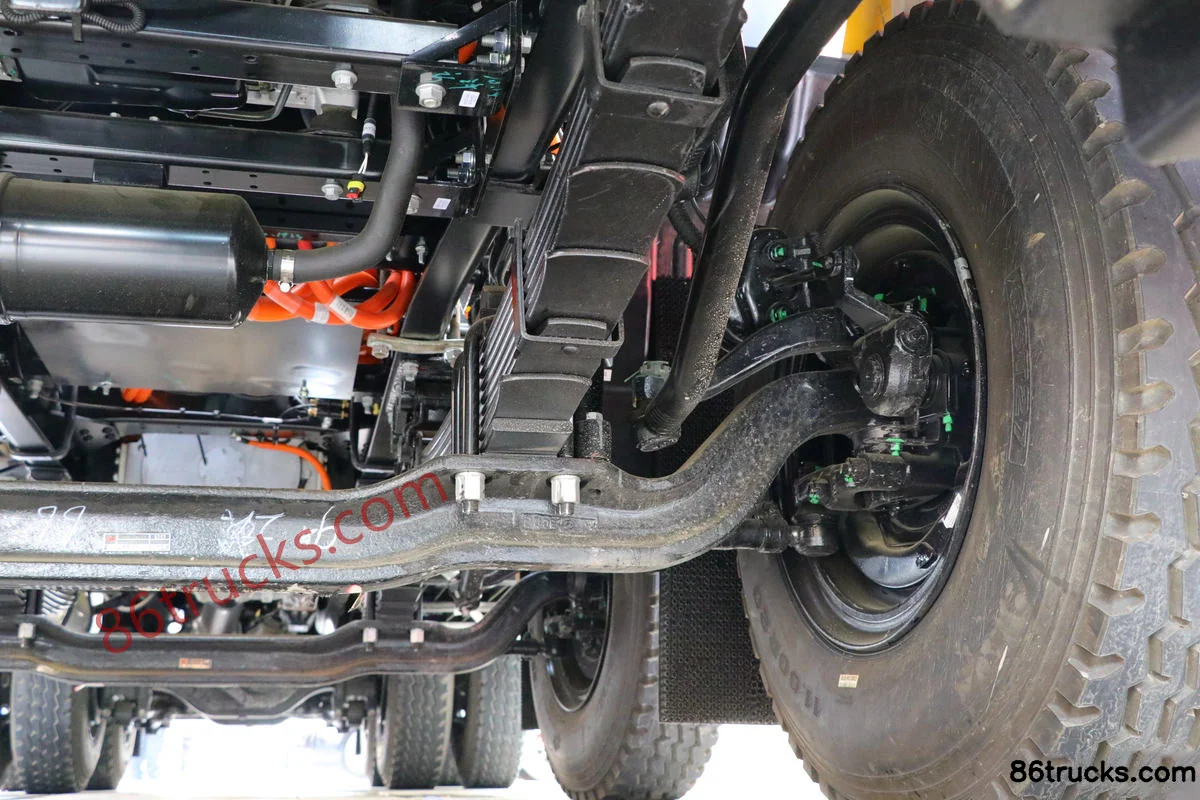

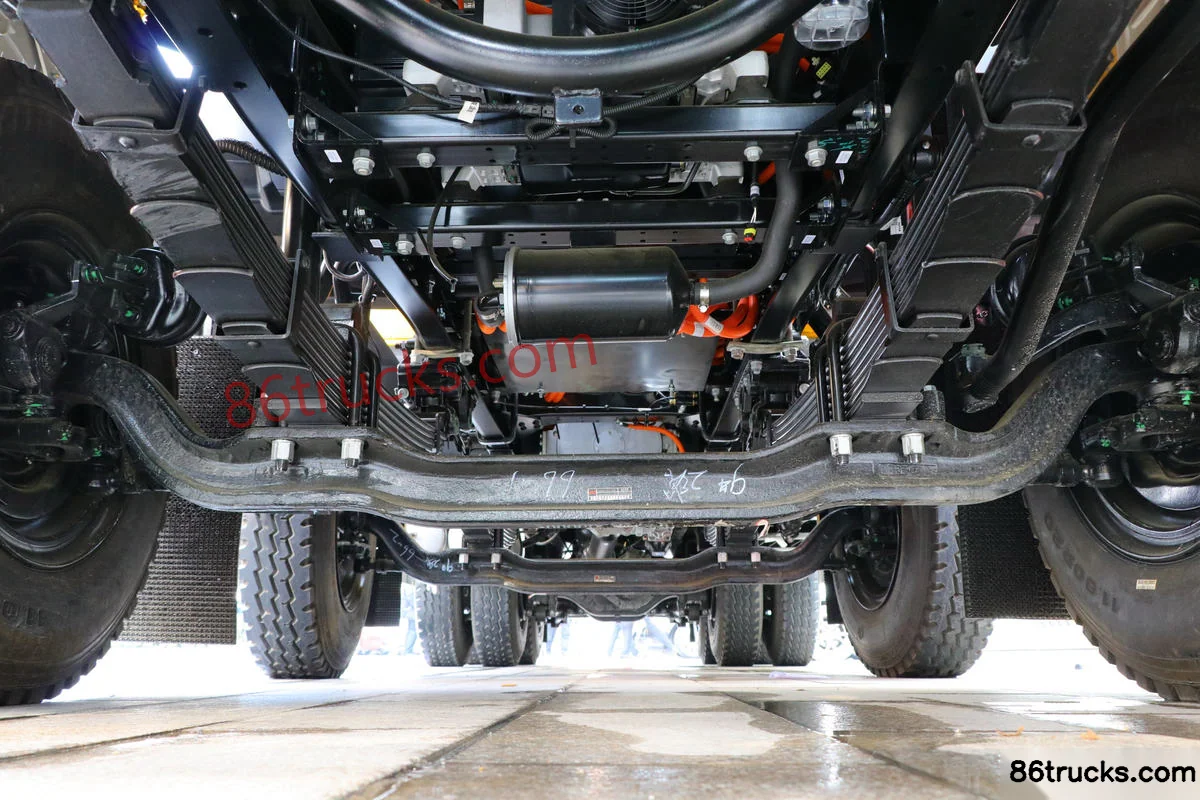

Chassis3

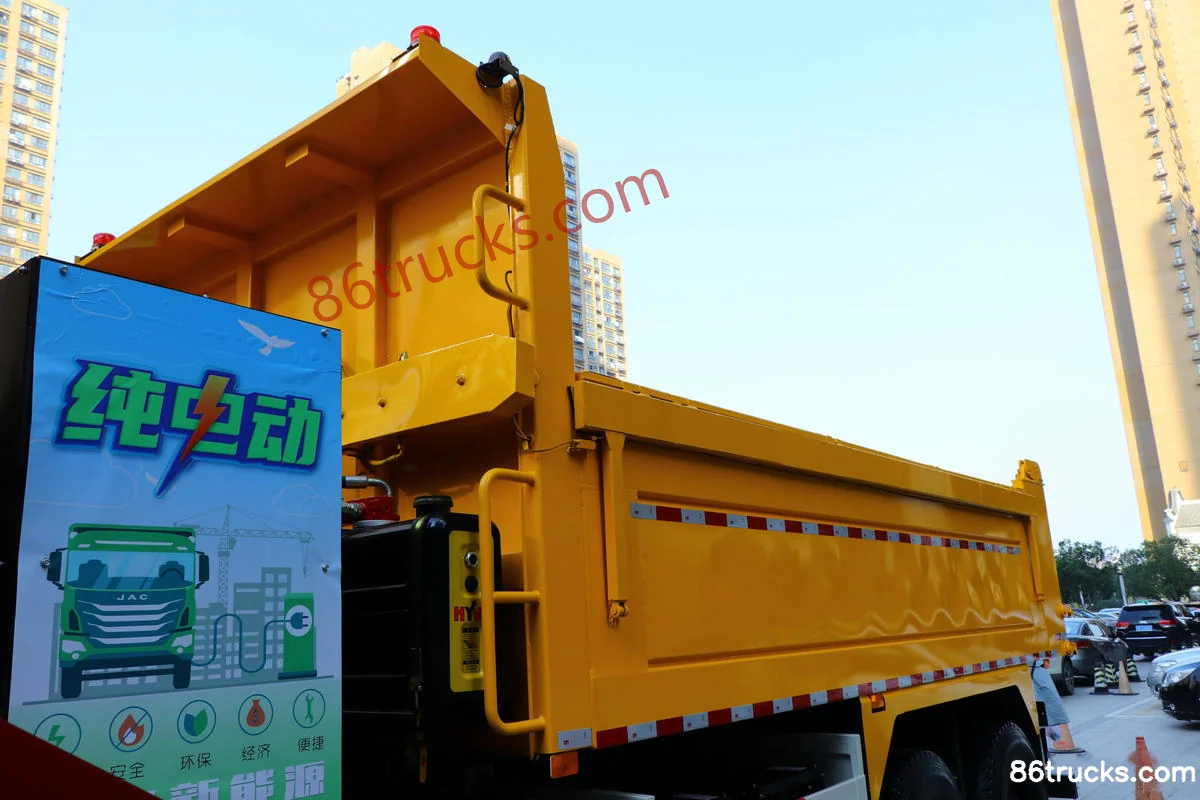

Body3

12 photos
