Allison H6610 7-speed automatic transmission

Export reference
MSRP N/A
Max input torque:: 3078N·m
1st gear ratio:: 5.97
2nd gear ratio:: 4
Transmission Model: Allison H6610
Transmission Brand: Allison
Matching Range: Rear dump truck, articulated dump truck, coal transport truck

Overview

The Allison H6610 7-speed automatic transmission is a parts product with spec Allison H6610.

Model Specs

Legend: ● Standard ○ Optional - N/A

Transmission Parameters
Transmission Brand: Allison
Transmission series: Allison 6000 series
Matching Range: Rear dump truck, articulated dump truck, coal transport truck
Max input torque: 3078N·m
1st gear ratio: 5.97
2nd gear ratio: 4
3rd gear ratio: 2.68
4th gear ratio: 2.01
5th gear ratio: 1.35
6th gear ratio:
7th gear ratio: 0.67
Reverse Gear 1 Ratio: 5.15
Reverse Gear 2 Ratio: 3.46
Number of gears: 7Gear
shift type: AT automatic
Transmission Model: Allison H6610
shift method: AT automatic
Forward gears: 7Gear
Number of Reverse Gears: 2pcs

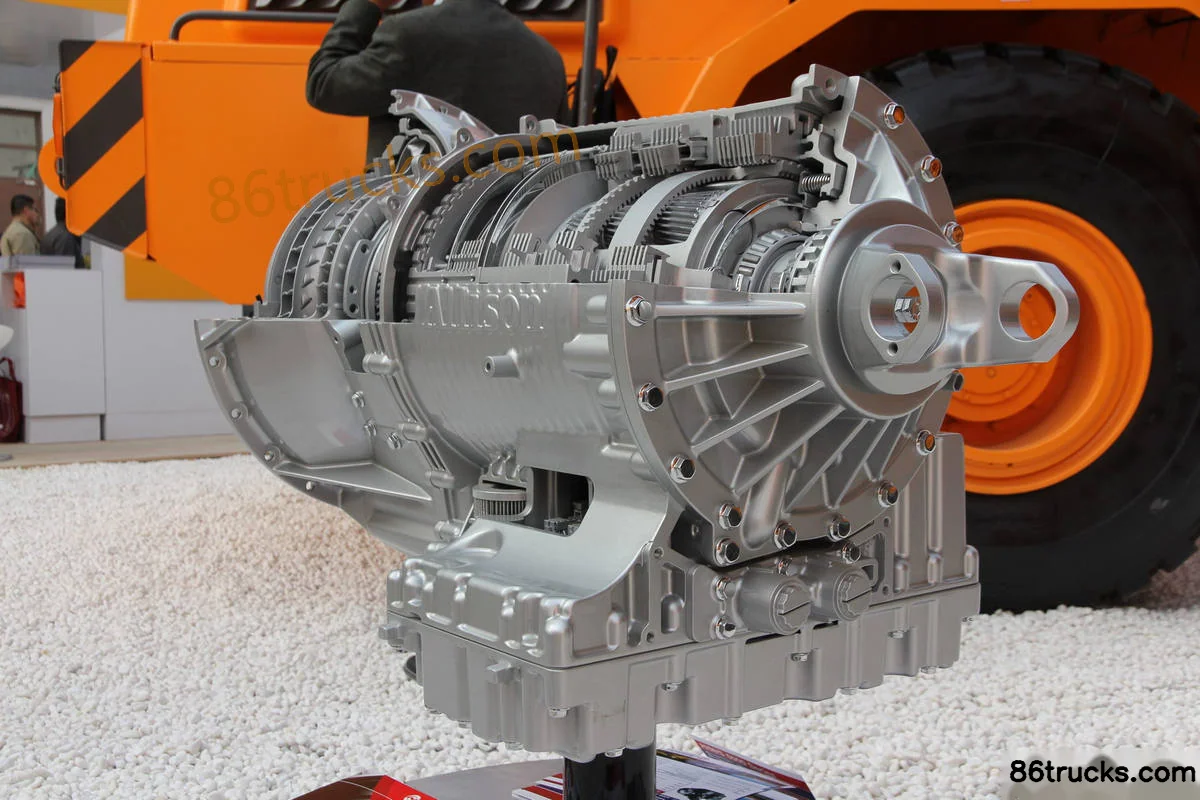

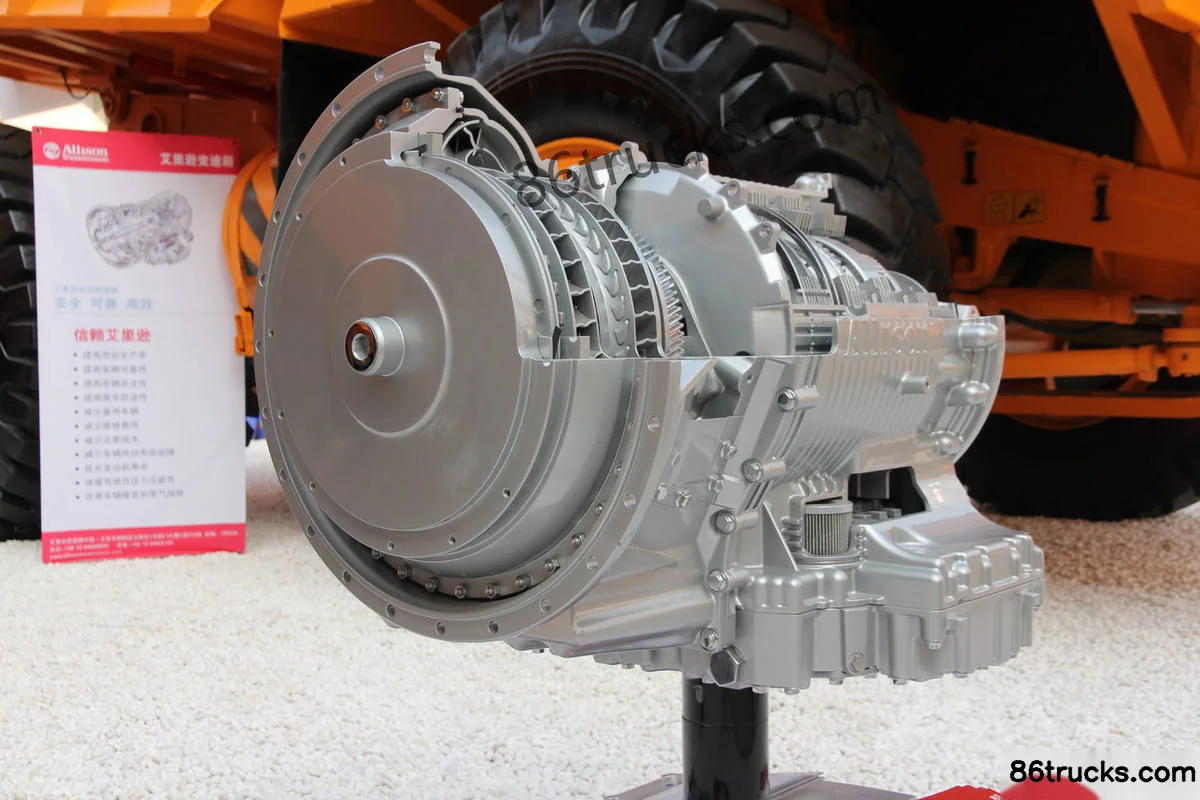

Photos

Exterior2

2 photos

FAQ

What transport jobs is Allison H6610 7-speed automatic transmission suited for?

Match Allison H6610 7-speed automatic transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Allison H6610 7-speed automatic transmission differ from other variants in the same series?

Allison H6610 7-speed automatic transmission belongs to Allison 6000 Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Allison H6610 7-speed automatic transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Allison H6610 7-speed automatic transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
