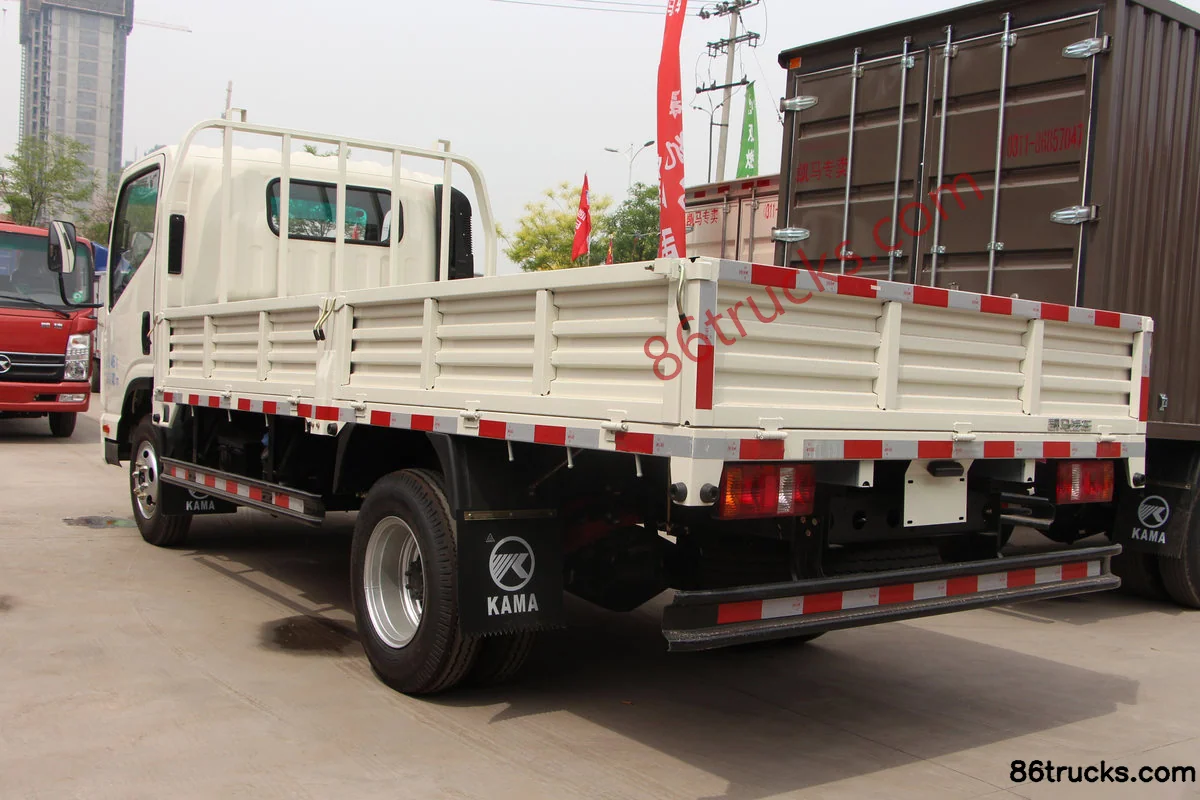

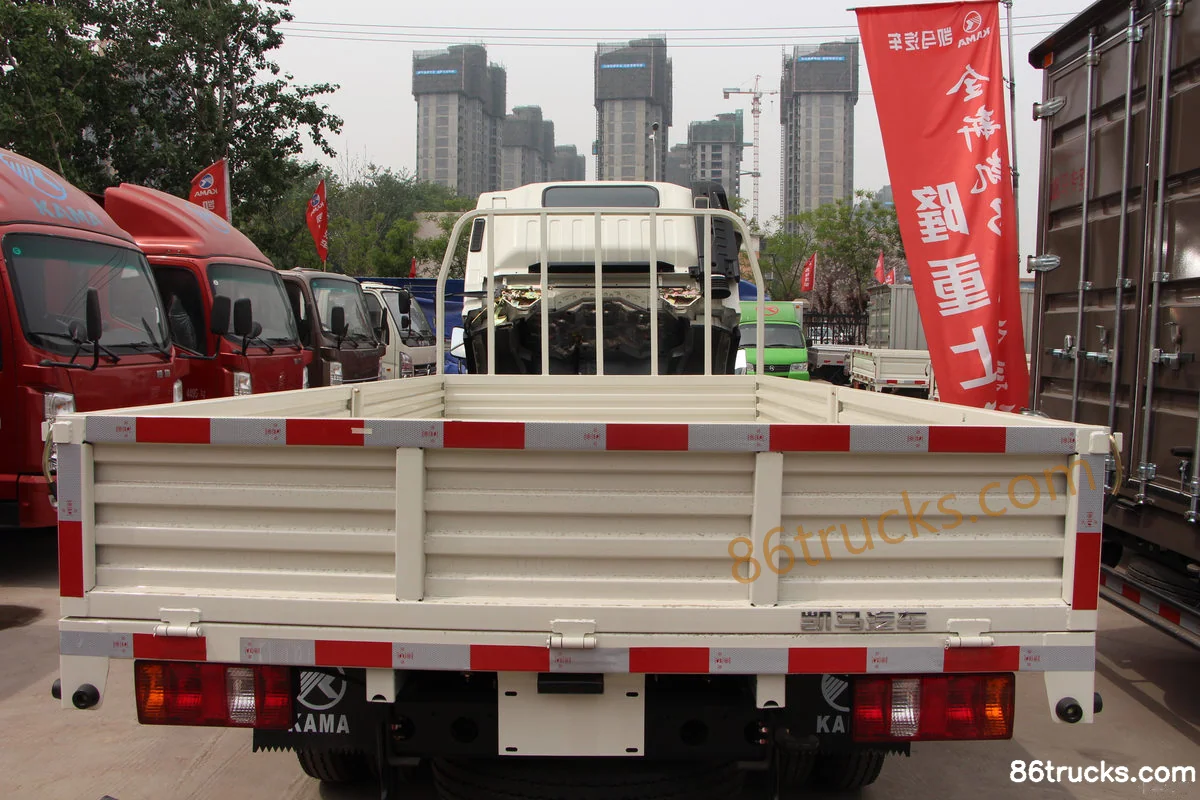

Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck

Export reference
From $10,208
MSRP ¥7.35M CNY
Horsepower: 113
Emission: China V
Fuel: Diesel
Engine: Sida 493
Transmission: Lu'an
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck is a Light Truck featuring 4.2m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Sida 493 engine, 113 hp, 4X2 (6 wheels) drive and China V emissions.

China V 113 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1042A33D5
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: Sida PowerSD4D28R-83
transmission: Lu'an LC5T32
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.1m
Cab height: 2.39m
Front track width: 1540mm
rear track: 1550mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.135/1.56m
Energy Type: Diesel
Engine parameters
Engine Brand: Sida Power
Engine Model: Sida PowerSD4D28R-83
Engine info: Sida 493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.772L
Emission standard: China V
Max output power: 83kW
Max hp: 113Horsepower
Max torque: 280N·m
Max torque speed: 2000rpm
Rated speed: 3600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Model: Lu'an LC5T32
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

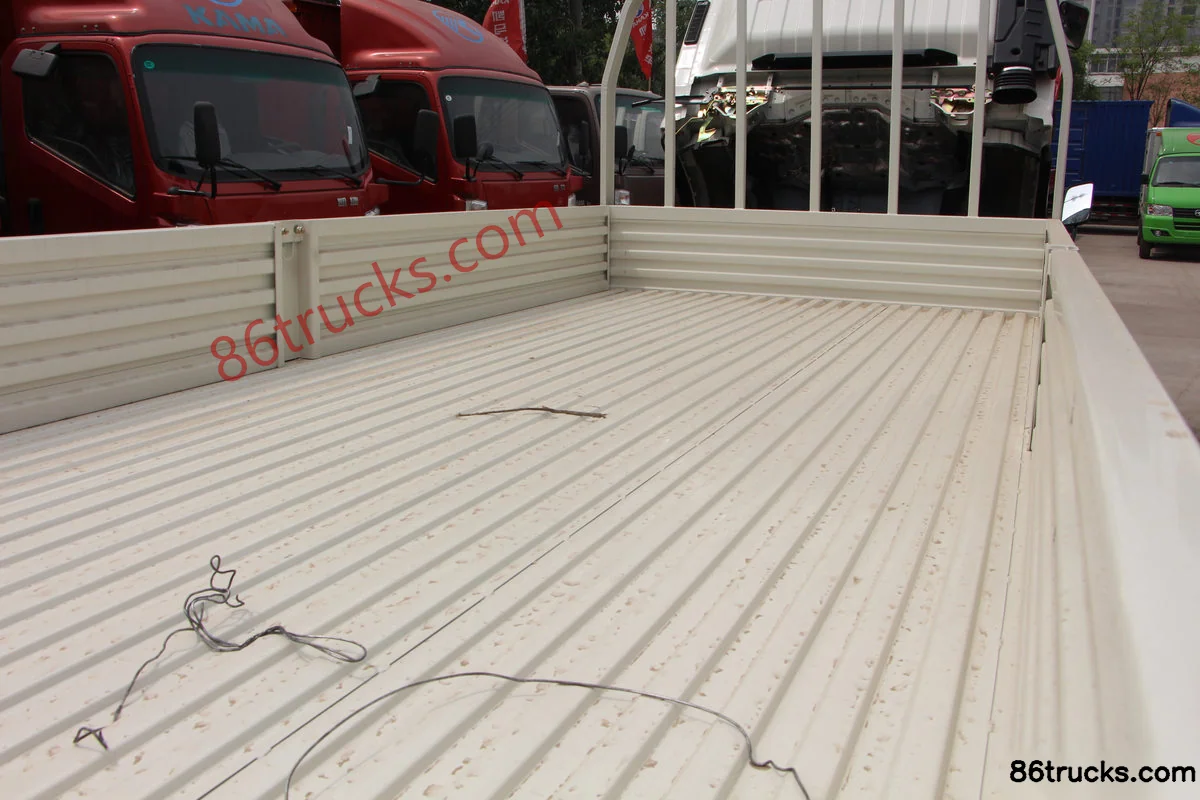

Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.2m
Cargo box width: 1.92m
Cargo box height: 0.4m
*Cargo box interior width: 1.9199999570847
Cab parameters
Cab: Medium-body Cab
Cab width: 1900mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: Mechanical suspension seat
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 100L

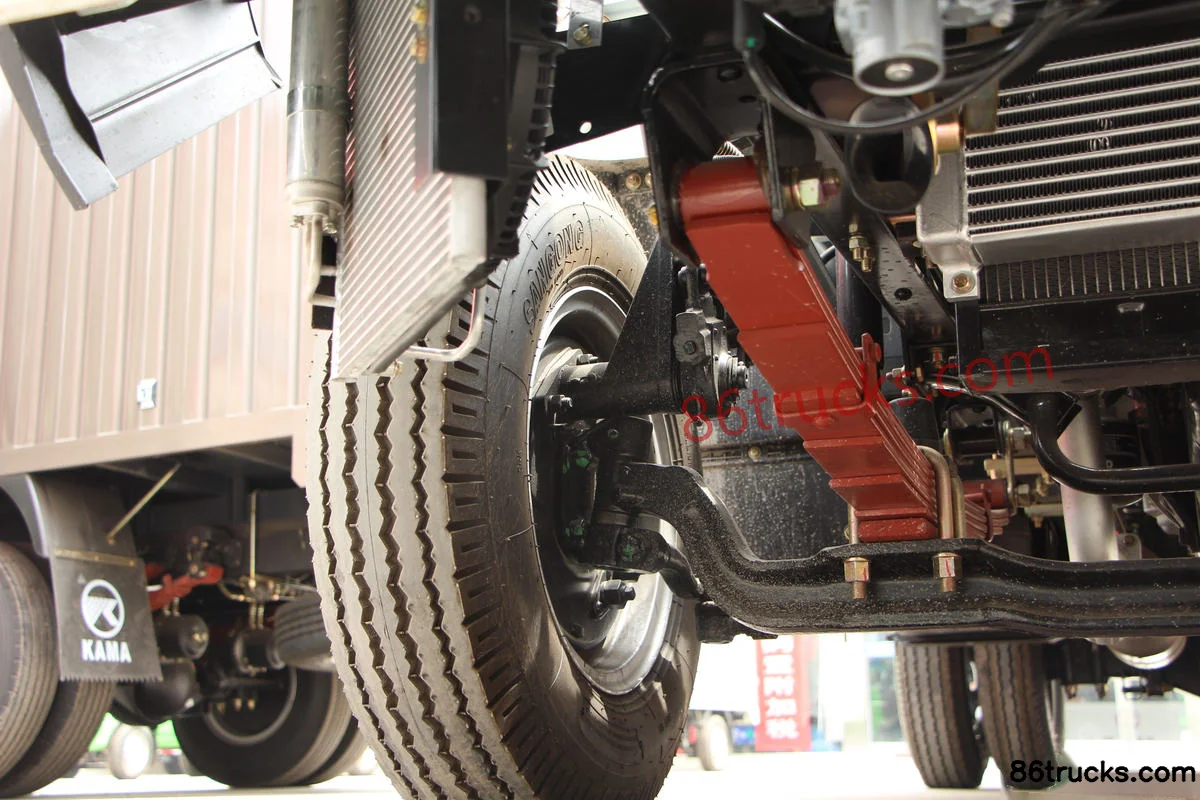

Chassis Specs
Front axle allowable load: 1860kg
Frame Dimensions: 180×65×5mm
rear axle allowable load: 2635kg
Axle ratio: 5.571
Leaf spring count: 7/9+5
Tire
Tire brand: Linglong
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

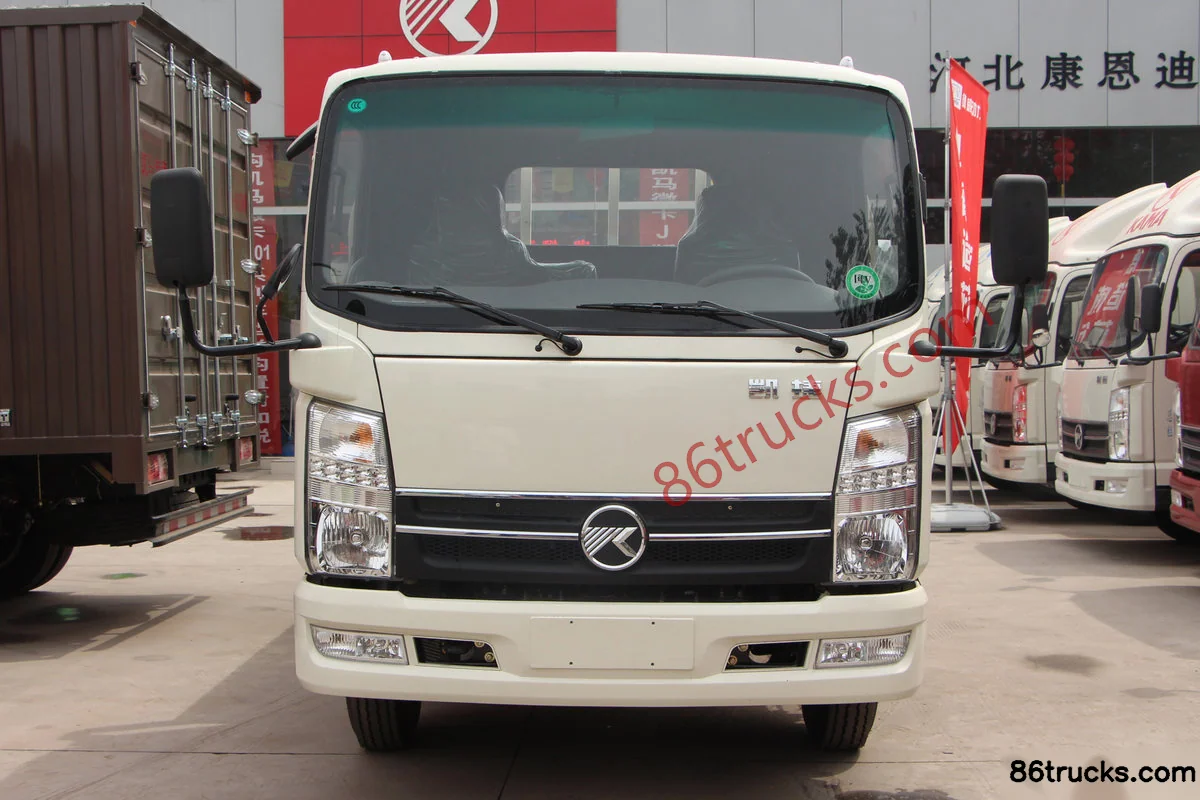

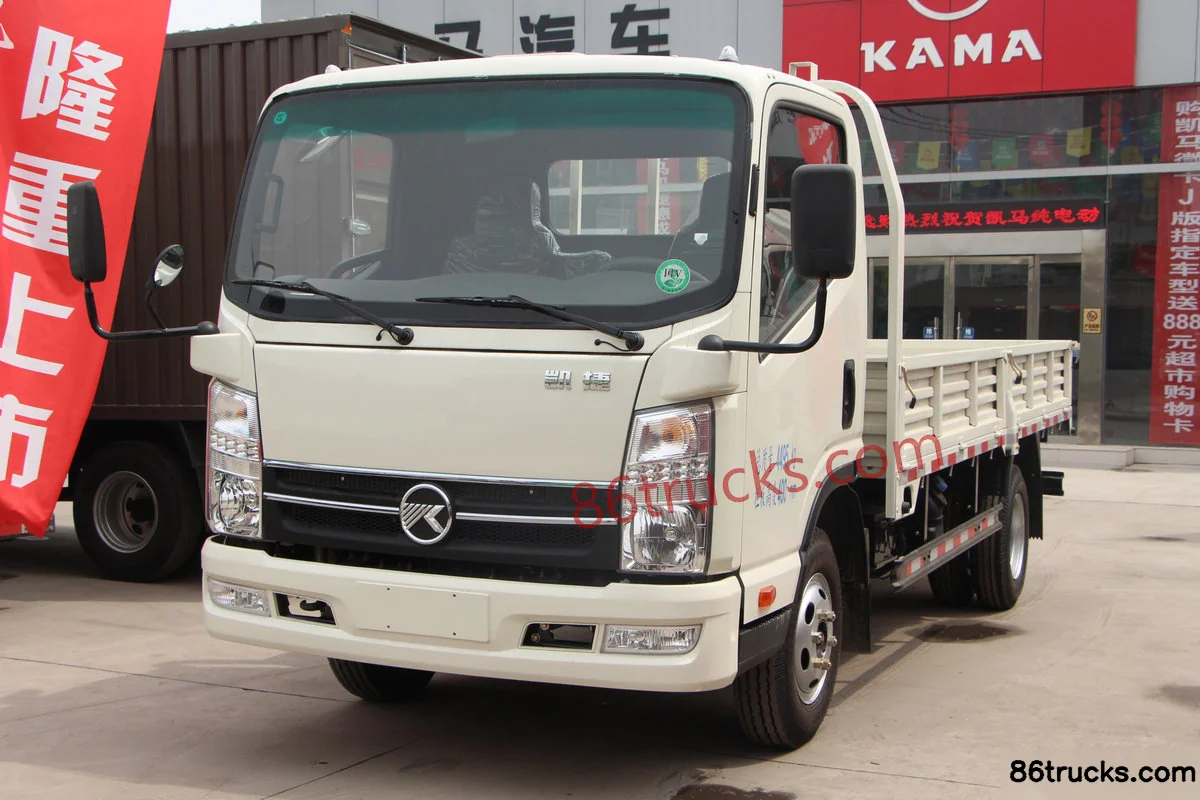

Exterior3

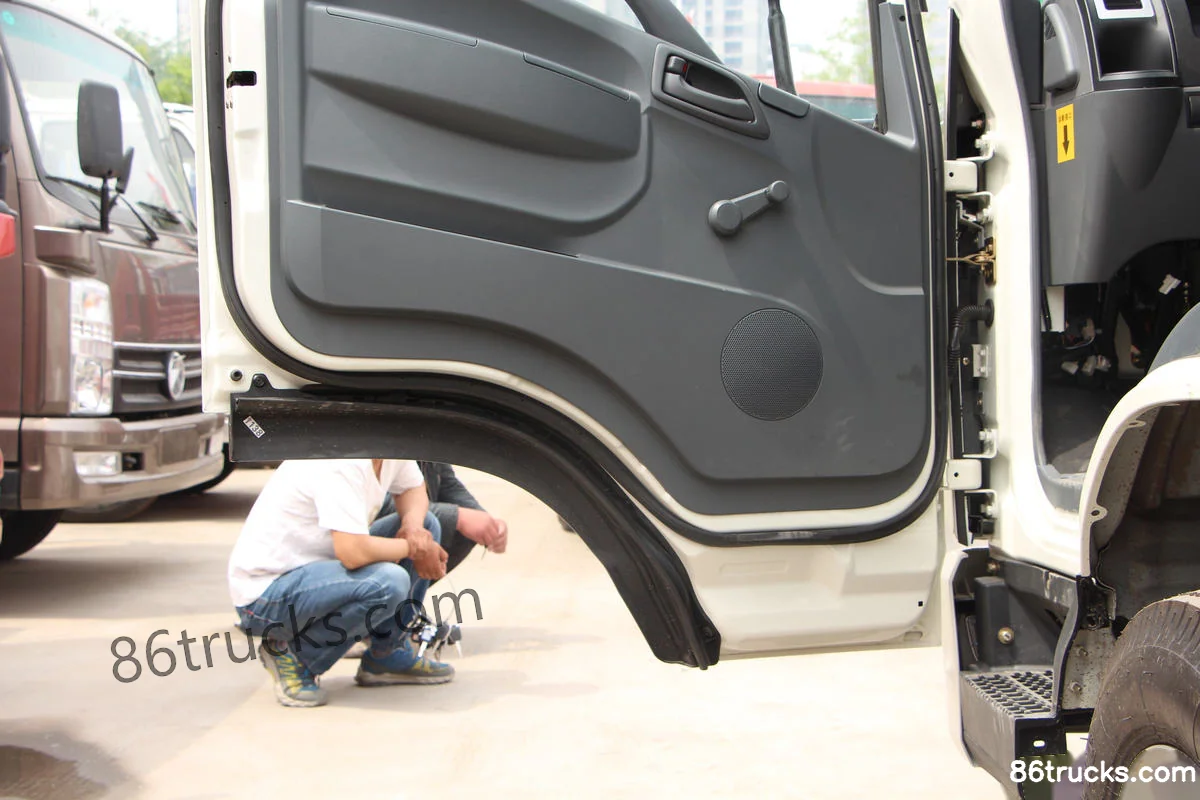

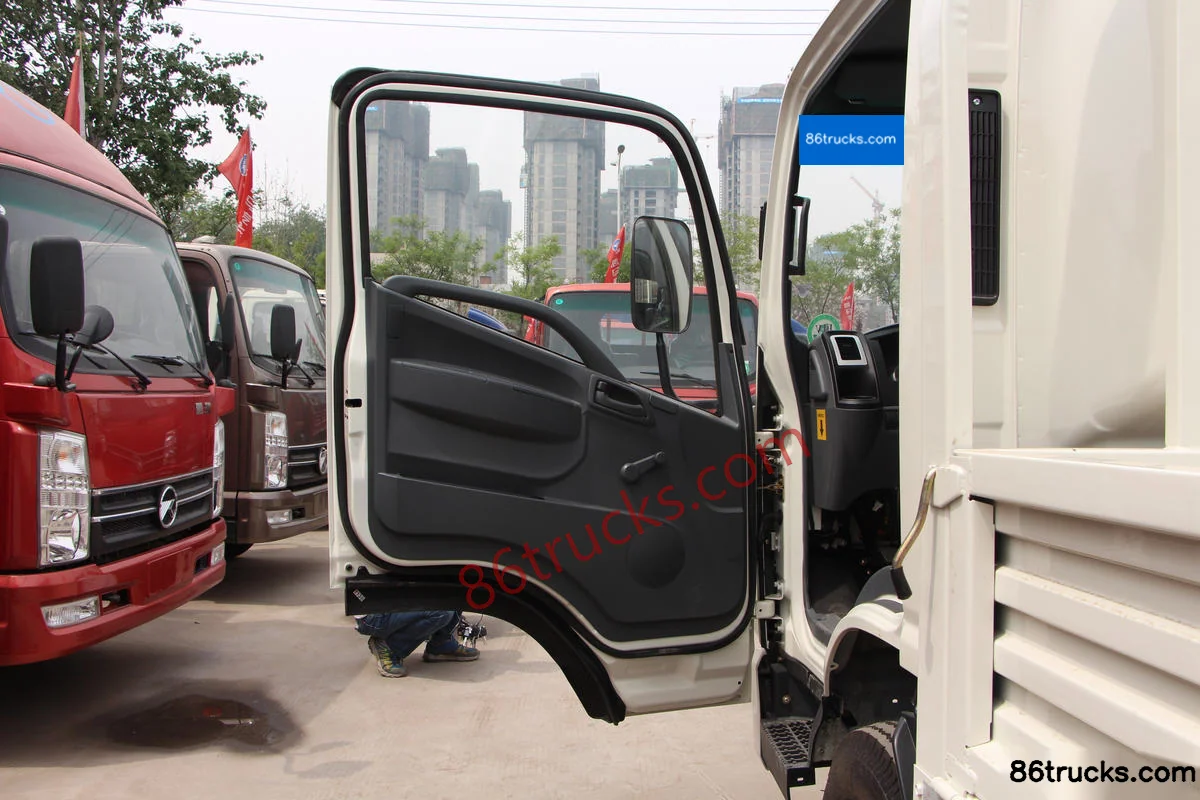

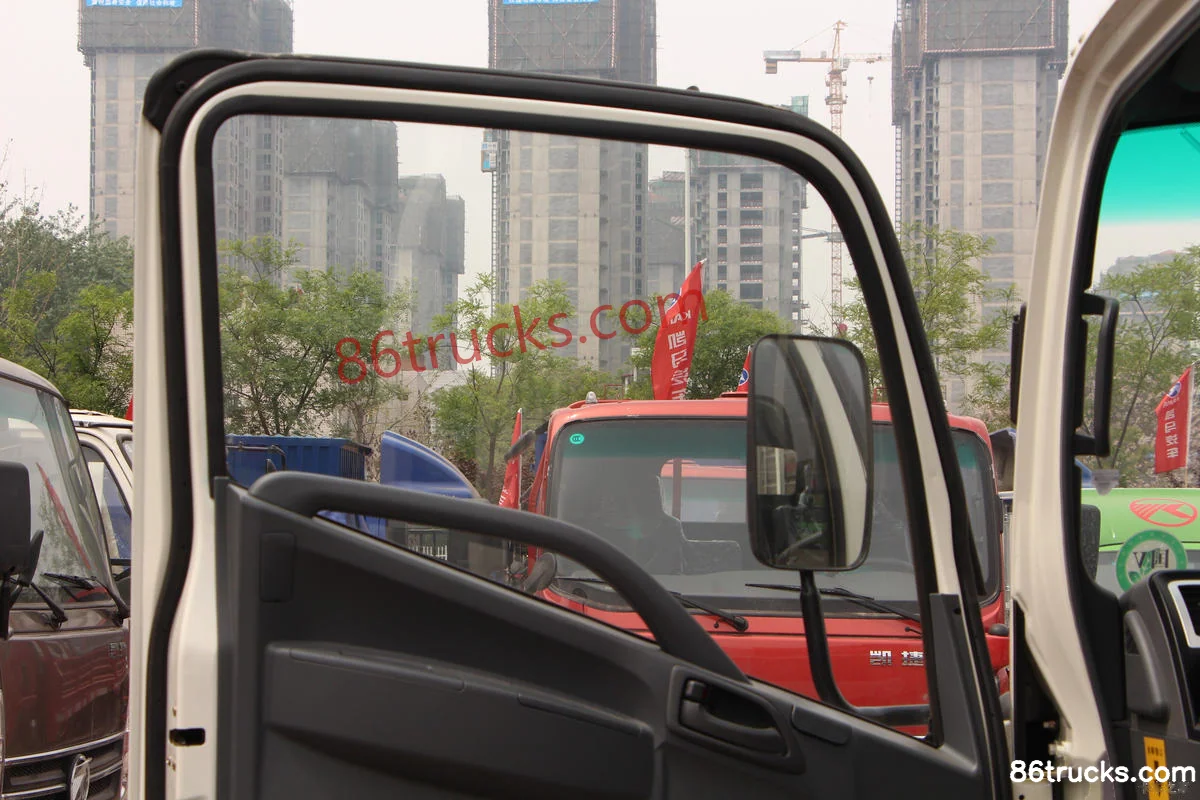

Cab3

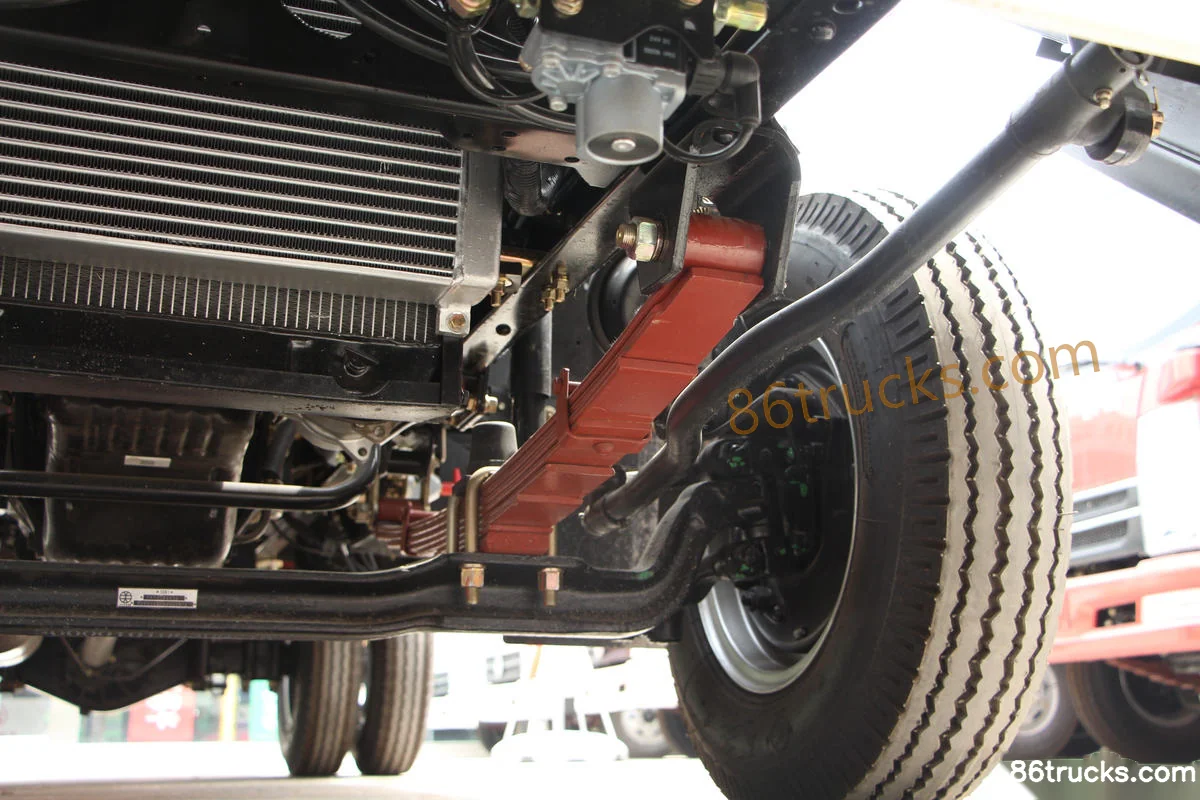

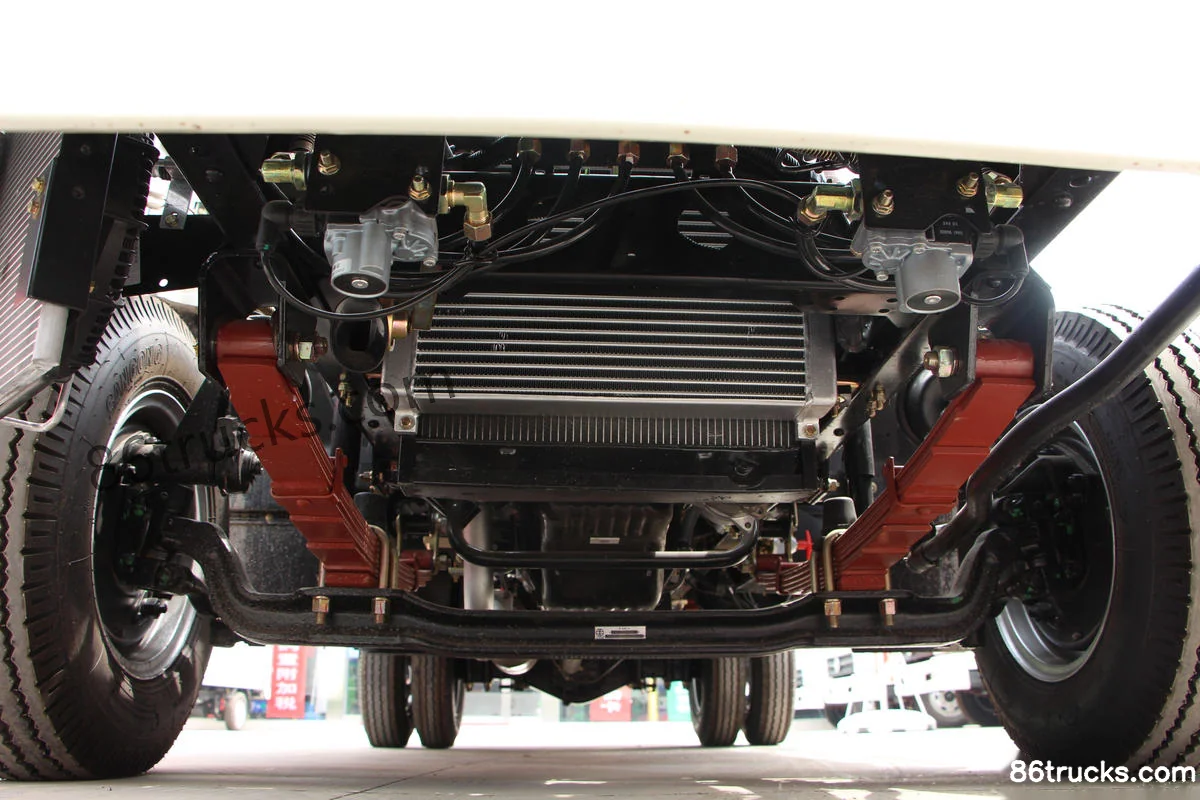

Chassis3

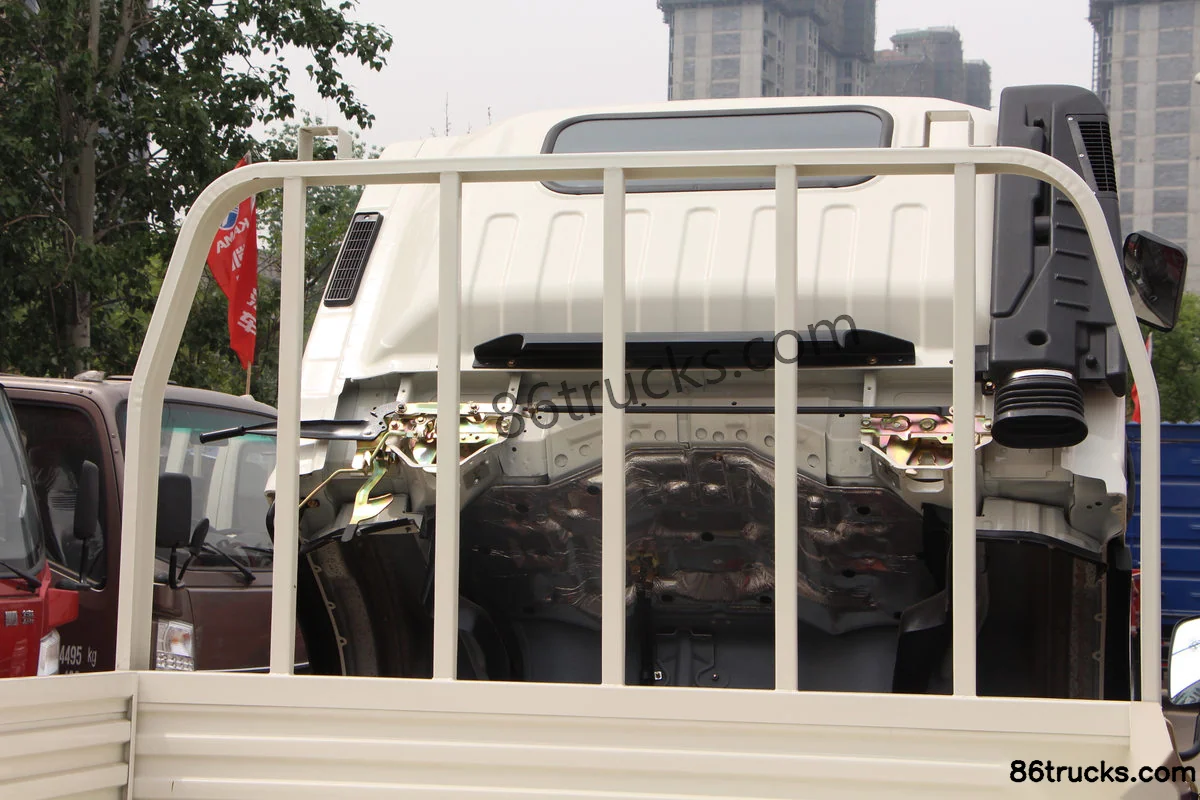

Body3

12 photos

FAQ

What is the export price of Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck, and what does it include?

Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck export reference is about From $10,208; MSRP is ¥7.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck?

Key specs of Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck: Drive: 4x2; Horsepower: 113 hp; Emission: China V; Fuel: Diesel; Engine: Sida 493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck suited for?

Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck differ from other variants in the same series?

Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck belongs to Kama Kaijie M1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M3 113 hp 4X2(6 wheels) 4.2m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
