Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels)

Export reference
From $27,361
MSRP ¥19.7M CNY
Rated payload:: 1.49ton
Wheelbase:: 3665mm
Cargo box type:: stake body
Model code (announced):: YTQ1042KEEV371
Type:: Cargo Trucks
Box length class:: 3.4m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Weichai
Curb Weight: 2.875ton

Overview

The Heibao Auto Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels) is a mini truck featuring CATL battery/range, Weichai motor, 4X2 (6 wheels) drive and 1.49t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): YTQ1042KEEV371
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3665mm
Box length class: 3.4m
Cab length: 5.995m
Cab width: 2.19m
Cab height: 2.7m
Curb Weight: 2.875ton
Rated payload: 1.49ton
GVWR: 4.495ton
Max. speed: 80km/h
Origin: Shandong Yantai
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Weichai
Motor 1 Model: TZ270XS68A
Motor Type: Permanent magnet synchronous motor
total rated power: 68kW
Peak power: 120kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 81.14kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.336m
Cargo box width: 2.1m
Cargo box height: 0.4m
Cab parameters
Cab width: 1990mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1775kg
rear axle allowable load: 2720kg
Tire
Tire Size: 7.00R16LT 8PR/215/75R17.5 16PR
Number of tires: 4pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Tire Pressure Monitoring System (TPMS):

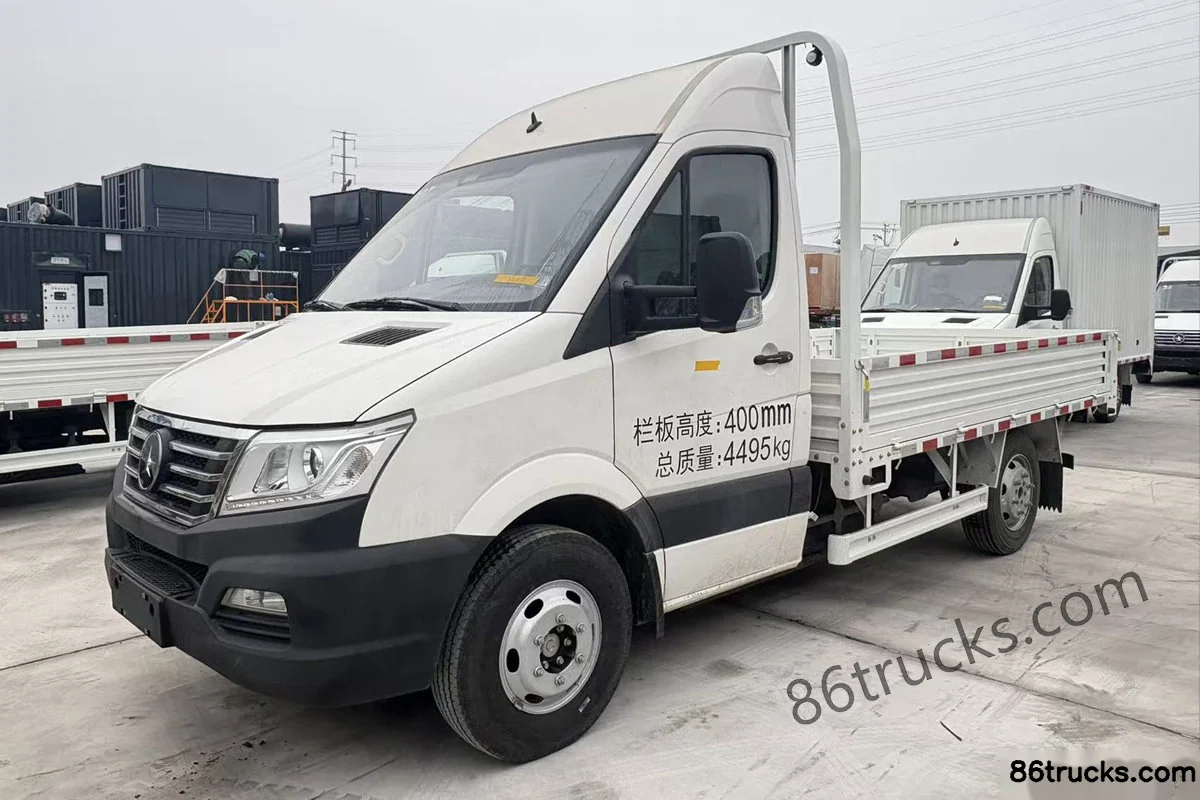

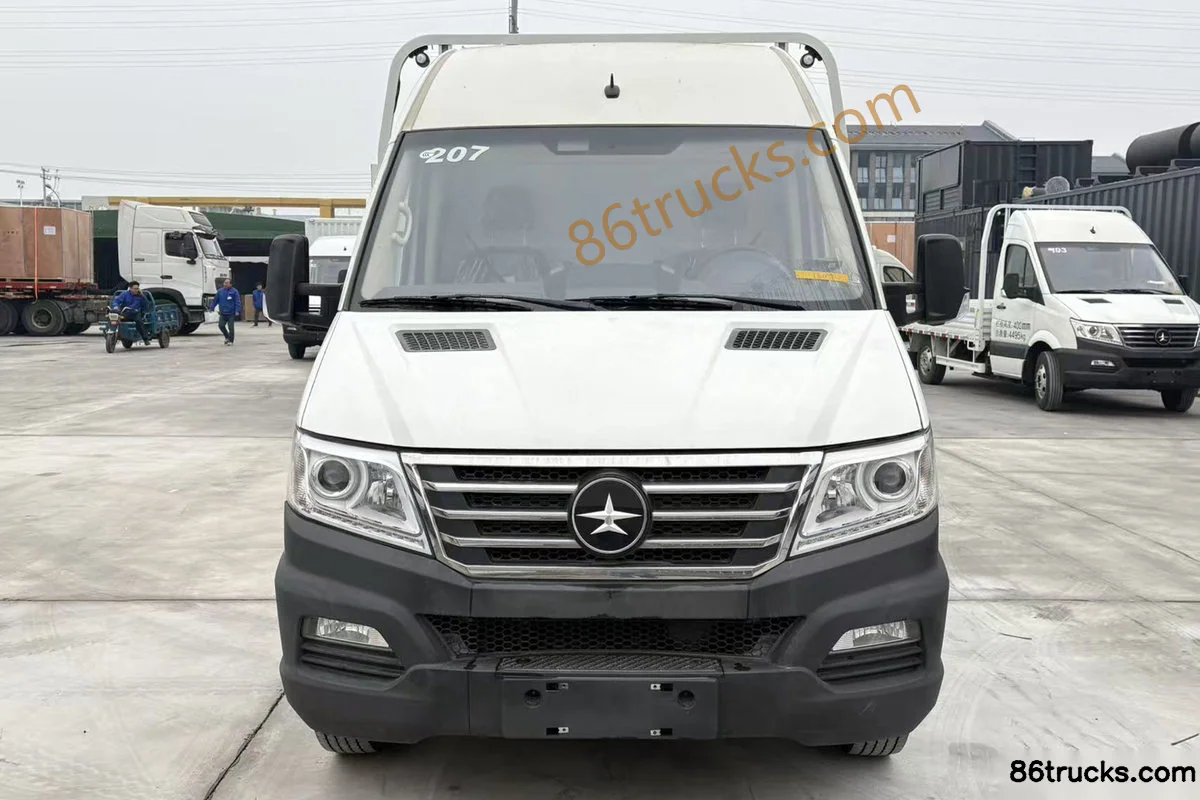

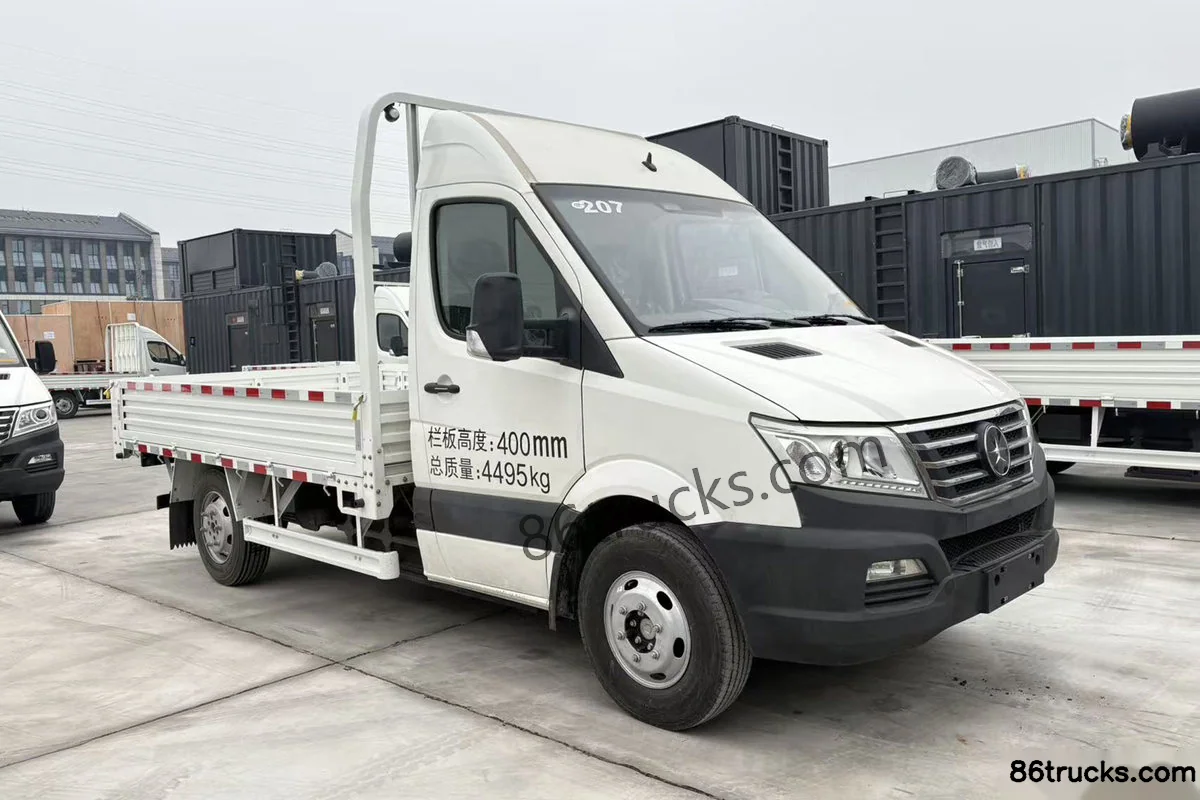

Photos

Exterior3

3 photos

FAQ

What is the export price of Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels), and what does it include?

Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels) export reference is about From $27,361; MSRP is ¥19.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels)?

Key specs of Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels) suited for?

Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels) differ from other variants in the same series?

Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels) belongs to Heibao Auto Heibao C3.5 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Heibao C3.5 3.336m Single Row Pure Electric Flatbed Micro Truck CATL 81.14kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
