SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck

Export reference
From $50,292
MSRP ¥36.21M CNY
Emission: China V
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 15ton
Wheelbase:: 1800+3575+1350mm
Tire Size:: 11.00R20
Rated payload: 15.87ton
Drive 8X4 (12 wheels)
Horsepower 375
Cargo box type: Dump type

Overview

The SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck is a Heavy truck featuring 15.87t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6MK375N-50 engine, 375 hp, China V emissions and Fast Gear transmission.

China V 375 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3310MP5366N
Drive type: 8X4
Wheelbase: 1800+3575+1350mm
engine: YuchaiYC6MK375N-50
transmission: Fast Gear10JSD160B
Rear Axle Ratio: 5.286
Cab length: 10.195m
Cab width: 2.55m
Cab height: 1.5m
Front track width: 1970/1970mm
rear track: 1860/1860mm
Curb Weight: 15ton
Rated payload: 15.87ton
GVWR: 31ton
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 15°
Remarks: Optional STR13T+STR13T/5.73 rear axle
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6MK375N-50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.338L
Emission standard: China V
Max output power: 276kW
Max hp: 375Horsepower
Max torque: 1500N·m
Max torque speed: 1200-1500rpm
Rated speed: 2100rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: Fast Gear10JSD160B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7.4m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: TJG161/M
Cab suspension: Four-point air suspension
fuel tank
Fuel tank capacity: 450L
Chassis Specs
Front axle description: 153B+153B
Front axle allowable load: 6500/6500kg
Frame Dimensions: 861x300/8+6 double-layermm
rear axle description: 457+457
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.286

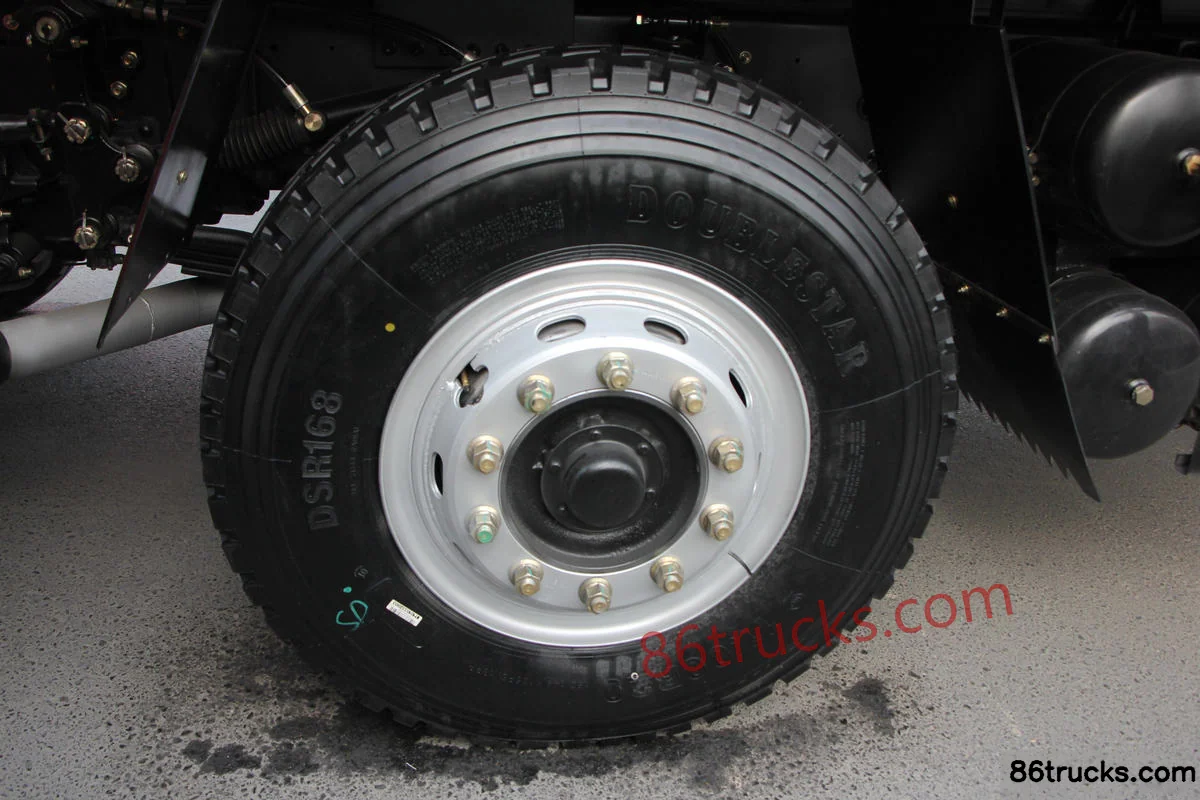

Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Electronic Central Lock:
Exterior features
Aluminum air tank:

Photos

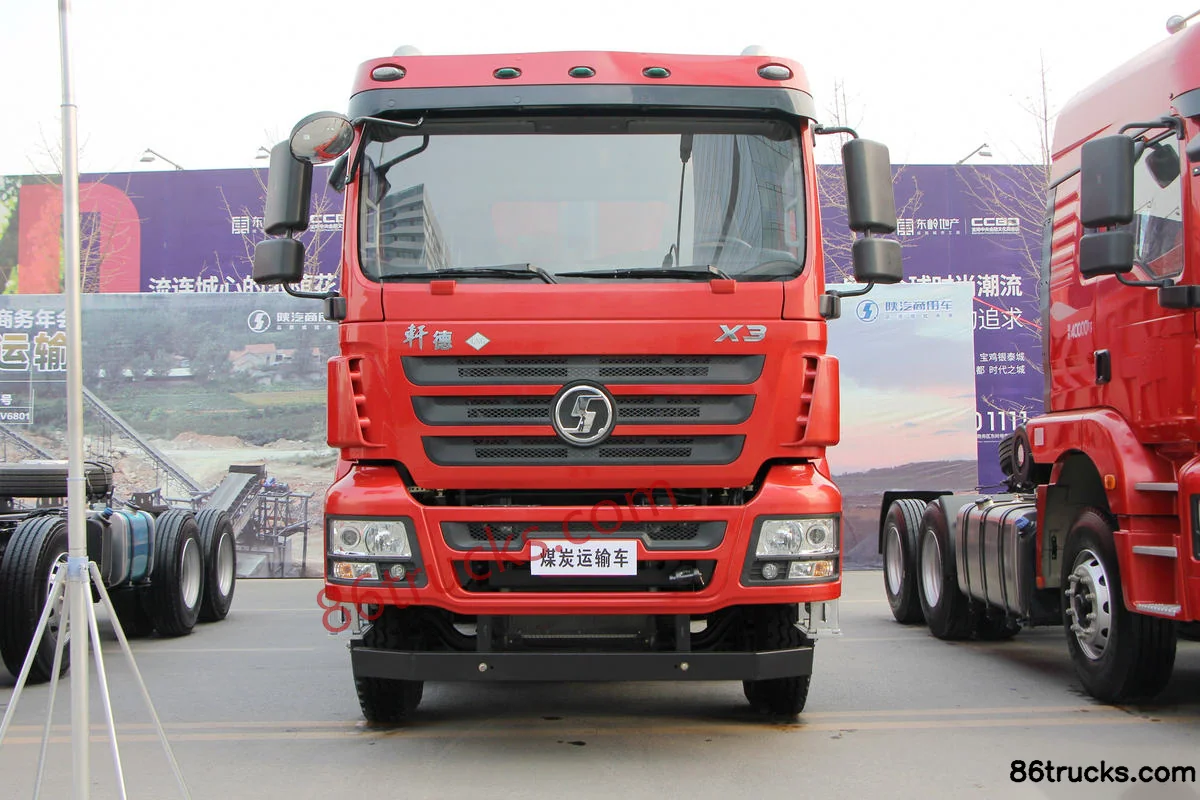

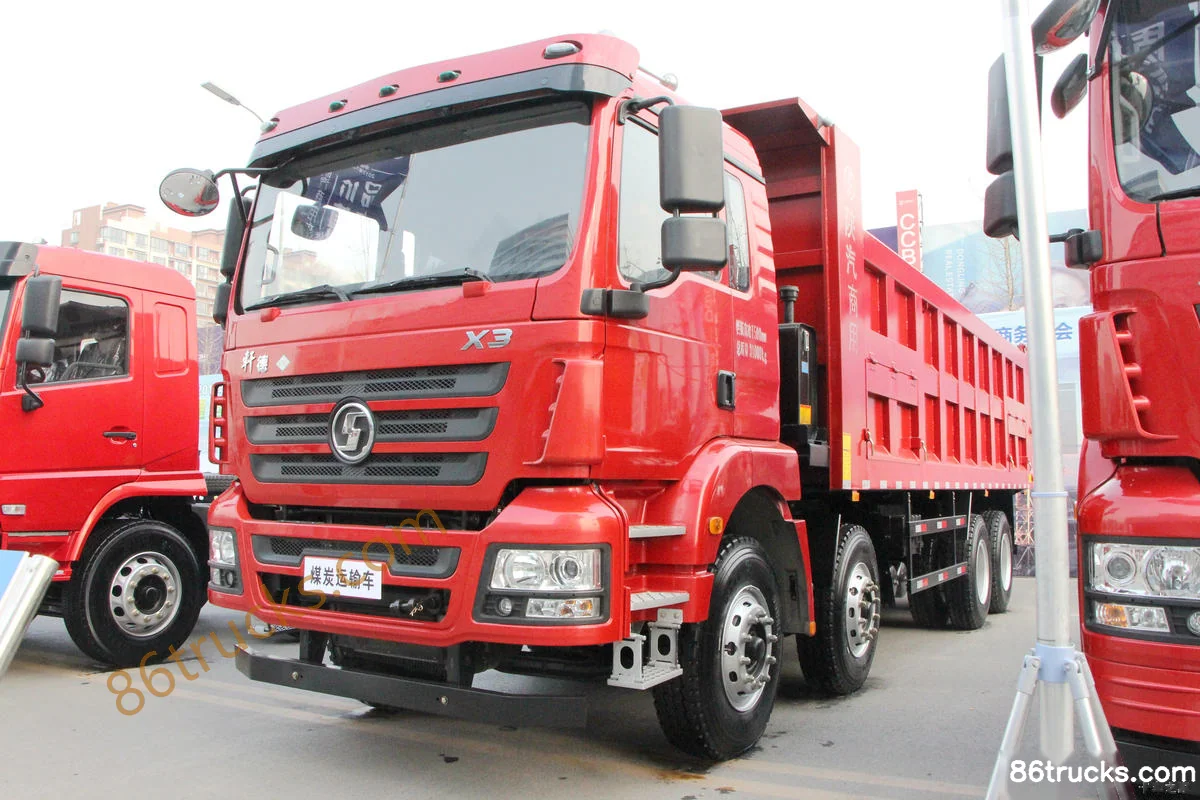

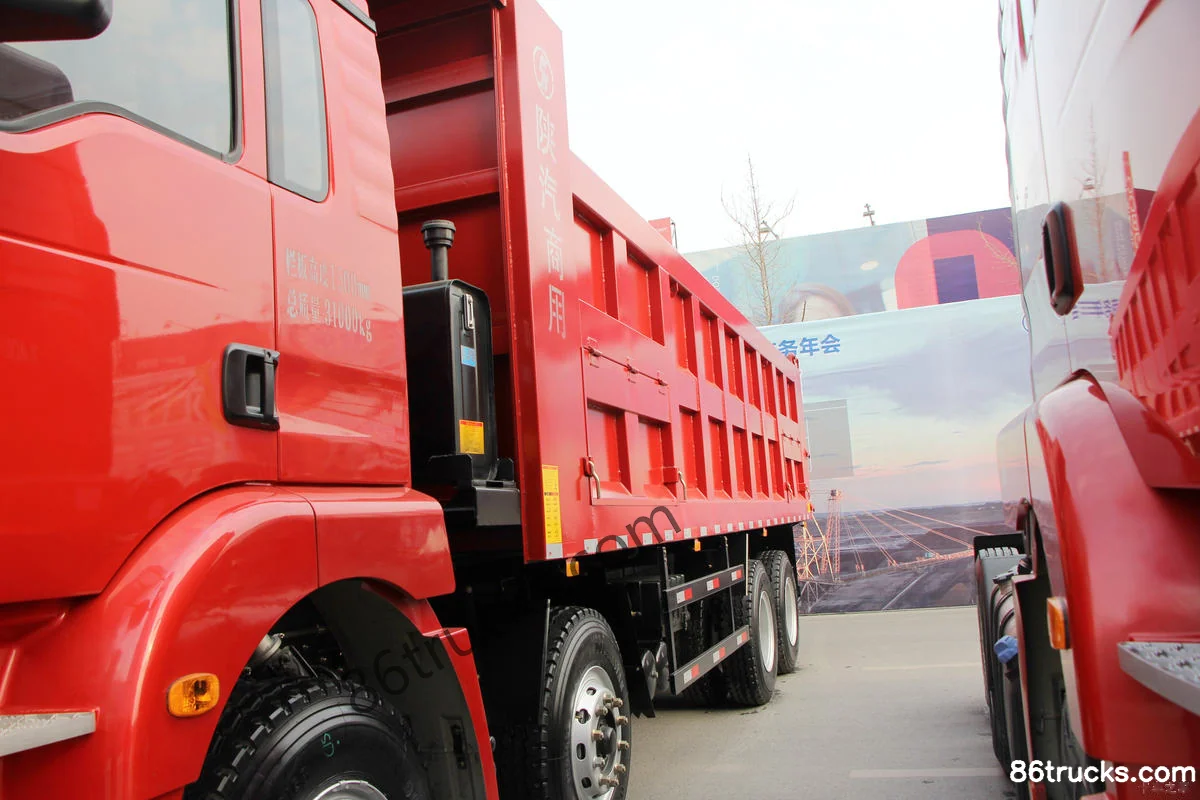

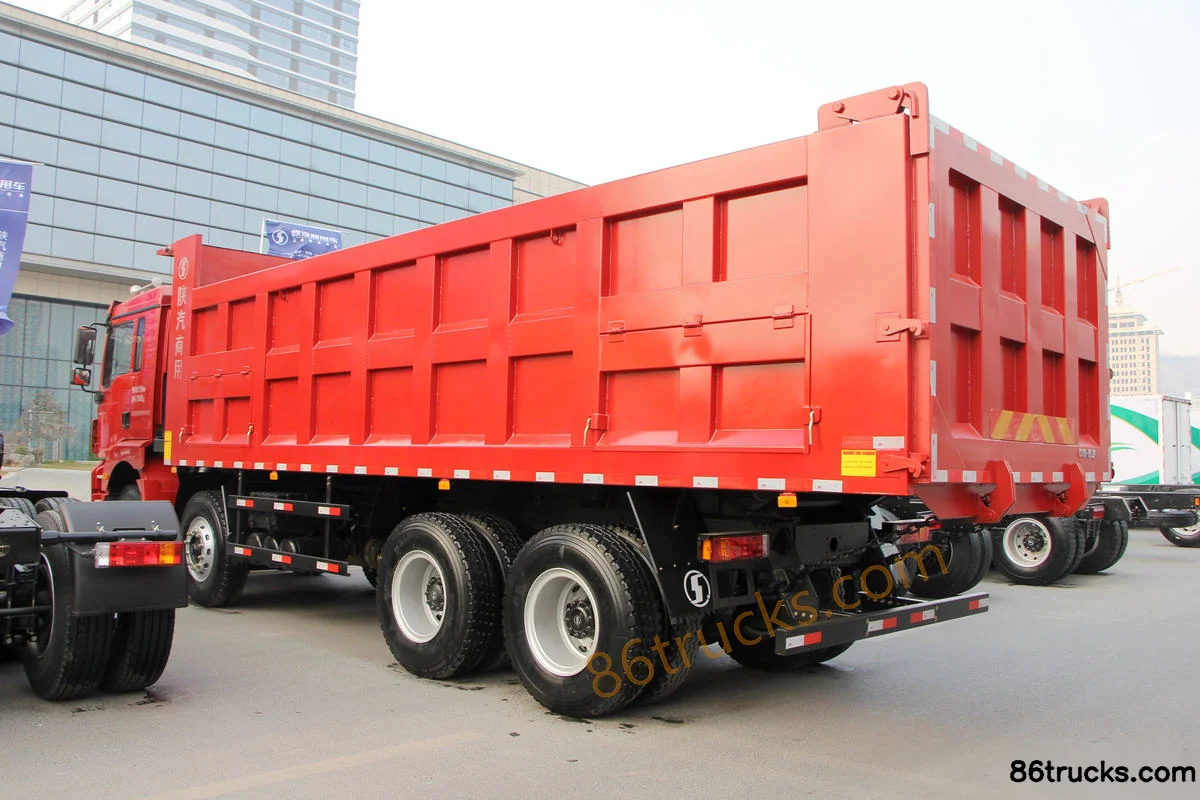

Exterior3

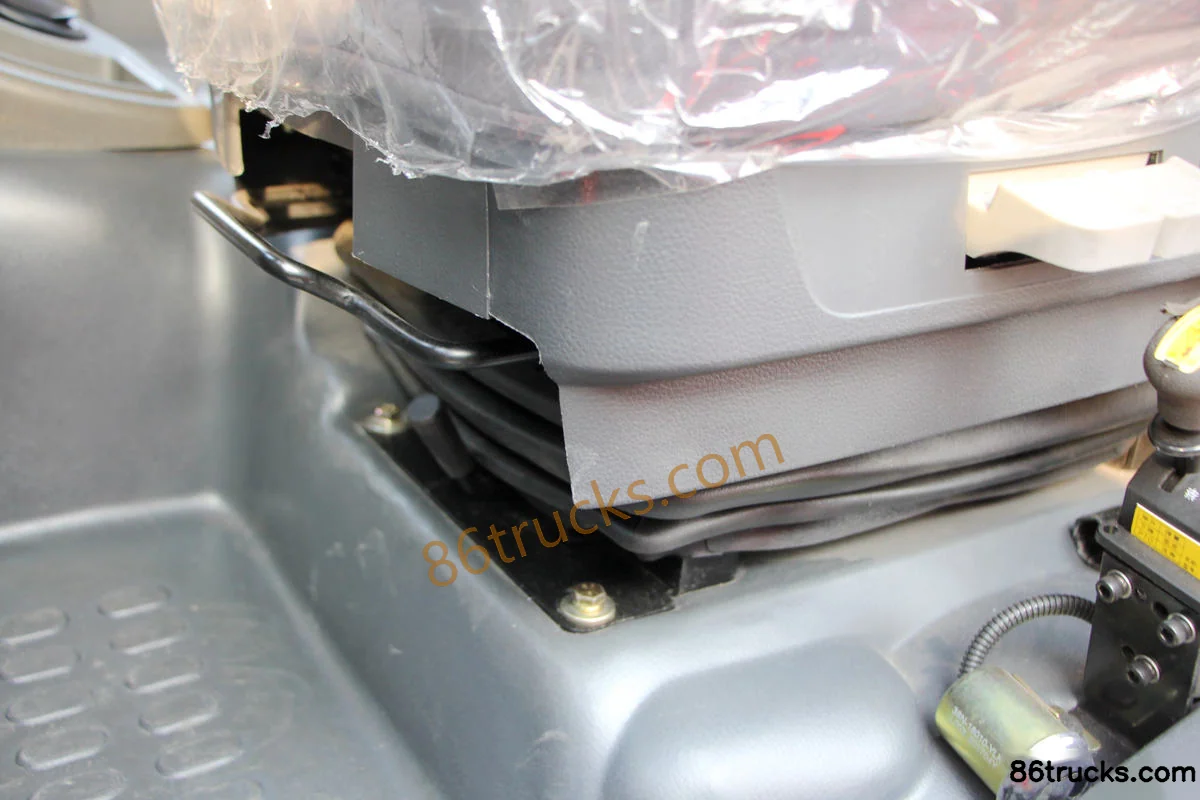

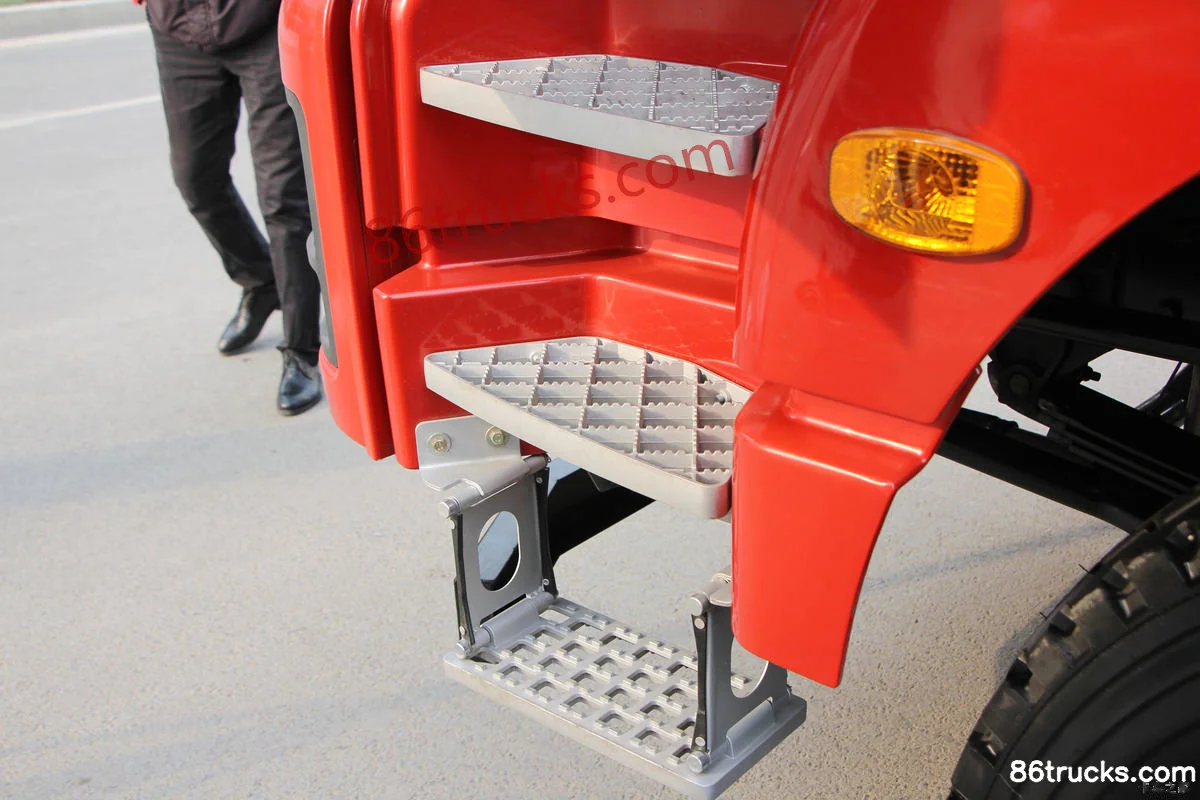

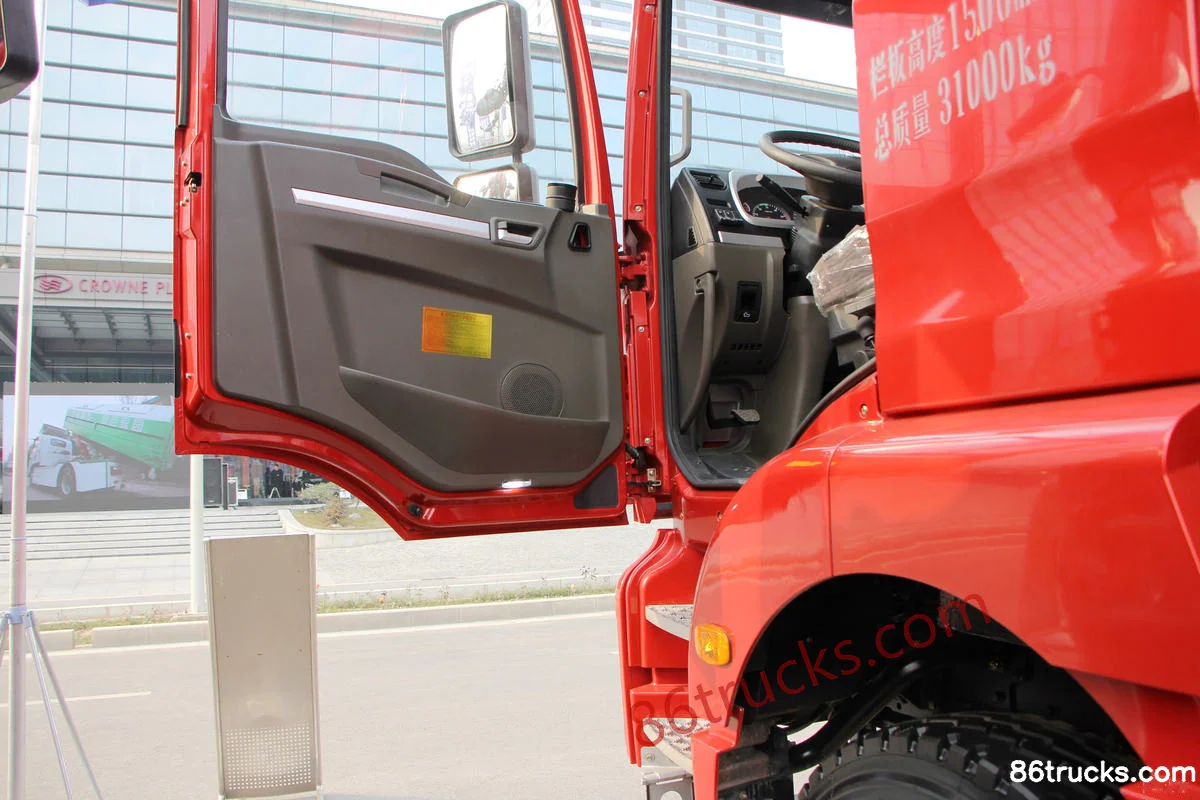

Cab3

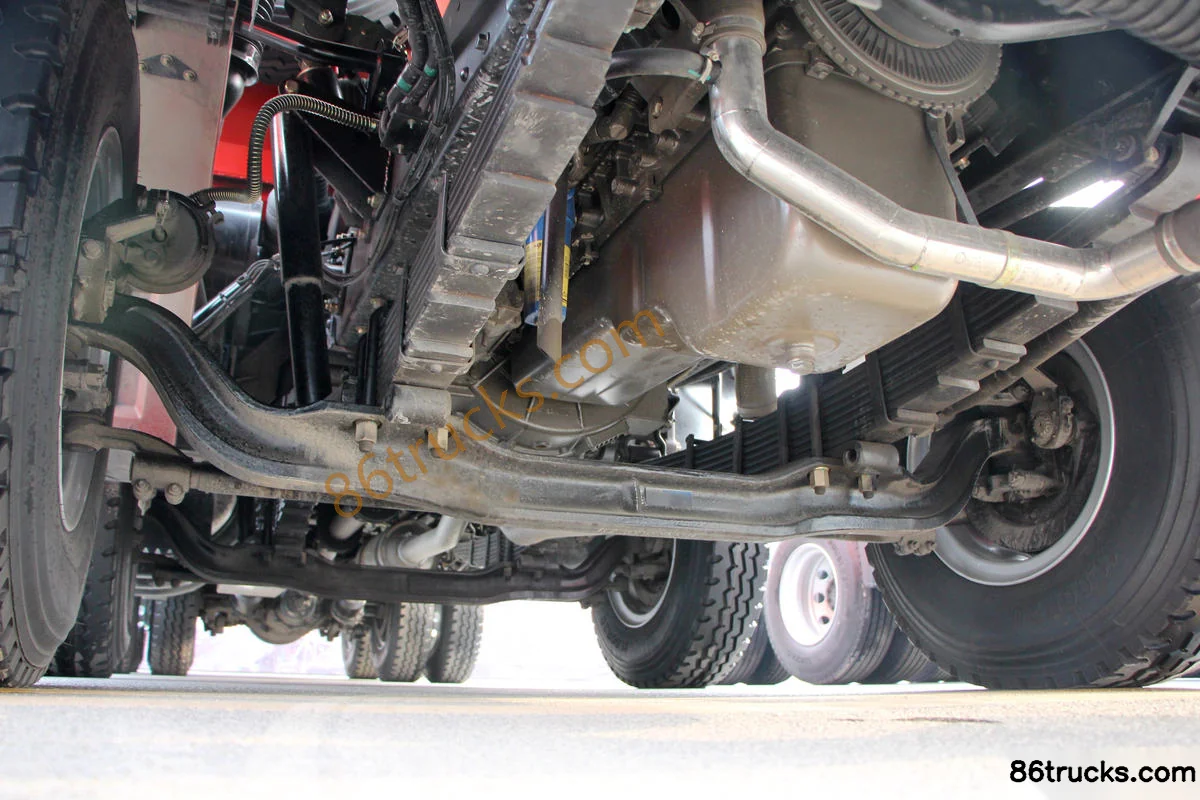

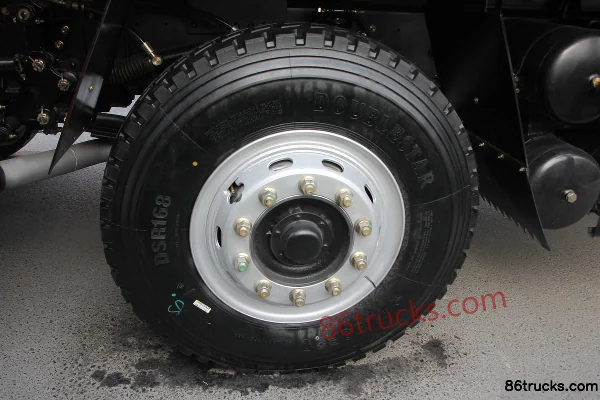

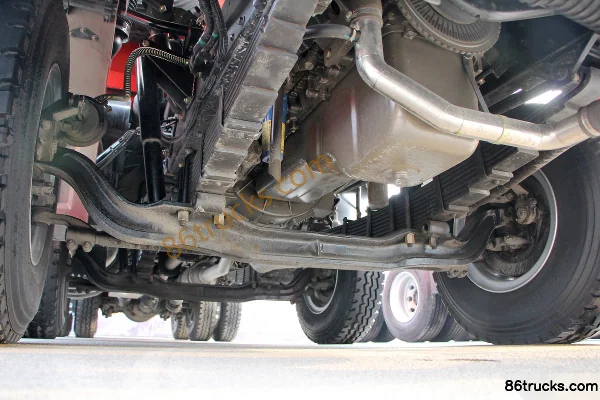

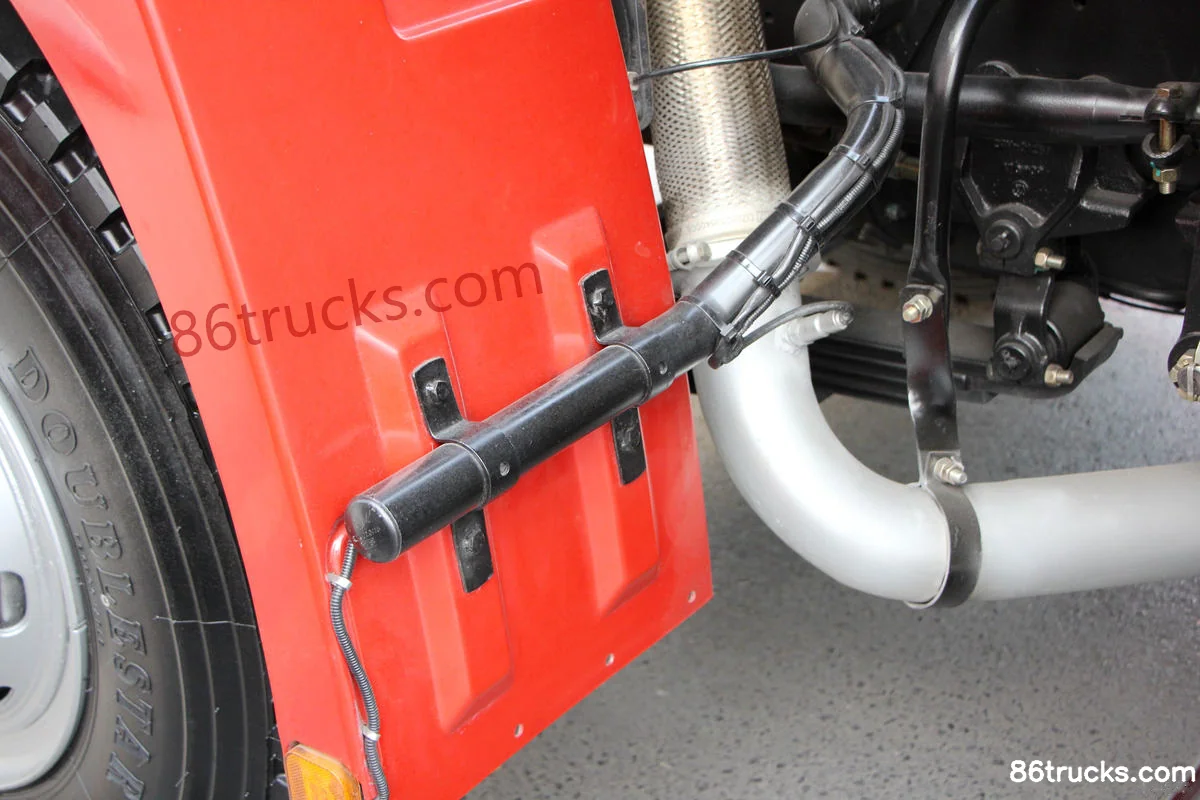

Chassis3

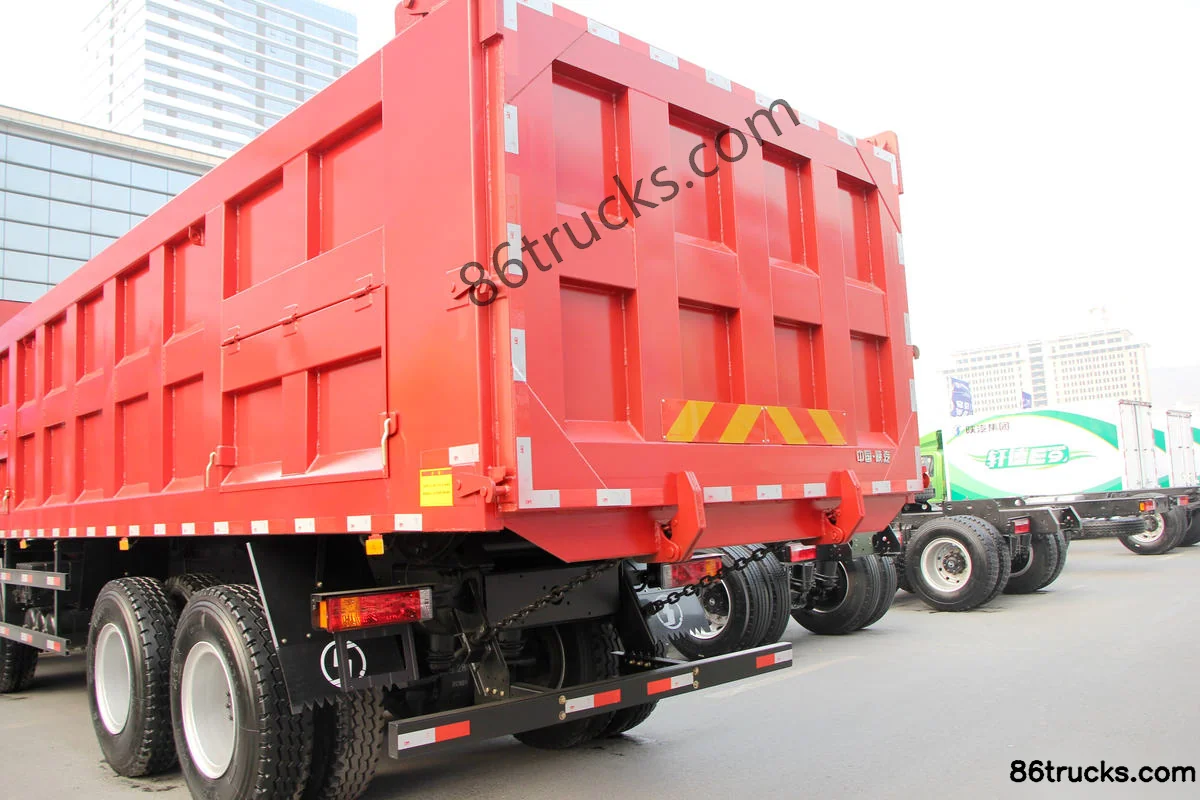

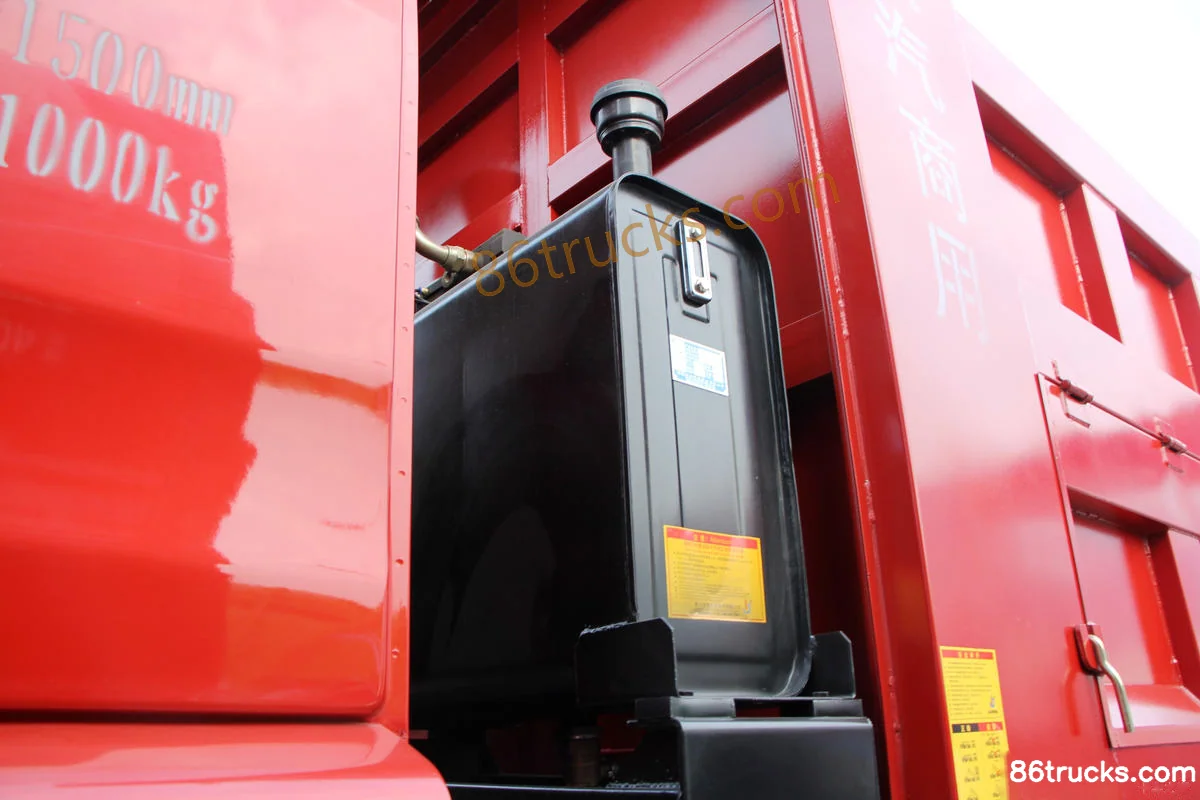

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck, and what does it include?

SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck export reference is about From $50,292; MSRP is ¥36.21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck: Drive: 8x4; Horsepower: 375 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck belongs to SHACMAN Xuande X3 Quasi-Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X3 375hp 8X4(12 wheels) 7.4m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
