FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck

Export reference
From $48,611
MSRP ¥35M CNY
Emission: China IV
Fuel: LNG (liquefied natural gas)
Transmission: FAW Jiefang
Curb Weight:: 15.39ton
Wheelbase:: 2100+4700+1350mm
Tire Size:: 12.00R20
Rated payload: 15.415ton
Drive 8X4 (12 wheels)
Horsepower 390
Cargo box type: Dump type

Overview

The FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck is a Heavy truck featuring 15.415t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a XichaiCA6SN1-39E4N engine, 390 hp, China IV emissions and FAW Jiefang transmission.

China IV 390 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P66L7T4E22M4
Drive type: 8X4
Wheelbase: 2100+4700+1350mm
engine: XichaiCA6SN1-39E4N
transmission: FAW JiefangCA12TAX190M
Rear Axle Ratio: 5.769
Cab length: 11.88m
Cab width: 2.5m
Cab height: 3.3m
Front track width: 2020/2020mm
rear track: 1830/1830mm
Curb Weight: 15.39ton
Rated payload: 15.415ton
GVWR: 31ton
Origin: Changchun, Jilin
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 20°
Version: LNG Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6SN1-39E4N
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 12.53L
Emission standard: China IV
Max output power: 287kW
Max hp: 390Horsepower
Max torque: 1600N·m
Max torque speed: 1150-1350rpm
Rated speed: 1900rpm
Engine Type: Inline, direct injection, turbocharged intercooled, electronic control system (closed-loop)
Transmission Parameters
Transmission Model: FAW JiefangCA12TAX190M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8.8m
Cargo box width: 2.3m
Cargo box height: 0.94m
fuel tank
Fuel tank capacity: 450L
Chassis Specs
rear axle allowable load: 18000kg
Axle ratio: 5.769
Leaf spring count: 10/10/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

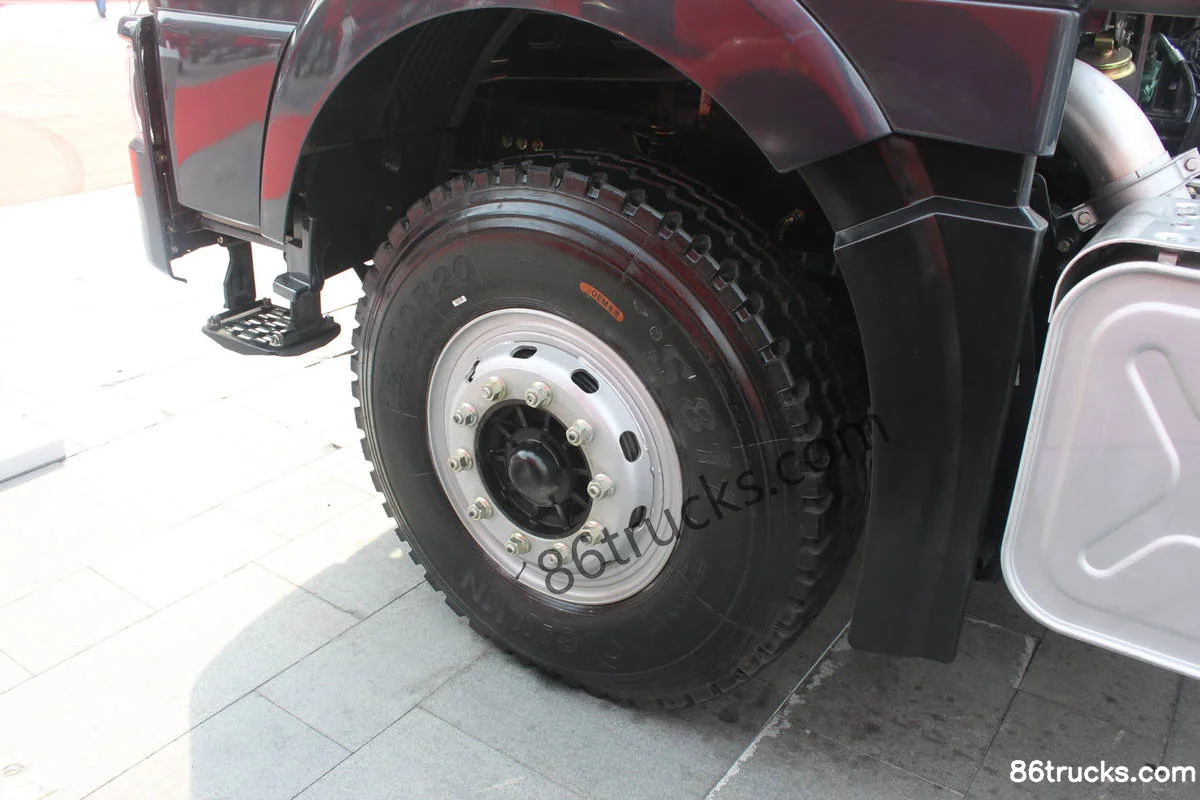

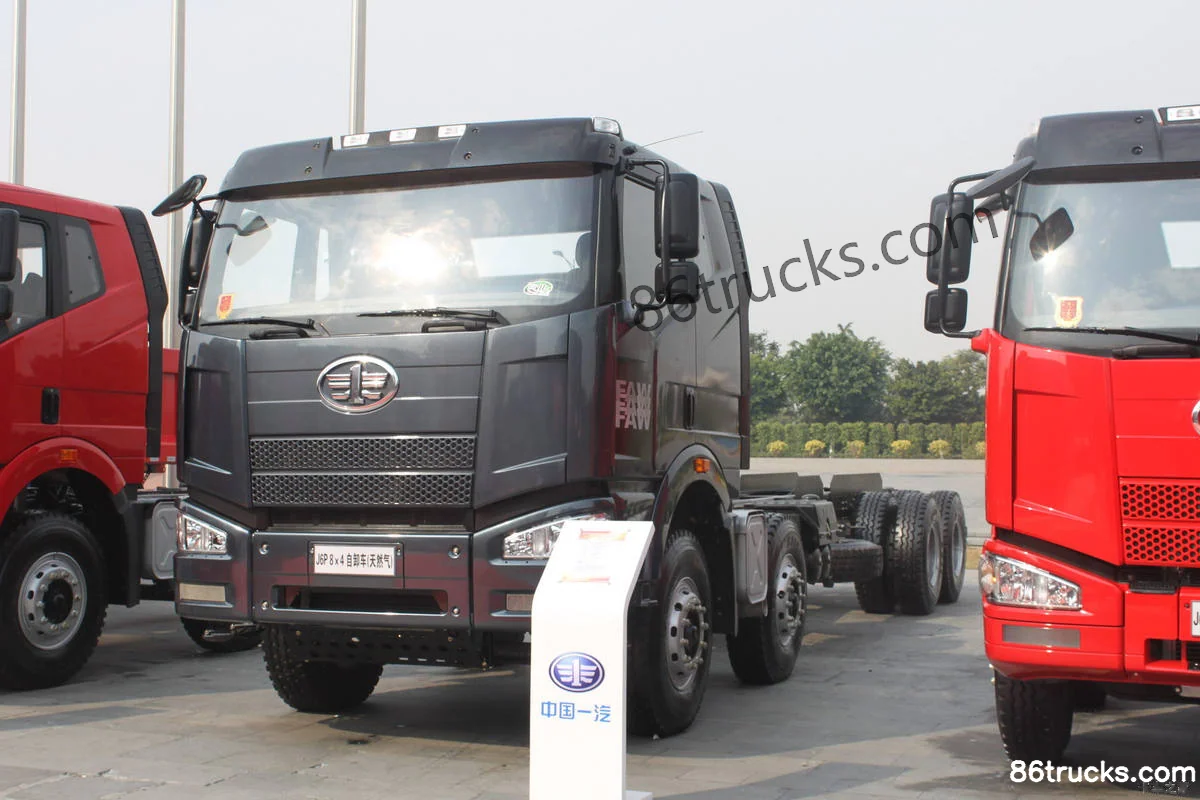

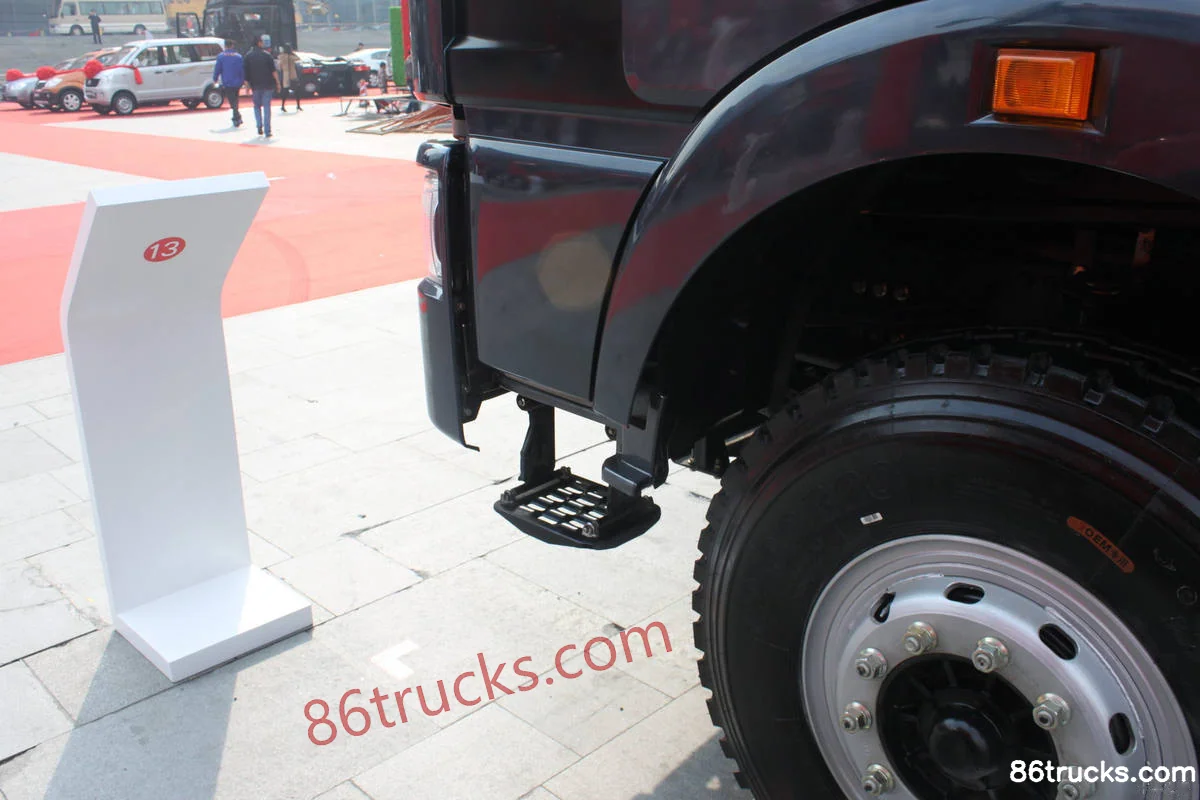

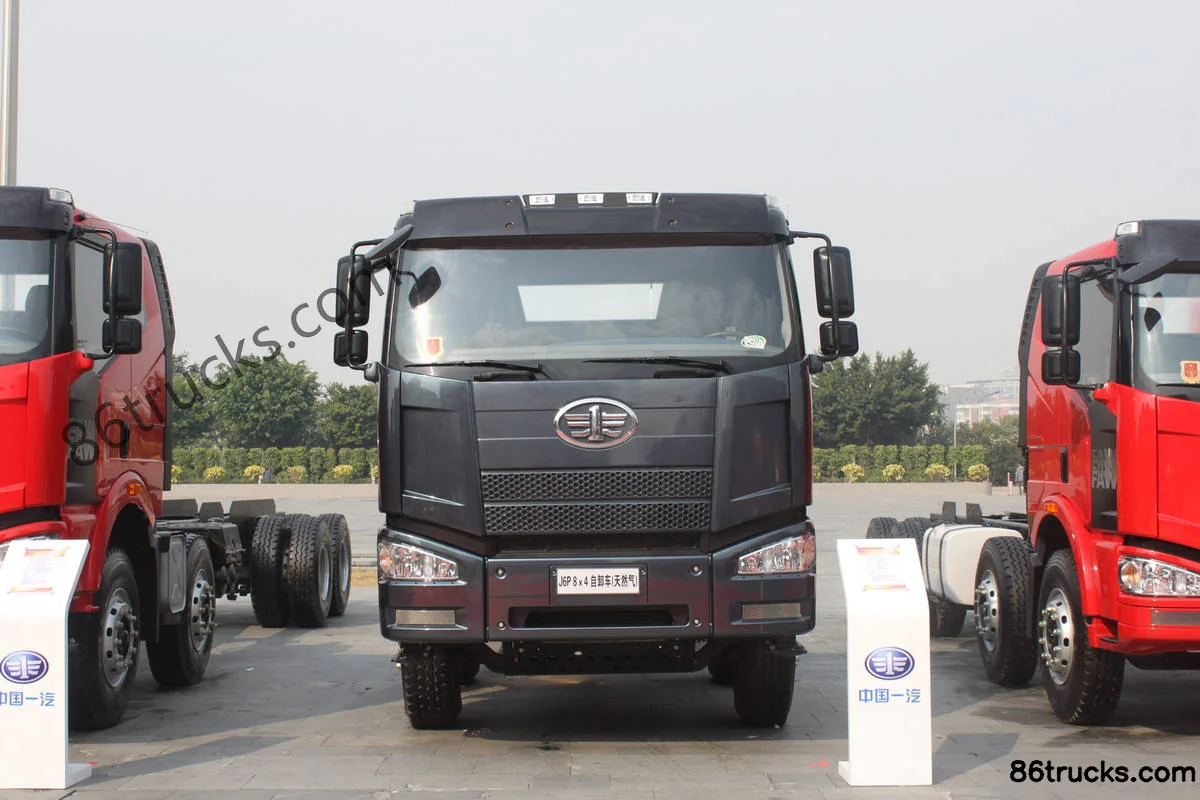

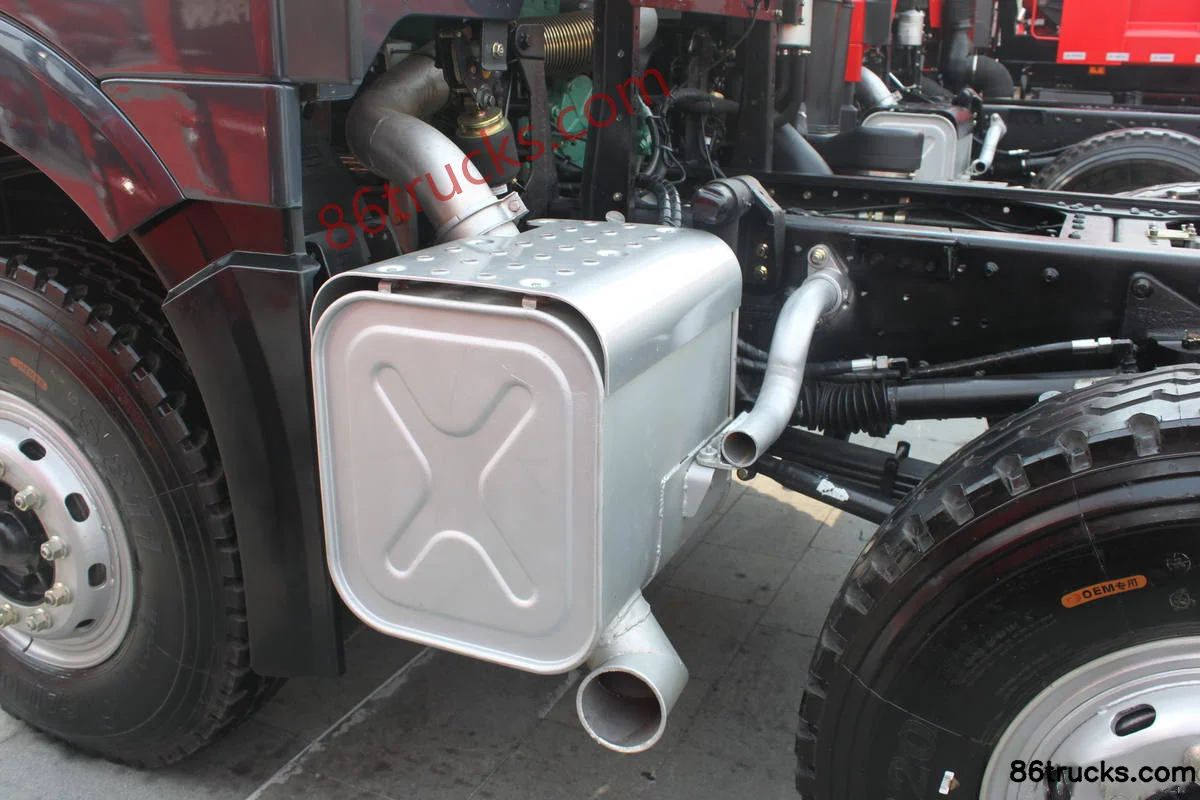

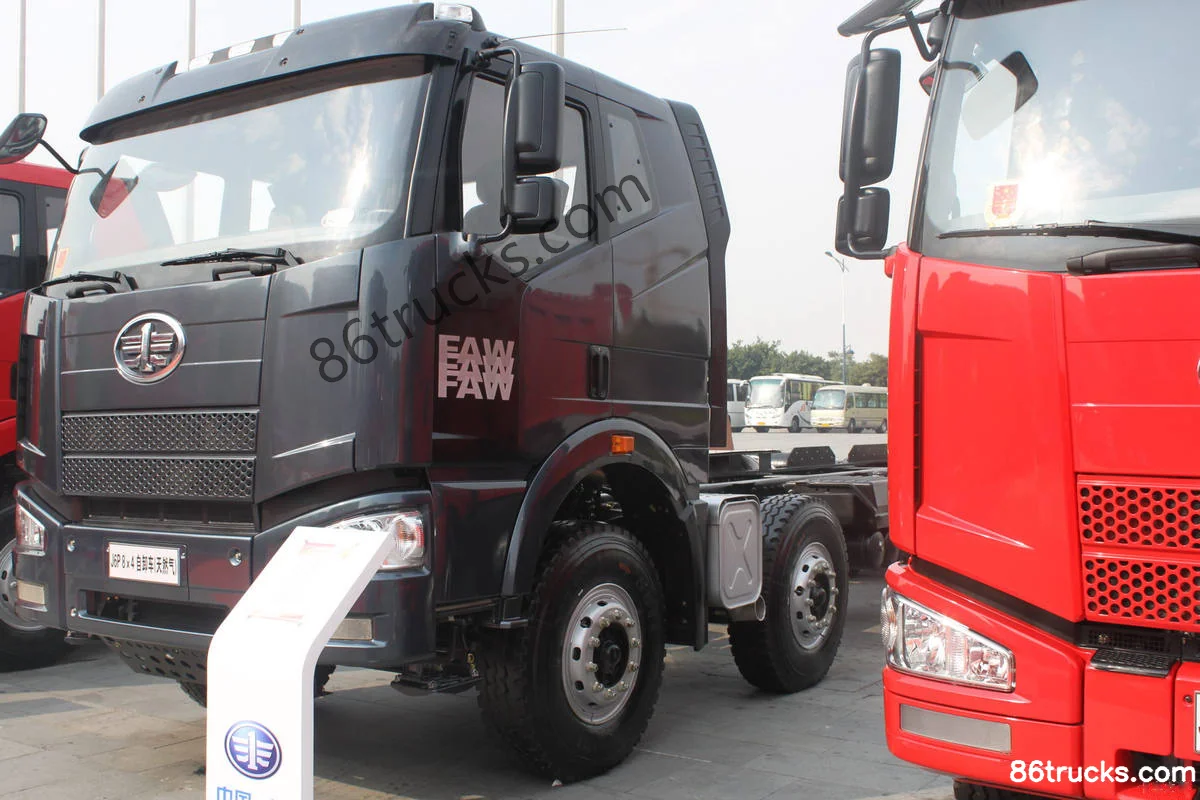

Photos

Exterior3

Chassis3

6 photos

FAQ

What is the export price of FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck, and what does it include?

FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck export reference is about From $48,611; MSRP is ¥35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck?

Key specs of FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck: Drive: 8x4; Horsepower: 390 hp; Emission: China IV; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck suited for?

FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck differ from other variants in the same series?

FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck belongs to FAW Jiefang J6P Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P Heavy Truck 390 hp 8X4(12 wheels) 8.8m LNG Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
