Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 5100mm
Cab dimensions:: 7.35×2.5×3.85m
Type:: truck-mounted crane
GVWR:: 16ton
Front/rear suspension:: 1.25/2.15m
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 6.595ton
Emission China IV

Overview

The Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM) is a truck-mounted crane featuring 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Dongfeng engine, 180 hp, China IV emissions and Diesel fuel.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.35×2.5×3.85m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5100mm
Rated mass: 6.595ton
GVWR: 16ton
Front/rear suspension: 1.25/2.15m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Brand: Dongfeng
Engine Model: DongfengISB180 40
fuel type: Diesel
Displacement: 5.9L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Body Parameters
Vehicle certification code: EQ5168JSQZM
Body Brand: Dongfeng
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Yulong
Chassis Model: EQ1168GLJ3
Frame Dimensions: 300mm
rear axle description: 10T
Axle ratio: 5.14
Leaf spring count: 9/13
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Cab parameters
Cab: DongfengT702
Tire
Tire Size: 10.00R20
Number of tires: 10pcs

Photos

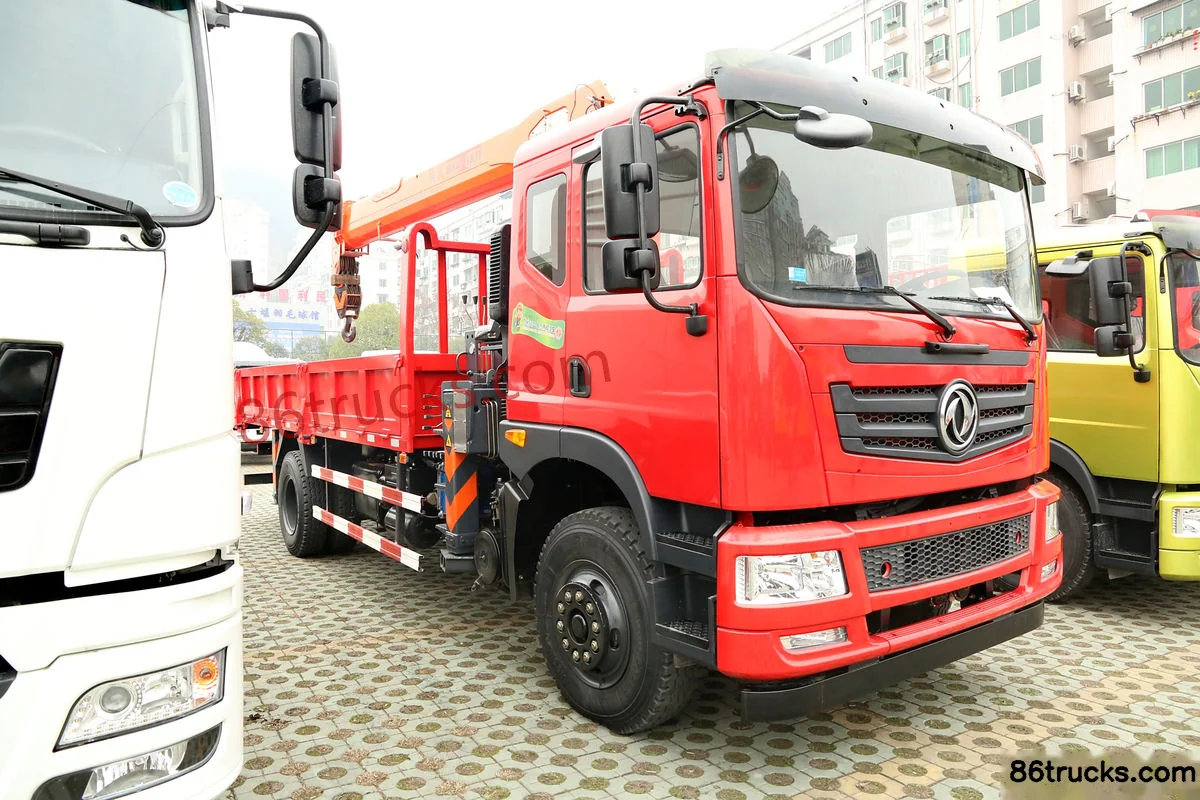

Exterior3

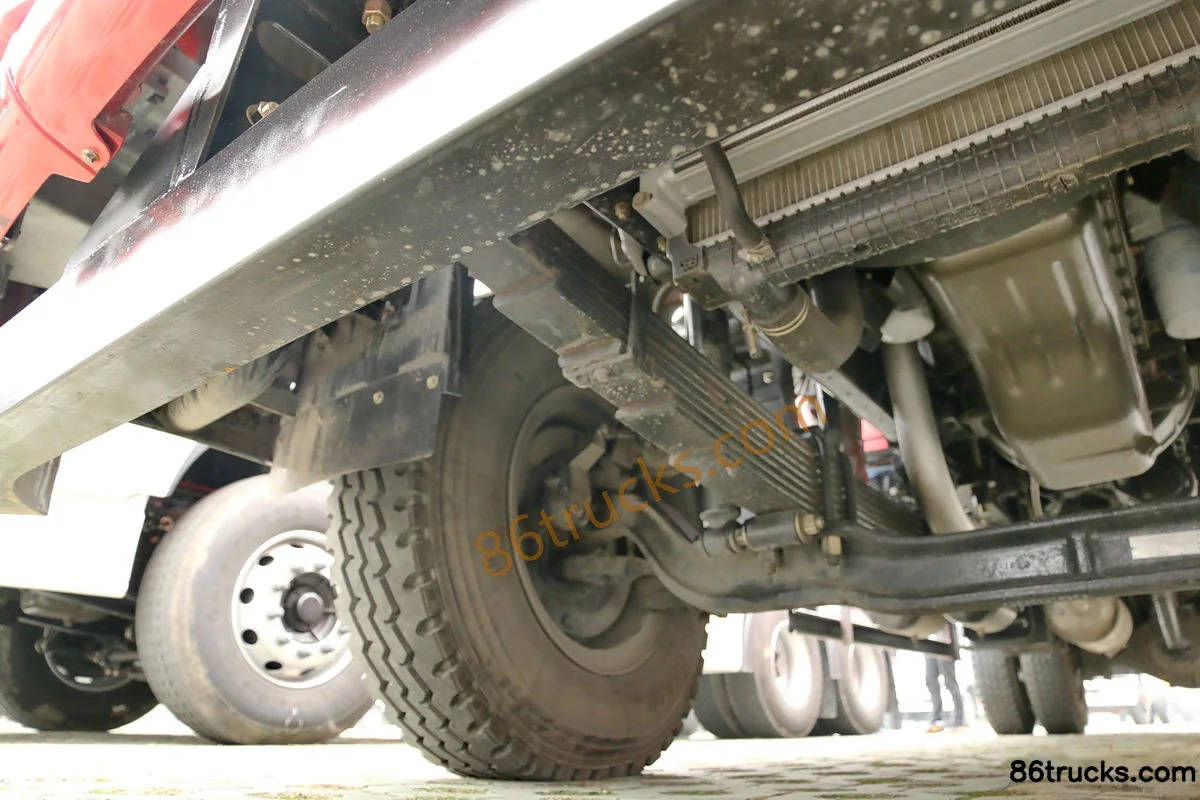

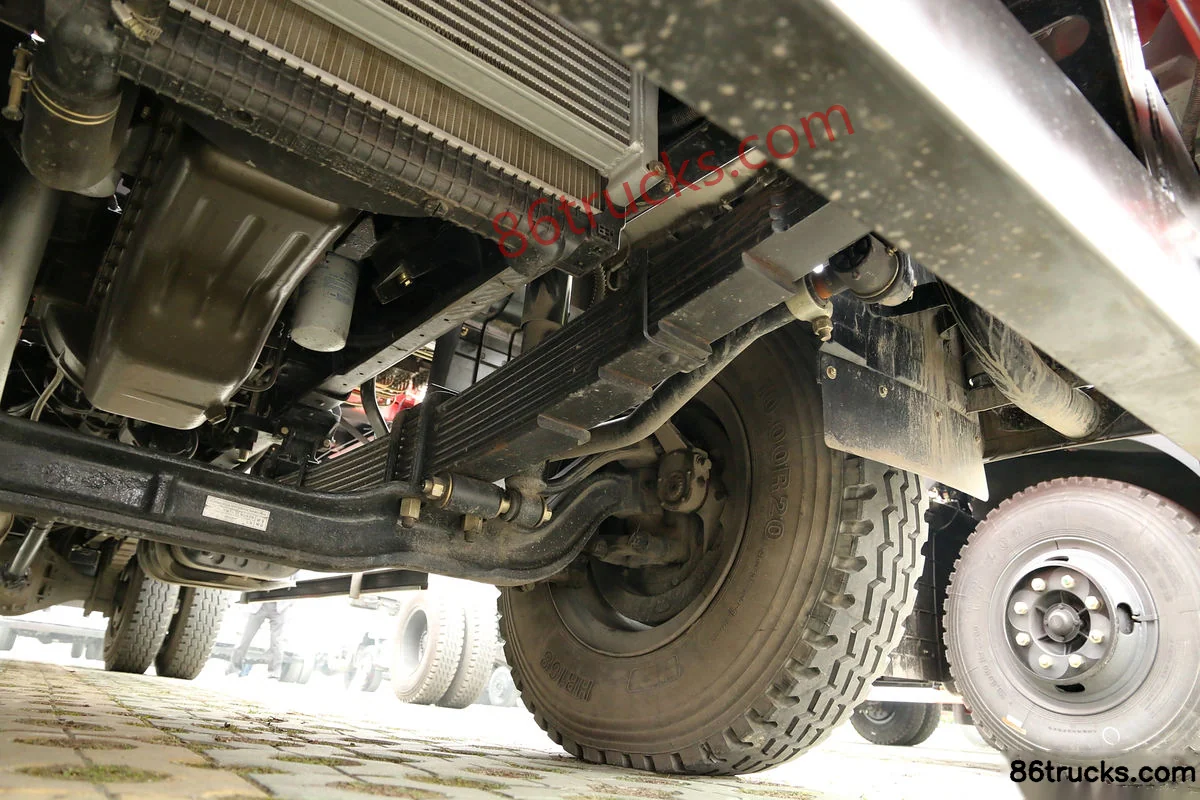

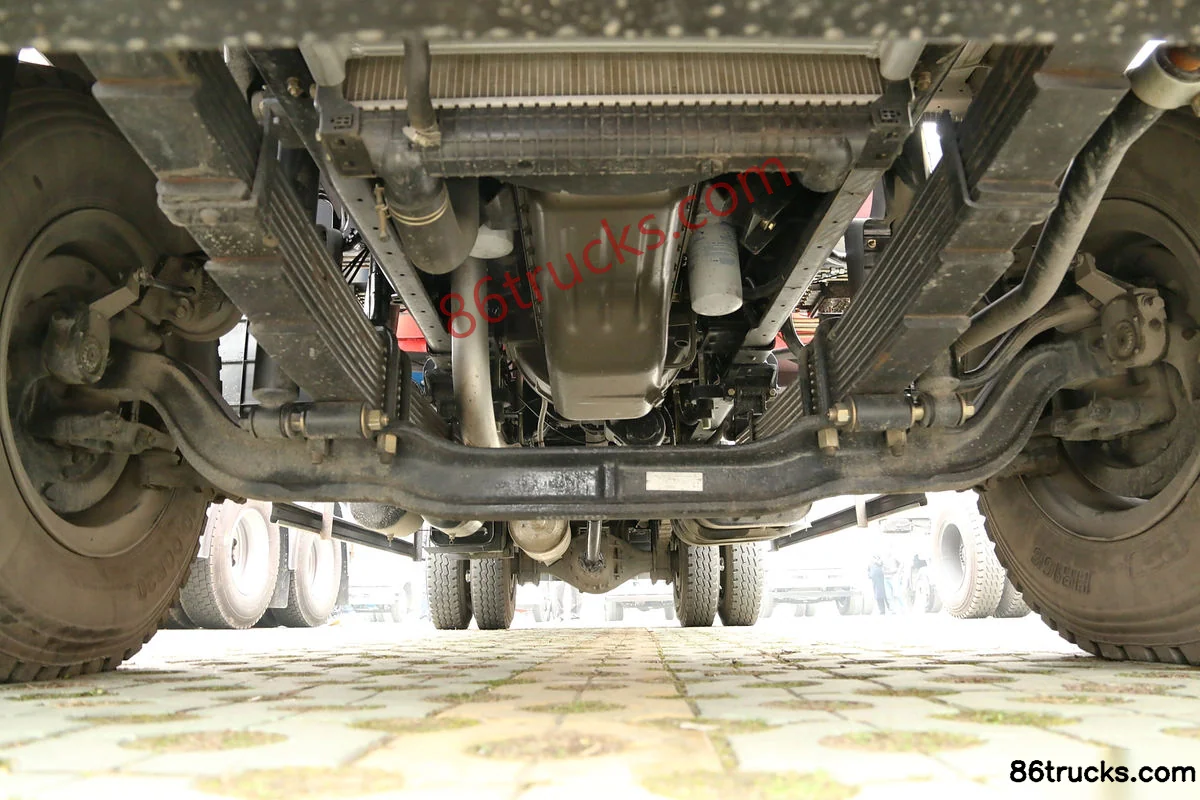

Chassis3

Body3

9 photos

FAQ

What emission standard does Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM)?

Key specs of Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM): Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM) suited for?

Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM) differ from other variants in the same series?

Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM) belongs to Dongfeng Yulong (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yulong 180 hp 4X2(6 wheels) Truck-mounted Crane (EQ5168JSQZM)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
