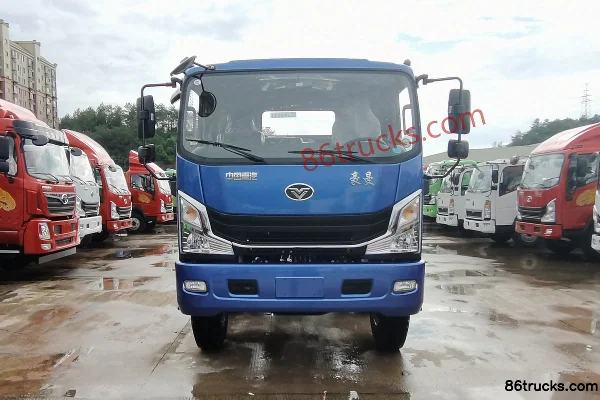

Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI)

Export reference
From $43,056
MSRP ¥31M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.2ton
Wheelbase:: 3400+1350mm
Tire Size:: 10.00R20
Rated payload: 14.835ton
Drive 6X6 (10 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) is a Medium-duty truck featuring 14.835t payload, 25t GVW, Dump type cargo body and 6X6 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.6NQ220E61A engine, 220 hp, China VI emissions and Fast Gear transmission.

China VI 220 Diesel 6X6

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ2258G57FB0
Drive type: 6X6
Wheelbase: 3400+1350mm
engine: WeichaiWP4.6NQ220E61A
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.72
Cab length: 7.41m
Cab width: 2.545m
Cab height: 3.05m
Front track width: 1890mm
rear track: 1750/1750mm
Curb Weight: 10.2ton
Rated payload: 14.835ton
GVWR: 25ton
Origin: Yong'an, Fujian
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61A
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.8m
Cargo box width: 2.42m
Cargo box height: 1.5m
Cab parameters
Cab: 2080 Day Cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 220L
Chassis Specs
Front axle description: 23AWS cast (5.5T)
Front axle allowable load: 7000kg
Frame Dimensions: 300/8+5+5 three-layer framemm
rear axle description: STRD cast dual rear/13T/
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 6.72
Leaf spring count: 10/10
Tire
Tire Size: 10.00R20
Number of tires: 10pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
Multifunction steering wheel:
Power Windows:
Remote key:
Electronic Central Lock:
lighting configuration
daytime running lights:
LED taillight:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI), and what does it include?

Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) export reference is about From $43,056; MSRP is ¥31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI)?

Key specs of Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI): Drive: 6x6; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) suited for?

Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) differ from other variants in the same series?

Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI) belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MANH3 220 hp 6X6(10 wheels) 4.8m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
