Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30)

Export reference
From $76,389
MSRP ¥55M CNY
Fuel: Diesel
Curb Weight:: 13.8ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.2x2.55x3.995m
Truck Type:: Concrete mixer truck
Rated payload: 17.07ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) is a concrete mixer truck featuring 17.07t payload, 13.8ton GVW, 8X4 (12 wheels) drive and 10.2x2.55x3.995m cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.2x2.55x3.995m
Truck Type: Concrete mixer truck
Drive type: 8X4
Vehicle origin: Pingdingshan, Henan
Front/rear track width: Front: 2015/2015mm, Rear: 1850/1850
Wheelbase: 1800+3050+1350mm
Curb Weight: 13.8ton
Rated payload: 17.07ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.57m
Body Parameters
Mixing drum capacity: 7.82m³
Vehicle certification code: AYD5313GJBZZ30
Body Brand: Shenzhou Yongda
Engine parameters
Engine Model: WeichaiWP8.340E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2100rpm
Engine Type: High-pressure common rail+EGR
Chassis Specs
Chassis Series: HOWO TX-W
Chassis Model: ZZ1317N306GE1
Frame Dimensions: (8+5/300) Double-Layer Framemm
rear axle description: MAT16ZG drive axle
Axle ratio: 5.73
Leaf spring count: 11/11/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

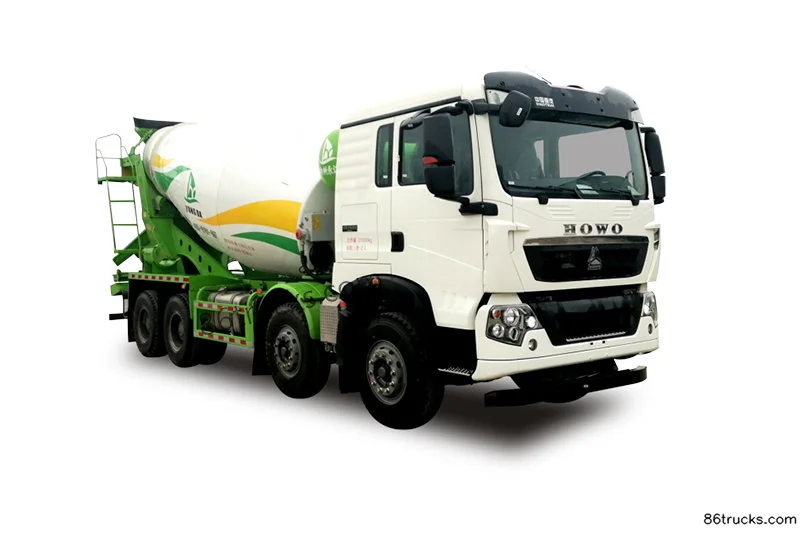

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30), and what does it include?

Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) export reference is about From $76,389; MSRP is ¥55M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30)?

Key specs of Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) suited for?

Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) differ from other variants in the same series?

Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30) belongs to Shenzhou Yongda (Shenzhou Yongda) Sinotruk HOWO Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TX-W heavy truck Luxury Edition 340 hp 8X4(12 wheels) 7.82 m³ concrete mixer truck (Shenzhou Yongda brand) (Weichai) (AYD5313GJBZZ30)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
