Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 11.925ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00R20
Rated payload: 12.88ton
Drive 6X4 (10 wheels)
Horsepower 300
Cargo box type: Rear-dump body

Overview

The Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck is a Heavy truck featuring 12.88t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.300E40 engine, 300 hp, China IV emissions and Fast Gear transmission.

China IV 300 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LFJ3255G1
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10.300E40
transmission: Fast Gear12JS160TA
Cab length: 8.71m
Cab width: 2.49m
Cab height: 3.91m
Curb Weight: 11.925ton
Rated payload: 12.88ton
GVWR: 25ton
Origin: Dali, Yunnan
tonnage class: Heavy truck
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.300E40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1390N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JS160TA
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
rear axle description: Hande 16T wide-body
rear axle allowable load: 16000kg
Leaf spring count: 6/9+5
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

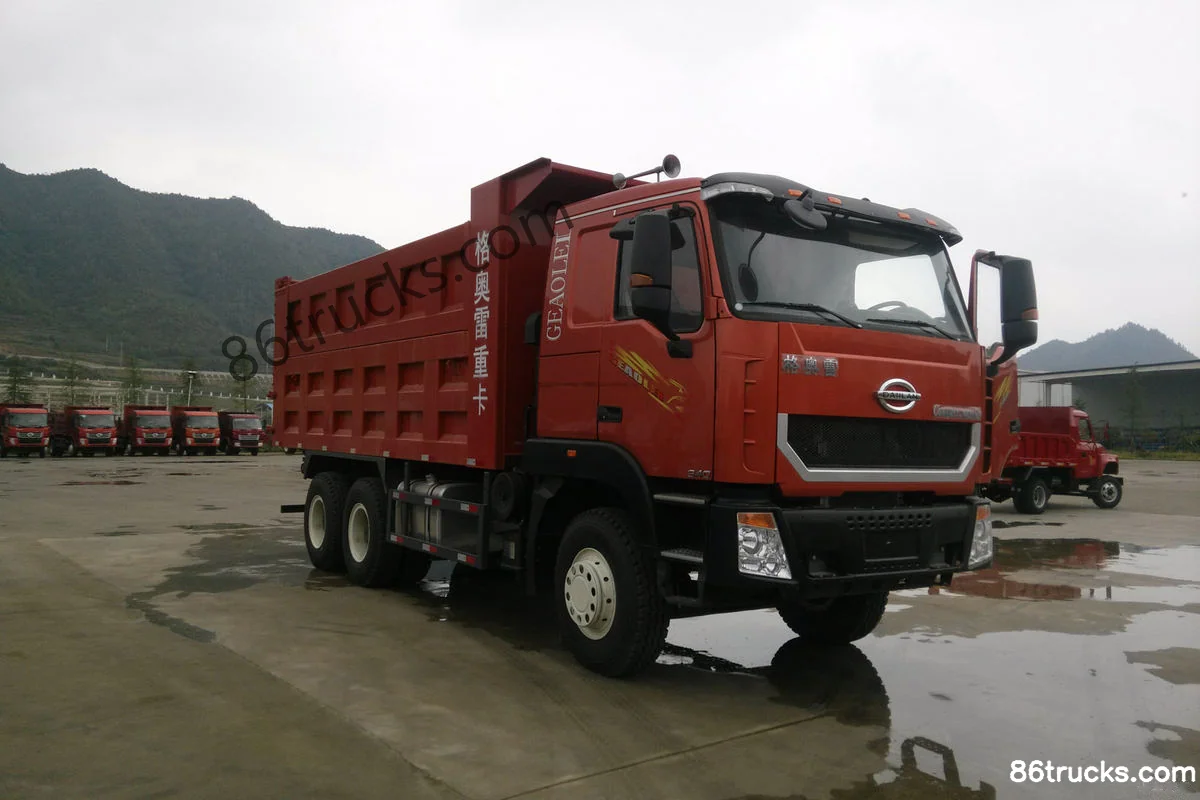

Photos

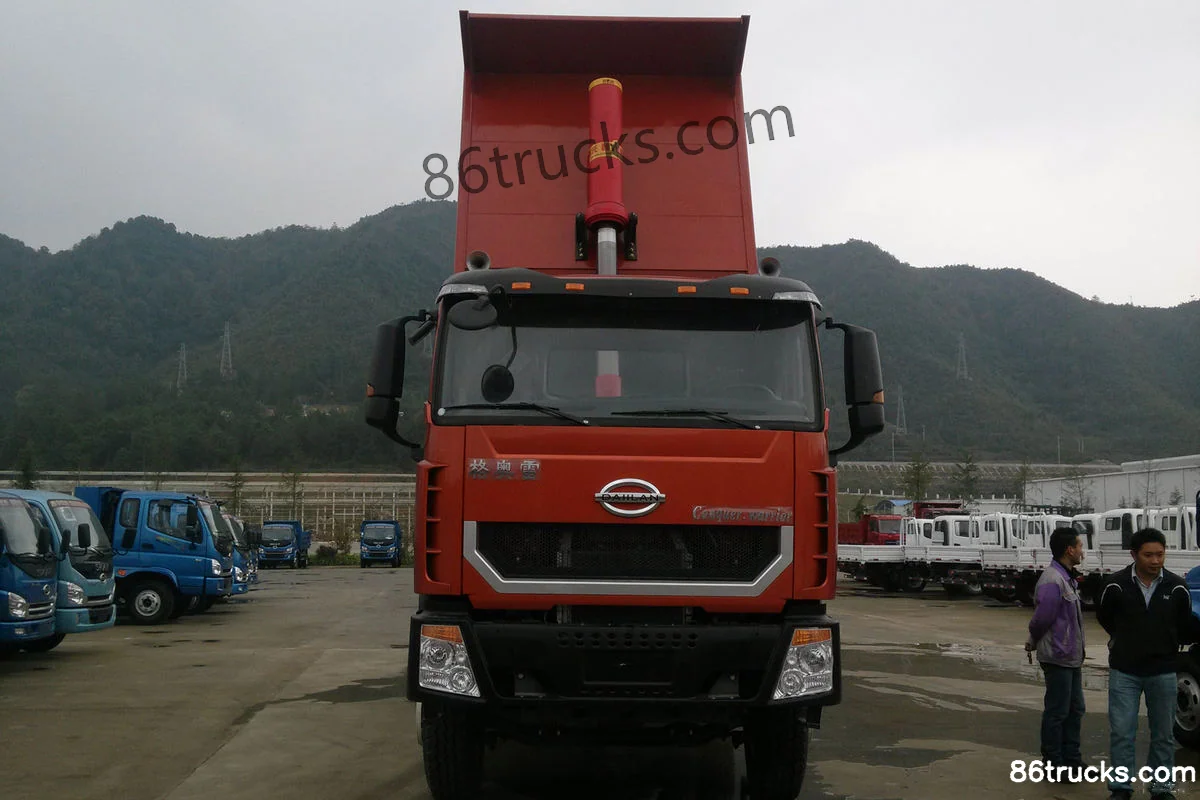

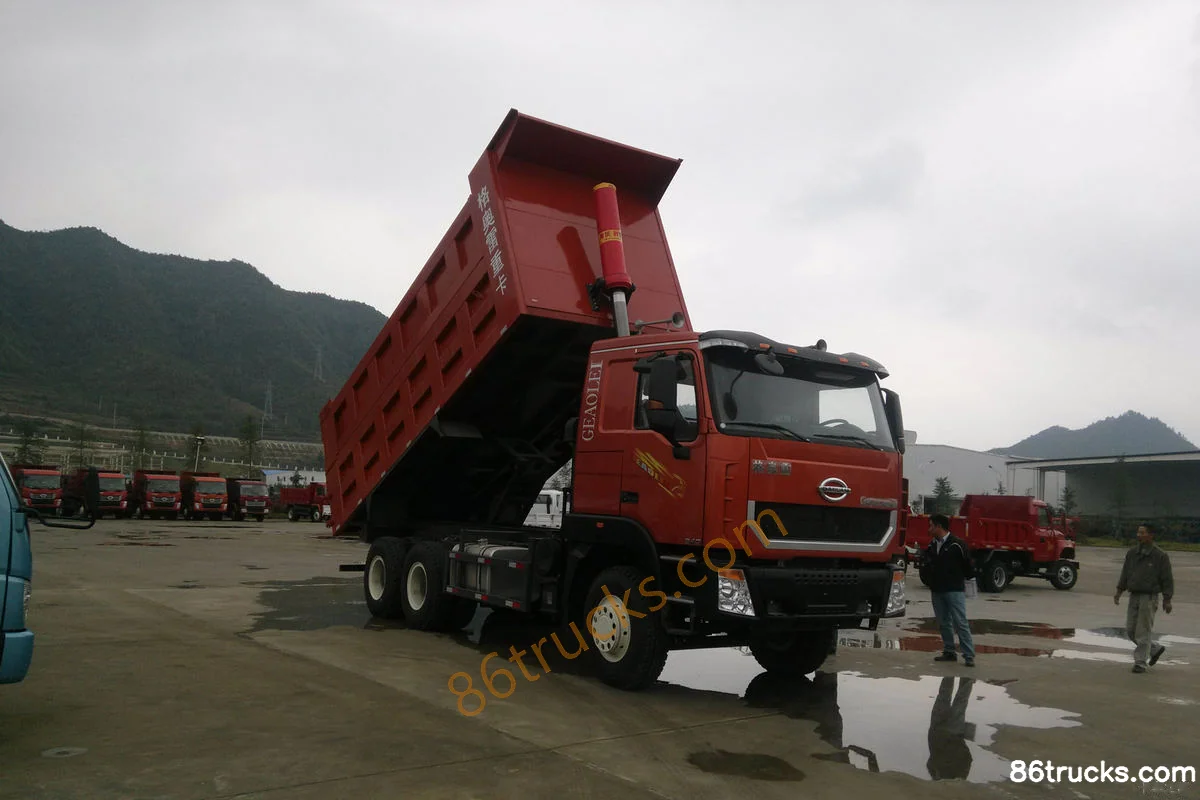

Exterior3

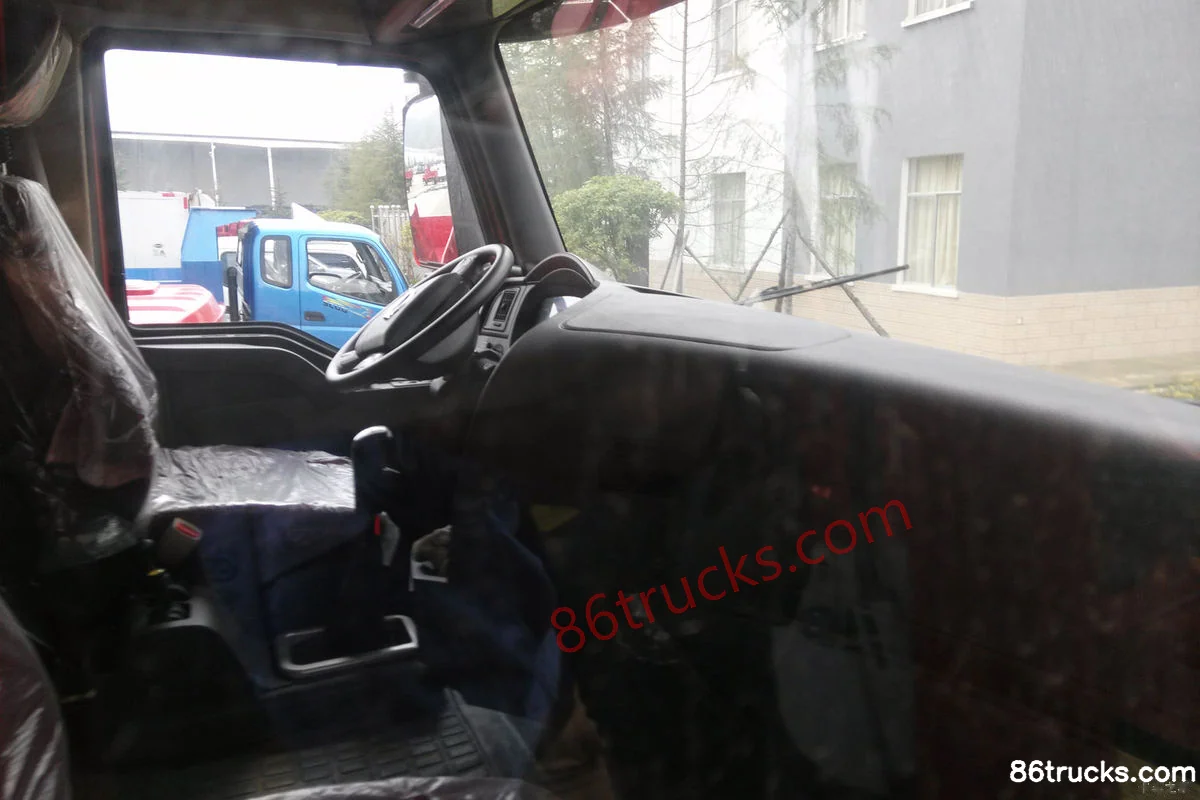

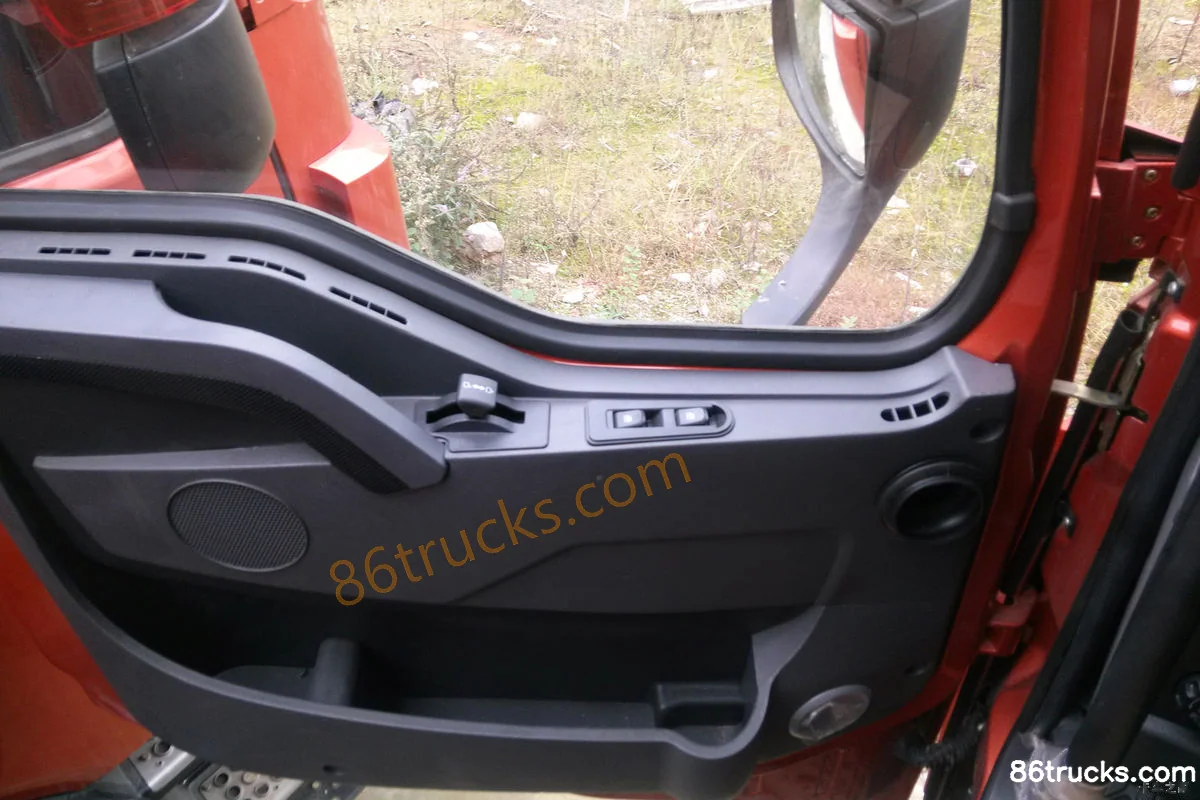

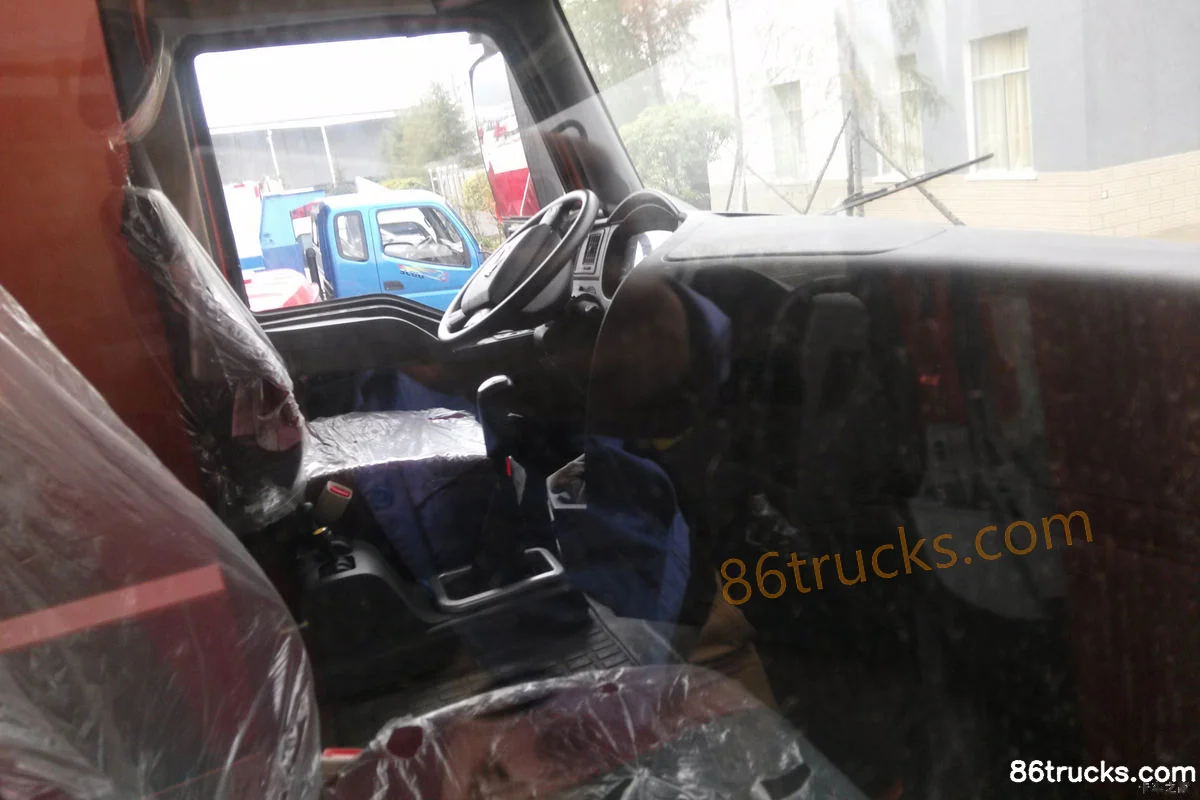

Cab3

6 photos

FAQ

What emission standard does Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck?

Key specs of Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck: Drive: 6x4; Horsepower: 300 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck suited for?

Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck differ from other variants in the same series?

Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck belongs to Shijun Ge'aolei Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun Gelaole Heavy Truck 300 hp 6X4(10 wheels) 5.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
