SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck

Export reference
From $38,819
MSRP ¥27.95M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 4200mm
Tire Size:: 11.00R20 18PR
Rated payload: 8.87ton
Drive 4X2 (6 wheels)
Horsepower 400
Cargo box length: 5m

Overview

The SHACMAN Commercial Vehicle SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck is a Medium-duty truck featuring 8.87t payload, 18t GVW, 5m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCK09L400-66 engine, 400 hp, China VI emissions and Fast Gear transmission.

China VI 400 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3180MP6421
Drive type: 4X2
Wheelbase: 4200mm
engine: YuchaiYCK09L400-66
transmission: Fast GearS12MDT
Rear Axle Ratio: 5.92
Cab length: 7.825m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2011mm
rear track: 1860mm
Curb Weight: 9ton
Rated payload: 8.87ton
GVWR: 18ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 18°
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCK09L400-66
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.867L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1800N·m
Transmission Parameters
Transmission Model: S12MDT
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: Iron
Cargo box parameters
Cargo box length: 5m
Cargo box width: 2.35m
Cargo box height: 0.8m
Cab parameters
Cab: Medium-long semi-high roof
Cab suspension: 4-point mechanical suspension
Cab width: 2240mm
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: HDZ9.5t
Front axle allowable load: 6500kg
Frame Dimensions: 300/8+7/through doublemm
rear axle description: HDZ16t heavy-duty / double reduction single axle
rear axle allowable load: 11500kg
Axle ratio: 5.92
Leaf spring count: 12/12+9
Tire
Tire Size: 11.00R20 18PR
Tire Type: rear 4 large tread tires
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
Radio:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

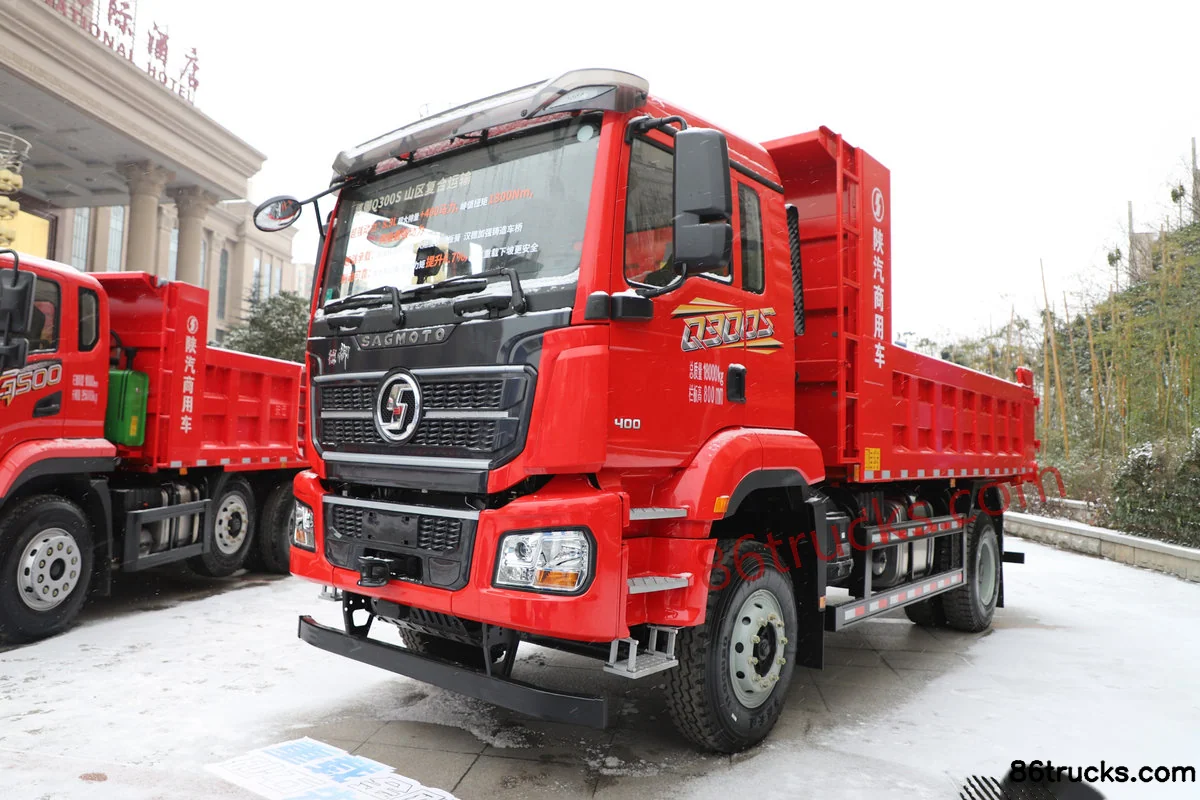

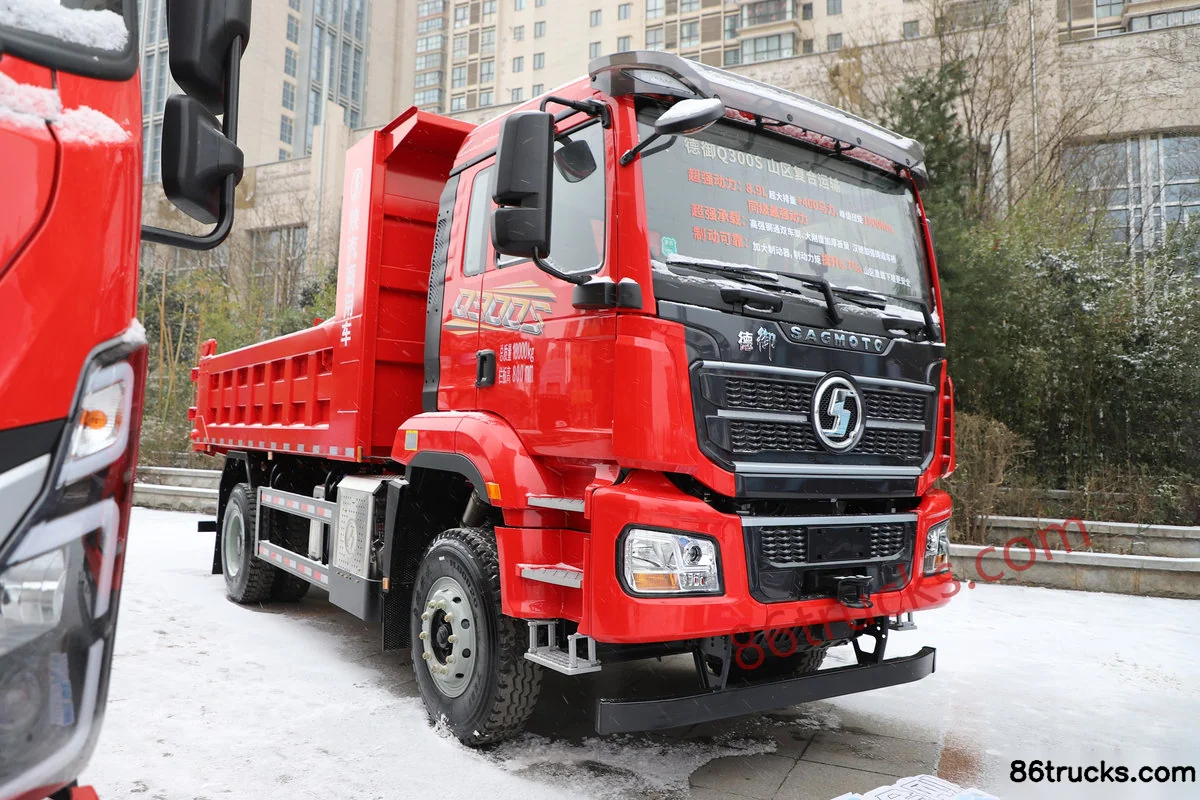

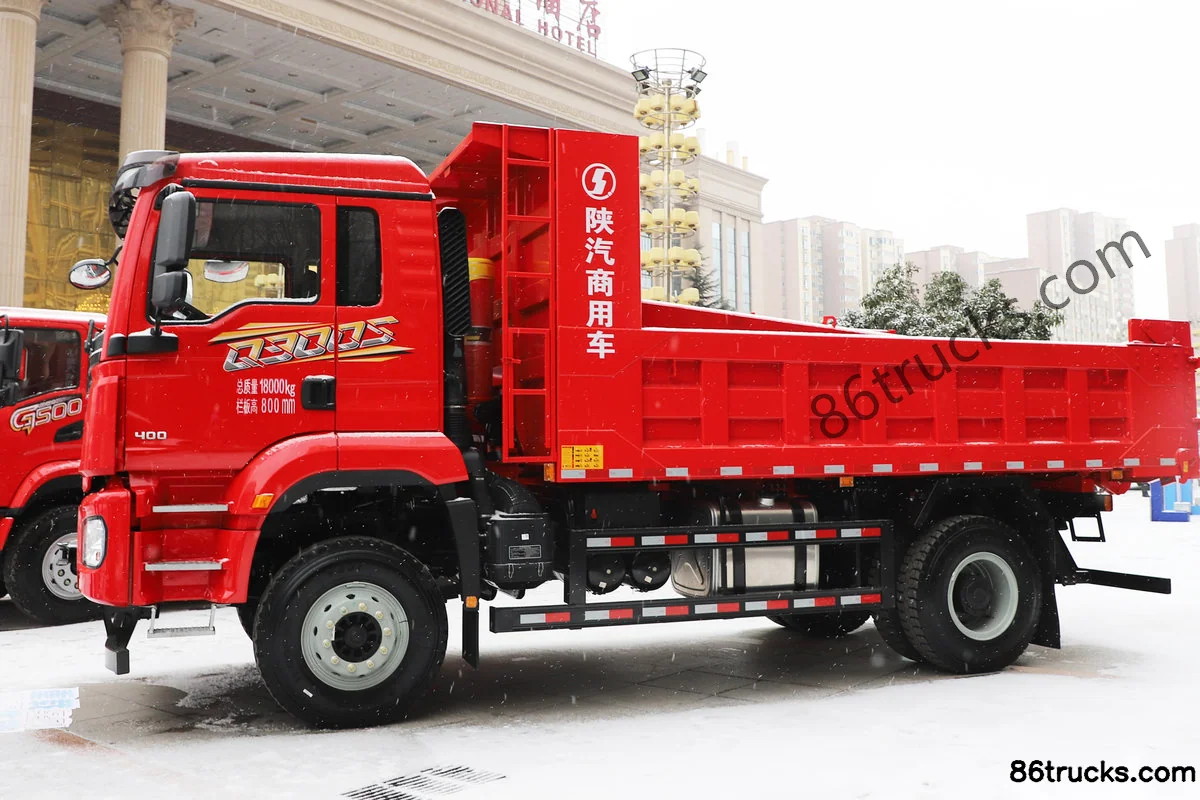

Exterior3

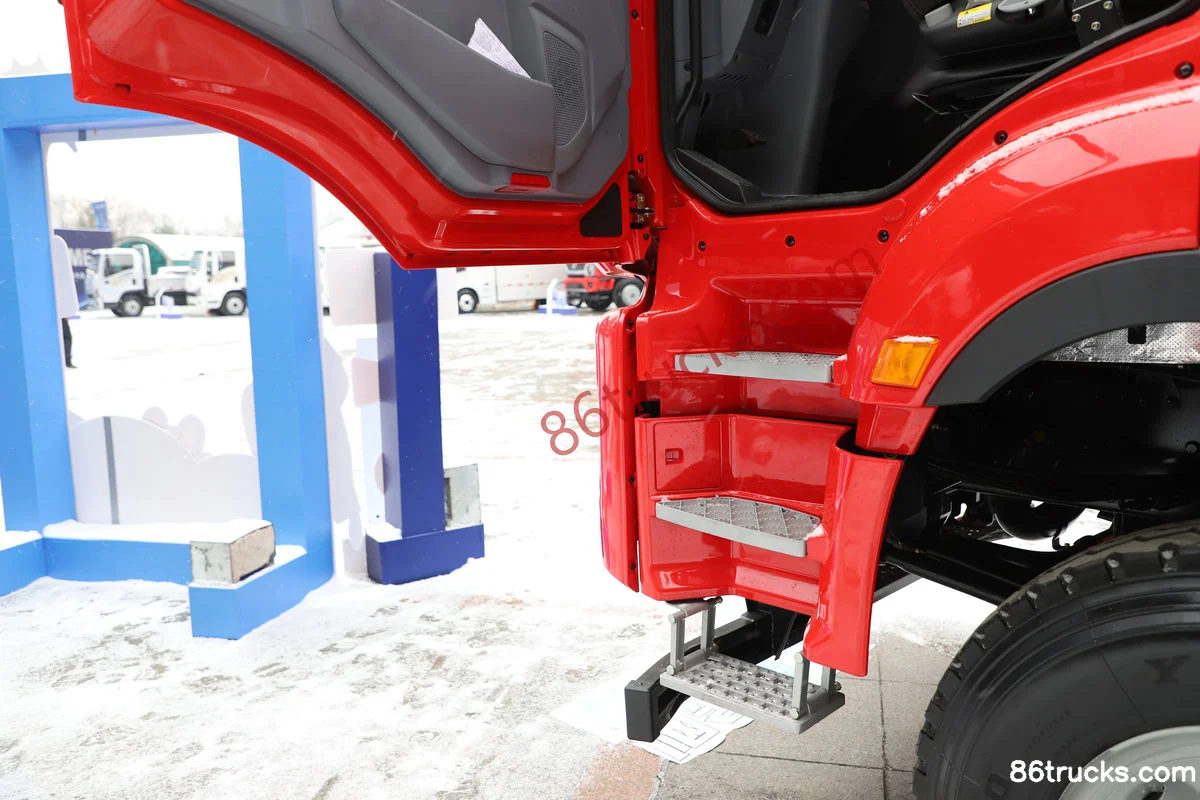

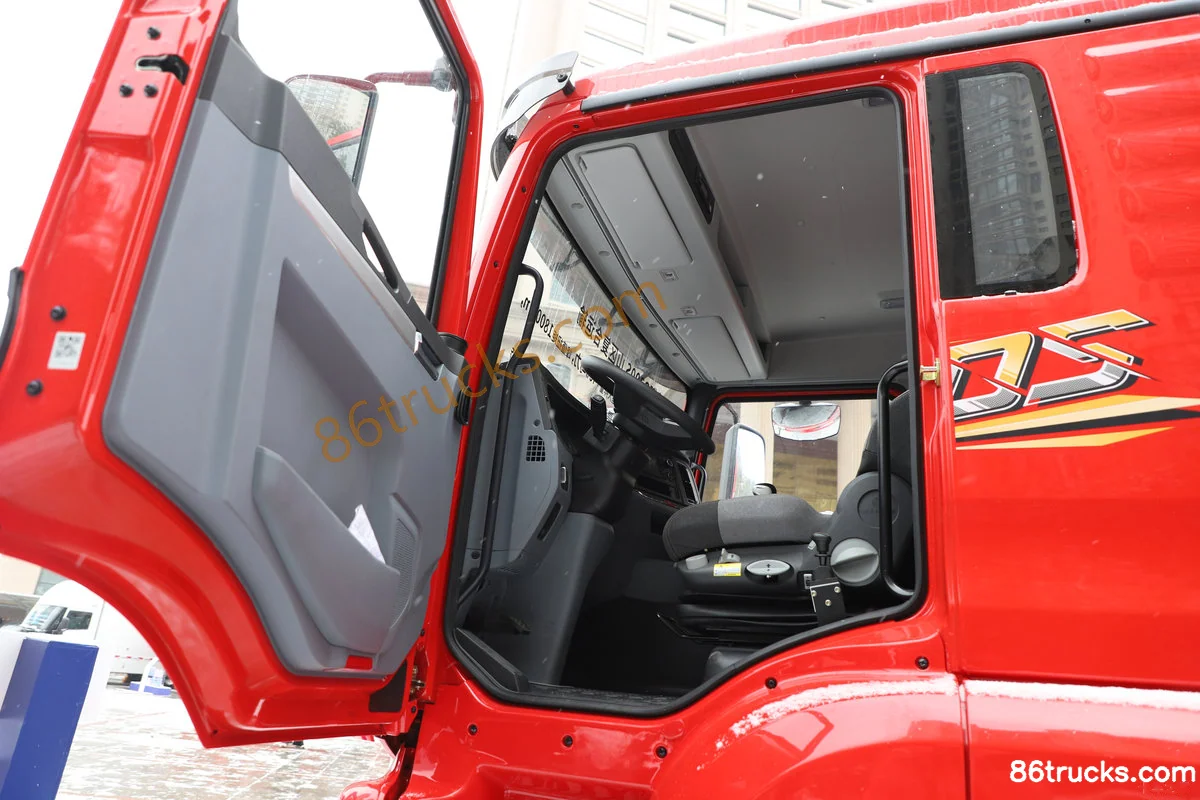

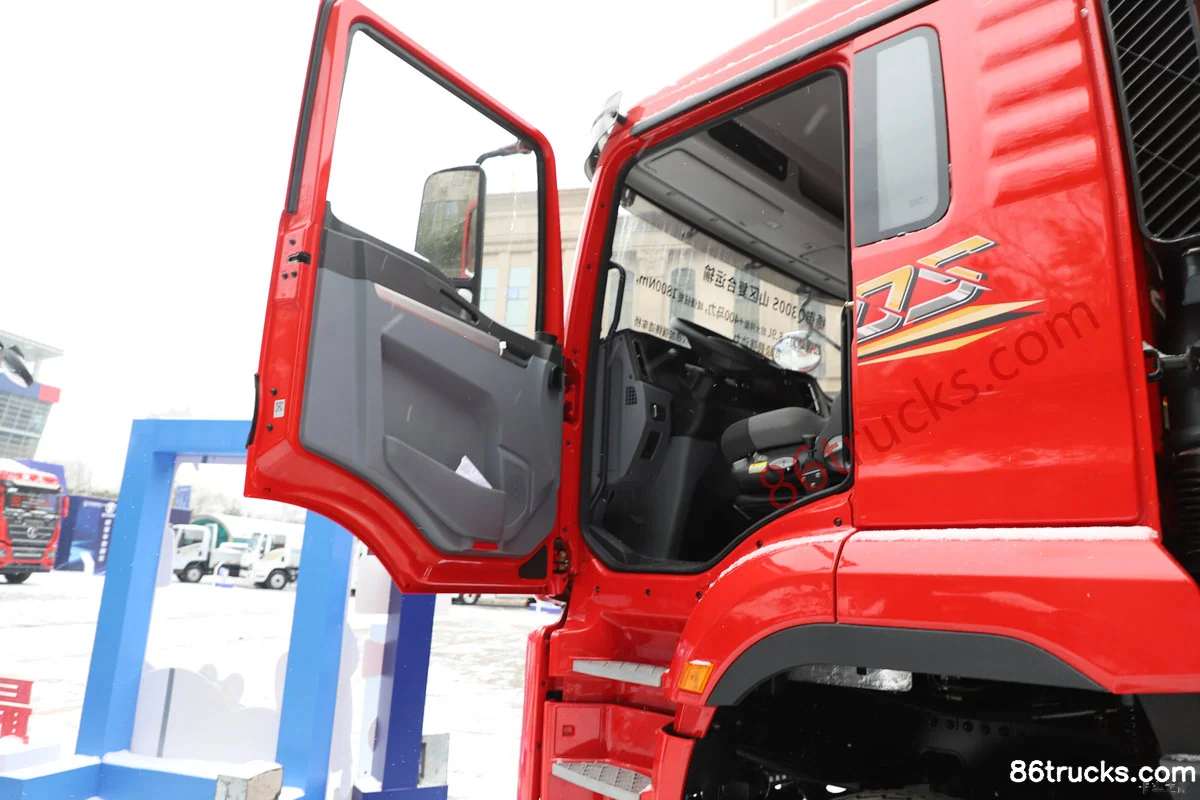

Cab3

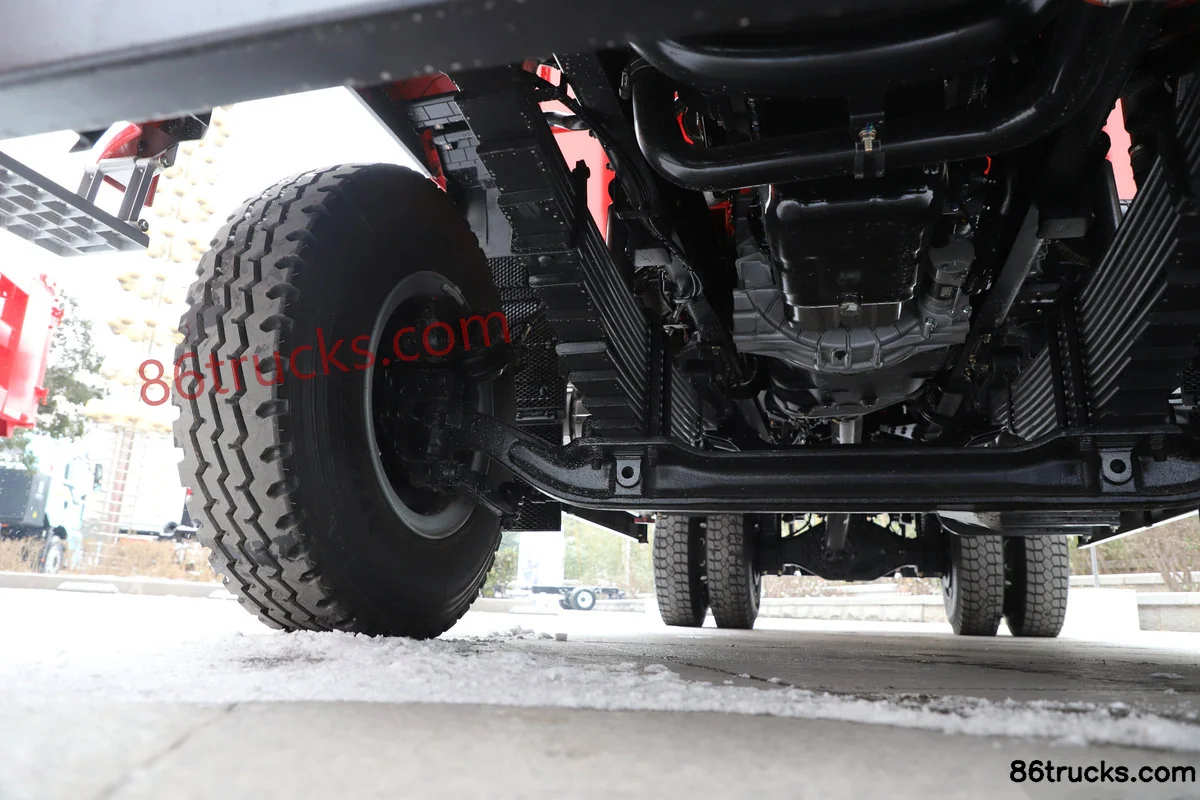

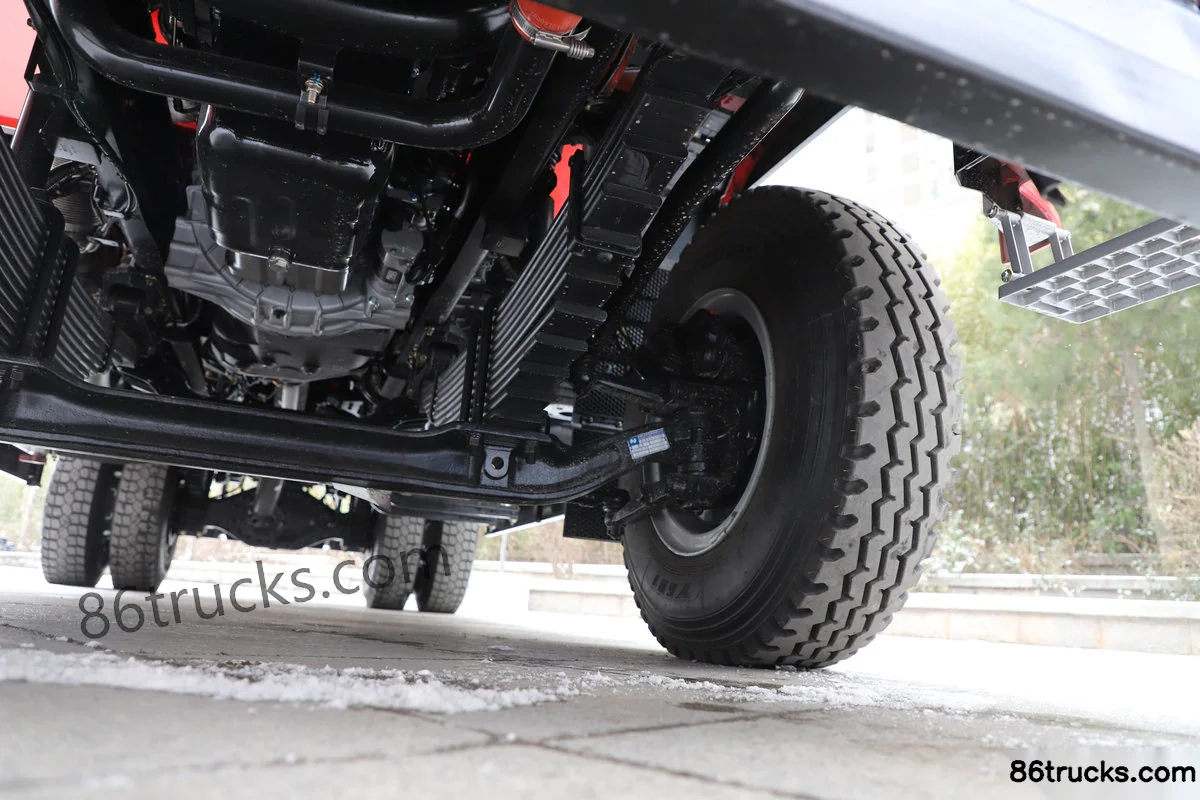

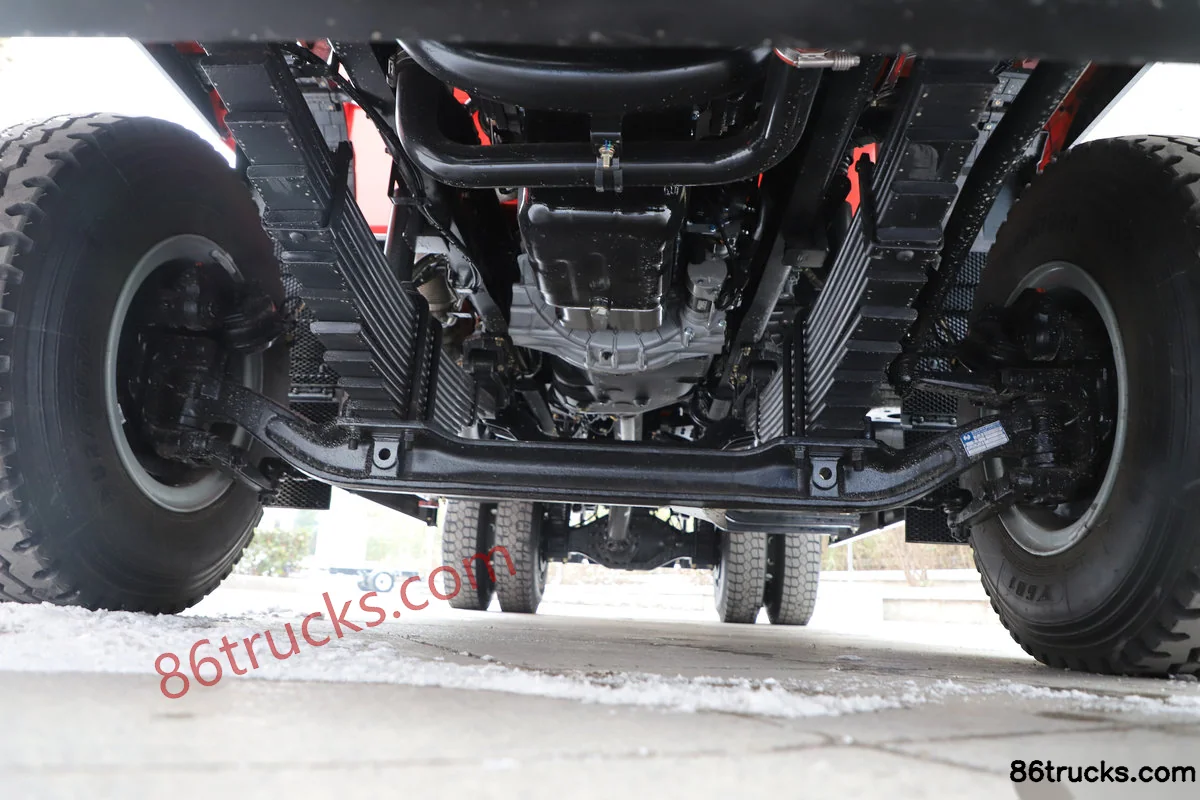

Chassis3

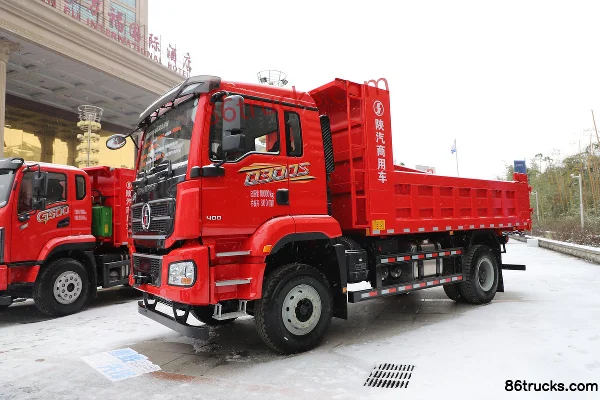

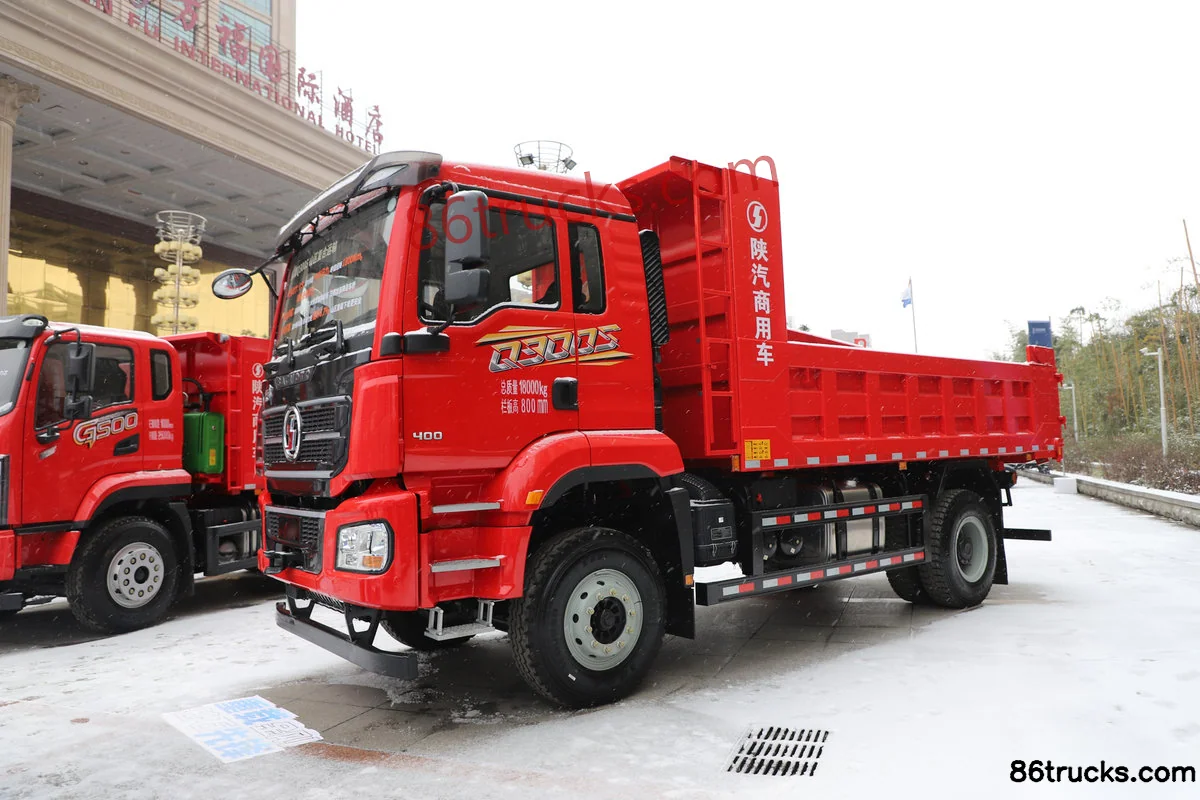

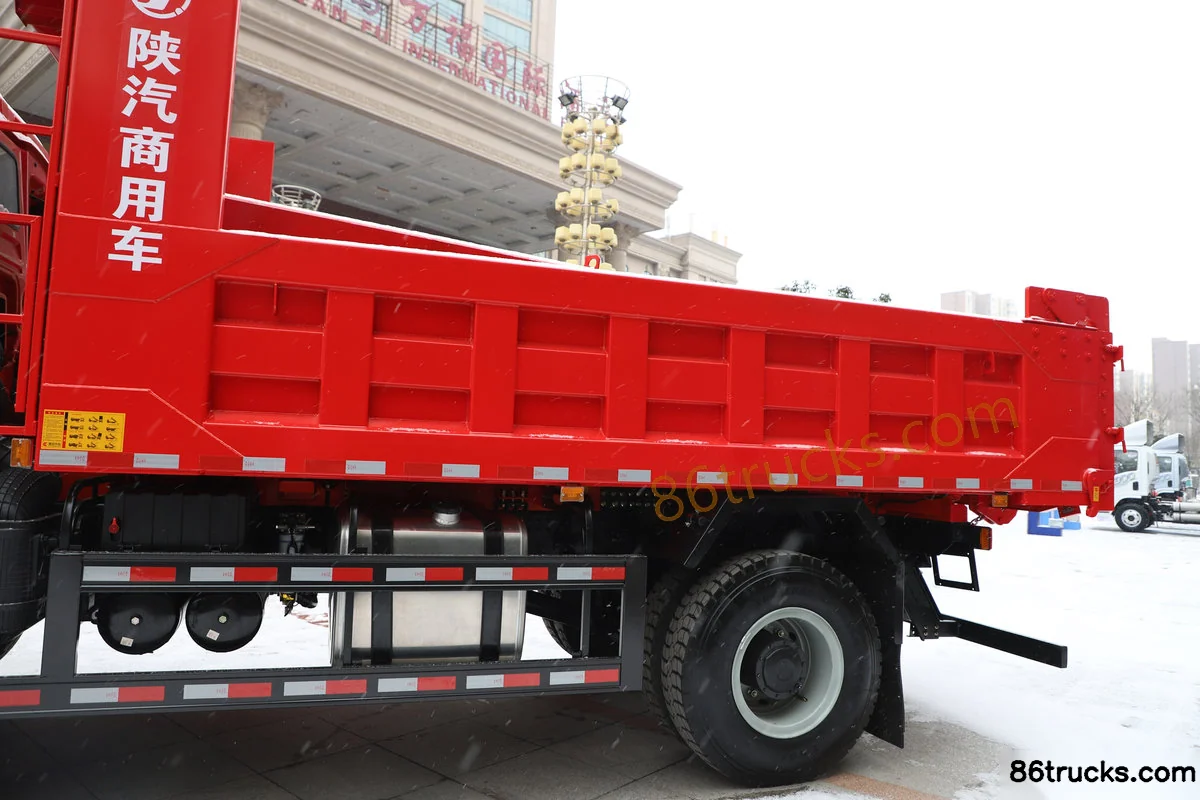

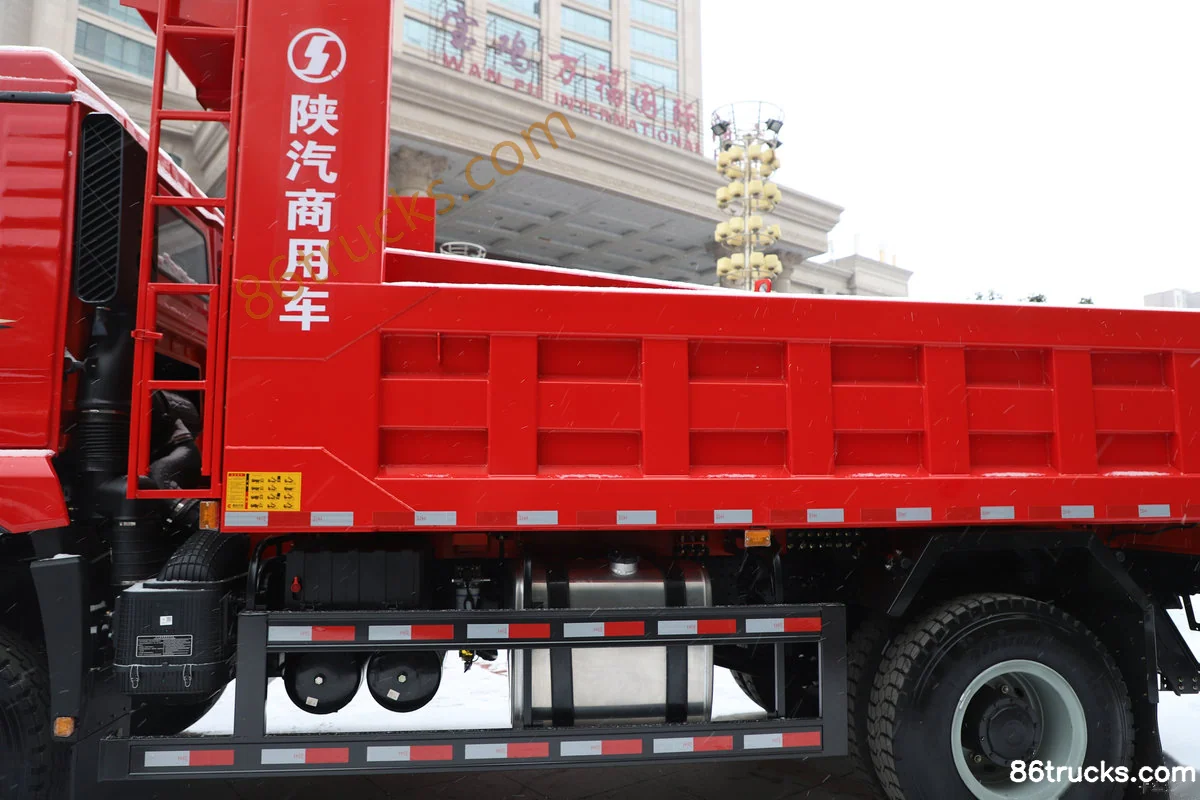

Body3

12 photos

FAQ

What is the export price of SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck, and what does it include?

SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck export reference is about From $38,819; MSRP is ¥27.95M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck?

Key specs of SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck: Drive: 4x2; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck suited for?

SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck differ from other variants in the same series?

SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck belongs to SHACMAN Commercial Vehicle Deyu Q300S heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Deyu Q300S Composite Edition 8.9L Diesel 400 hp 4X2(6 wheels) Fast Gear 12-Speed 5m Cabover Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
