Dongfeng F5 300hp 8X2(10 wheels) 6.2m Dump Truck
EXW
From $44,444
Export quote
Dongfeng F5 heavy truck Dump Trucks
Main model photos
61 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng F5 300hp 8X2(10 wheels) 6.2m Dump Truck | 8x2 / 300hp / China VI | From $44,444 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng F5 270 hp 8X2(10 wheels) 7.2 m Dump Truck | 8x2 / 270hp / China V | From $36,111 | |
| Dongfeng F5 240hp 6X2(8 wheels) 4.8m dump truck | 6x2 / 240hp / China V | ||
| Dongfeng F5 220hp 6X2(8 wheels) 4.8m dump truck | 6x2 / 220hp / China V | From $31,250 | |
| Dongfeng F5 185hp 4X2(6 wheels) 6.5m dump truck | 4x2 / 185hp / China V | From $22,917 | |
| Dongfeng F5 180hp 4X2(6 wheels) 6.5m dump truck (10-speed) | 4x2 / 180hp / China V | From $25,694 |
Dongfeng F5 270 hp 8X2(10 wheels) 7.2 m Dump Truck
EXW
From $36,111
Export quote

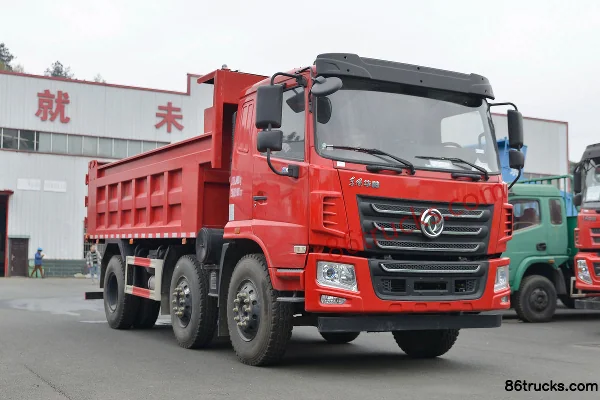

Dongfeng F5 240hp 6X2(8 wheels) 4.8m dump truck
EXW
Export quote
Dongfeng F5 220hp 6X2(8 wheels) 4.8m dump truck
EXW
From $31,250
Export quote
Dongfeng F5 185hp 4X2(6 wheels) 6.5m dump truck
EXW
From $22,917
Export quote
Dongfeng F5 180hp 4X2(6 wheels) 6.5m dump truck (10-speed)
EXW
From $25,694
Export quote
Series Specs
Basic Info
Model code (announced): EQ3319GL6D11 / EQ3319GLV / EQ3259GFV1 / EQ3259GFV2 / EQ3180GFV2 / EQ3319GLV1 / EQ3160GFV2 / EQ3318GFV / EQ3240GLV
Drive type: 8X2 / 6X2 / 4X2 / 8X4
Wheelbase: 1850+2800+1350 / 1850+3800+1300 / 1750+2800 / 5100 / 1760+3000 / 4500 / 1850+2600+1350 / 1760+2600 / 1850+2400+1300mm
Engine Model: WeichaiWP7.300E61 / YuchaiYC6A270-50 / YuchaiYC6JA240-50 / YuchaiYC6JA220-50 / YuchaiYC4EG185-50 / YuchaiYC6JA180-50 / WeichaiWP7.300E51 / YuchaiYC4EG220-50
Transmission Model: Fast Gear10JSD12B / Fast Gear10JSD120A / Fast Gear9JS119A / Fast Gear10JS90A-B / Fast Gear 8-speed / Fast Gear10JSD120B / Fast Gear8JS85E / Fast Gear10JSD140B
Rear Axle Ratio: 5.143 / 4.875 / 5.83 / 5.71 / 5.571 / 5.833
Cab length: 9.3 / 10.1 / 7.55 / 7.65 / 9 / 9.21 / 8.22 / 8.7 / 9.49 / 7.95 / 7.5 / 8.5m
Cab width: 2.36 / 2.5 / 2.55 / 2.4 / 2.48 / 2.45 / 2.35m
Cab height: 2.7 / 2.8 / 3.3 / 3.05 / 3.35 / 3 / 2.95m
Front track width: 1900/1900 / 1800/1800 / 1790/1790 / 1730/1730 / 1960 / 1860/1860 / 1920 / 1810/1810 / 1940/1940mm
rear track: 1750/1750 / 1900/1750 / 1755 / 1860 / 1800 / 1710 / 1900/1710mm
Curb Weight: 11.5 / 9.8 / 9.9 / 9.1 / 7.81 / 9.3 / 7.58 / 8.5ton
Rated payload: 19.305 / 21.005 / 14.805 / 15.605 / 9.995 / 21.505 / 8.125 / 19.37 / 15.805ton
GVWR: 31 / 24.9 / 18 / 15.9 / 24.5ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 22 / 17 / 23 / 20 / 25°
departure angle: 34 / 12 / 16 / 21 / 13 / 15 / 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Yuchai
Number of cylinders: 6 / 4cylinder
Displacement: 7.5 / 7.52 / 6.87 / 4.73 / 7.47L
Emission standard: China VI / China V
Max output power: 220 / 199 / 177 / 162 / 136 / 132 / 160kW
Max hp: 300 / 270 / 240 / 220 / 185 / 180Horsepower
Max torque: 1300 / 1100 / 950 / 860 / 700 / 1250 / 800N·m
Max torque speed: 1200-1600 / 1200-1800 / 1300-1800 / 1200-1700 / 1300-1700rpm
Rated speed: 2100 / 2300 / 2500rpm
Engine Type: CR+EGR+DOC+DPF+SCR / Vertical, inline, water-cooled, four-stroke / Vertical, inline, water-cooled, four-stroke, high-pressure common rail / Inline 6-cylinder, electronic high-pressure common rail, SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 9 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 6.2 / 7.2 / 4.8 / 6.5 / 6.8 / 5.8 / 5.2 / 6m
Cargo box width: 2.35 / 2.3 / 2.4 / 2.25 / 2.2m
Cargo box height: 1.5 / 0.8 / 0.6 / 1.2 / 0.9 / 1 / 1.3m
Cab parameters
Cab: Flat top / D913E / Semi-high roof cab / D913E / F5 new deluxe cab
fuel tank
Fuel tank material: aluminum alloy / Iron
Fuel tank capacity: 400 / 300 / 280L
FAQ
What kind of truck is Dongfeng Dongfeng F5 heavy truck Dump Trucks?
Dongfeng Dongfeng F5 heavy truck is an export-oriented Dump Trucks lineup with about 16 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng F5 heavy truck Dump Trucks?
Dongfeng F5 heavy truck Dump Trucks export reference is about $22,917 – $45,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng F5 heavy truck Dump Trucks cover?
Dongfeng F5 heavy truck Dump Trucks mainly covers: Drive: 4x2 / 6x2 / 8x2; Horsepower: 180 hp / 185 hp / 220 hp / 240 hp / 270 hp / 300 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng F5 heavy truck Dump Trucks?
For Dongfeng F5 heavy truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng F5 heavy truck Dump Trucks include?
Dongfeng F5 heavy truck Dump Trucks currently lists about 16 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng F5 heavy truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
