Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck

Export reference
From $25,694
MSRP ¥18.5M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.58ton
Wheelbase:: 4500mm
Tire Size:: 9.00R20,10.00R20
Rated payload: 8.125ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Rear-dump body

Overview

The Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck is a Medium-duty truck featuring 8.125t payload, 15.9t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA180-50 engine, 180 hp, China V emissions and Fast Gear transmission.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3160GFV2
Drive type: 4X2
Wheelbase: 4500mm
engine: YuchaiYC6JA180-50
transmission: Fast Gear8JS85E
Rear Axle Ratio: 5.71
Cab length: 8.22m
Cab width: 2.48m
Cab height: 3m
Front track width: 1920mm
rear track: 1800mm
Curb Weight: 7.58ton
Rated payload: 8.125ton
GVWR: 15.9ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 13°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 0.6m
Cab parameters
Cab: D913E
fuel tank
Fuel tank material: Iron
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10300kg
Axle ratio: 5.71
Leaf spring count: 9/10+8
Tire
Tire Size: 9.00R20,10.00R20
Number of tires: 6pcs
Control configuration
ABS:

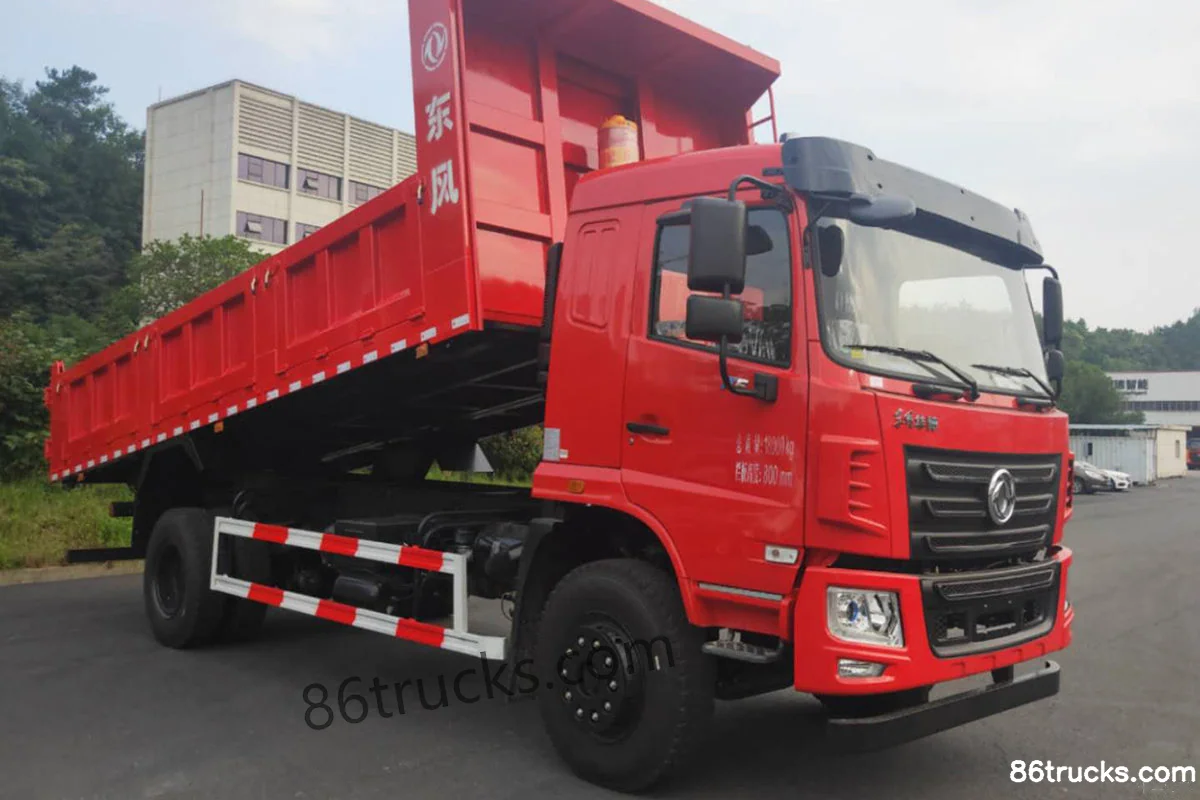

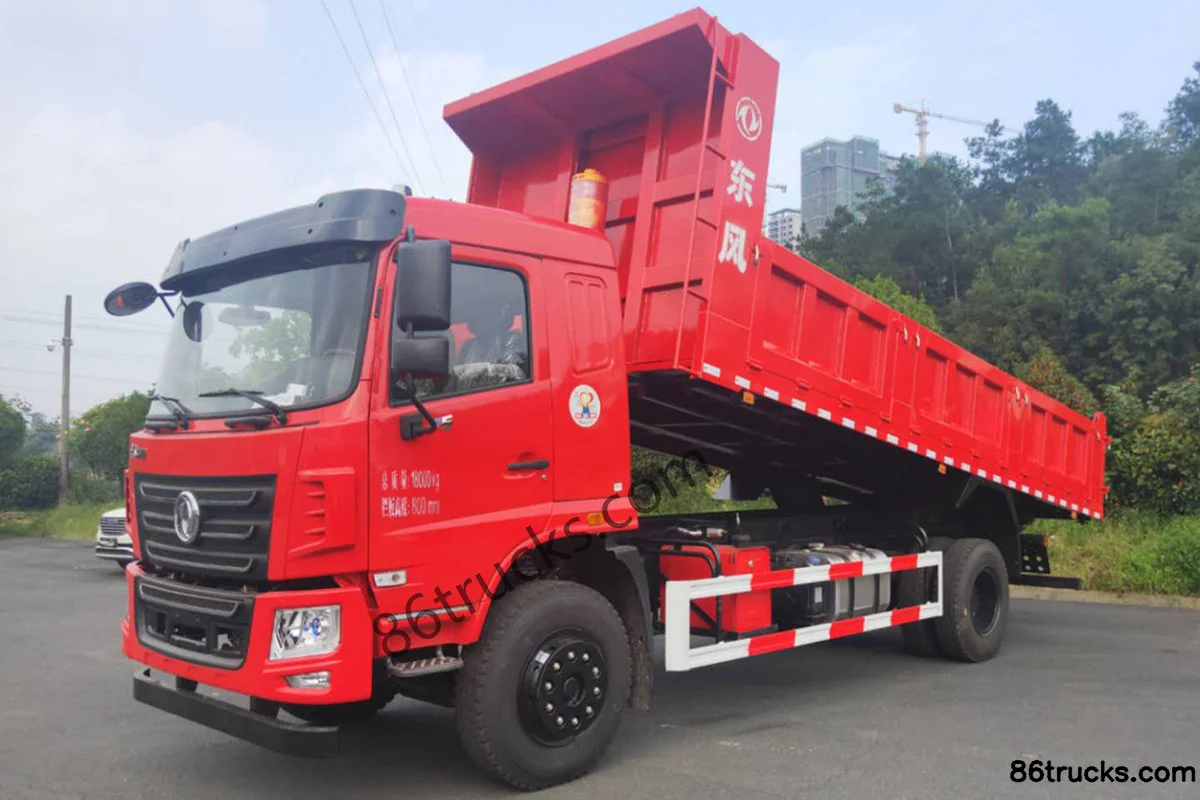

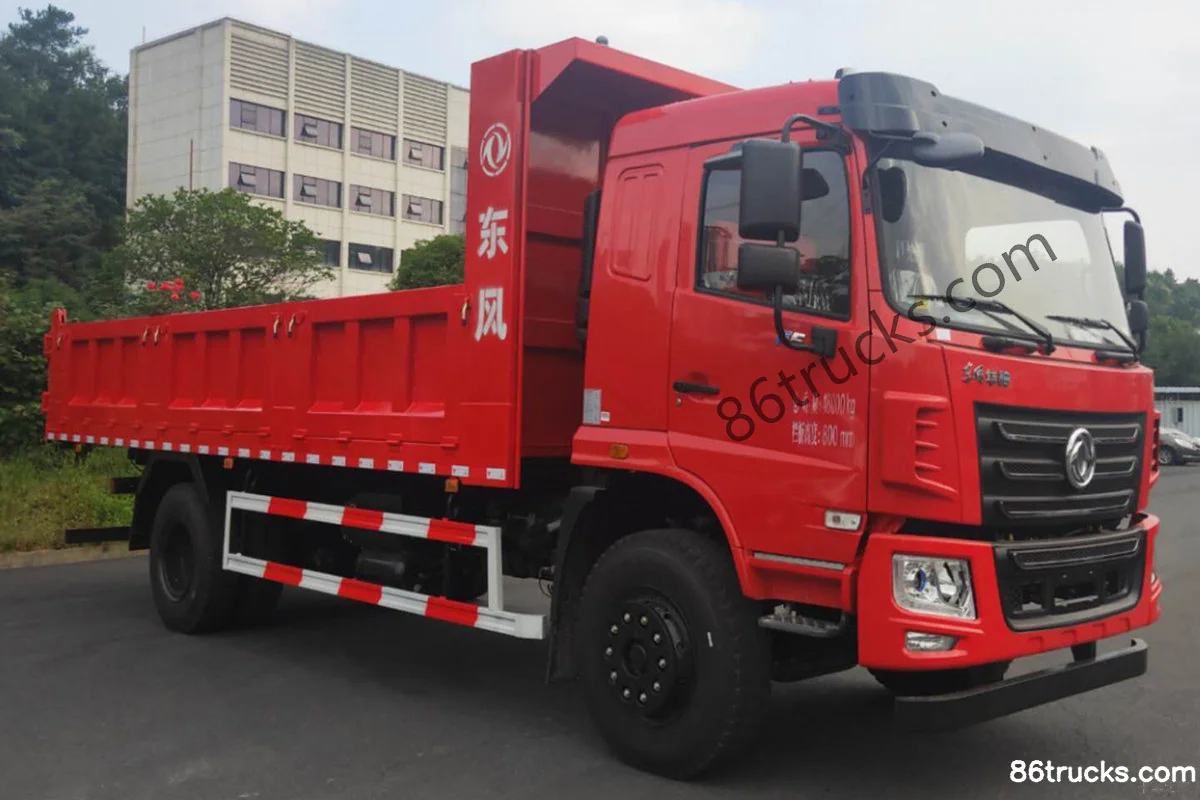

Photos

Exterior3

3 photos

FAQ

What is the export price of Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck, and what does it include?

Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck export reference is about From $25,694; MSRP is ¥18.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck?

Key specs of Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck suited for?

Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck differ from other variants in the same series?

Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck belongs to Dongfeng F5 heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng F5 180hp 4X2(6 wheels) 5.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
