Hyundai Heavy Industries R60-7 Crawler Excavator

Export reference
MSRP N/A
Model:: R60-7
Engine Model:: crawler excavator
Tonnage:: 6ton
Bucket capacity:: 0.21cubic meter
Machine dimensions:: 5.9×1.92×2.55mm
Track shoe width:: 400mm
Hyundai Heavy Industries R60-7 Crawler Excavator exterior
View more photos (3)
Operating weight: 5.85ton
Bucket type: backhoe
Fuel Tank Capacity: 120L
Product power: Conventional Power

Overview

The Hyundai Heavy Industries R60-7 Crawler Excavator is a excavator featuring 5.85ton GVW, backhoe bucket capacity, 120L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: R60-7
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 6ton
Bucket capacity: 0.21cubic meter
Operating weight: 5.85ton
Machine dimensions: 5.9×1.92×2.55mm
Track shoe width: 400mm
Track gauge: 1520mm
Rear Overhang Radius: 1650mm
Min ground clearance: 380cm
performance specs
Travel speed: 2.2-4.0km/h
Bucket digging force: 37.7kN
Arm Digging Force: 28.4kN
Oil capacity
Fuel Tank Capacity: 120L
hydraulic oil tank: 70L
Operating Range
Max digging radius: 6150mm
Max digging depth: 3820mm
Max digging height: 5780mm
Max unloading height: 4050mm
Max vertical digging depth: 3200mm
Engine parameters
Engine Model: YANMARYanma 4TNV94L
Max output power: 40kW

Photos

Exterior3

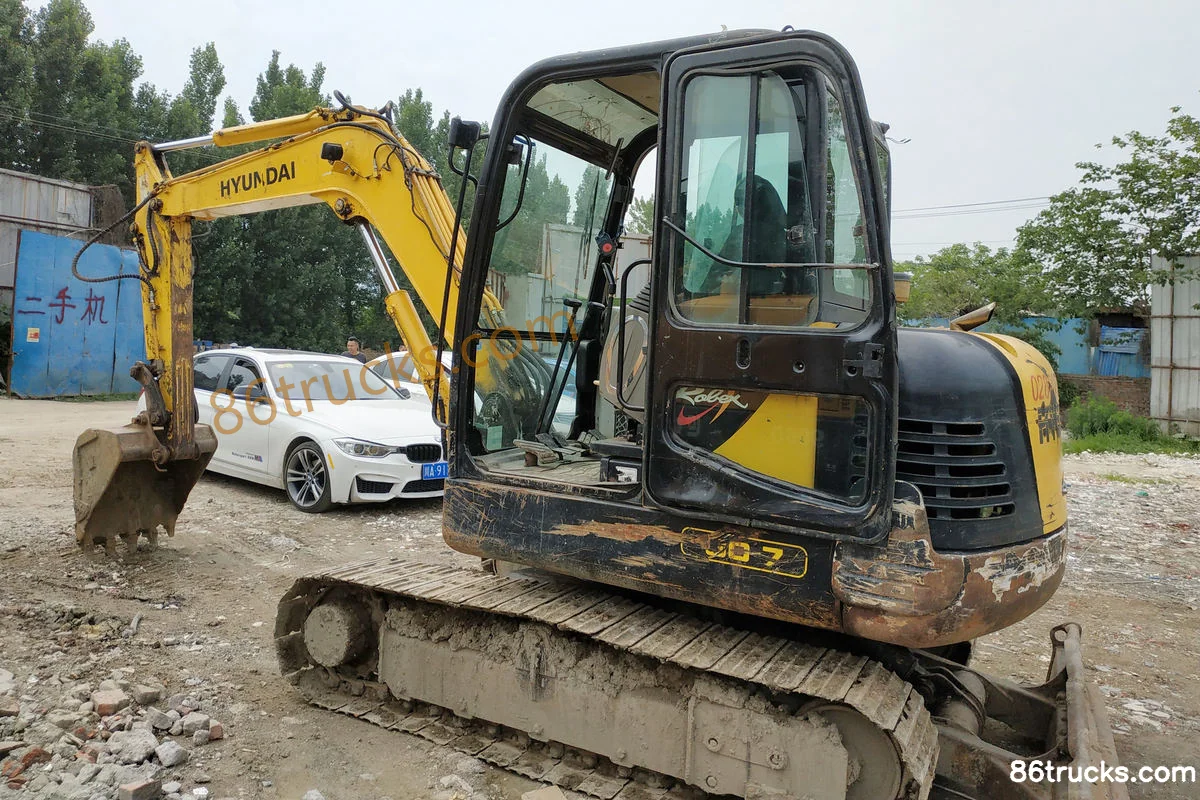

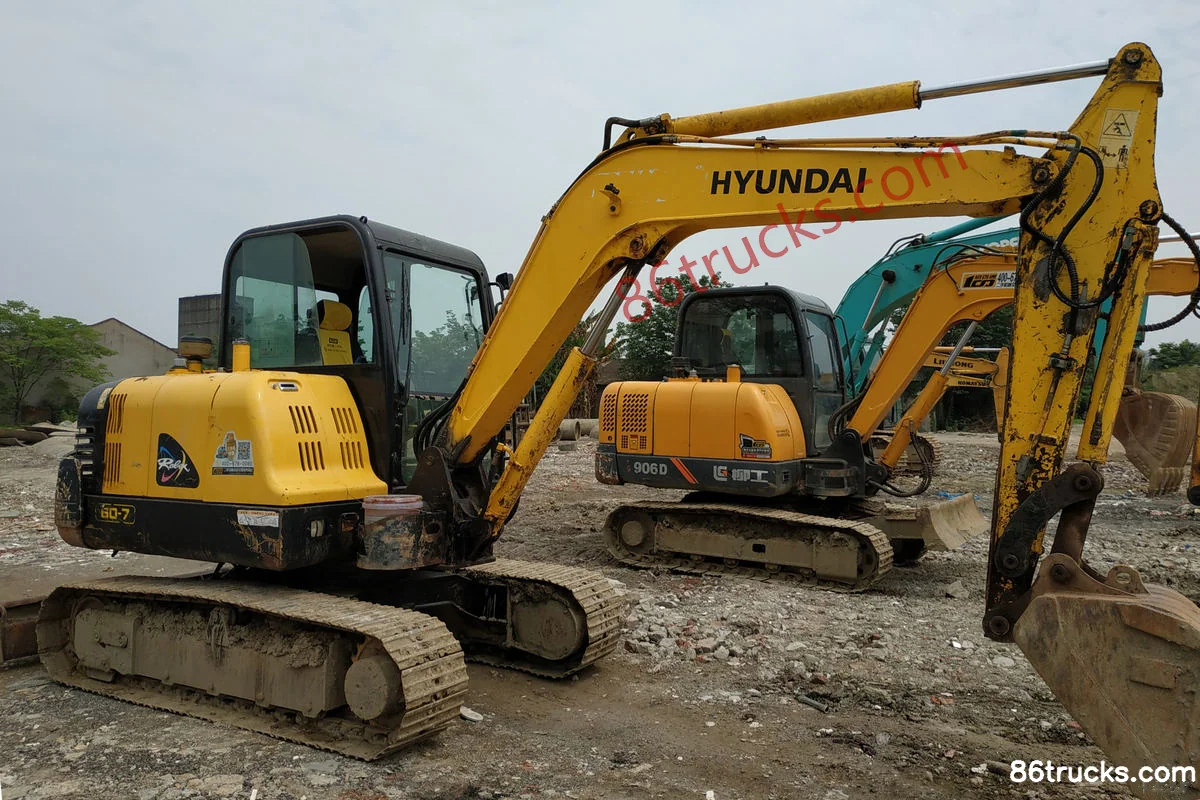

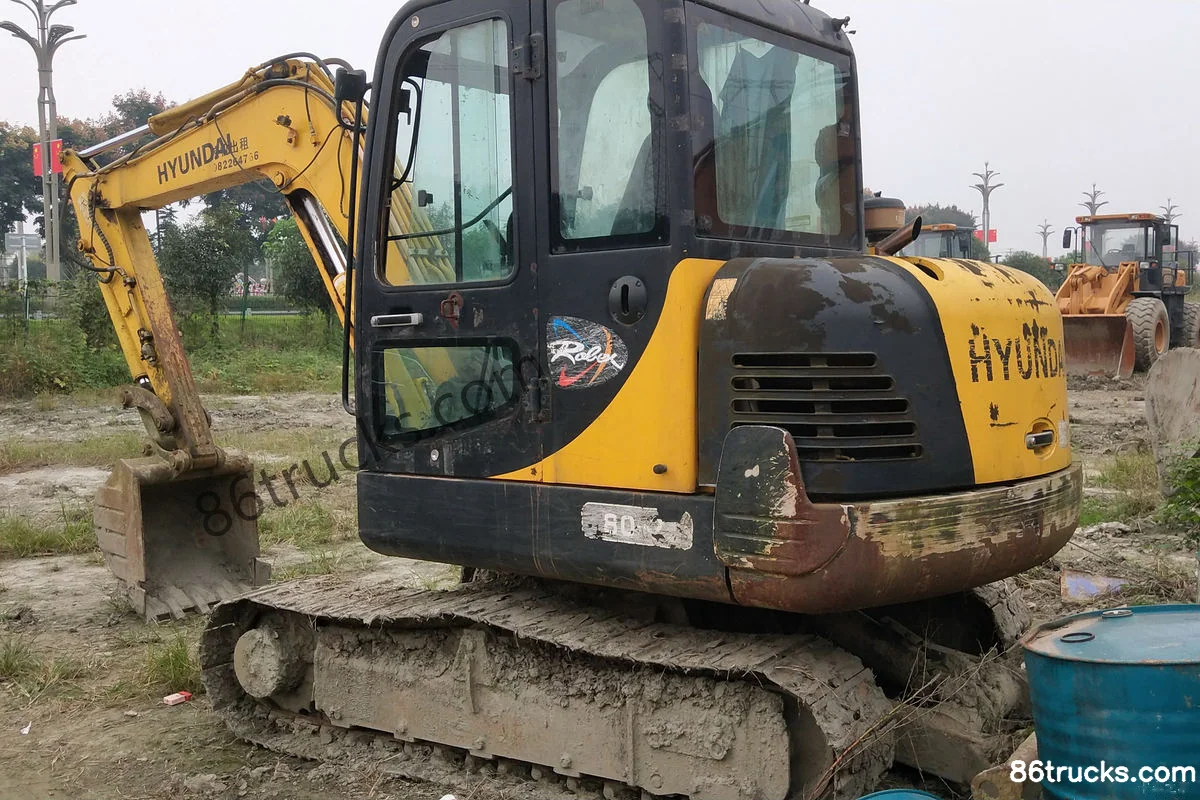

Hyundai Heavy Industries R60-7 Crawler Excavator Exterior (1) | 86Trucks Hyundai Heavy Industries R60-7 Crawler Excavator Exterior (2) | 86Trucks Hyundai Heavy Industries R60-7 Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Hyundai Heavy Industries R60-7 Crawler Excavator suited for?

Hyundai Heavy Industries R60-7 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Hyundai Heavy Industries R60-7 Crawler Excavator differ from other variants in the same series?

Hyundai Heavy Industries R60-7 Crawler Excavator belongs to Hyundai Heavy Industries Hyundai Heavy Industries Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hyundai Heavy Industries R60-7 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hyundai Heavy Industries R60-7 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
