KOMATSU PC200-7 Crawler Excavator

Export reference
MSRP N/A
Model:: PC200-7
Engine Model:: crawler excavator
Tonnage:: 20ton
Bucket capacity:: 0.8cubic meter
Arm Length:: 1840mm
Machine dimensions:: 9.48×3×2.985mm
Operating weight: 20.253ton
Bucket type: backhoe
Fuel Tank Capacity: 400L
Product power: Conventional Power

Overview

The KOMATSU PC200-7 Crawler Excavator is a excavator featuring 20.253ton GVW, backhoe bucket capacity, 400L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: PC200-7
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 20ton
Operating weight: 20.253ton
Bucket capacity: 0.8cubic meter
Arm Length: 1840mm
Machine dimensions: 9.48×3×2.985mm
Track shoe width: 600mm
Rear Overhang Radius: 3270mm
hydraulic system
Max flow of main pump: 2*214L/min
travel hydraulic circuit: 37.3Mpa
Swing Hydraulic Circuit: 28.9Mpa
performance specs
Travel speed: 12.4km/h
Bucket digging force: 149kN
Arm Digging Force: 145kN
Oil capacity
Fuel Tank Capacity: 400L
coolant: 22.4L
hydraulic oil tank: 143L
Engine Oil Capacity: 24L
Operating Range
Max digging radius: 9380mm
Max digging depth: 5380mm
Max digging height: 9800mm
Max unloading height: 6890mm
Engine parameters
Engine Model: KOMATSUKomatsu SAA6D102E-2
Max output power: 107kW

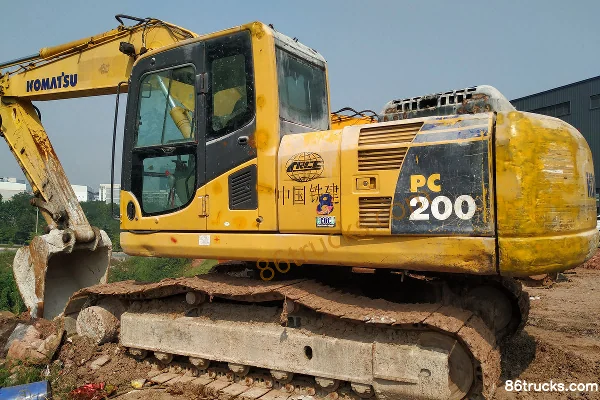

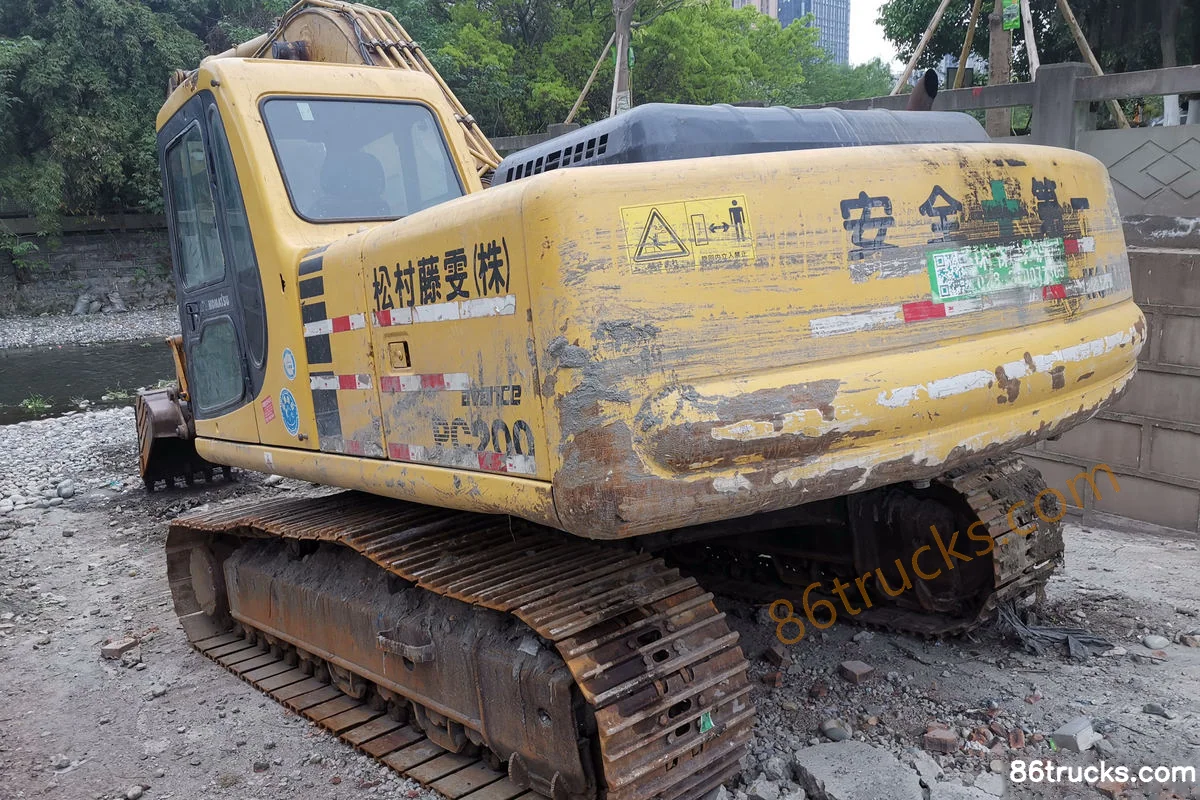

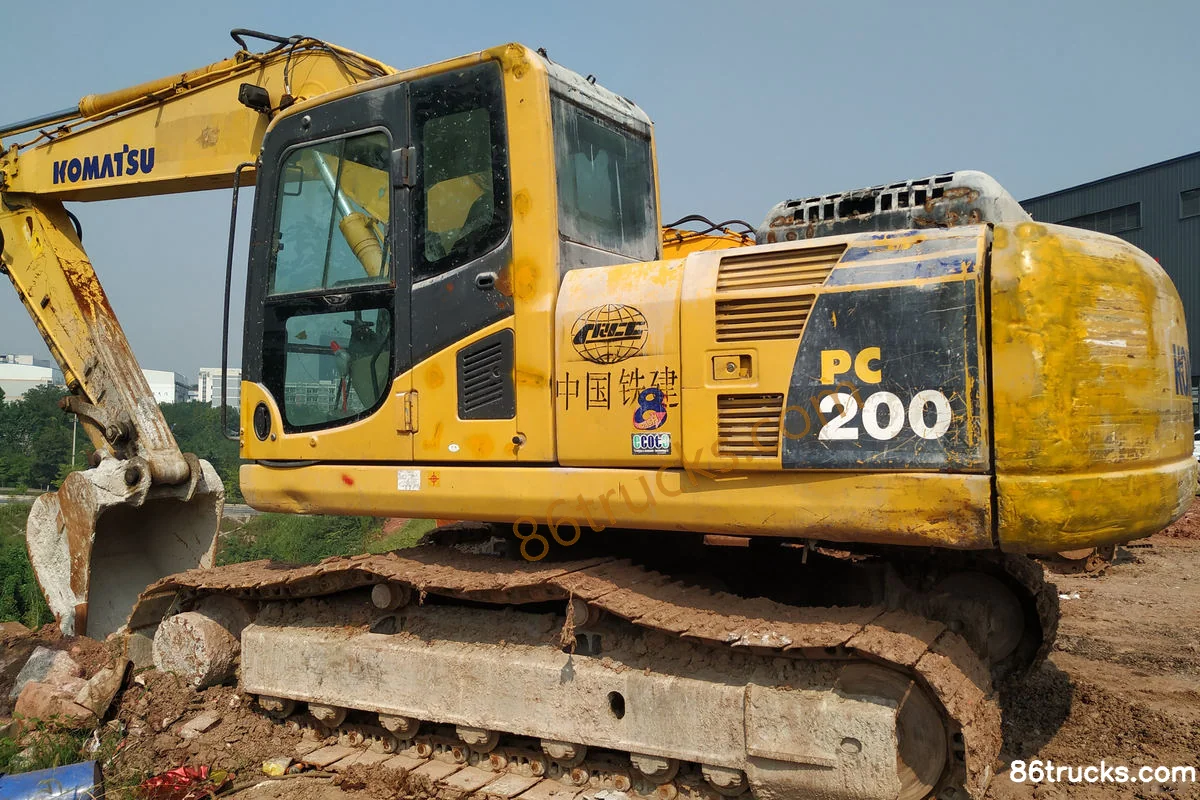

Photos

Exterior3

3 photos

FAQ

What transport jobs is KOMATSU PC200-7 Crawler Excavator suited for?

KOMATSU PC200-7 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does KOMATSU PC200-7 Crawler Excavator differ from other variants in the same series?

KOMATSU PC200-7 Crawler Excavator belongs to KOMATSU KOMATSU Crawler Excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for KOMATSU PC200-7 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export KOMATSU PC200-7 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
