ZF ZF16S2330TD 16-speed Manual Transmission

Export reference

MSRP N/A

1st gear ratio:: 16.41

2nd gear ratio:: 13.8

3rd gear ratio:: 11.28

ZF ZF16S2330TD 16-speed Manual Transmission exterior

View more photos (3)

Transmission Model: ZF16S2330TD

Transmission Brand: ZF

Max input torque: 2300N·m

Overview

The ZF ZF16S2330TD 16-speed Manual Transmission is a parts product with spec ZF16S2330TD.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters

Transmission Brand: ZF

Transmission series: ZF Ecosplit 16-speed series

Max input torque: 2300N·m

1st gear ratio: 16.41

2nd gear ratio: 13.8

3rd gear ratio: 11.28

4th gear ratio: 9.49

5th gear ratio: 7.76

6th gear ratio: 6.53

7th gear ratio: 5.43

8th gear ratio: 4.57

Reverse Gear 1 Ratio: 15.36

Transmission weight: 319kg

Transmission oil capacity: 13L

9th gear ratio: 3.59

10-speed gear ratio: 3.02

11-speed gear ratio: 2.47

12-speed gear ratio: 2.08

13-speed gear ratio: 1.7

14-speed gear ratio: 1.43

15-speed gear ratio: 1.19

16-speed gear ratio:

Reverse Gear 2 Ratio: 12.92

Number of gears: 16Gear

Transmission Model: ZF16S2330TD

shift method: Manual

Forward gears: 16Gear

Number of Reverse Gears: 2pcs

Photos

Exterior3

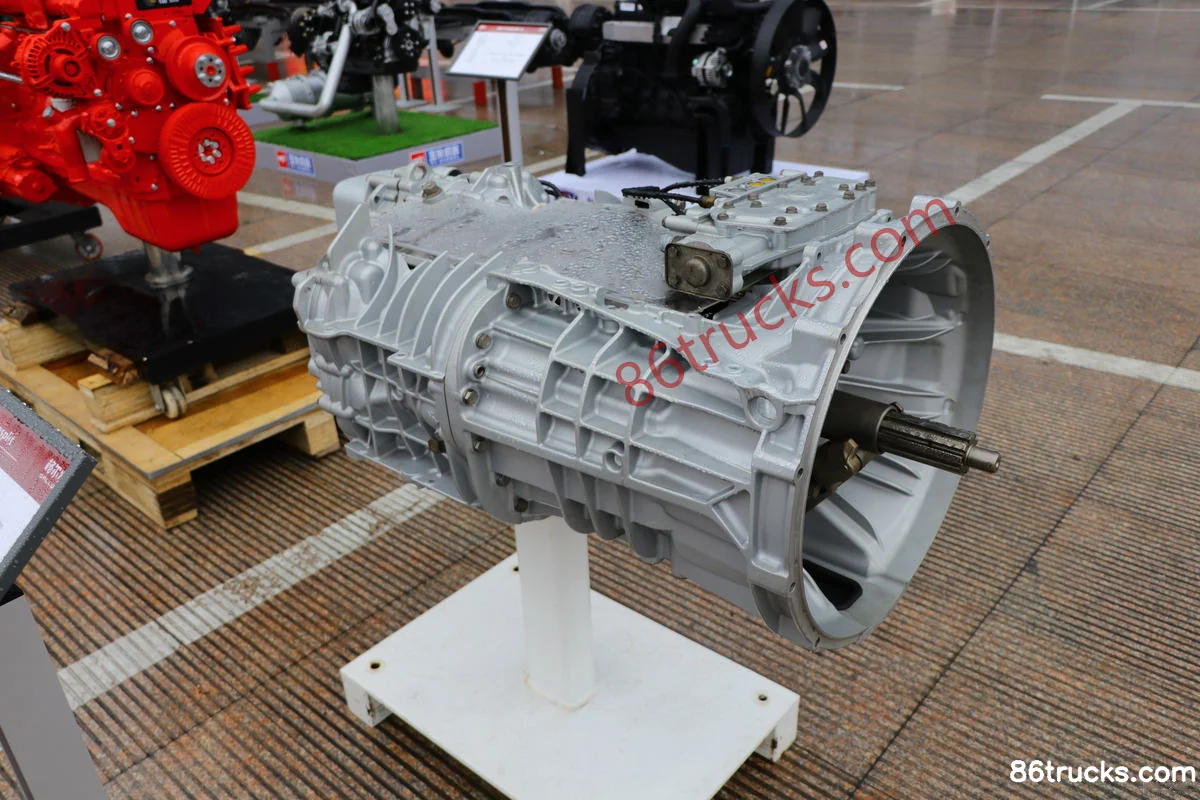

ZF ZF16S2330TD 16-speed Manual Transmission Exterior (1) | 86Trucks

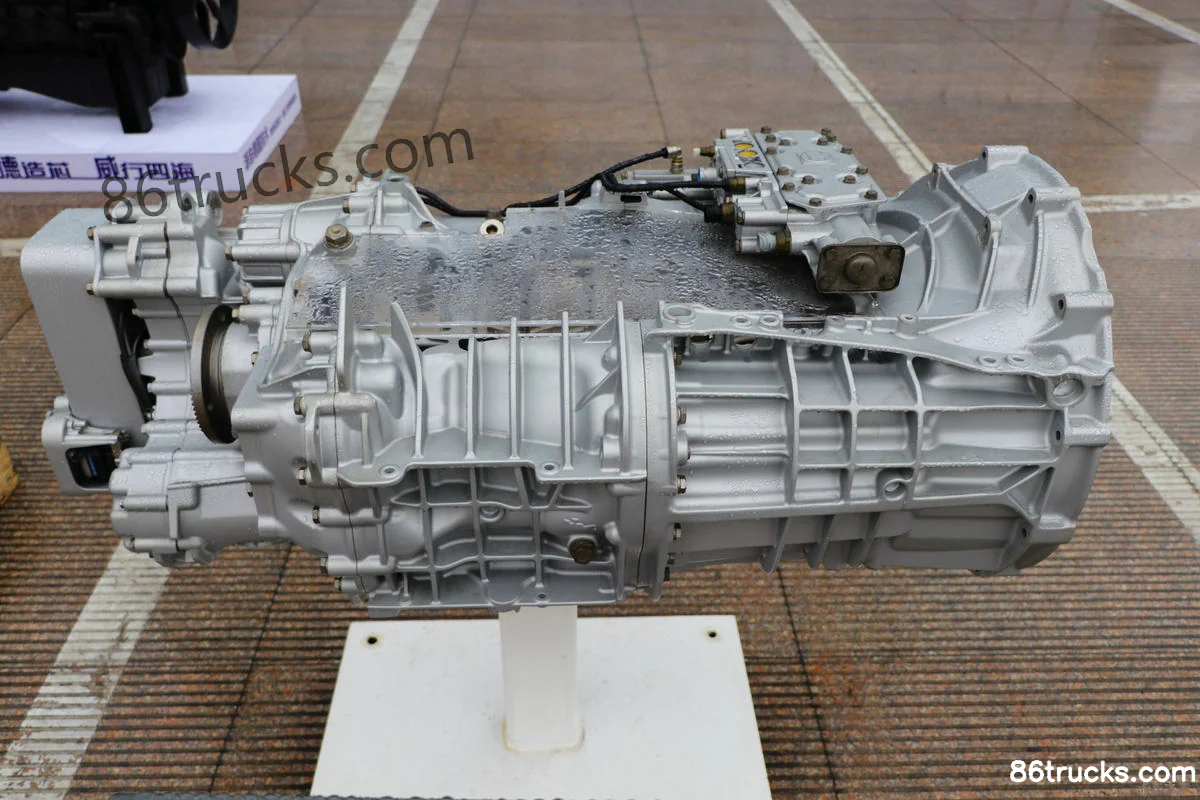

ZF ZF16S2330TD 16-speed Manual Transmission Exterior (2) | 86Trucks

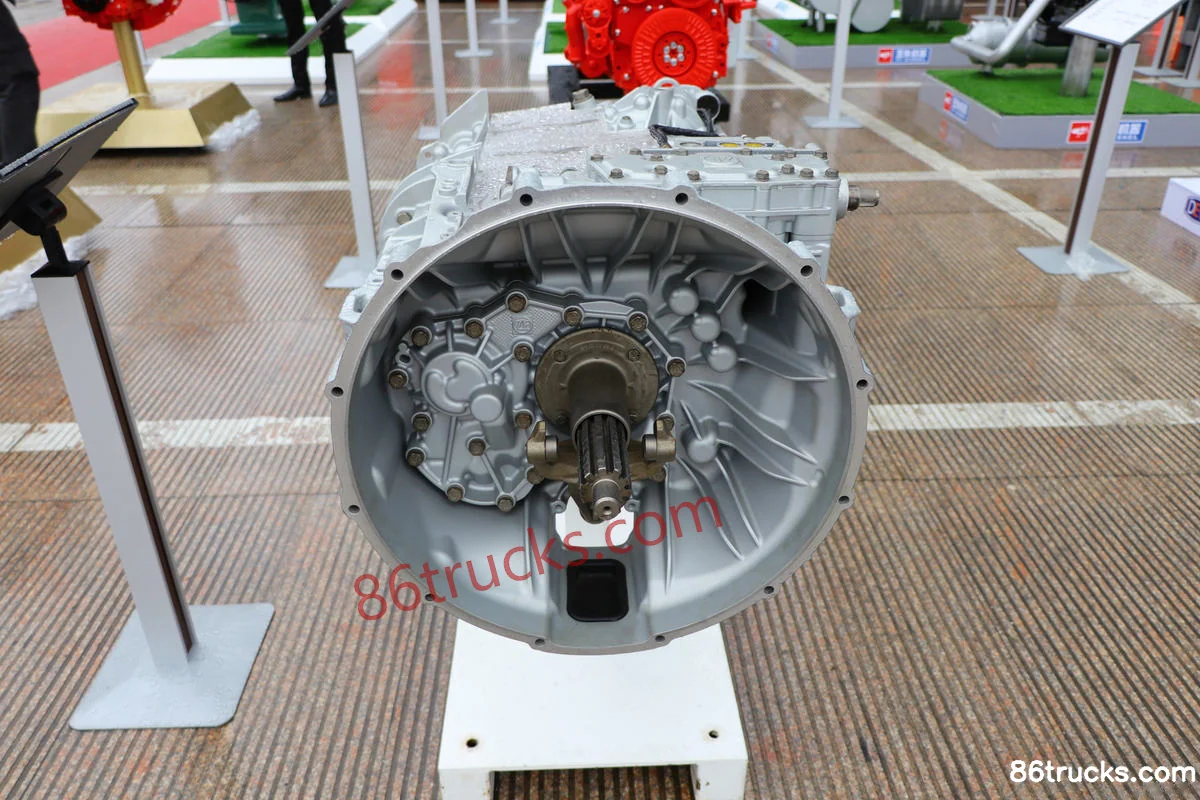

ZF ZF16S2330TD 16-speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is ZF ZF16S2330TD 16-speed Manual Transmission suited for?

Match ZF ZF16S2330TD 16-speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does ZF ZF16S2330TD 16-speed Manual Transmission differ from other variants in the same series?

ZF ZF16S2330TD 16-speed Manual Transmission belongs to ZF Ecosplit 16-Speed Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ZF ZF16S2330TD 16-speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ZF ZF16S2330TD 16-speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
