Qichi 9TS1500 (13.30) 9-speed manual transmission
EXW
Export quote
Qichi 6-speed series transmission
Main model photos
7 photos
Models
On sale

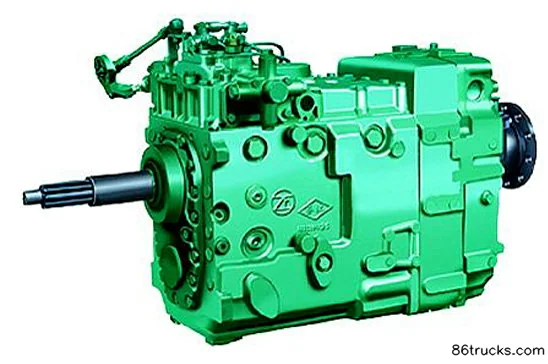

Qichi 9TS1300 (13.04) 9-speed manual transmission
EXW
Export quote
Qichi 9TS1502 Overdrive (0.789) 9-speed manual transmission
EXW
Export quote

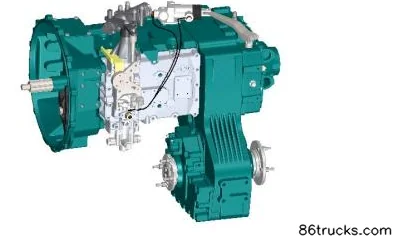

Qichi 9TS1502 Overdrive (0.85) 9-speed manual transmission
EXW
Export quote
Qichi 9TS1500 Overdrive 9-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Qichi
Transmission series: 9-Speed Series
Features: Truck-specific, 9TS1502 is a fully synchronized 9-speed combined mechanical transmission with integrated transfer case, torque split ratio 1:1.83 or 1:3.35. / Truck-specific, 9TS1502 is a fully synchronized 9-speed combined mechanical transmission with integrated transfer case, torque split ratio 1:1.83 or 1:3.35 / Truck-specific, 9TS1500 is a fully synchronized 9-speed combined mechanical transmission. / Truck-specific, 9TS1302 is a fully synchronized 9-speed combined mechanical transmission with integrated transfer case, torque split ratio 1:1.83 or 1:3.35 / Truck-specific, 9TS1302 is a fully synchronized 9-speed combined mechanical transmission with integrated transfer case, torque split ratio 1:1.83 or 1:3.35. / Truck-specific, 9TS1300 is a fully synchronized 9-speed combined mechanical transmission. / Consists of a three-shaft fixed-shaft main transmission and planetary gear auxiliary transmission with integrated transfer case, transmission has nine forward gears (including one crawler gear) and one reverse gear, transfer case torque split ratio is 1:1.83 or 1:3.35. / Full-synchronizer 9-speed compound manual transmission, consisting of a three-shaft countershaft main transmission and a planetary gear auxiliary transmission, with nine forward gears (including one crawler gear) and one reverse gear / The synchronizer-type transmission consists of a three-shaft countershaft 5-speed main transmission and a rear-mounted 2-speed planetary auxiliary transmission. It has 9 forward gears and 1 reverse gear. All main transmission gears are constant-mesh helical gears with Dachi wide-profile modified teeth, large root fillet, ground tooth flanks, and heavy shot peening.
Matching Range: Suitable for China V and China IV dump trucks, heavy-duty trucks, tractor trucks, cranes, etc. / For cargo trucks, tractor trucks, buses, or other special vehicles with GVW 15–60 tons / Suitable for various heavy dump trucks, truck cranes, etc. / For cargo trucks, tractor trucks, buses, or other special vehicles with GVW 15–40/60 tons
Max input torque: 1500 / 1300 / 1250N·m
1st gear ratio: 13.3 / 13.04 / 11.08 / 12.81 / 9.73 / 4.743 / 13.33
2nd gear ratio: 9.92 / 9.73 / 7.26 / 7.73 / 6.38 / 8.48 / 3.499 / 8.66
synchronizer: Yes
Low Gear 1: 9.925
3rd gear ratio: 8.65 / 8.48 / 5.3 / 5.22 / 4.65 / 6.04 / 2.55 / 6.18 / 6.074
4th gear ratio: 6.5 / 6.37 / 3.5 / 3.43 / 4.38 / 1.897 / 4.48 / 4.39
5th gear ratio: 6.16 / 6.04 / 2.74 / 2.77 / 2.5 / 3.43 / 1.387 / 3.5 / 3.51
Low Gear 2: 6.497
6th gear ratio: 4.74 / 4.65 / 2.12 / 2.25 / 1.85 / 2.47 / 1.02 / 2.53 / 1.86
7th gear ratio: 4.39 / 4.3 / 1.55 / 1.52 / 1.36 / 1.76 / 0.745 / 1.8
8th gear ratio: 3.5 / 3.43 / 1.02 / 1 / 1.28 / 1.37 / 1.31
Reverse Gear 1 Ratio: 12.01 / 11.77 / 13.4 / 11.57 / 12 / 12.33 / 12.03 / 11.7
Transmission weight: 310 / 490 / 298kg
9th gear ratio: 3.5 / 3.43 / 0.789 / 0.85 / 0.73 / 1 / 1.02
Transmission oil capacity: 13 / 20L
10-speed gear ratio: 2.58 / 2.53
11-speed gear ratio: 2.52 / 2.47
Odometer drive ratio: 1.545/2.0 (secondary drive unit can be added per customer request) / Mechanical: 1/545 (secondary drive can be fitted as required); Electronic: 6
12-speed gear ratio: 1.9 / 1.86
13-speed gear ratio: 1.93 / 1.89
14-speed gear ratio: 1.39 / 1.36
15-speed gear ratio: 1.31 / 1.28
16-speed gear ratio: 1.02 / 1
Reverse Gear 2 Ratio: 11.83 / 11.6
18-speed gear ratio: 0.74 / 0.73
Control type: manual remote control / Dual H control / FARIZON single-lever manual control, also dual-lever or dual-flex-cable FARIZON control
Number of gears: 9Gear
shift type: Manual
Transmission Model: 9TS1500 / 9TS1300 / 9TS1502 / 9TS1302 / QJ1319 / 5S-111GP / 5S-136GP / 5S-150GP
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
FAQ
What kind of truck is Qichi Qichi 6-speed series transmission?
Qichi Qichi 6-speed series is an export-oriented transmission lineup with about 17 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Qichi 6-speed series transmission include?
Qichi 6-speed series transmission currently lists about 17 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Qichi 6-speed series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
