WLY10AG160
EXW
Export quote
WLY 10-Speed Series transmission
Main model photos
3 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| WLY10AG160 | — | ||
| WLY10AG120 | — | ||
| WLYWLY10S110TB 10-speed manual transmission | — | ||
| WLYWLY10S110TA 10-speed manual transmission | — | ||
| WLYWLY10S110T 10-speed manual transmission | — |

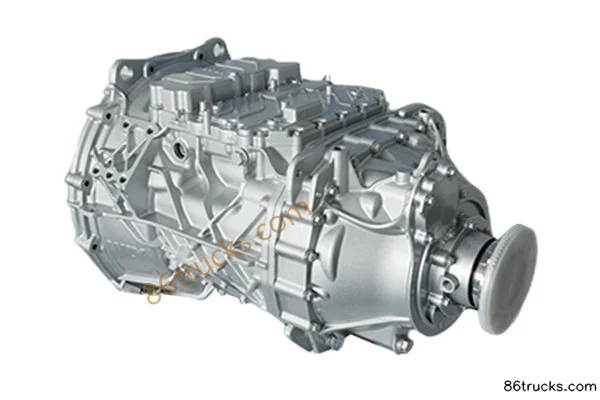

WLY10AG120
EXW
Export quote
WLYWLY10S110TB 10-speed manual transmission
EXW
Export quote
WLYWLY10S110TA 10-speed manual transmission
EXW
Export quote
WLYWLY10S110T 10-speed manual transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: WLY
Transmission series: WLY 10-Speed Series
Features: Twin countershaft + auxiliary box planetary mechanism 5×2 driveline / Twin countershaft, full synchronizer / Twin countershaft, auxiliary box synchronizer
Max input torque: 1600 / 1200 / 900 / 1100 / 1300 / 1500N·m
1st gear ratio: 15.13 / 15.66 / 8.82 / 13.12 / 13 / 7.97
synchronizer: Yes
Main box center distance: 130 / 148.2mm
2nd gear ratio: 11.47 / 11.28 / 6.36 / 8.82 / 7.97 / 5.53
3rd gear ratio: 8.31 / 8.13 / 4.92 / 6.36 / 5.53 / 4.33
4th gear ratio: 5.98 / 5.95 / 4.1 / 4.92 / 4.33 / 3.87
5th gear ratio: 4.57 / 3.32 / 4.1 / 3.2 / 3.87 / 3.36
6th gear ratio: 3.31 / 3.43 / 2.15 / 3.2 / 3.36 / 2.06
7th gear ratio: 2.51 / 2.47 / 1.55 / 2.15 / 2.06 / 1.43
8th gear ratio: 1.82 / 1.78 / 1.2 / 1.55 / 1.43 / 1.12
Reverse Gear 1 Ratio: 14.58 / 13.98 / 6.56 / 13.26 / 13.12 / 8.02
Transmission weight: 215 / 170 / 260 / 315 / 300kg
Transmission oil capacity: 12 / 11 / 9.5 / 13L
9th gear ratio: 1.31 / 1.3 / 1 / 1.2 / 1.12
10-speed gear ratio: 1 / 0.81
Reverse Gear 2 Ratio: 3.2 / 3.06
Number of gears: 10Gear
shift type: AMT manual/auto / Manual
Transmission Model: WLY10AG160 / WLY10AG120 / WLY10S110TB / WLY10S110TA / WLY10S110T / WLY10S110B / WLY10S110A / WLY10S110 / WLY10S150TA / WLY10S150T / WLY10S150A / WLY10S150 / WLY10S130TB / WLY10S130TA / WLY10S130T / WLY10S130B / WLY10S130A / WLY10S130
Forward gears: 10Gear
Number of Reverse Gears: 2 / 1pcs
FAQ
What kind of truck is WLY WLY 10-Speed Series transmission?
WLY WLY 10-Speed Series is an export-oriented transmission lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does WLY 10-Speed Series transmission include?
WLY 10-Speed Series transmission currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for WLY 10-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
