Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck

Export reference

From $46,125

MSRP ¥33.21M CNY

Emission: China V

Fuel: Diesel

Curb Weight:: 13.375ton

Wheelbase:: 1950+4500+1350mm

Tire Size:: 11.00R20,12R22.5

Cab dimensions:: 12×2.6×3.95m

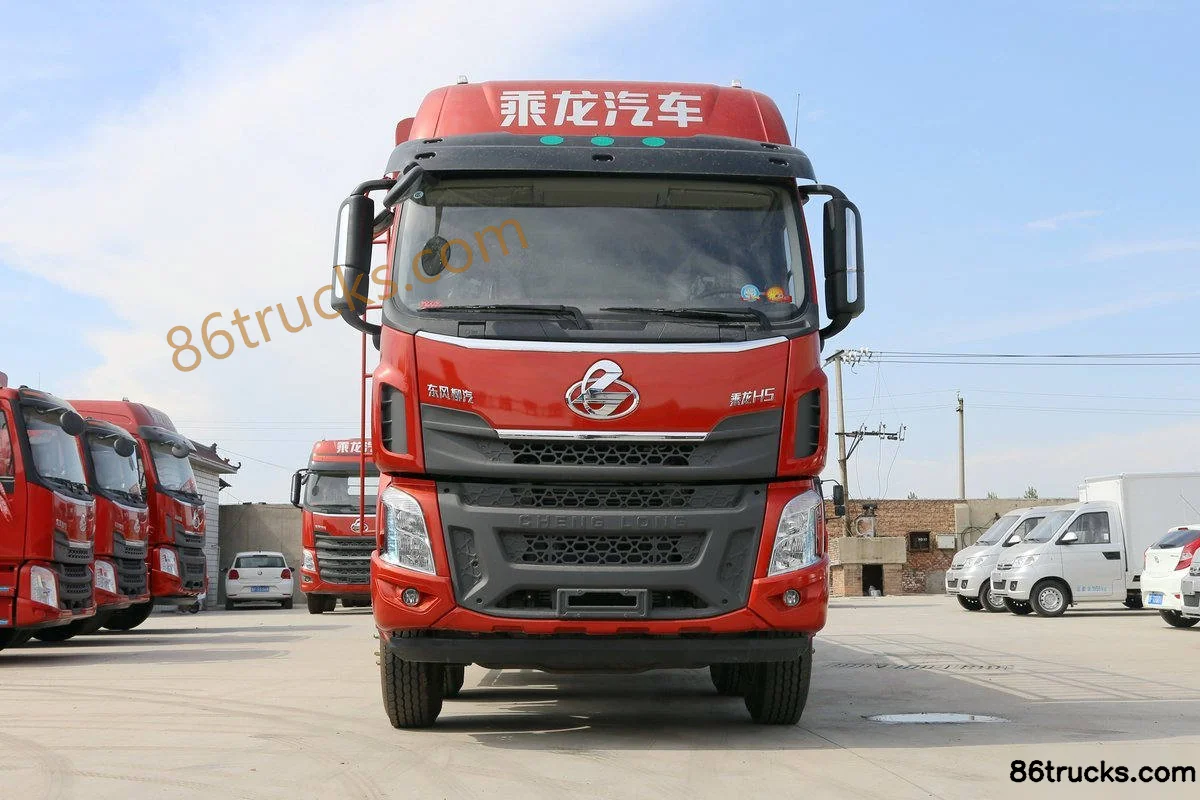

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck exterior

View more photos (1)

Rated payload: 17.495ton

Drive 8X4 (12 wheels)

Cargo box dimensions: 9.4×2.45×2.5m

Horsepower 350

Overview

The Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck is a Refrigerated Truck featuring 9.4×2.45×2.5m cargo body, 17.495t payload, 12×2.6×3.95m cab and 1950+4500+1350mm wheelbase. On the powertrain side, it comes with 350 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Cab dimensions: 12×2.6×3.95m

Drive type: 8X4

Truck Type: Refrigerated Truck

Vehicle origin: Guangxi

Wheelbase: 1950+4500+1350mm

Front track width: 2020/2020mm

rear track: 1860/1860mm

Curb Weight: 13.375ton

Rated payload: 17.495ton

Max. speed: 90km/h

Front/rear suspension: 1.512/2.688m

Energy Type: Diesel

Engine parameters

Injection System: Common Rail

Engine Model: WeichaiWP10.350E53

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 9.726L

Emission standard: China V

Max output power: 257kW

Max hp: 350Horsepower

Max torque: 1600N·m

Rated speed: 1900rpm

Engine Type: Inline

Cargo box parameters

Cargo box dimensions: 9.4×2.45×2.5m

Cargo box width: 2.45m

Cargo box height: 2.5m

Body Parameters

Vehicle certification code: LZ5310XLCH7FB

Body Brand: DongfengLiuqi

Chassis Specs

Chassis Brand: DongfengLiuqi

Chassis Series: ChenglongH5

Chassis Model: LZ1310H7FBT

Front axle description: 2*5.5T

Steering gear: Domestic

rear axle description: 2*440

Axle ratio: 4.1

Leaf spring count: 3/3/4

Aluminum wheels:

clutch: Φ430

Transmission Parameters

Number of gears: 12Gear

Transmission Model: Fast Gear12JSD160TA

Tire

Tire Size: 11.00R20,12R22.5

Number of tires: 12pcs

Control configuration

ABS:

Stability control system:

Brake assist (EBA/BAS/BA etc.):

Traction Control (ASR/TCS/TRC etc.):

Power steering:

EBS electronic braking system:

Rear Axle Lift:

Inter-axle Differential Lock:

clutch booster:

Load-sensing proportioning valve (SABS):

automatic slack adjuster:

interior configuration

Steering Wheel Material: leather

steering wheel adjustment: pneumatic

Multifunction steering wheel:

AC control type: Automatic

Onboard Refrigerator:

Independent Heater:

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Power interface:

Reverse Radar:

Seat material: leather

Reverse Camera:

Remote key:

Electronic Central Lock:

lighting configuration

LED headlight:

Front fog lamp:

daytime running lights:

Headlight height adjustment:

LED taillight:

Halogen Headlights:

Exterior features

Air deflector:

Aluminum air tank:

Diesel primary filter heating:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

Bluetooth / hands-free calling:

Radio:

Service brake

Brake Type: Air brake

Exhaust brake:

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

smart configuration

Telematics System:

Cruise control (CCS):

Forward Collision Warning (FCW):

Emergency Brake Assist (EBA):

Lane Keeping Assist System (B.LKA):

adaptive cruise control (ACC):

Tire Pressure Monitoring System (TPMS):

Lane change assist (ALC):

Fatigue driving monitoring:

Photos

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck, and what does it include?

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck export reference is about From $46,125; MSRP is ¥33.21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck?

Key specs of Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck: Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck suited for?

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck belongs to Dongfeng H5 Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 350 hp 8X4(12 wheels) 9.4m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
