Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.7m³ Concrete Mixer Truck (Dongyue Brand)

Export reference
From $60,417
MSRP ¥43.5M CNY
Fuel: Diesel
Curb Weight:: 14ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 9.8×2.55×4m
Truck Type:: Concrete mixer truck
Rated payload: 16.87ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Zhongtong Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.7m³ Concrete Mixer Truck (Dongyue Brand) is a concrete mixer truck featuring 16.87t payload, 14ton GVW, 8X4 (12 wheels) drive and TX-W cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.8×2.55×4m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Liaocheng, Shandong
Front/rear track width: Front track: 2035/2035mm; Rear track: 1850/1850
Wheelbase: 1800+3050+1350mm
Curb Weight: 14ton
Rated payload: 16.87ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.17m
Body Parameters
Mixing drum capacity: 7.7m³
Vehicle certification code: ZTQ5318GJBZ7N30E
Body Brand: Dongyue brand
Engine parameters
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Rated speed: 2300rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: HOWO T5G
Chassis Model: ZZ1317N306GE1
Front axle description: H653
Frame Dimensions: (8+5/300)mm
rear axle description: MAT16ZG
Axle ratio: 5.73
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Cab parameters
Cab: TX-W
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

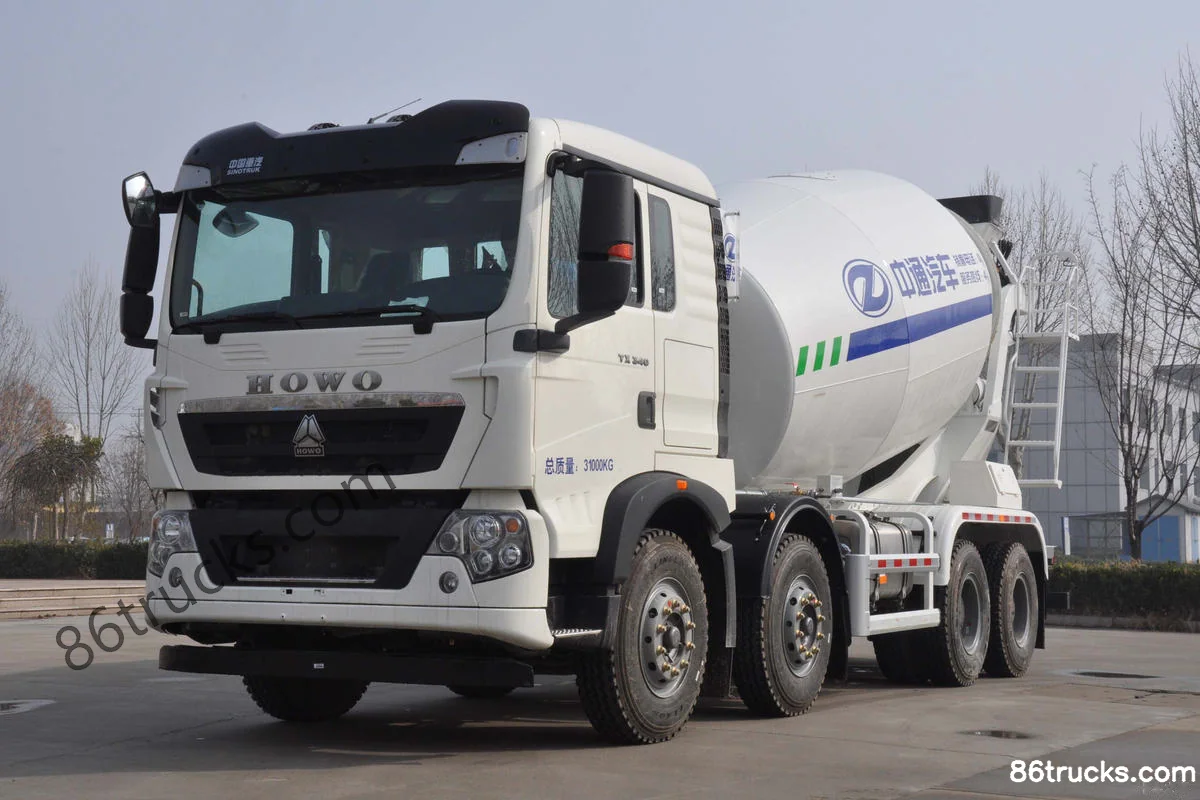

Exterior1
